Description
| Range | Clipsal Solis T Series |
|---|---|
| Product or component type | Switched socket |
| Product brand | Clipsal |
| Assembly Type | Complete product |
| Colour tint | Living brass/ Ebony Aluminium/ Ceramic White |
| Protection | Shuttered |
| Main colour tint | Living brass/ Ebony Aluminium/ Ceramic White |
| Control type | Rocker |
|---|---|
| Number Of Outlets | 2 |
| Socket-outlet type | Double socket-outlet |
| Mounting Type | Screw |
| Installation Type | Flush |
| Installation Orientation | Horizontal |
| Material | Brass/ Aluminium |
| Surface finish | Metallic |
| [Ue] rated operational voltage | 230/240 V AC |
| Network frequency | 50 Hz |
| [In] rated current | 10 A |

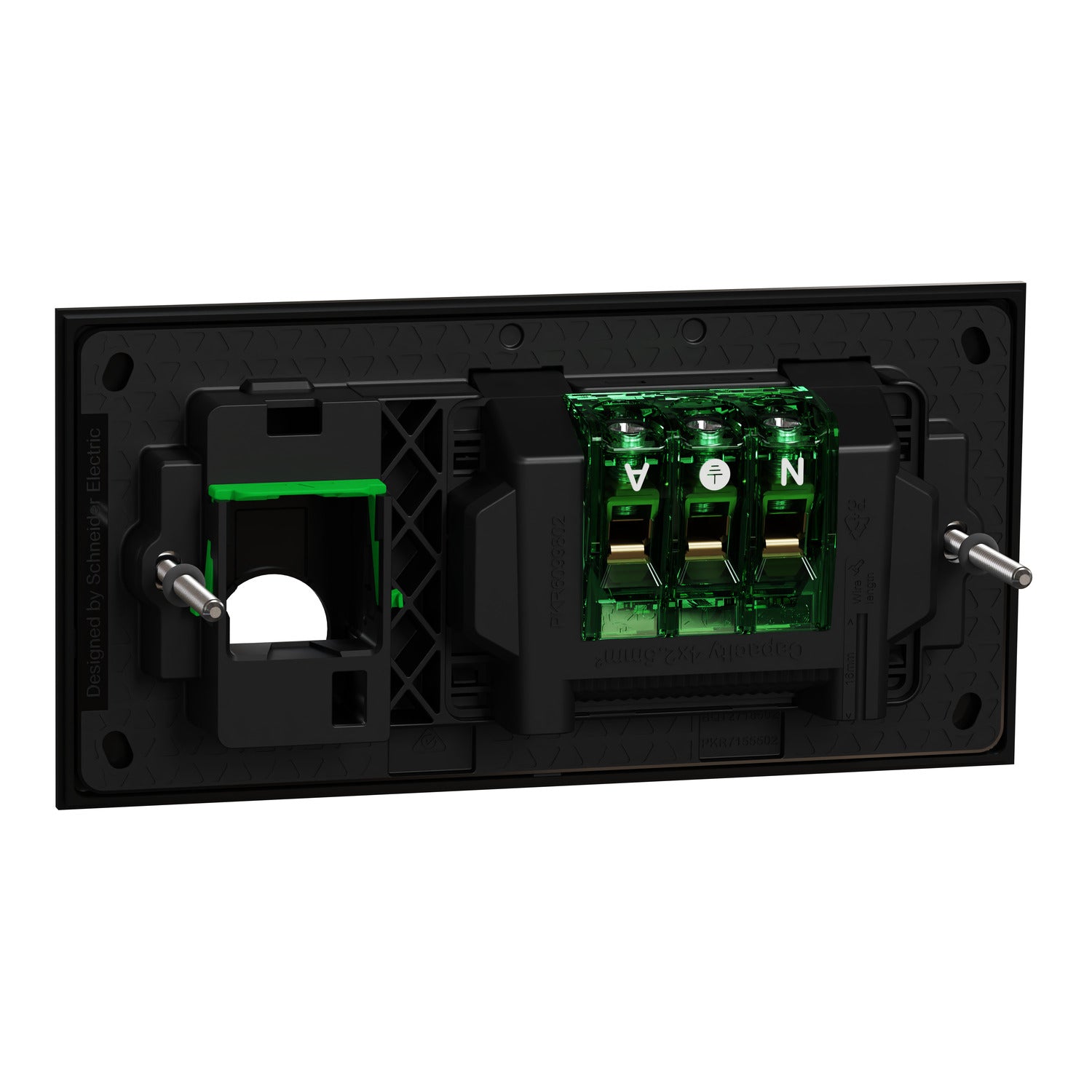

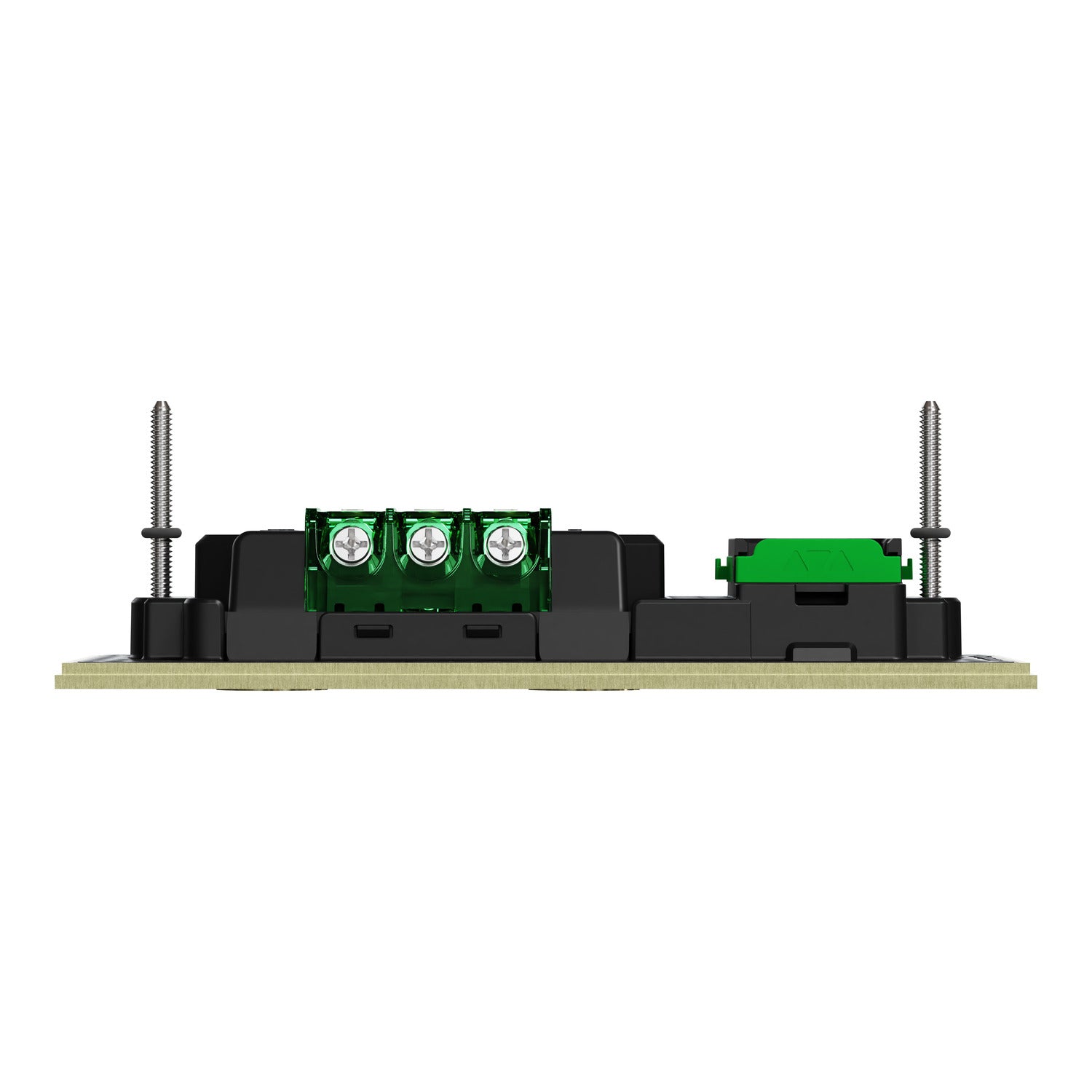

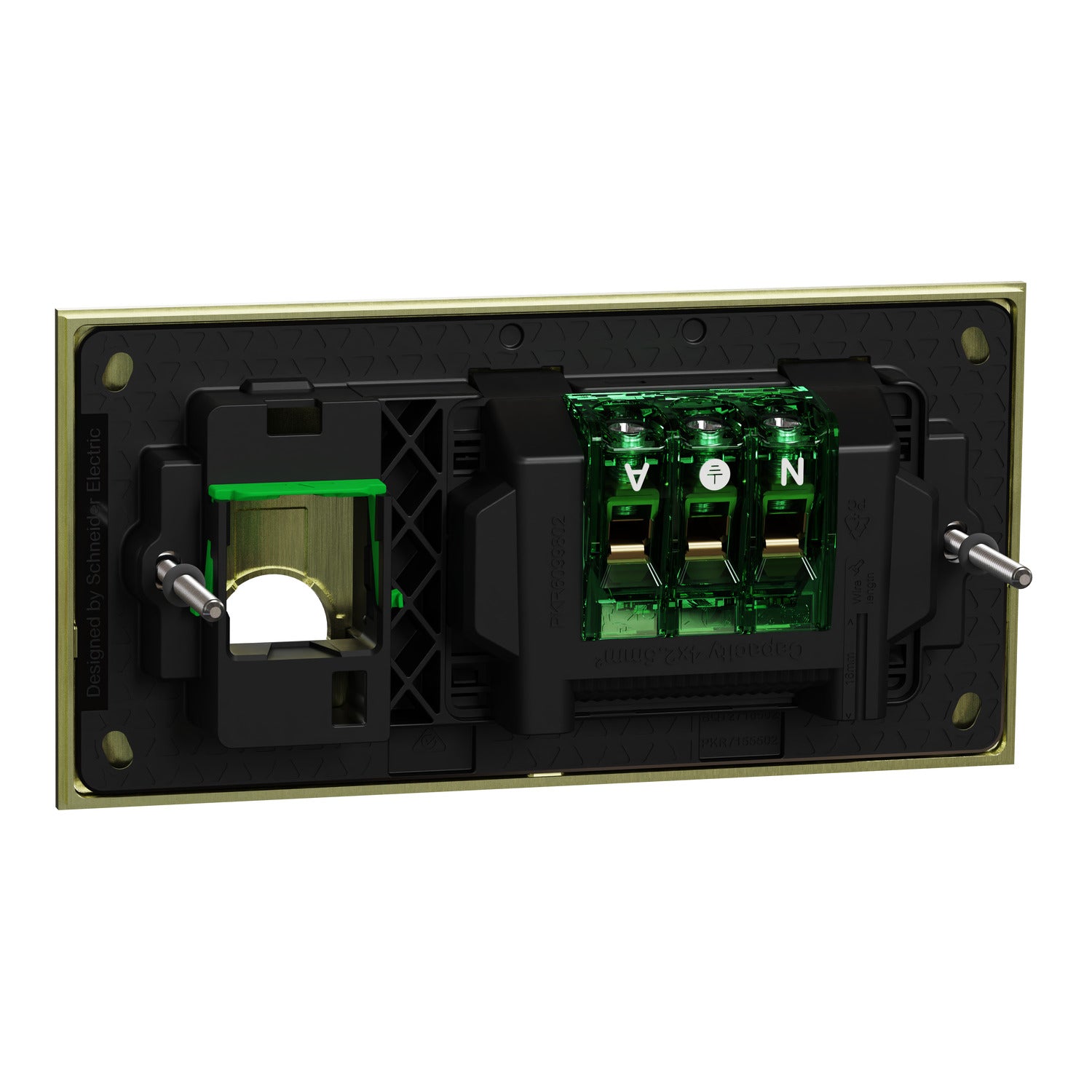

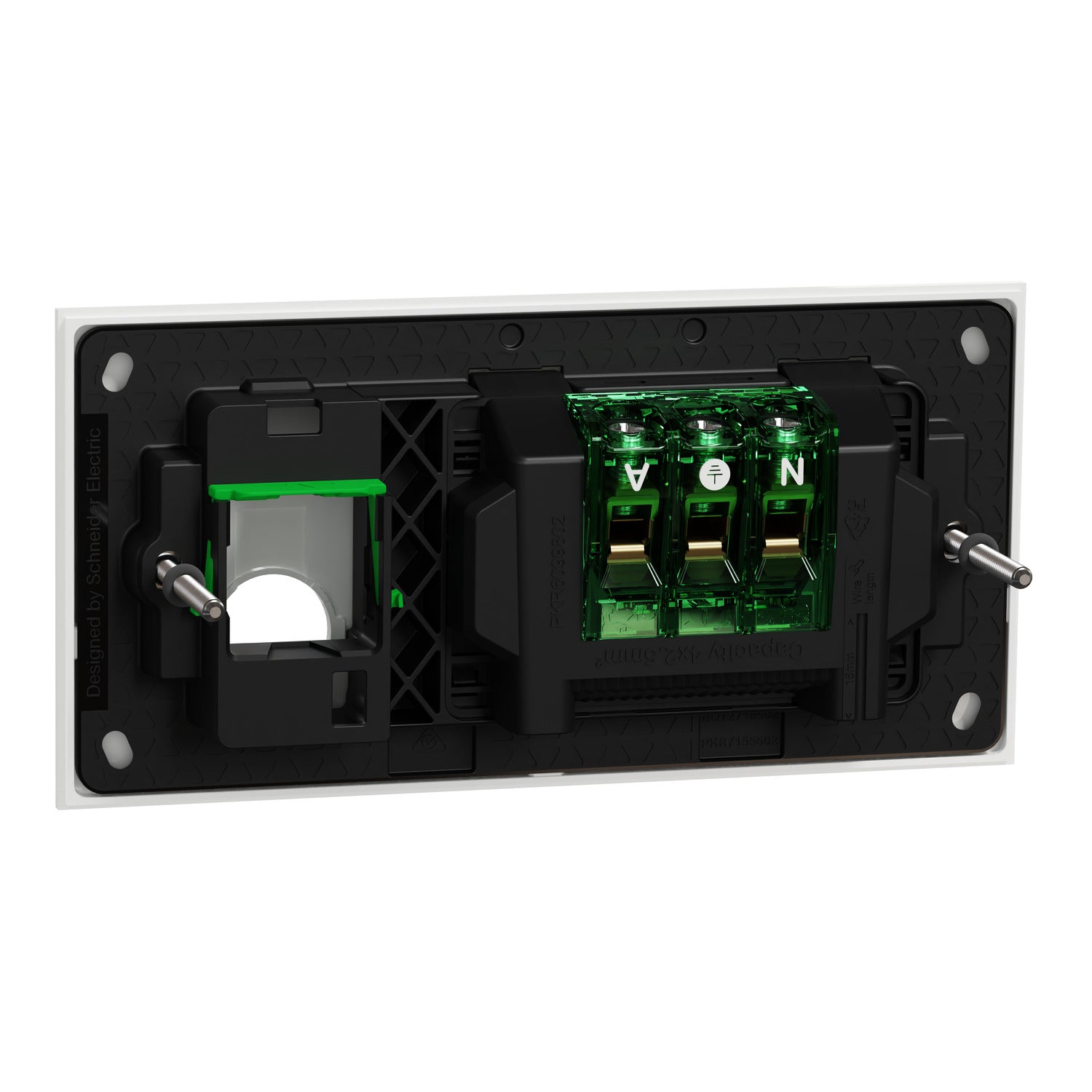

| Connections - terminals | 4 x 2.5 mm² screw terminals 3 x 4 mm² screw terminals |
| Embedding depth | 23.5 mm |
| Depth | 27.4 mm |
| Height | 74 mm |
| Width | 148 mm |
| Mounting Centers | 120 mm |
| Cut-out dimensions | 130 x 50 mm |
| surface treatment | Painted |
| Screwdriver shape | Philips No 2 Square drive no 1 (SQ1) |
| Wire stripping length | 16 mm |
| Number of power socket outlets | 2 x 2P + E, Australian/New Zealand |
| Cover Thickness | 3.9 mm |
| Number Of Switches | 2 |
| Product certifications | RCM |
|---|---|
| Standards | AS/NZS 3112 |
| Relative humidity | 10…95 % |
| Ambient air temperature for operation | 0…45 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 15.5 cm |
| Package 1 Width | 6 cm |
| Package 1 Length | 8 cm |
| Package 1 Weight | 272 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 40 |
| Package 2 Height | 32.5 cm |
| Package 2 Width | 25 cm |
| Package 2 Length | 41 cm |
| Package 2 Weight | 11.26 kg |
