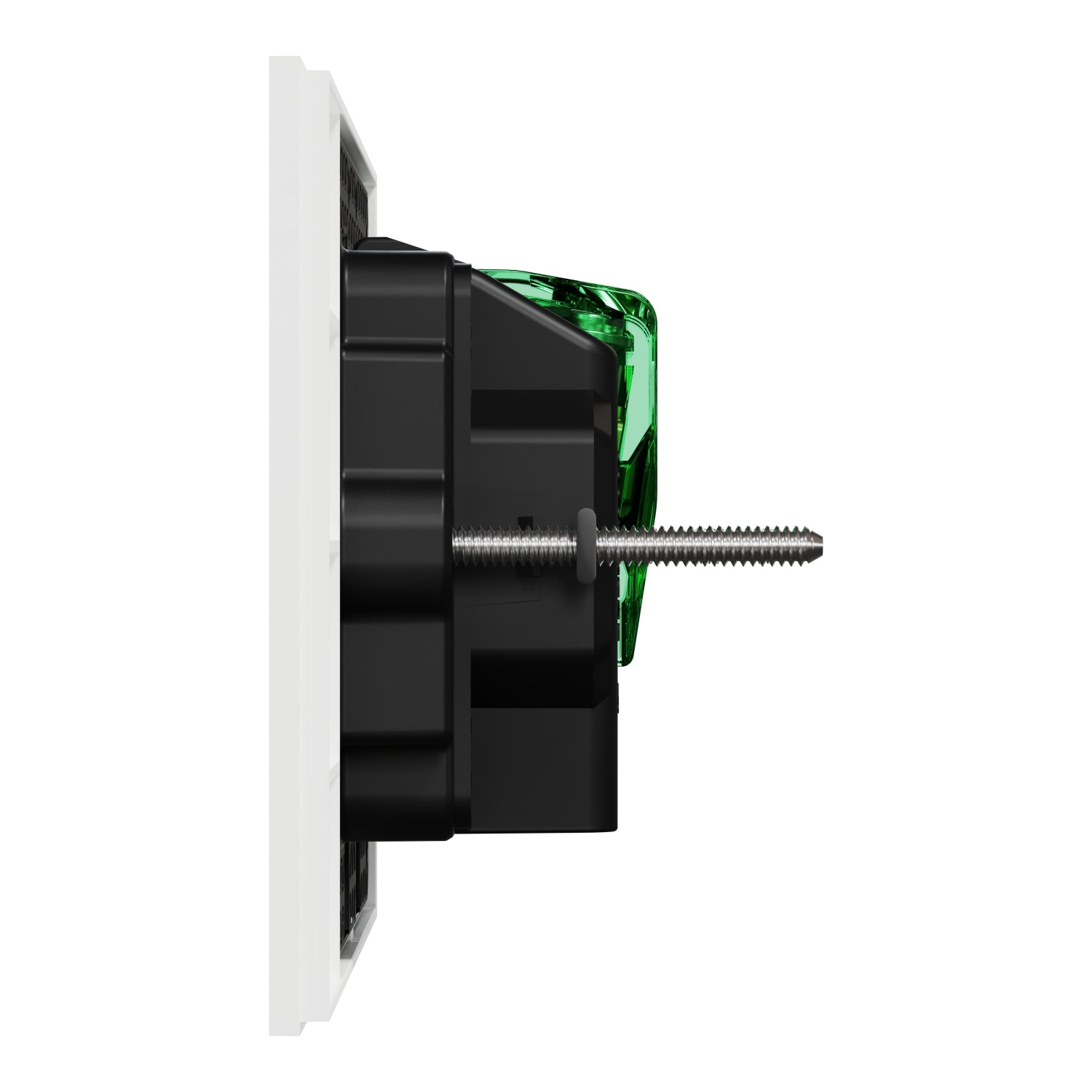

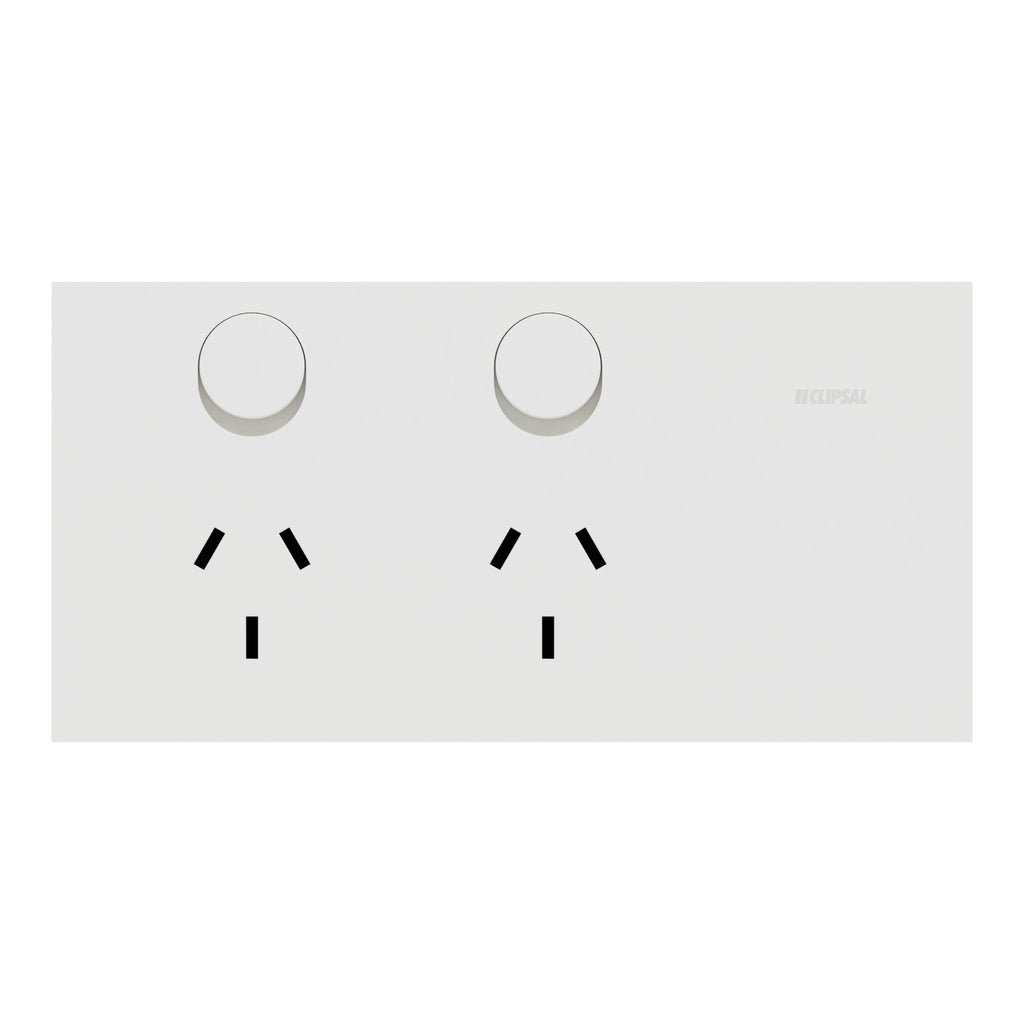

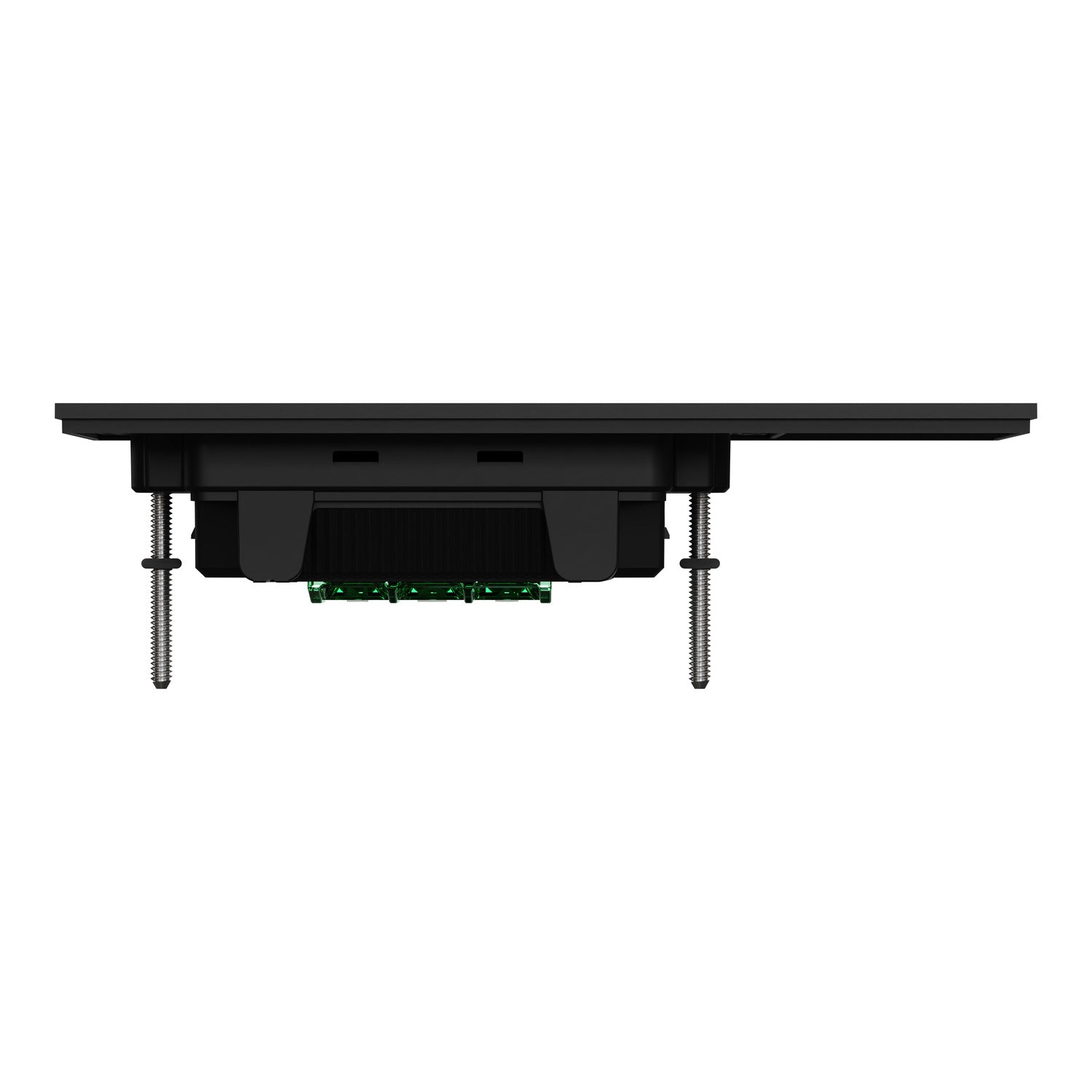

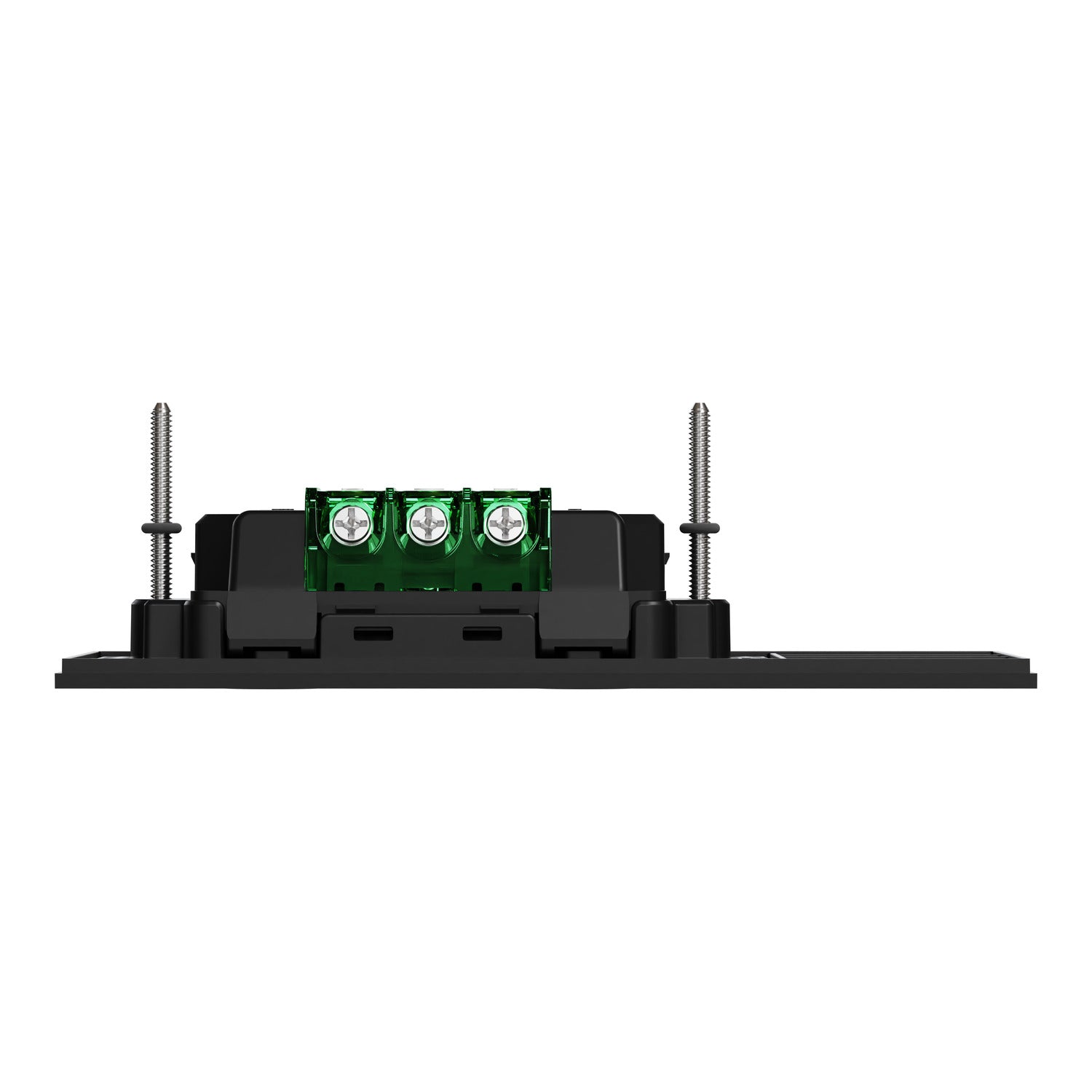

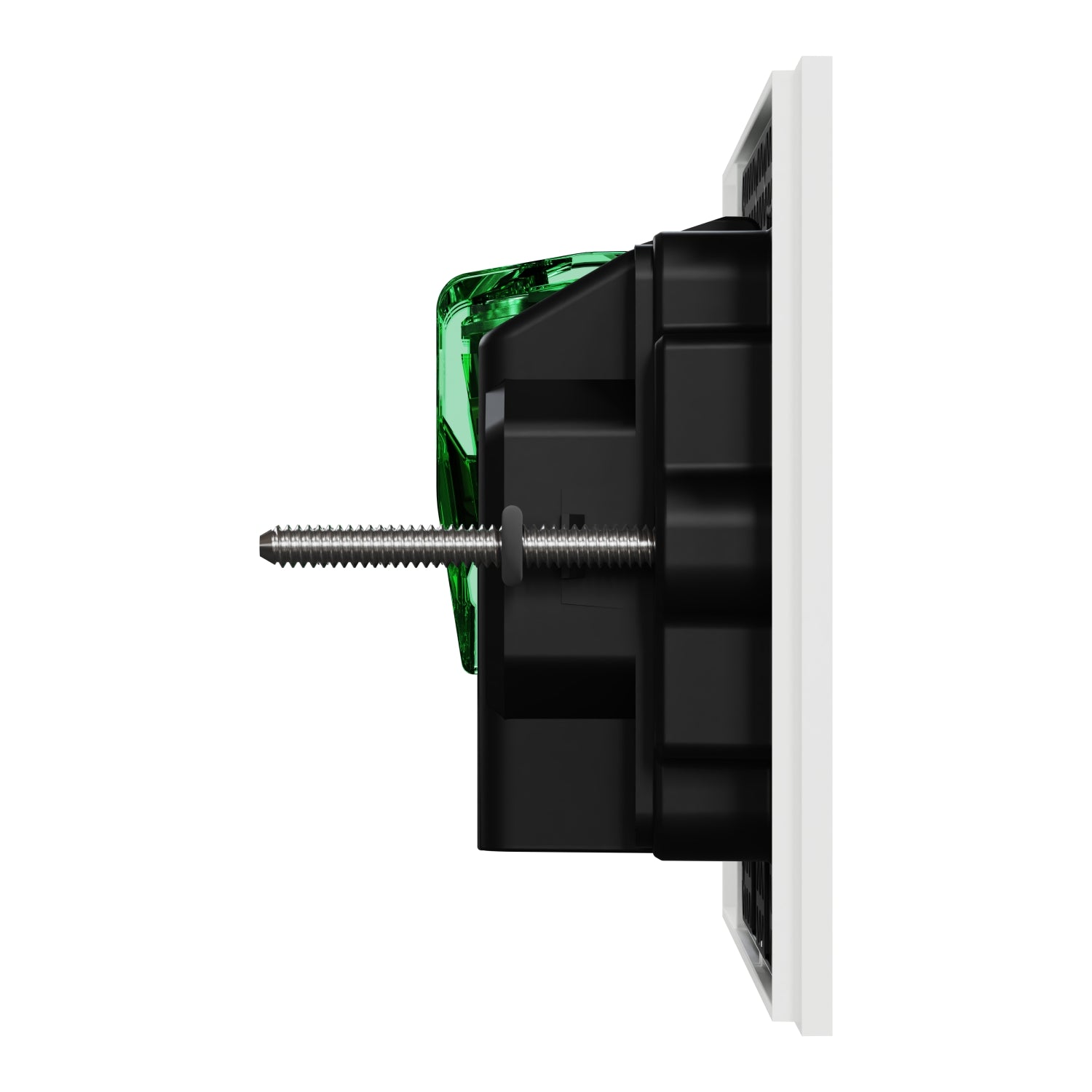

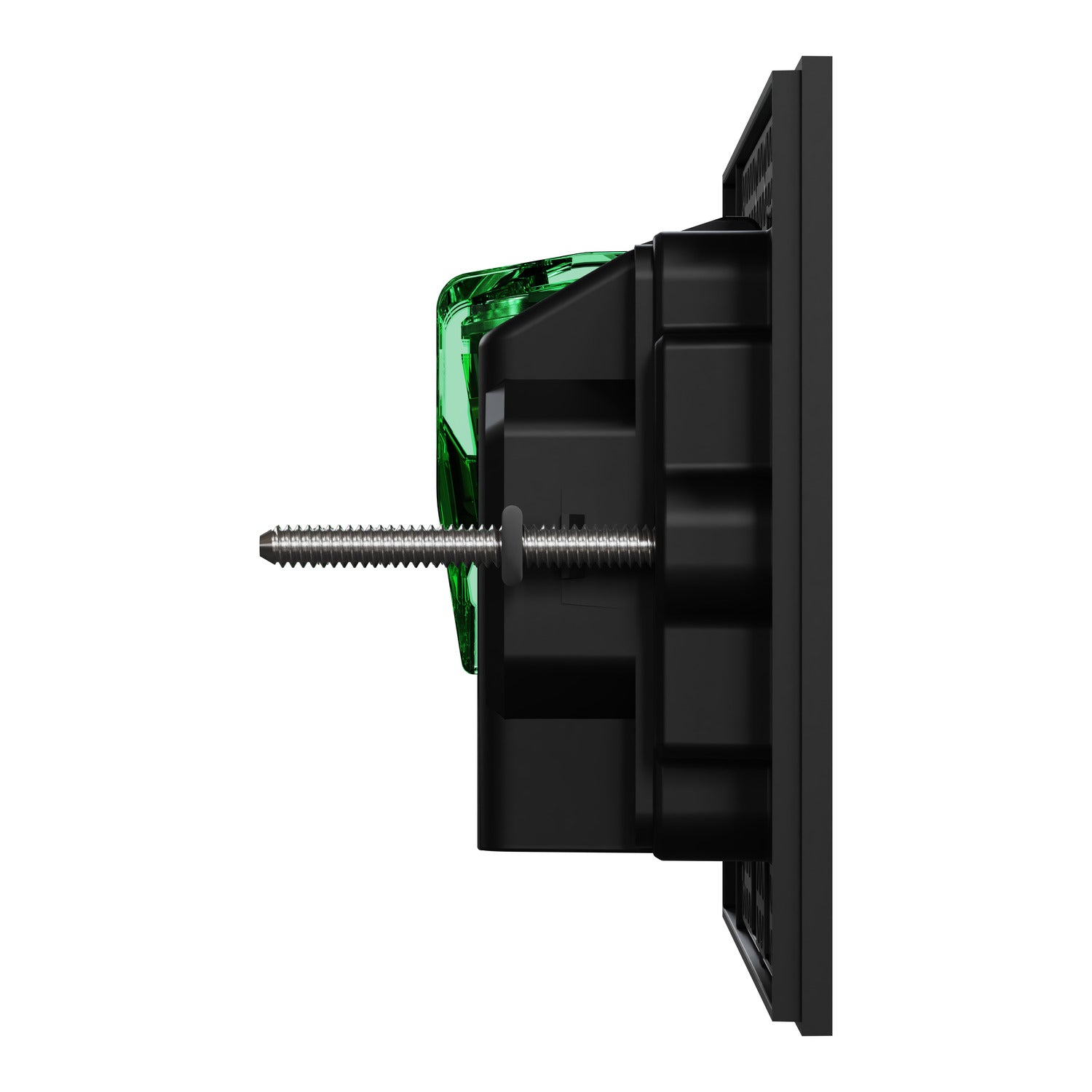

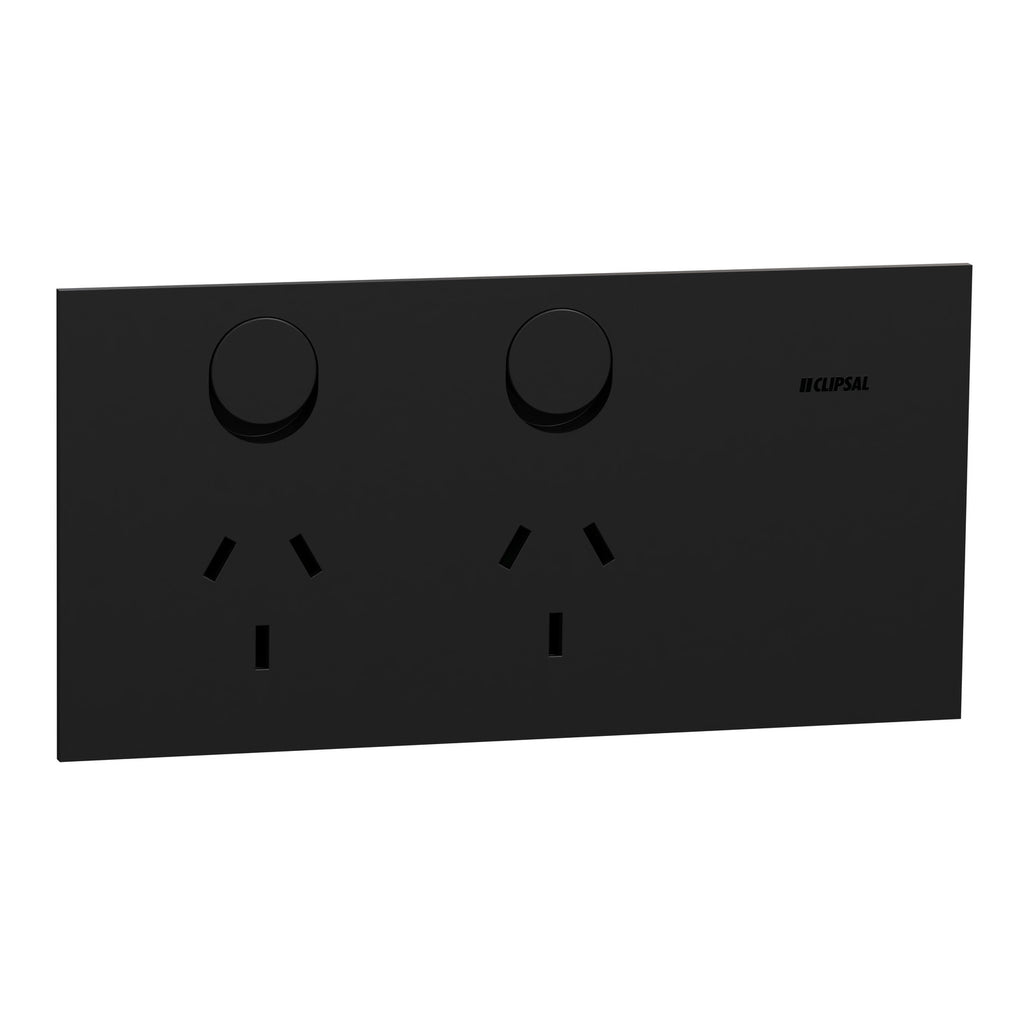

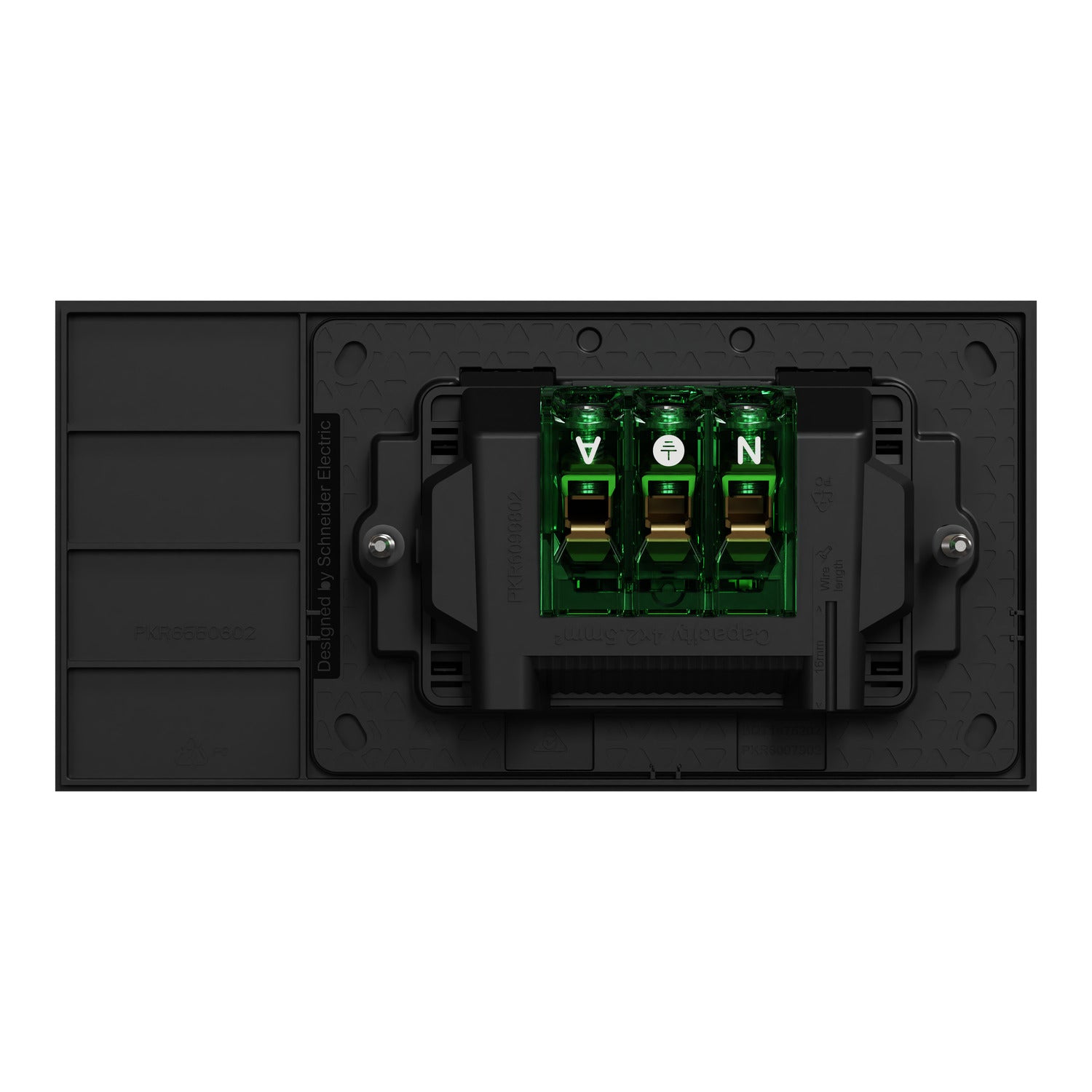

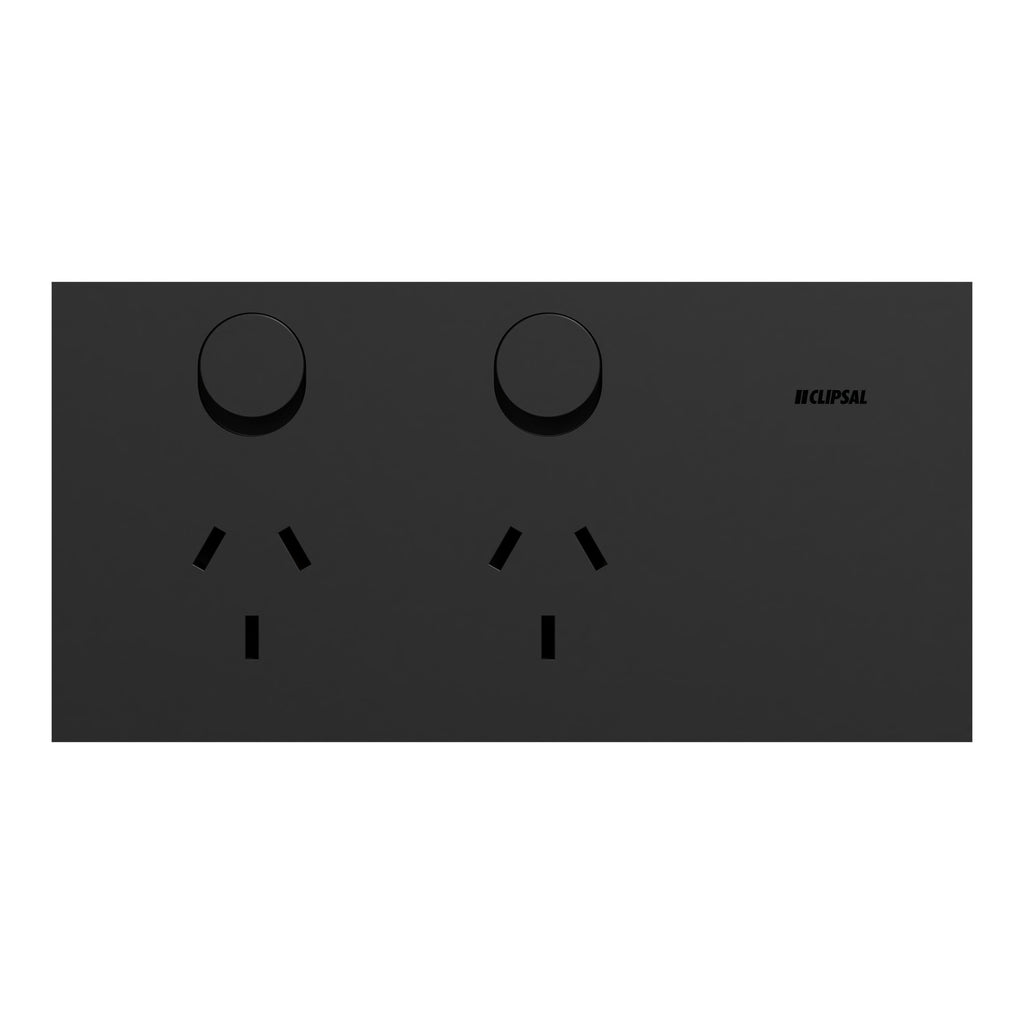

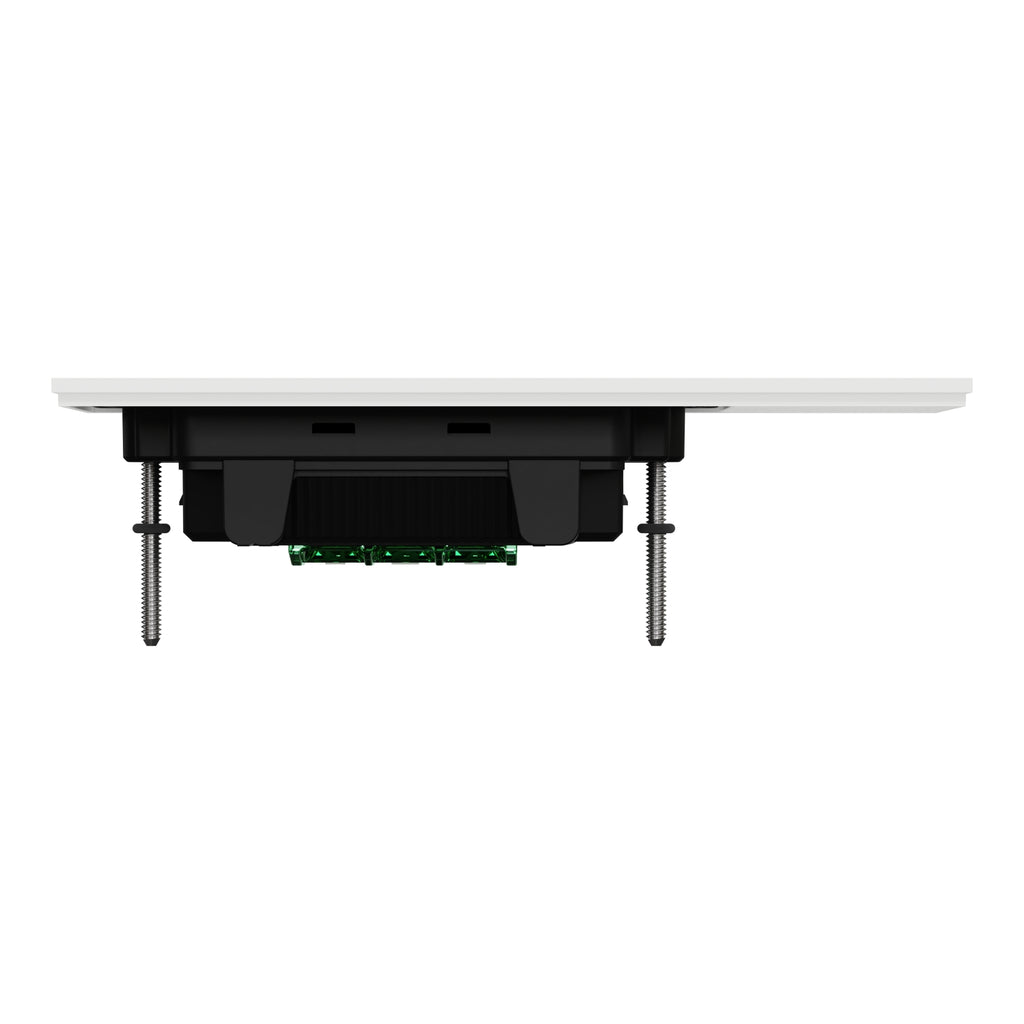

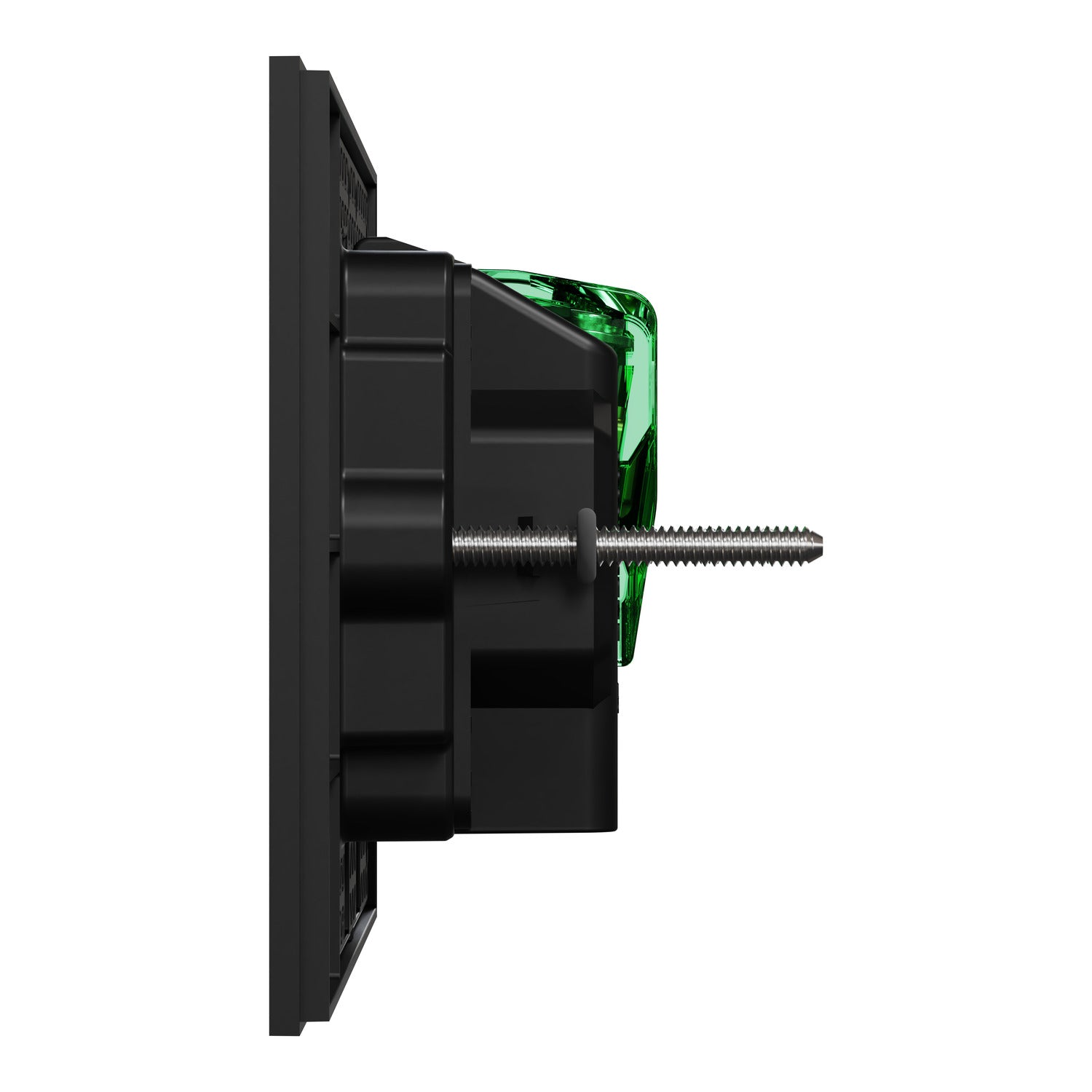

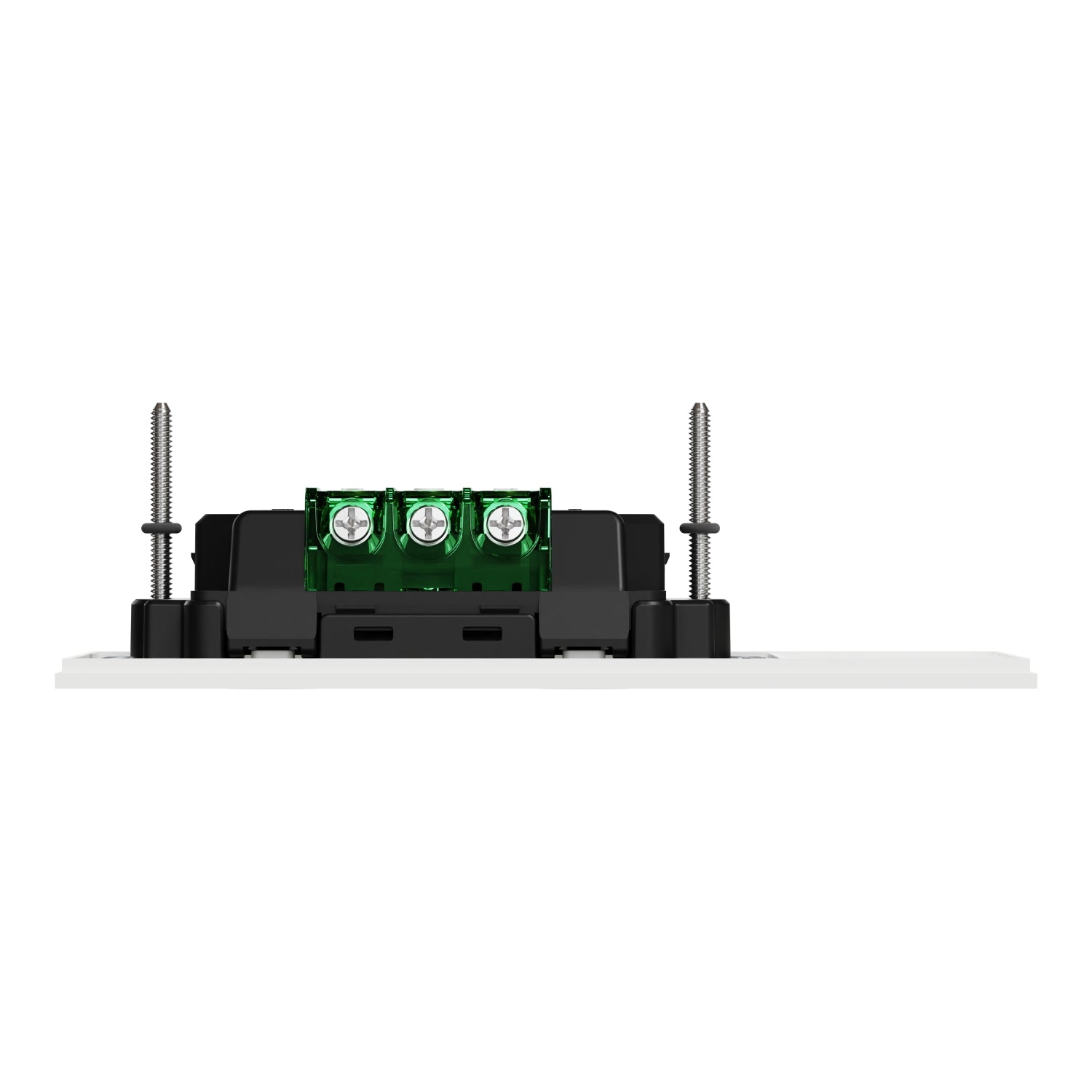

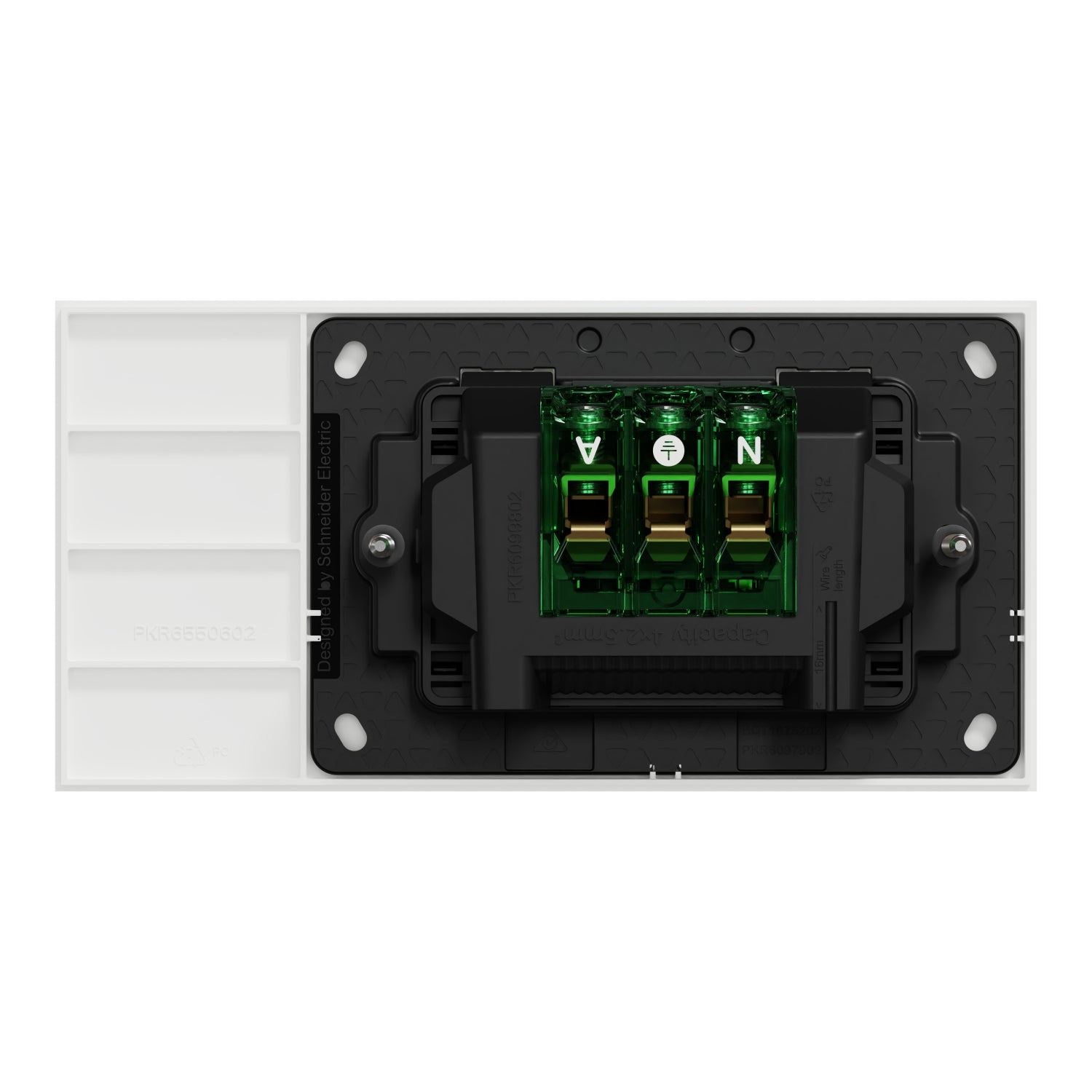

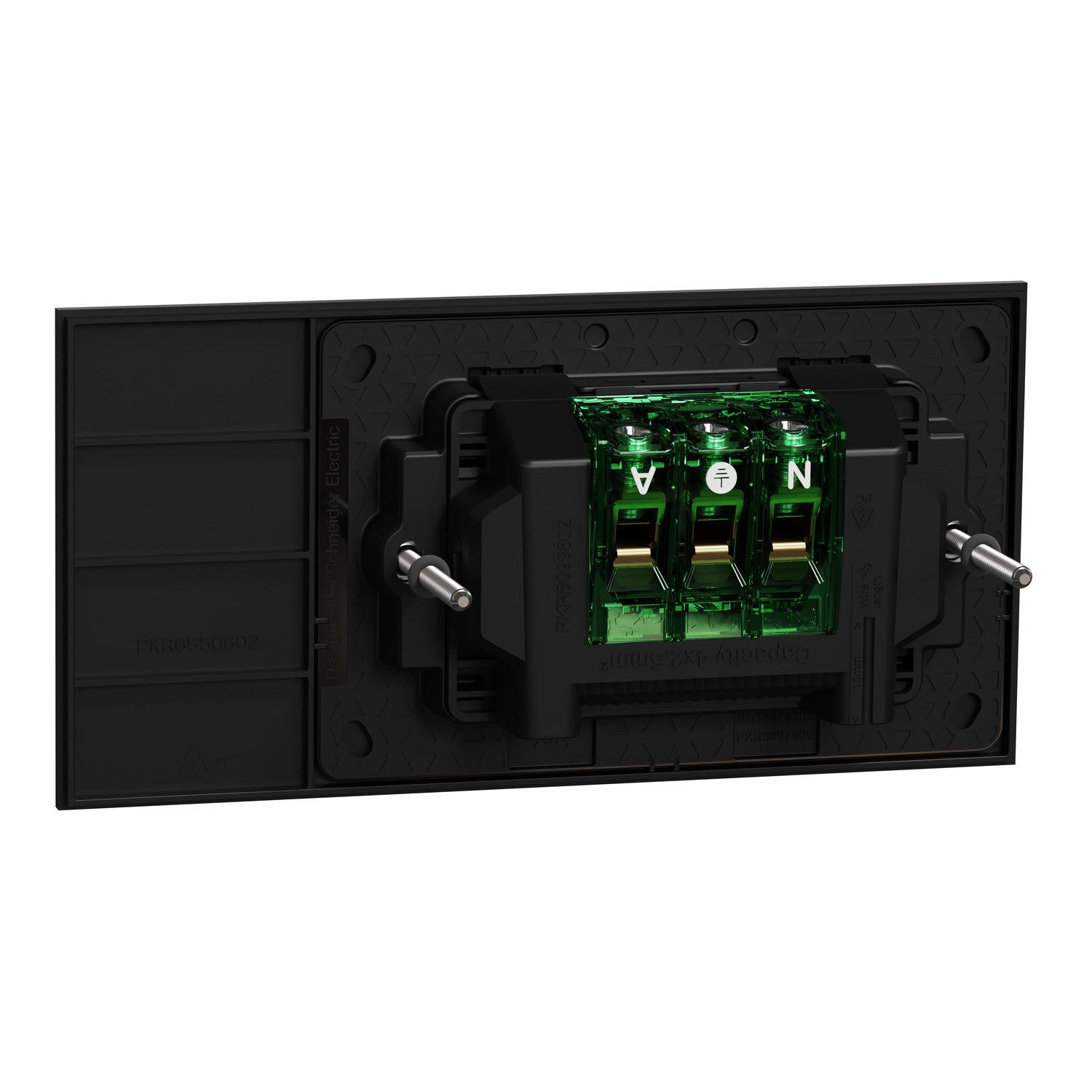

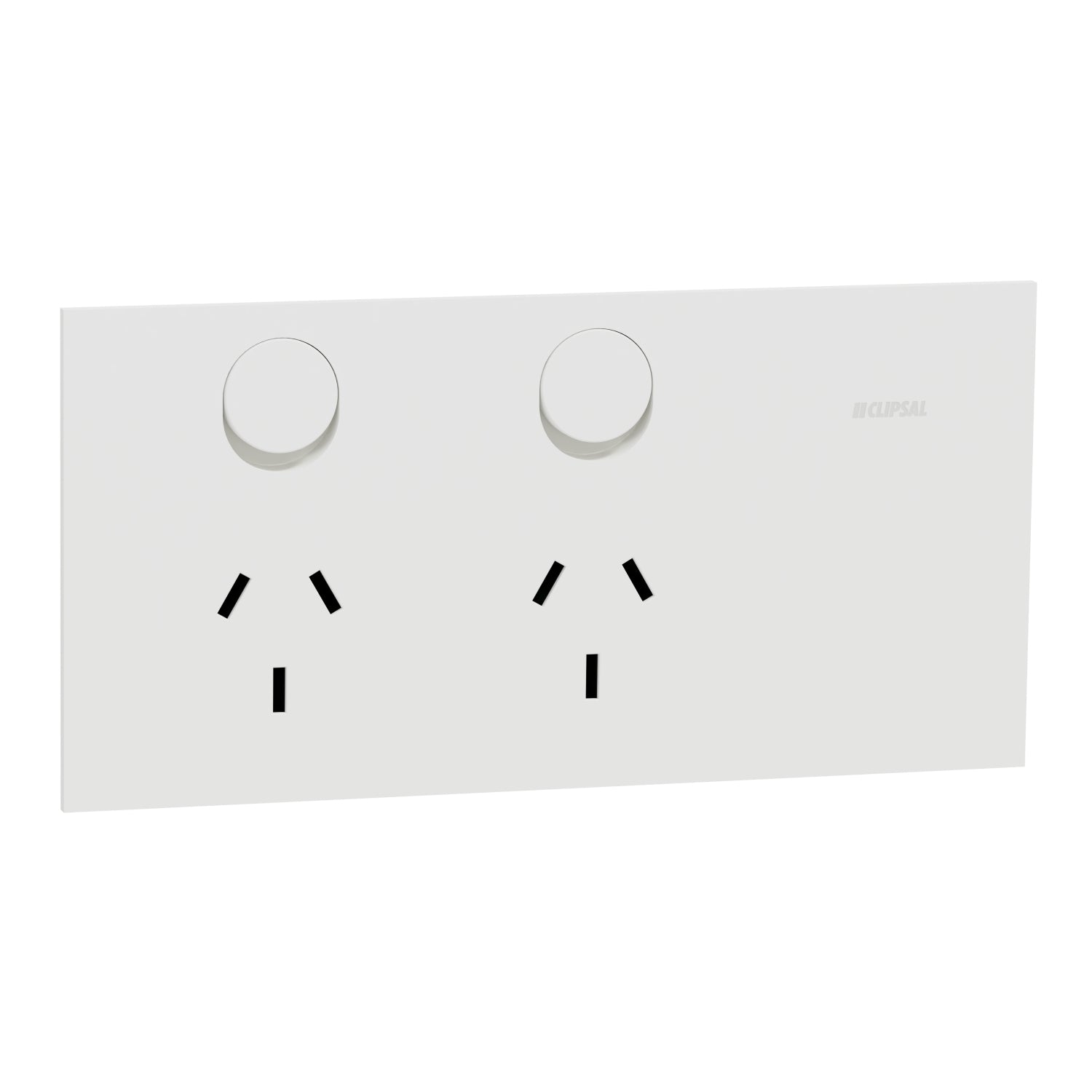

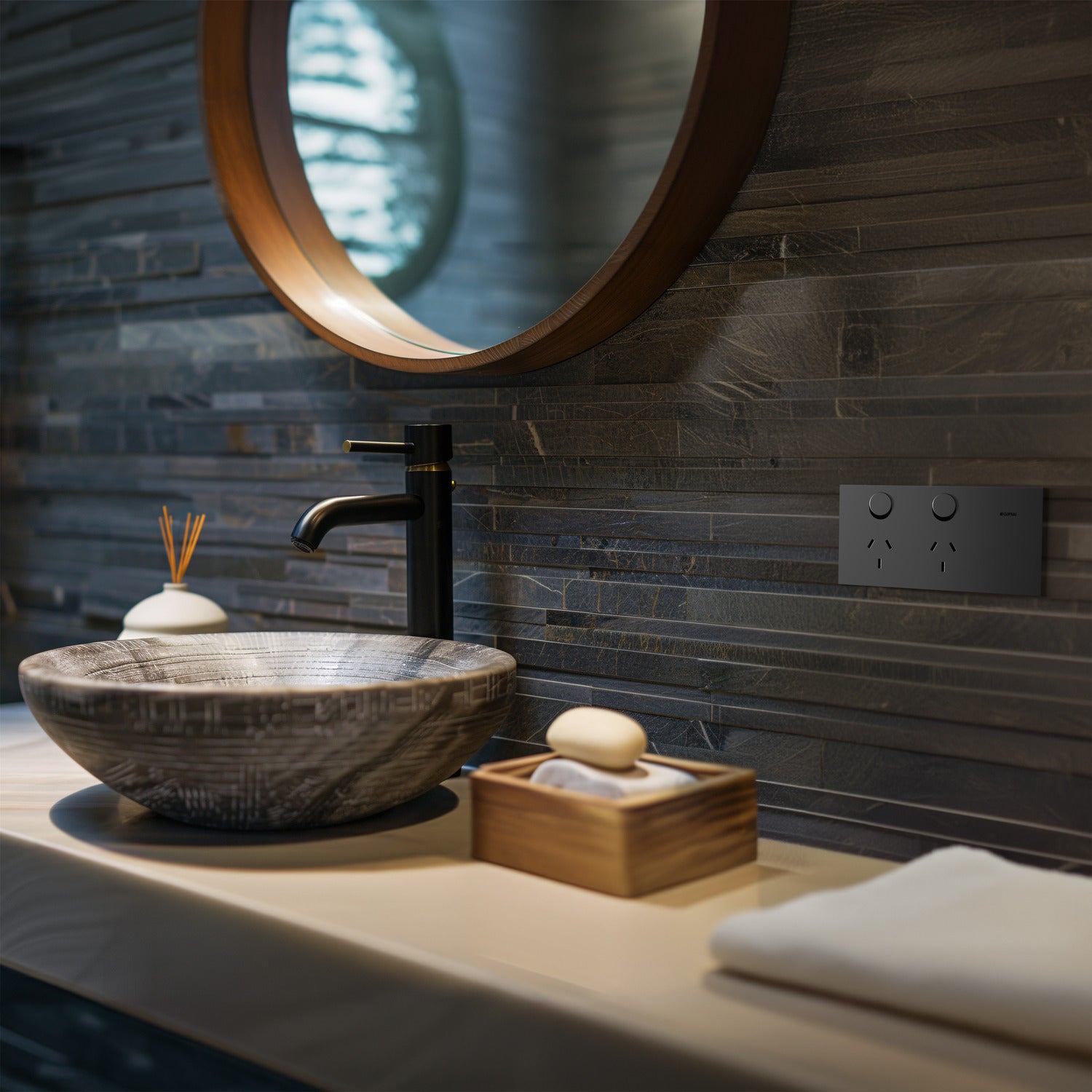

The Solis double-switched socket by Clipsal is suitable for residential, commercial, and hotel applications. This socket outlet is designed to meet Australian/New Zealand standards and has a 2P + E pole configuration. The rated current is 10A and the rated operational voltage is 230/240VAC. The device comes with a screw terminal that offers a more secure connection for larger wires, reducing the risk of loose wires caused by external factors. This device allows for flush mounting. Screws are available for installation. The socket has a shutter that prevents the insertion of objects other than plugs for safety purposes. It is intended to be installed horizontally only. The dimensions are (W) 148mm x (H) 74mm x (D) 28mm, and the embedding depth is 23.5mm. Discover the perfect fit with a 84mm fixing center and 5mm thickness for seamless integration into your projects. The color of the product is matt black. Its operating temperature is from 0°C to 45°C. The Clipsal Solis range now offers a choice of contemporary white and black finishes for modern home spaces. Create aesthetically pleasing electrical designs that complement your style.
Main
| Range |
Clipsal Solis |
| Product or component type |
Switched socket |
| Product brand |
Clipsal |
| Assembly Type |
Complete product |
| Colour tint |
Matt black |
| Protection |
Shuttered |
| Main colour tint |
Matt black/ Matt White |
Complementary
| Control type |
Rocker |
| Number Of Outlets |
2 |
| Socket-outlet type |
Double socket-outlet |
| Mounting Type |
Screw |
| Installation Type |
Flush |
| Installation Orientation |
Horizontal |
| Material |
Plastic |
| Surface finish |
Matt |
| [Ue] rated operational voltage |
230/240 V AC |
| Network frequency |
50 Hz |
| [In] rated current |
10 A |

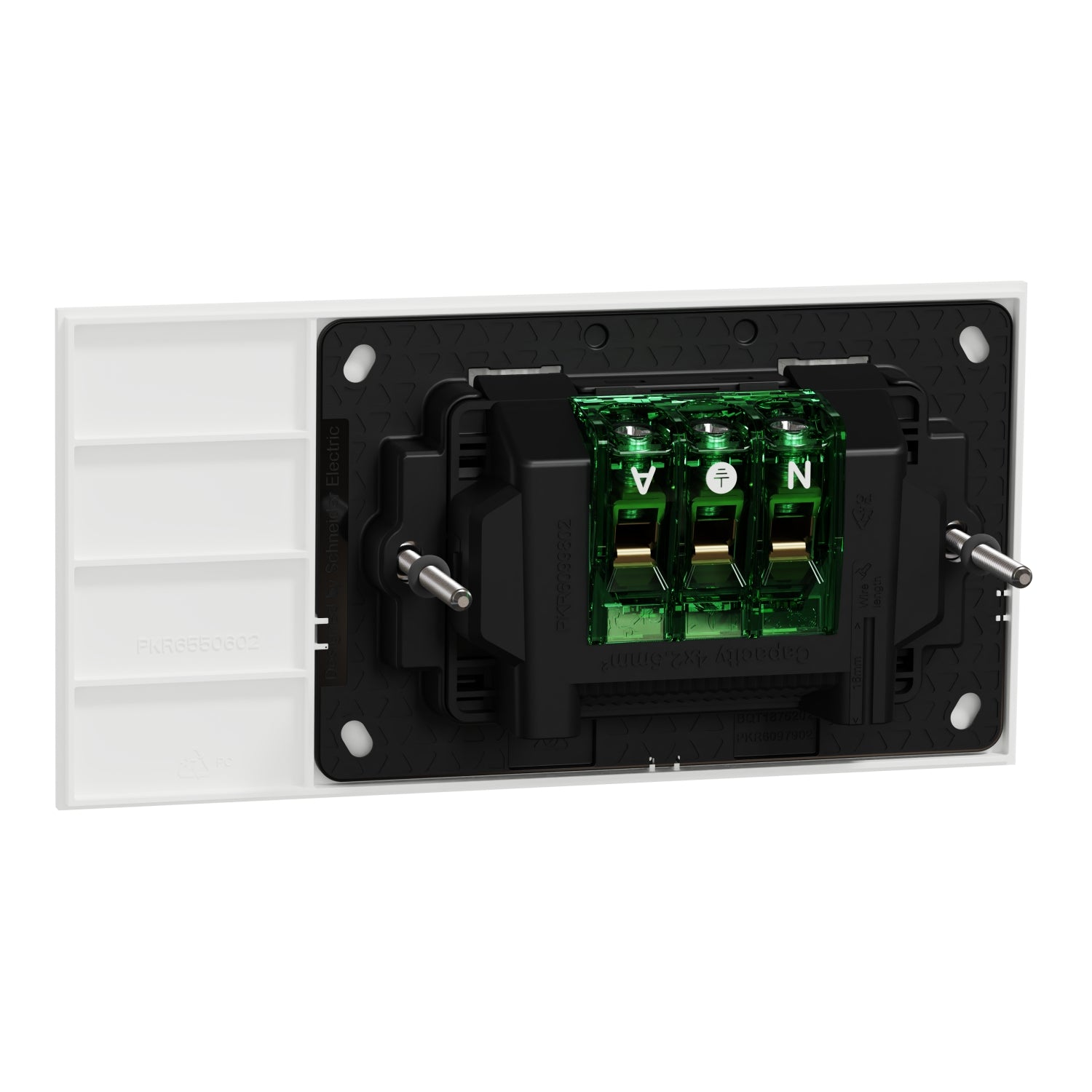

| Connections - terminals |
4 x 2.5 mm² screw terminals
3 x 4 mm² screw terminals |
| Embedding depth |
23.5 mm |
| Depth |
28 mm |
| Height |
74 mm |
| Width |
148 mm |
| Mounting Centers |
84 mm |
| Cut-out dimensions |
93 x 50 mm |
| surface treatment |
Painted |
| Screwdriver shape |
Philips No 2
Square drive no 1 (SQ1) |
| Wire stripping length |
16 mm |
| Number of power socket outlets |
2 x 2P + E, Australian/New Zealand |
| Cover Thickness |
4.5 mm |
| Number Of Switches |
2 |
Environment
| Product certifications |
RCM |
| Standards |
AS/NZS 3112 |
| Relative humidity |
10…95 % |
| Ambient air temperature for operation |
0…45 °C |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
15.5 cm |
| Package 1 Width |
6 cm |
| Package 1 Length |
8 cm |
| Package 1 Weight |
150 g |
| Unit Type of Package 2 |
CAR |
| Number of Units in Package 2 |
40 |
| Package 2 Height |
32.5 cm |
| Package 2 Width |
25 cm |
| Package 2 Length |
41 cm |
| Package 2 Weight |
6.38 kg |
