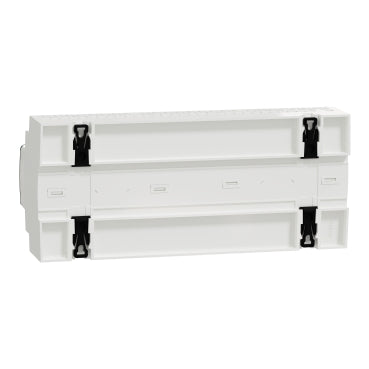

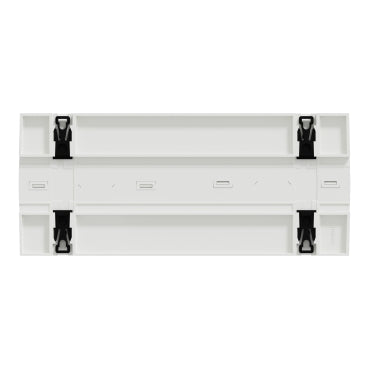

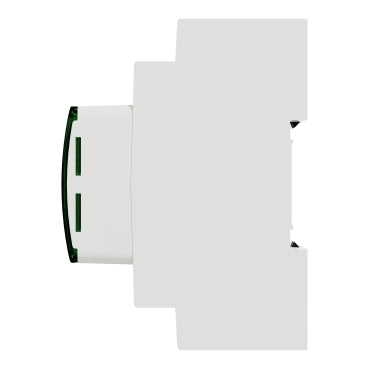

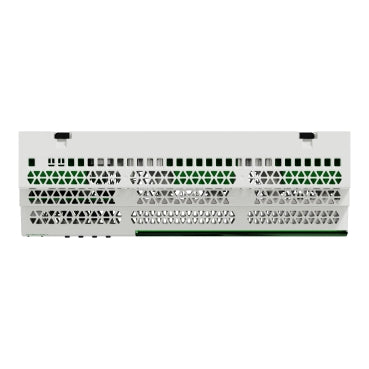

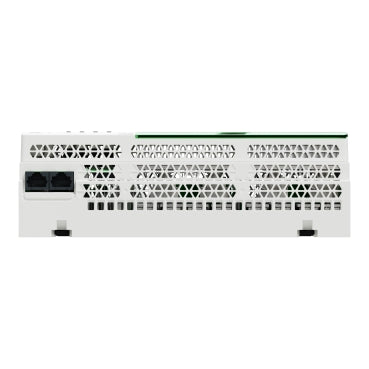

This Schneider Electric SpaceLogic C-Bus digital dimmer is a phase cut dimmer.
- It is a 4 channel 2A dimmer.
- The digital dimmer has both trailing edge and leading edge dimming mode which can be adjustable per channel to suit the load types connected.
- It has inbuilt selectable C-Bus power supply.
- The digital dimmers require SpaceLogic C-Bus Commission software for commissioning.
- Its Ue operating voltage of 110-230 VAC with 50-60 Hz.
- It is compatible with dimmable LED lamps and luminaires, incandescent/ halogen lamps, halogen lamps with electronic transformers, halogen lamps with dimmable iron core transformers.
- It has a 12M compact size and is mounted horizontally on DIN rail The dimensions are (W) 216mm x (H) 92mm x (D) 63mm.
- The colour of this dimmer is white.
- Made of thermoplastic material.
The operating temperature is from -5°C up to +55°C with derating with 10% to 93% relative humidity. The digital dimmer provides fully customizable dimmer channel lamp profiles and dimming curves unique to each channel. It offers advanced diagnostic and status information and built-in protections for device longevity
Replaces: L5504D2AP
Main
| Range |
C-Bus |
| Product brand |
Clipsal |
| Product or component type |
Dimmer |
| Device application |
Control |
| Device presentation |
Basic element |
| load type |
Incandescent
Low voltage lamp with electronic transformer |
| Load current |
2 A per channel |
| Dimmer type |
Leading edge |
Complementary
| Standby consumption |
10 W |
| Network frequency |
47...53 Hz
57...63 Hz |
| Communication network type |
C-Bus |
| Maximum number of supported devices |
100 per network |
| Input impedance |
100 kOhm at 1 kHz |
| Isolation voltage |
3.75 kV from C-Bus to mains |
| Starting time |
5 s |
| Time delay range |
0...33.5 min |
| Software function |
Select network clock
Select network burden
Select time delay range |
| Number of modules |
12 |
| Local signalling |
LED |
| Number of channels |
4 |
| Connector type |
RJ45 for C-Bus
RJ45 for remote override |
| Mounting support |
DIN rail |
| Clamping connection capacity |
1 x 2.5 mm²
2 x 1.5 mm² |
| Width |
215 mm |
| Height |
85 mm |
| Depth |
65 mm |
| Net weight |
647 g |
Environment
| Ambient air temperature for operation |
0…45 °C |
| Relative humidity |
10…95 % |
.Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
9.9 cm |
| Package 1 Width |
11.2 cm |
| Package 1 Length |
12.6 cm |
| Package 1 Weight |
901.0 g |
| Unit Type of Package 2 |
CAR |
| Number of Units in Package 2 |
6 |
| Package 2 Weight |
20.124 kg |
