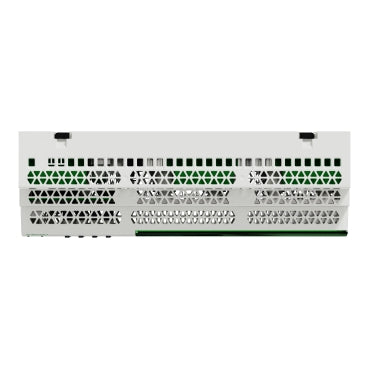

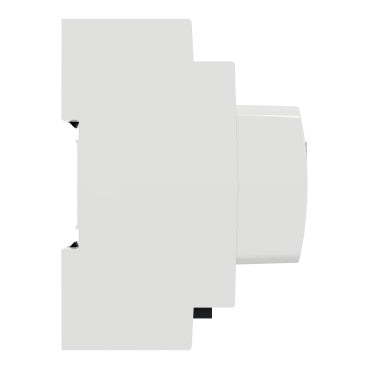

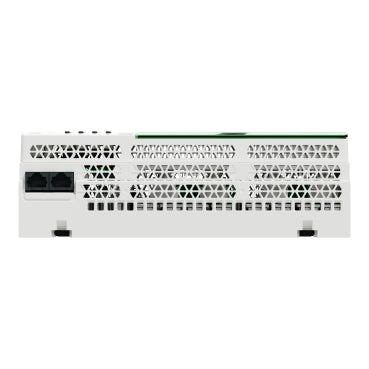

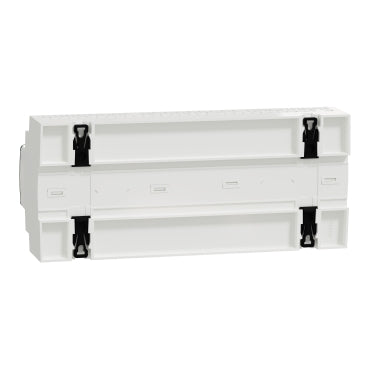

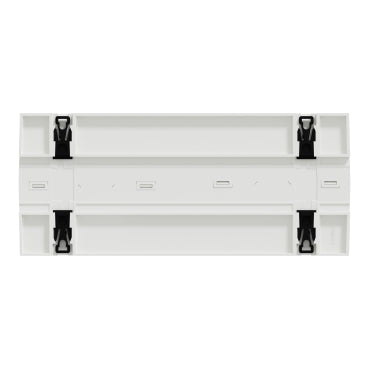

Clipsal Dimmer 5508D1D, SpaceLogic C-Bus, 8 channel, 1A per channel, DIN rail mount, inbuilt switchable C-Bus power supply Clipsal White 110-230V - 5508D1D

Save $151.69
ClipsalSKU: 5508D1D

$1,365.21 $1,516.90

Tax included Shipping calculated at checkout


This Schneider Electric SpaceLogic C-Bus digital dimmer is a phase cut dimmer.

  • It is a 8 channel 1A dimmer
  • The digital dimmer has both trailing edge and leading edge dimming mode which can be adjustable per channel to suit the load types connected.
  • It has inbuilt selectable C-Bus power supply.
  • The digital dimmers require SpaceLogic C-Bus Commission software for commissioning.
  • Its Ue operating voltage of 110-230 V AC with 50-60 Hz.
  • It is compatible with dimmable LED lamps and luminaires, incandescent/ halogen lamps, halogen lamps with electronic transformers, halogen lamps with dimmable iron core transformers.
  • It has a 12M compact size and is mounted horizontally on DIN rail The dimensions are (W) 216mm x (H) 92mm x (D) 63mm.
  • The colour of this dimmer is white. Made of thermoplastic material.

The operating temperature is from -5°C up to +55°C with derating with 10% to 93% relative humidity. The digital dimmer provides fully customizable dimmer channel lamp profiles and dimming curves unique to each channel. It offers advanced diagnostic and status information and built-in protections for device longevity



Range SpaceLogic C-Bus
Product brand Schneider Electric
Product or component type Dimmer
Device application Light control
Device presentation Complete device
Provided equipment 1 400 mm patch cable
Load type Dimmable LED
Halogen lamp
Halogen lamp with standard electronic transformer
Halogen lamp with standard ferromagnetic transformer
Incandescent lamps
Load current 1 A per channel
Dimmer type Trailing edge
Leading edge
Power supply output current 8:00 AM
Main colour tint White
[Ue] rated operational voltage 230 V AC +/- 10 % at 50 Hz
110 V AC +/- 10 % at 60 Hz


Network frequency 47...53 Hz
57...63 Hz
Communication network type C-Bus
Number of channels 8
Connector type 2 RJ45 connectors for C-Bus
Device mounting DIN rail
mounting support DIN rail
Width 216 mm
height 92 mm
Depth 63 mm
Net weight 0.844 kg
Colour tint White


Ambient air temperature for operation -5…55 °C
Ambient air temperature for storage -20…60 °C
Relative humidity 10…93 % non-condensing
Standards REACH
Product certifications RCM
