Description
|
Code |
Description |
Color |
Kelvin |
Lumens |
Beam Angle |
Watts |
IP |
CRI |

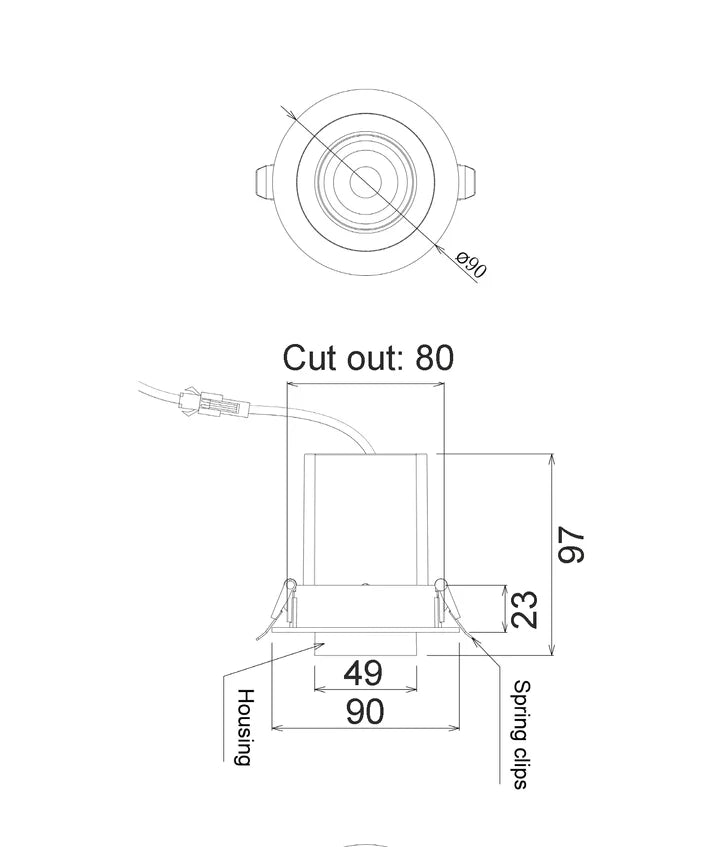

Height |
Dia. |
Cut Out |
Input Voltage Range |
Housing& Diffuser |
LED Chips |
Ambient Temp |
Power Factor |
Heat Sink |
Flex & plug |
Carton Quantity |
Box Weight |
Box Size |
Warranty |
|
TELE1 |

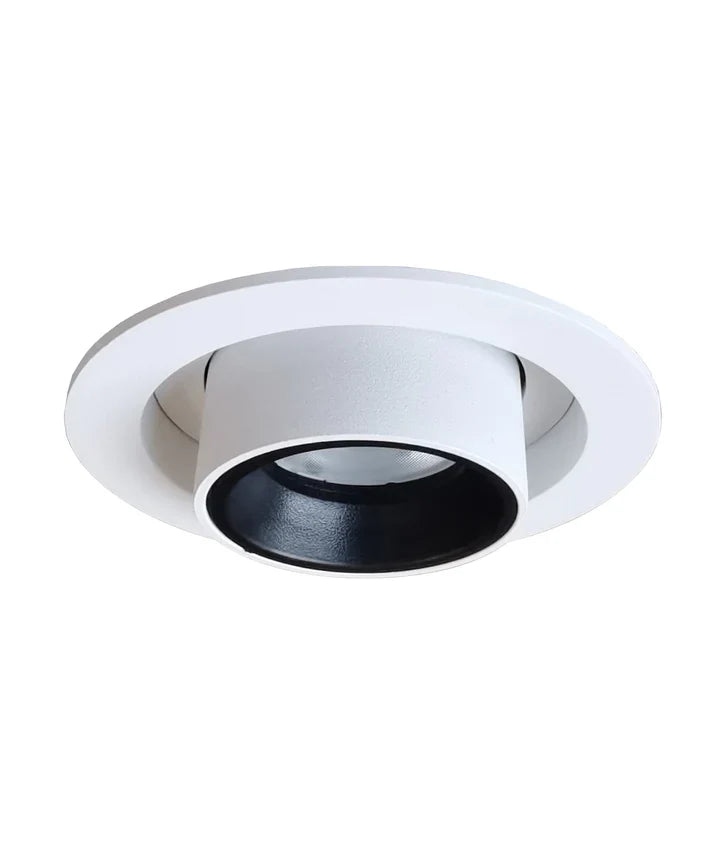

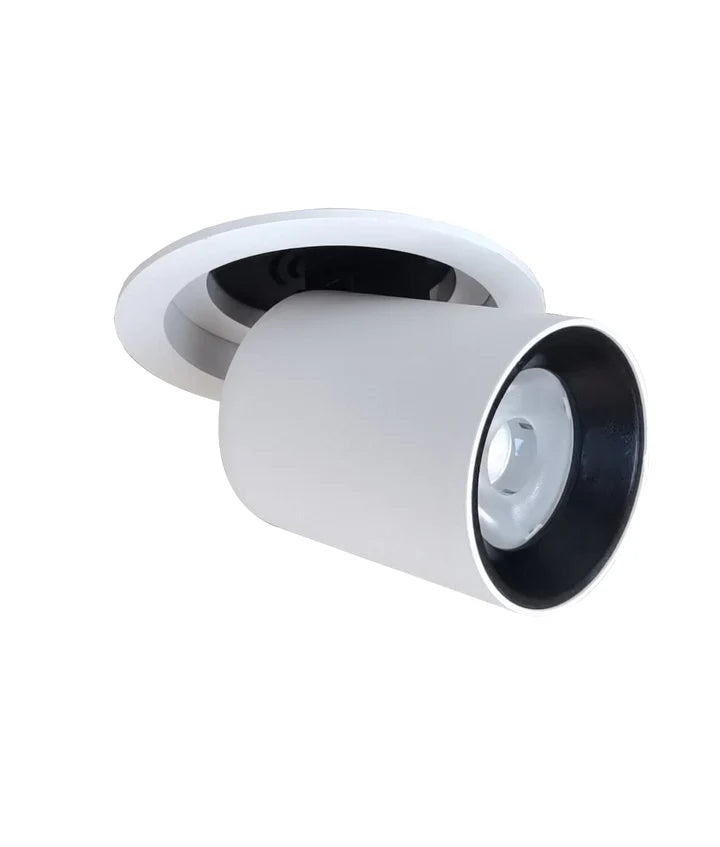

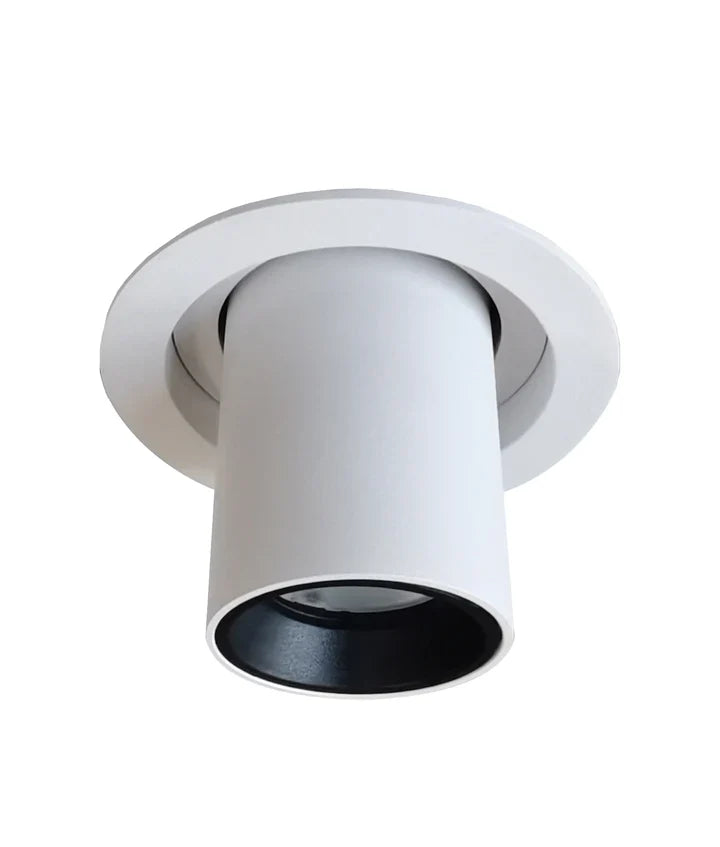

D/L RETRACTABLE DIMM 10W WH Tr |
White |
3000K 4000K 6000K |
750LM 860LM 800LM |
300 |
10W |
IP20 |
>80 |
97mm |
Ø 90mm |
80mm |
220-240V AC |
Powder coated Aluminium PC
|
1pc COB |
-20 to 40°C |
0.9 |
Aluminium |
0.6m |
-- |
0.4kg |
11x11x12cm |
3 YEARS |
|
TELEPLATE1 |

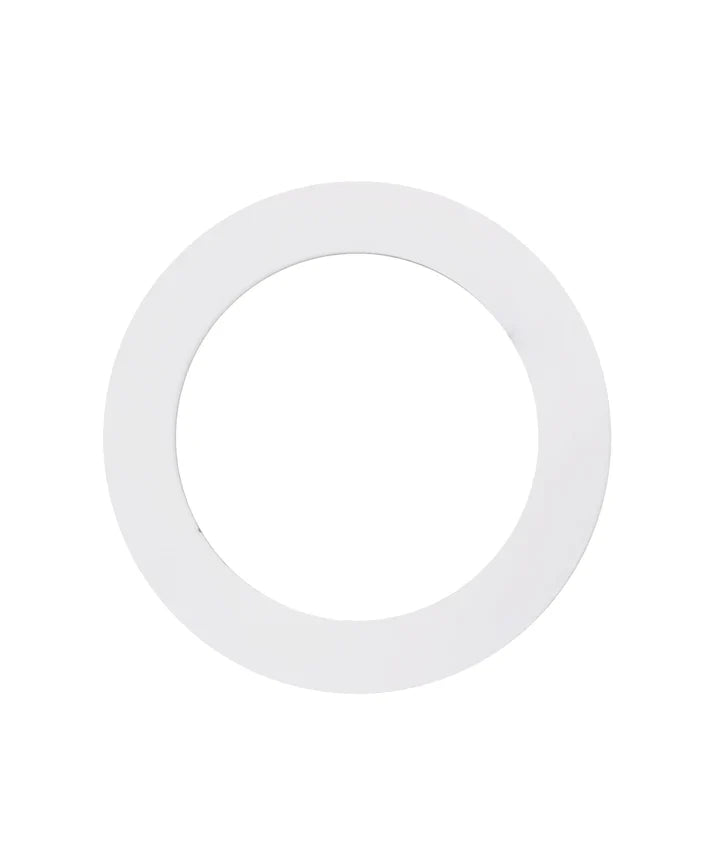

D/L Convertible plate (Support TELE1 to fit into a 90mm hole) WH OD 115mm |
White |
-- |
-- |
-- |
-- |
-- |
-- |
-- |
Ø115mm |
-- |
-- |
Aluminium |
-- |
-- |
-- |
-- |
-- |
-- |
0.01kg |
-- |
3 YEARS |
*Must be installed by a licenced electrician (Installation instructions sheet provided in each product box).
Tested & Recommended Dimmers:
- CLA – Trailing Edge: VELA, LYNX
- Clipsal – Universal: 32E450UDM, 31E2PUDM, 32ELEDM-WE, 32E450TM
- HPM – Trailing Edge: CAT250T, CAT400T
- Diginet – LED Smart: MEDM, MMDM/RT
*Please check with licenced electrician for Min and Max dimmer load. May be used with other untested dimmers.
