Description
Product Features
- Input voltage range: 220-240V
- Inbuilt constant current driver included
- Housing & faceplate: PC
- Diffuser: white PS
- Mounting bracket: aluminium
- Tri-CCT (3000K/ 4000K/ 5000K) in one fitting
- CCT switch on DC cable
- LED chips: SMD2835
- Power factor: 0.9
- CRI: ≥80
- Flex & plug not included
- Ambient temperature: -20 to 40°C
- Suitable for dimming
- Suitable for 2-way switching
- Suitable for use with motion or Microwave sensors
- IP rating: IP40
- Double Insulated
Warranty
3 year replacement warranty
Model No.
SURFACETRI1S, SURFACETRI3S

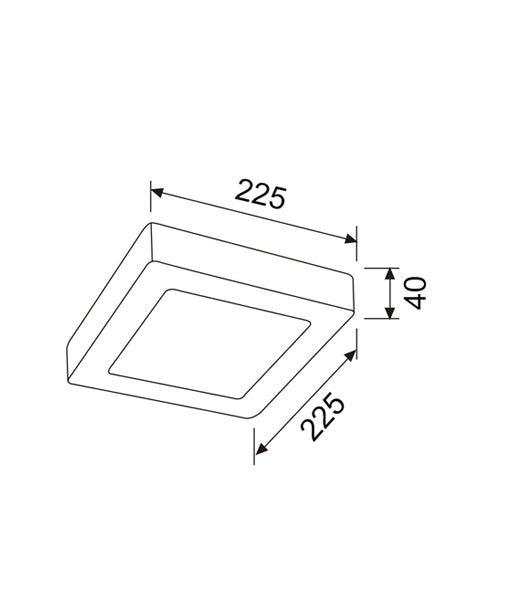

| Part No. | Description | Kelvin(K) | Lumens(LM) | Watt | CRI | Beam | Dimm | Length(mm) | Width(mm) | Depth(mm) |
| SURFACETRI1S | OYSTER DIMM LED S/M WH SQ TRI 6W | 3000/ 4000/ 5000 | 420/ 480/ 450 | 6 | >80 | 110 | yes | 120 | 120 | 40 |
| SURFACETRI3S | OYSTER DIMM LED S/M WH SQ TRI 18W | 3000/ 4000/ 5000 | 1350/ 1550/ 1450 | 18 | >80 | 110 | yes | 225 | 225 | 40 |
