Description
Product Features
- Input voltage: 220-240V 50/60Hz
- Suitable for use with LED
- 3 wired
- UV resistant
- Surface mounted or recessed
- Large detection range
- IP rating: IP20-IP65
SENS001, SENS002
- Detection range: 180°
- Detection distance: 12m max(<24°C)
- Detection motion speed: 0.6-1.5m/s
- Rated load: 1200W
- Time delay: min.10sec±3sec; max.15min±2min
- Ambient light: <3-2000lux (adjustable)
- Installation height: 1.8-2.5m
- IP rating: IP65
DOWNLOADS

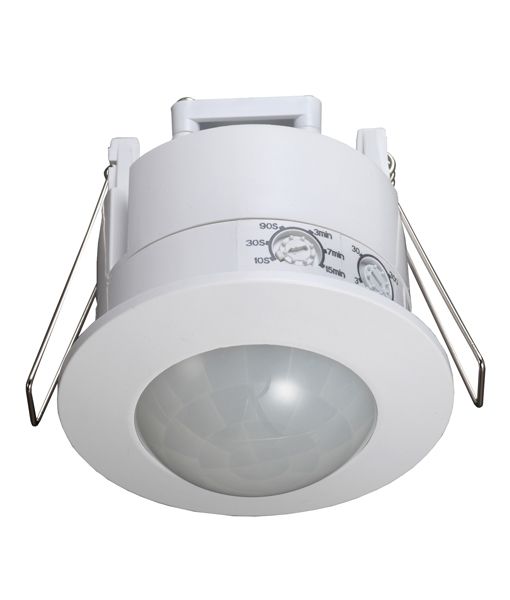

SENS003
- Detection range: 360°
- Detection distance: 6m max(<24°C)
- Detection motion speed: 0.6-1.5m/s
- Rated load: 1200W
- Time delay: min.10sec±3sec; max.15min±2min
- Ambient light: <3-2000lux (adjustable)
- Installation height: 2.2-4m
- IP rating: IP20
| DATASHEET |  |
SENS004
- Detection range: 360°
- Detection distance: 6m max(<24°C)
- Detection motion speed: 0.6-1.5m/s
- Rated load: 2000W
- Time delay: min.10sec±3sec; max.15min±2min
- Ambient light: <3-2000lux (adjustable)
- Installation height: 2.2-4m
- IP rating: IP20
| DATASHEET | |

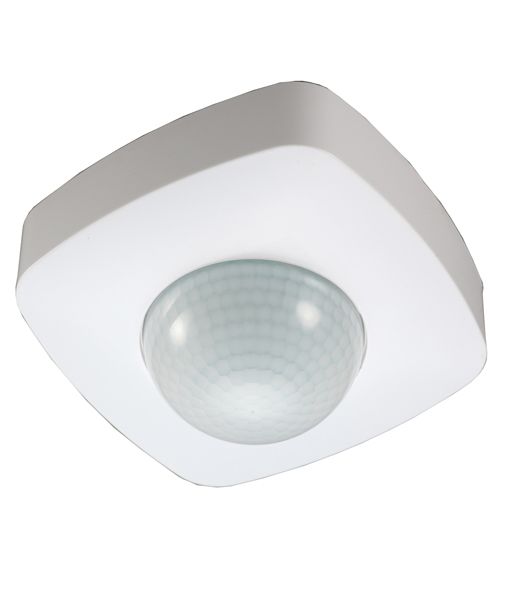

SENS005
- Detection range: 360°
- Detection distance: 20m max(<24°C)
- Detection motion speed: 0.6-1.5m/s
- Rated load: 2000W
- Time delay: min.10sec±3sec; max.30min±2min
- Ambient light: <3-2000lux (adjustable)
- Installation height: 2.2-6m
- IP rating: IP20
| DATASHEET | |
Warranty
5 year replacement warranty
Model No.
SENS001, SENS002, SENS003, SENS004, SENS005
| Code | Description |
| SENS001 | SENSOR Adjustable Infared Motion S/M WH 3 Wire 180D (Det Dist 12m max) (I/Height 1.8 - 2.5m) |
| SENS002 | SENSOR Adjustable Infared Motion S/M BLK 3 Wire 180D (Det Dist 12m max) (I/Height 1.8-2.5m) |
| SENS003 | SENSOR Recessed Infared Motion WH RND 3 Wire 360D (Det Dist 6m max) (I/Height 2.2-4M) 61mm |
| SENS004 | SENSOR Ceiling S/M WH RND 3 Wire 360D (Det Dist 6m max) (I/Height 2.2-4M) OD115mm |
| SENS005 | SENSOR Ceiling S/M WH SQ 3 Wire 360D (Detection Distance 20m max) (Install Height 2.2-6m) OD 102.5mm |
