Description
Product Features

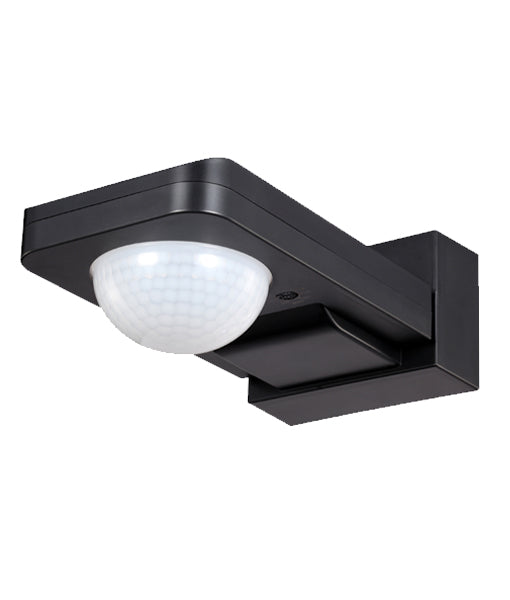

- Adjustable infrared PIR surface mounted sensors
- Mounting Type: surface Mounted
- Input voltage: 220-240V 50/60Hz
- Detection Range: 360°
- Detection Distance: 20m Max (<24°C)
- Motion Detection Speed: 0.6-1.5m/s
- Rated Load: 2000W HAL/ 1000W CFL/ 1000W LED
- Time Delay: Min.10sec±3sec; Max.30min±2min (restarts from last movement)
- Ambient Light: 3-2000Lux
- Ambient temperature: -20 to 40°C
- Working Humidity: <93%RH
- Power Consumption: approx. 0.5W
- Installation Height: 2.2-6m
- Housing Material: PC
- IP rating: IP65
- UV resistant
- 3 wire
- Day/Night recognition
- Manual override
Warranty
5 year replacement warranty
Model No.
SENS009, SENS010
| Code | Description | Dim | L(mm) | W(mm) | depth(mm) |
| SENS009 | SENSOR Adjustable Infrared Motion S/M WH 3 Wire w/Manual Override 360D | - | 172.5 | 56 |
86.5 |
| SENS010 | SENSOR Adjustable Infrared Motion S/M BLK 3 Wire w/Manual Override 360D | - | 172.5 | 56 |
86.5 |
DOWNLOADS
