Description
Product Features:

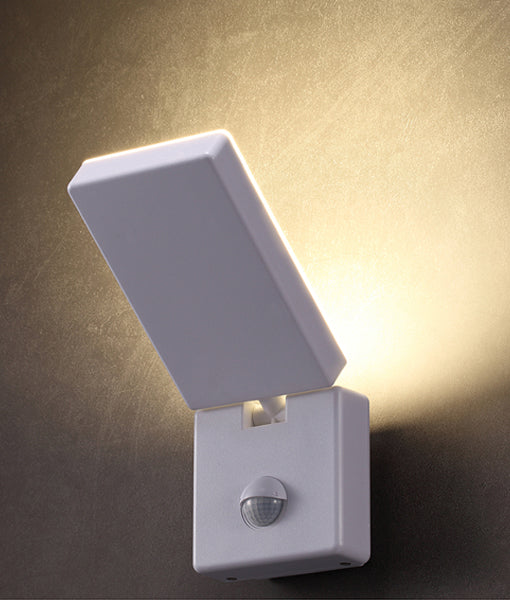

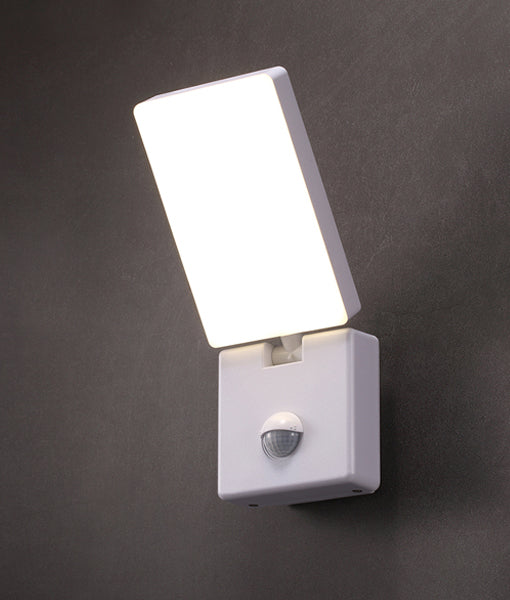

- Surface mounted LED security Lights with sensor
- Adjustable: head tilts down 90° and swivels 360°
- Input voltage range: 220-240V AC 50/60Hz
- Housing & diffuser: PC
- Mounting bracket: PC
- Heatsink: PC
- LED chips: 28pcs SMD2835
- CRI: >80
- Power factor: >0.9
- Ambient temperature: -20 to 40°C
- Suitable for 2-way switching
- IP rating: IP65
Sensor Spec:
- Sensor type: PIR
- Installation height: 1.8-2.5m
- Detection angle: 140°
- Motion detection distance: 9m Max
- Motion detection speed: 10 sec ± 3 sec to 5min ± 1min (Adjustable)
- UV resistant
- No manual override
Warranty
3 year replacement warranty
Model No.
SEC03S, SEC04S
| Code | Description | Kelvin(K) | Lumens(lm) | Watt | CRI | Beam | Dim | L(mm) | W(mm) | depth(mm) |
| SEC03S | SECURITY FLOOD LED 15W S/ADJ WH with sensor | 4000 | 1100 | 15 | >80 | 120 | no | 231.5 | 88.2 | 43 |
| SEC04S | SECURITY FLOOD LED 15W S/ADJ BLK with sensor | 4000 | 1100 | 15 | >80 | 120 | no | 231.5 | 88.2 | 43 |
