Description
Product Features
- Input voltage: 220-240V 50Hz
- Inbuilt constant current driver included
- Housing & heatsink: plastic & aluminium
- LED chips: SMD2835
- Colour temperature changeable: 3000K/ 4000K/ 5000K

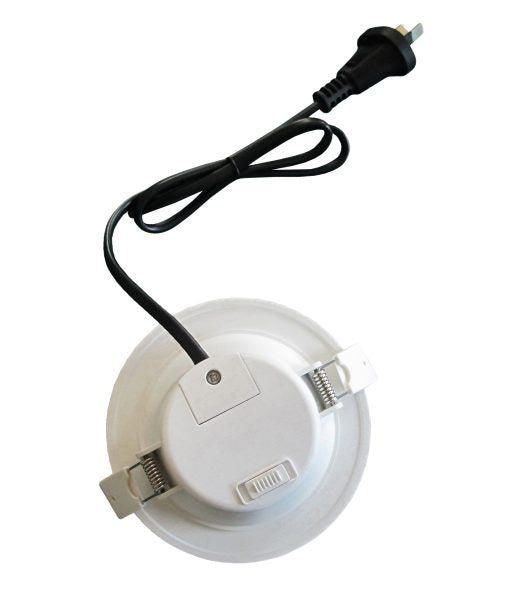

- Rear switch
- Power factor: 0.9
- CRI: ≥80

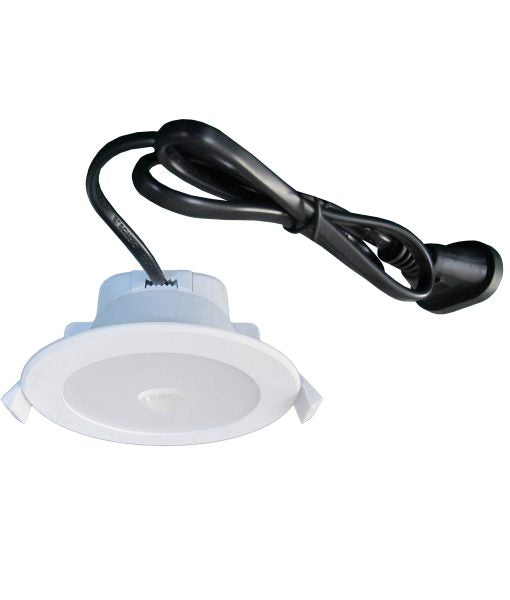

- Flex & plug: 1.0m
- Ambient temperature: -20 to 40°C
- Not suitable for dimming
- Suitable for 2-way switching
- IP44
- Double insulated
- IC-4 rated

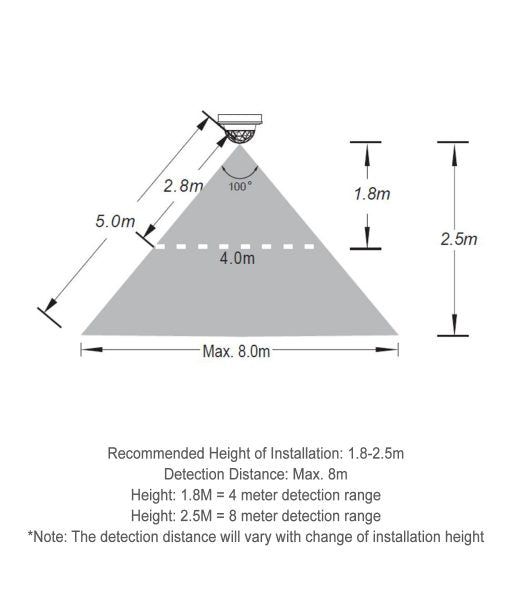

Sensor Technical Spec
- Sensor type: PIR
- Wattage / power consumption: <0.5W
- Installation height: 1.8-2.5m
- Detection angle: 360°
- Motion detection speed: 1.5m/s
- Time delay: 70±10s
- UV resistant: Yes
- Manual override: No
Warranty
3 year replacement warranty
Model No.
NOVATRIS
| Part No. | Description | Kelvin(K) | Lumens(LM) | Watt | CRI | Beam | Dimm | Width(mm) | Depth(mm) | Cut out(mm) |
| NOVATRIS | D/L LED FIXED MOTION SENSOR WH RND TRI | 3000/ 4000/ 5000 | 750/ 850/ 800 | 9 | 80 | 100 | No | Ø115 | 58 | Ø90 |
