Description
Product Features:
- Exterior LED surface mounted wall lights
- Input voltage range: 100-240V AC 50/60Hz
- Inbuilt constant current driver included
- Driver output voltage: 18-42V
- Driver input current: 0.065A
- Driver output current: 300mA
- Housing & heatsink: aluminium
- Diffuser: PC
- Back plate: PC
- LED chips: 12pcs 3030
- Power factor: >0.5
- CRI: >80
- Ambient Temp: -20 to 50°C
- Not suitable for use with dimmers
- Suitable for 2-way switching
- Suitable for use with PIR or Microwave sensors
- IP rating: IP65

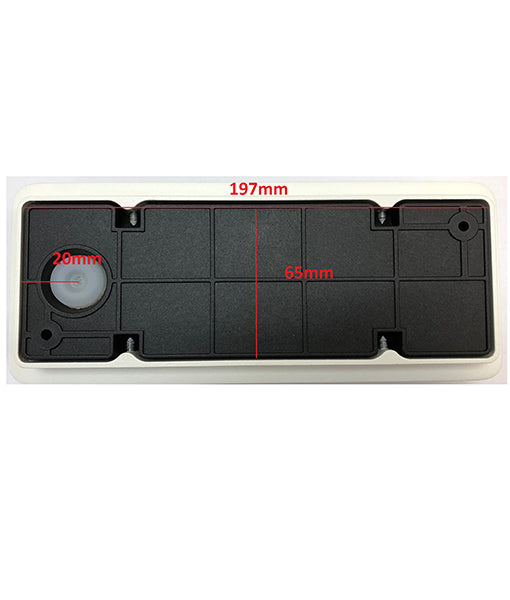

- Back plate: 197x65mm
Warranty
3 year replacement warranty
Part No.
HEKA1, HEKA2
| Code | Description | Kelvin(K) | Lumens(lm) | Watt | CRI | Beam | Dim | L(mm) | W(mm) | depth(mm) |
| HEKA1 | WALL LED S/M Dark Grey Rect | 3000 | 732.94 | 13 | >80 | 120 | no | 226 | 96 | 64.5 |
| HEKA2 | WALL LED S/M White Rect | 3000 | 732.94 | 13 | >80 | 120 | no | 226 | 96 | 64.5 |
