Description
Product Features:
- Mounting Type: Surface Mounted
- Input voltage: 220-240V 50/60Hz
- Detection Range: 120°
- Detection Distance 12m Max (<24°C)
- Motion Detection Speed: 0.6-1.5m/s
- Rated Load: 1200W HAL/ 300W CFL/ 150W LED
- Time Delay: Min.10sec±3sec; Max.30min±2min (restarts from last movement)
- Ambient Light: 3-2000Lux
- Ambient Temp: -20 to 40°C
- Working Humidity: <93%RH
- Power Consumption: approx. 0.5W
- Installation Height: 1.8-2.5m
- Housing Material: PC
- IP Rating: IP66
- UV resistant
Warranty
5 year replacement warranty
Part No.
SENS007, SENS008
| Code | Description | Dim | L(mm) | W(mm) | depth(mm) |

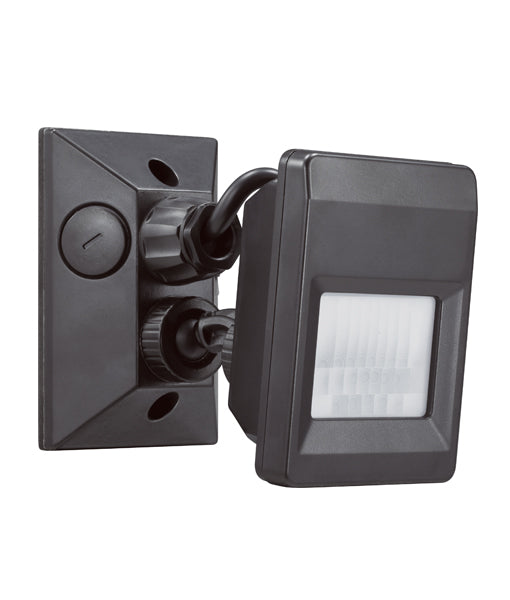

| SENS007 | SENSOR Adjustable Infrared Motion S/M WH 3 wire w/manual override 120D (Det Dist 12m max) (I/H 1.8-2.5m) | - | 115 | 73 | 146 |
| SENS008 | SENSOR Adjustable Infrared Motion S/M BL 3 wire w/manual override 120D (Det Dist 12m max) (I/H 1.8-2.5m) | - |
