Description

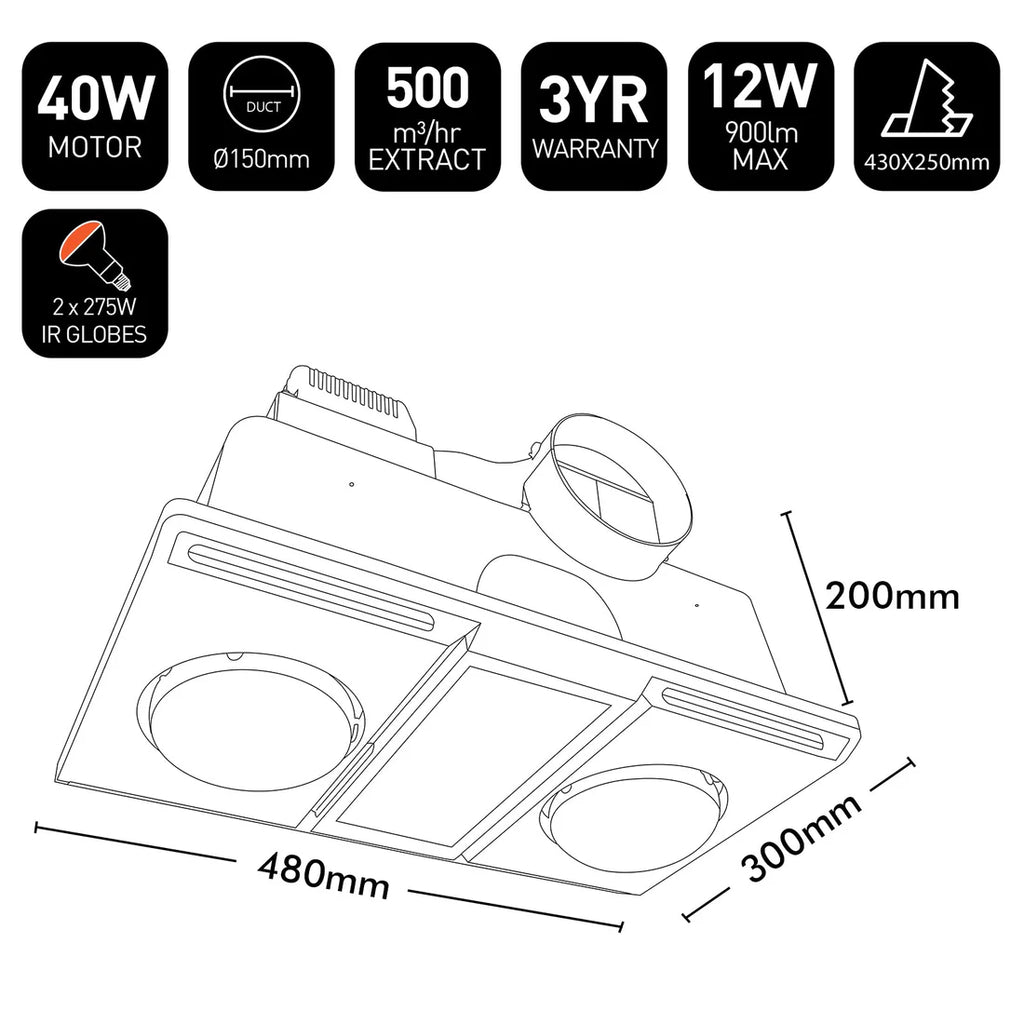

The Supernova-II is a 3-in-1 light, exhaust fan, and heater which features an ultra-bright 900-lumen colour temperature adjustable LED center light, a high-velocity exhaust fan and 2 instant heat lamps. Its high extraction rate provides optimal ventilation and easily removes moisture and steam.
- 150mm side duct outlet with draft stopper
- Low profile fascia design
- This unit is fitted with a thermostat switch that will automatically turn on the fan if the internal temperature exceeds 90°C
- Includes 3 gang wall switch, 1.5m aluminium duct and exterior vent
Additional Information
| SKU | 20748/05 |
| SKU Family | 20748 |
| Product Finish | White |
| Installation | Must be installed by a licensed Electrician |
| Light Type | LED |
| Light Wattage | 12W |
| Light Lumens | 900lm max |
| Colour Temperature | 3000K/5000K |
| Dimming | No |
| Heat Wattage | 2 x 275W |
| Heat Type | Instant Heat Globes |
| Motor Wattage | 40W |
| Motor Type | Longlife ball bearing |
| Fan Size | 165mm |
| Max Air Movement | up to 500m3/hr |
| Control | 3-Gang wall switch |
| Ingress Protection | IPX2 rated |
| Cutout | 430mm x 250mm |
| Warranty | 3-year replacement |
DOWNLOADS
| DATASHEET |
|
| INSTALLATION GUIDE |  |
