Description

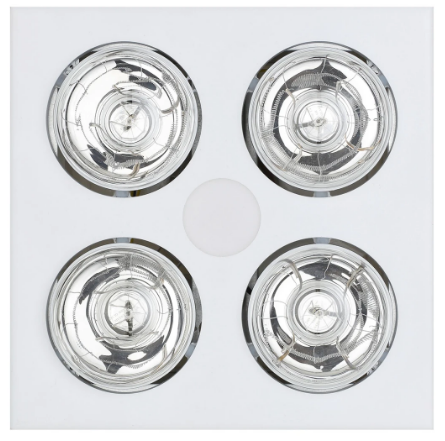

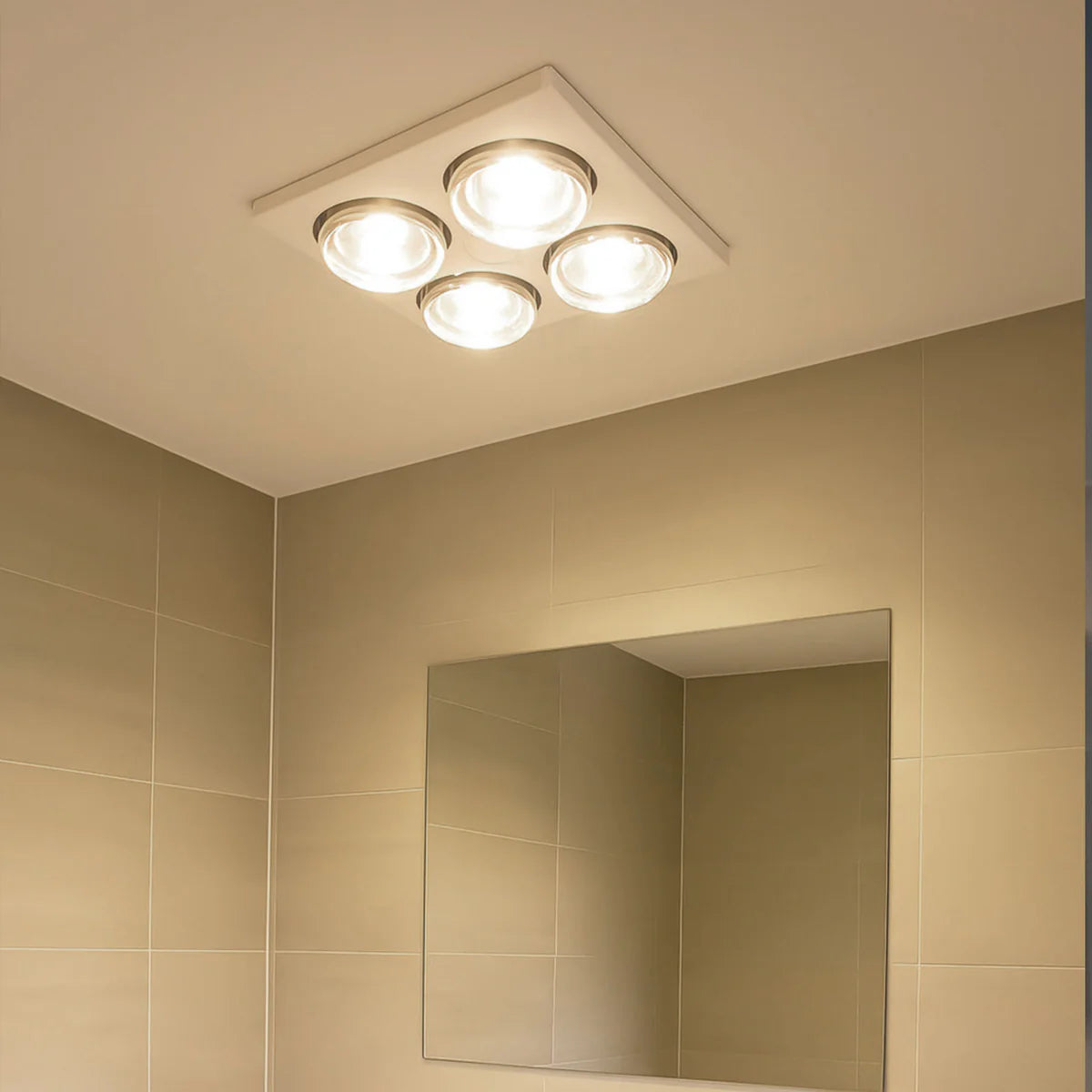

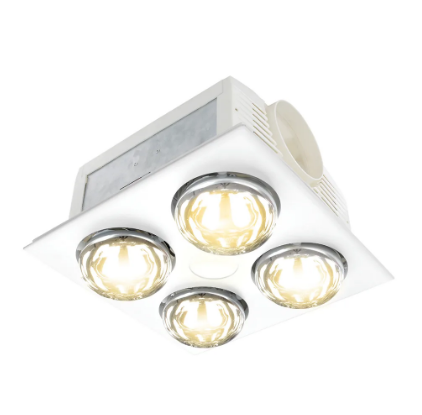

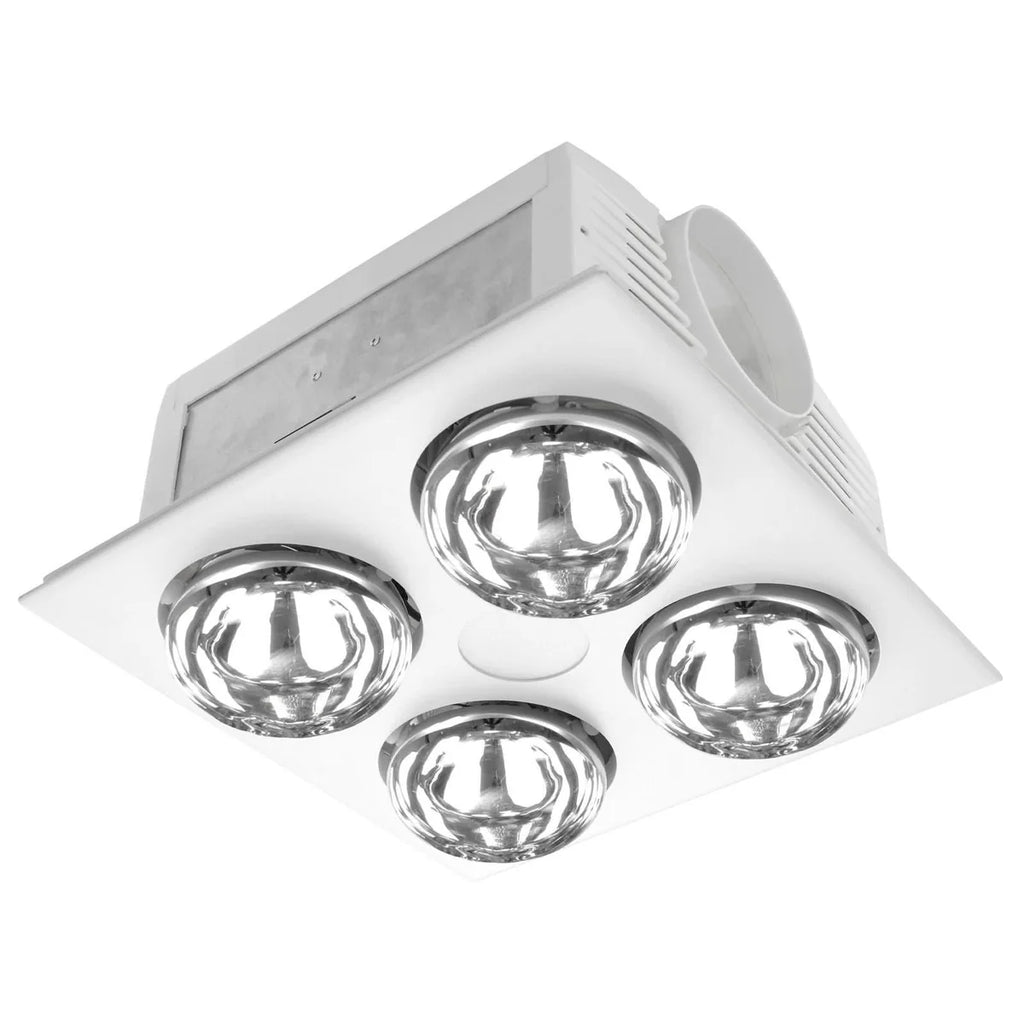

An energy-efficient 3-in-1 Bathroom mate which has 4 heat lamps to keep medium to large bathrooms warm. The Horizon also features a bright 9W LED light and a quiet and powerful exhaust fan motor.
- 125mm side duct outlet with draft stopper
- Low profile facia design
- This unit is fitted with a thermostat switch that will automatically turn on the fan if the internal temperature exceeds 80°
- Includes 4 gang wall switches, 1.5m flexible aluminium ducting and exterior grille and clamps
Additional Information
| SKU | 19849/05, 19849/11 |
| SKU Family | 19849 |
| Product Finish | White, Silver |
| Installation | Must be installed by a licenced Electrician |
| Light Type | LED |
| Light Wattage | 9W |
| Light Lumens | 1050lm max |
| Colour Temperature | 3000K/4200K/6000K |
| Dimming | No |
| Heat Wattage | 4 x 275W |
| Heat Type | Instant Heat Globes |
| Motor Wattage | 75W |
| Motor Type | Longlife ball bearing |
| Fan Size | 120mm |
| Max Air Movement | up to 300m3/hr |
| Control | 4-Gang wall switch |
| Ingress Protection | IPX4 rated |
| Warranty | 3-year replacement |

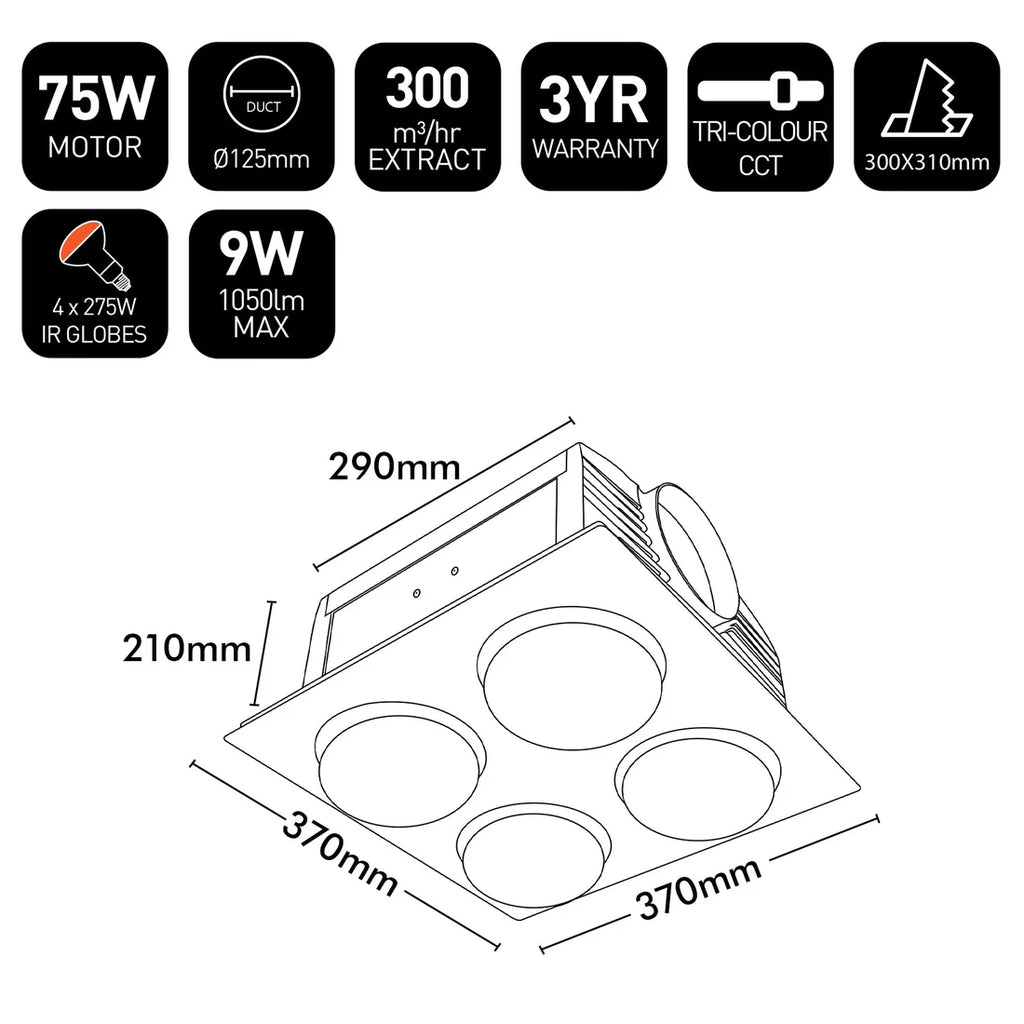

| Cutout | 310mm x 300mm |
DOWNLOADS
| DATASHEET |
|
| INSTALLATION GUIDE |  |
