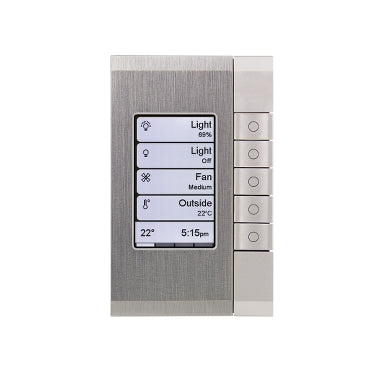

Clipsal Wall Plate, C-Bus, Saturn, EDLT, 5 Keys Clipsal Products Pure White / Espresso Black / Horizon Black / Ocean Mist / Stainless Steel IP20 - 5085EDLB- Eco Smart Lighting

Roll over image to zoom in Click on image to zoom

Wall Switches

Clipsal Wall Plate, C-Bus, Saturn, EDLT, 5 Keys Clipsal Products Pure White / Espresso Black / Horizon Black / Ocean Mist / Stainless Steel IP20 - 5085EDLB

Save $73.32

ClipsalSKU: 5085EDLB-PW

Colour: pure white

Price:

$659.89 $733.21

Tax included Shipping calculated at checkout

Quantity:

Usually dispatched in 1 - 3 business days

Estimated Dispatch Date: Calculating…

Need it sooner? Contact us now on (02) 9517 2701 to discuss our pickup or express delivery options.

Free standard delivery to all major Australian cities for orders over $200.00!

Not sure if this is the correct product?
Call our expert lighting team on (02) 9517 2701 before ordering.

**Main**
Range	C-Bus
Product brand	Clipsal
Product name	C-Bus Saturn
Product or component type	Wall plate
Device application	Control

**Complementary**
Colour	Cover plate: espresso black Grid: black Cover plate: pure white Grid: black Cover plate: horizon black Grid: black Cover plate: ocean mist Grid: black Cover plate: stainless steel Grid: black
Provided equipment	Mounting plate Flying lead
Control type	5 x push-button dual-action
Local signalling	Status: LED (tri-colour) on push-button
Switch application	Lighting Timer Audio Blind control Fan speed control Scene control On/off switching Shutter control Dimming up/down control Page navigation
Local display	Backlit LCD display
Display type	Colour TFT display
Display size	2.8 inch
Messages display capacity	Up to 4 pages
Information displayed	Load type Temperature Power Date Time Operating mode
Number of outputs	16 in 4 page option 5 in 1 page option
Function of module	Proximity sensor monitoring wake-up
Communication port protocol	C-Bus - 2 wires
[Us] rated supply voltage	15...36 V: DC
Maximum supply current	32 mA
Material	Glass
Connector type	Mini USB port (rear) Socket (rear) for C-Bus
Function available	Firmware update by USB
User language	Multi-language
Product compatibility	LAN cable Cat. 5e
Electrical connection	Flying lead
Clamping connection capacity	0.2...1.5 mm²
fixing mode	By screws
Mounting support	Wall
Width	77 mm
Height	123 mm
Depth	35 mm
Embedding depth	23.5 mm
Colour code	EB

**Environment**
IP degree of protection	IP20
Ambient air temperature for operation	5…45 °C
Product certifications	CE RCM

**Packing Units**
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	8 cm
Package 1 Width	11 cm
Package 1 Length	15.5 cm
Package 1 Weight	306 g
Unit Type of Package 2	CAR
Number of Units in Package 2	8
Package 2 Height	20.6 cm
Package 2 Width	22.5 cm
Package 2 Length	33 cm
Package 2 Weight	2.903 kg
Unit Type of Package 3	PAL
Number of Units in Package 3	240
Package 3 Height	103 cm
Package 3 Width	66 cm
Package 3 Length	67.5 cm
Package 3 Weight	97.082 kg

Datasheet pure white:

DATASHEET

Datasheet espresso black:

DATASHEET

Datasheet horizon black:

DATASHEET

Datasheet ocean mist

DATASHEET

Datasheet stainless steel

DATASHEET
