Description

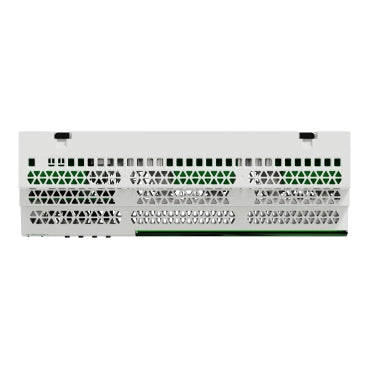

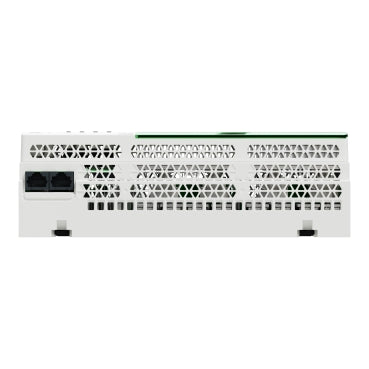

This Schneider Electric SpaceLogic C-Bus digital dimmer is a phase cut dimmer.
- It is a 4 channel 2A dimmer.
- The digital dimmer has both trailing edge and leading edge dimming mode which can be adjustable per channel to suit the load types connected.
- It has inbuilt selectable C-Bus power supply.
- The digital dimmers require SpaceLogic C-Bus Commission software for commissioning.
- Its Ue operating voltage of 110-230 VAC with 50-60 Hz.
- It is compatible with dimmable LED lamps and luminaires, incandescent/ halogen lamps, halogen lamps with electronic transformers, halogen lamps with dimmable iron core transformers.
- It has a 12M compact size and is mounted horizontally on DIN rail The dimensions are (W) 216mm x (H) 92mm x (D) 63mm.
- The colour of this dimmer is white.
- Made of thermoplastic material.
The operating temperature is from -5°C up to +55°C with derating with 10% to 93% relative humidity. The digital dimmer provides fully customizable dimmer channel lamp profiles and dimming curves unique to each channel. It offers advanced diagnostic and status information and built-in protections for device longevity
Replaces: L5504D2AP
