Description
Application

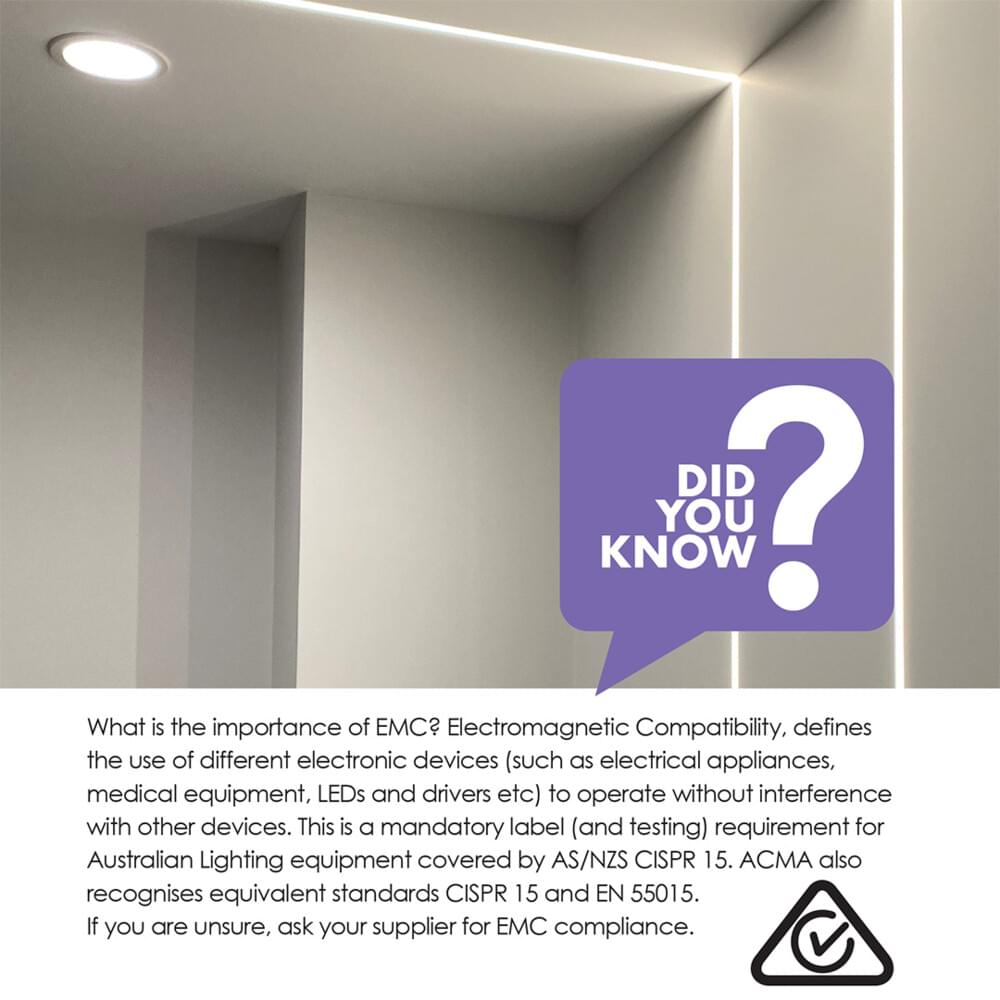

A very flexible solution for residential and commercial interior or exterior spaces
Design Specifications
- Sold in per metre and 5 metre roll
-
High efficiency optics, 10W/m
-
Cuttable every 50mm
-
Maximum run length 5m
-
Power supply ordered separately, 10W/m, 24V DC
-
Dimming options: (quick link)
Type A - Trailing edge dimming,
Type B - LED strip controller LT8915DIM/BT
with LT8914DIM/RP if required,
Type C - Analogue 1-10V
Type D - DALI 2 control -
Codes listed are per metre, 5M roll packs to order
Optional, flexible channels available (FLN0612FLEX)LED channel options (quick link) Heat sink required for system performance
Performance
- Dimmable - OPTIONAL
- Dimmer Type - Refer dimming options
| Model No. | Input Voltage | Watts per metre | Beam Angle | CRI | Luminous Flux Per Meter | LEDs Per Metre | Cutting Interval | Colour Temp. | Dim |
|---|---|---|---|---|---|---|---|---|---|
| FLN2410WW0612 | 24 | 10 | 120 | 90 | 280 | 140 | 50 | 3000 | 6(W) x 12(H) |
| FLN0612FLEX | 1000(L) |
DOWNLOADS
