Description
Product Features:
- Input voltage: 240V AC 50/60Hz
- Inbuilt Constant Current LED driver
- Adjustable: 180° (90° up/down and left/right)
- Housing: powder coated aluminium
- Mounting bracket: aluminium
- Diffuser: clear glass with honeycomb filter
- Tri-CCT (3000K/ 4000K/ 5500K) in one fitting
- CCT inbuilt switch under back plate
- LED chips: 1616 LEDs
- CRI: ≥80
- Power factor: ≥0.9
- Ambient temperature: -10 to 40°C
- Not suitable for dimming
- Suitable for 2 way switching
- IP rating: IP65
Sensor Technical Spec:
- Sensor type: PIR sensor
- Installation height: recommended 2-2.5m
- Detection angle: 120°
- Detection area: max.10m
- Detection range (ØxH): max.10m when installed 2-2.5m
- Time delay: 8±5 sec to 12±2 min (adjustable)
- Manual override: yes
*Must be installed by a licenced electrician (Installation instructions sheet provided in each product box).
*To avoid disappointment and warranty problems, please ensure the IP rating of the chosen product is relevant for the intended use.
Warranty
2 year replacement warranty
Part No.
SEC06, SEC09, SEC09S
| Part No. | Description | Kelvin(K) | Lumens(LM) | Watt | CRI | Dimm | Length(mm) | Width(mm) | Depth(mm) |

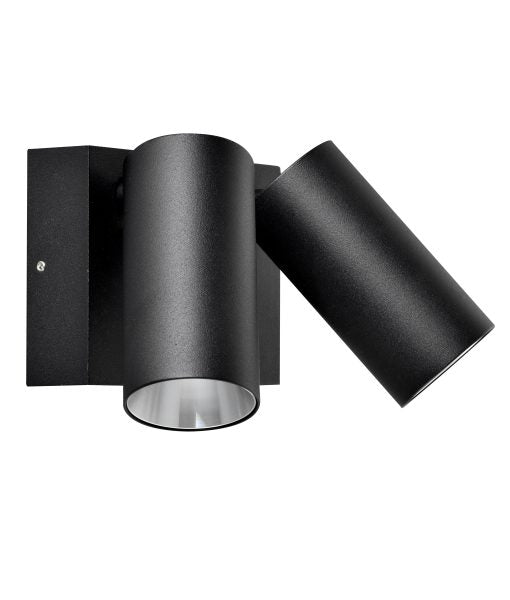

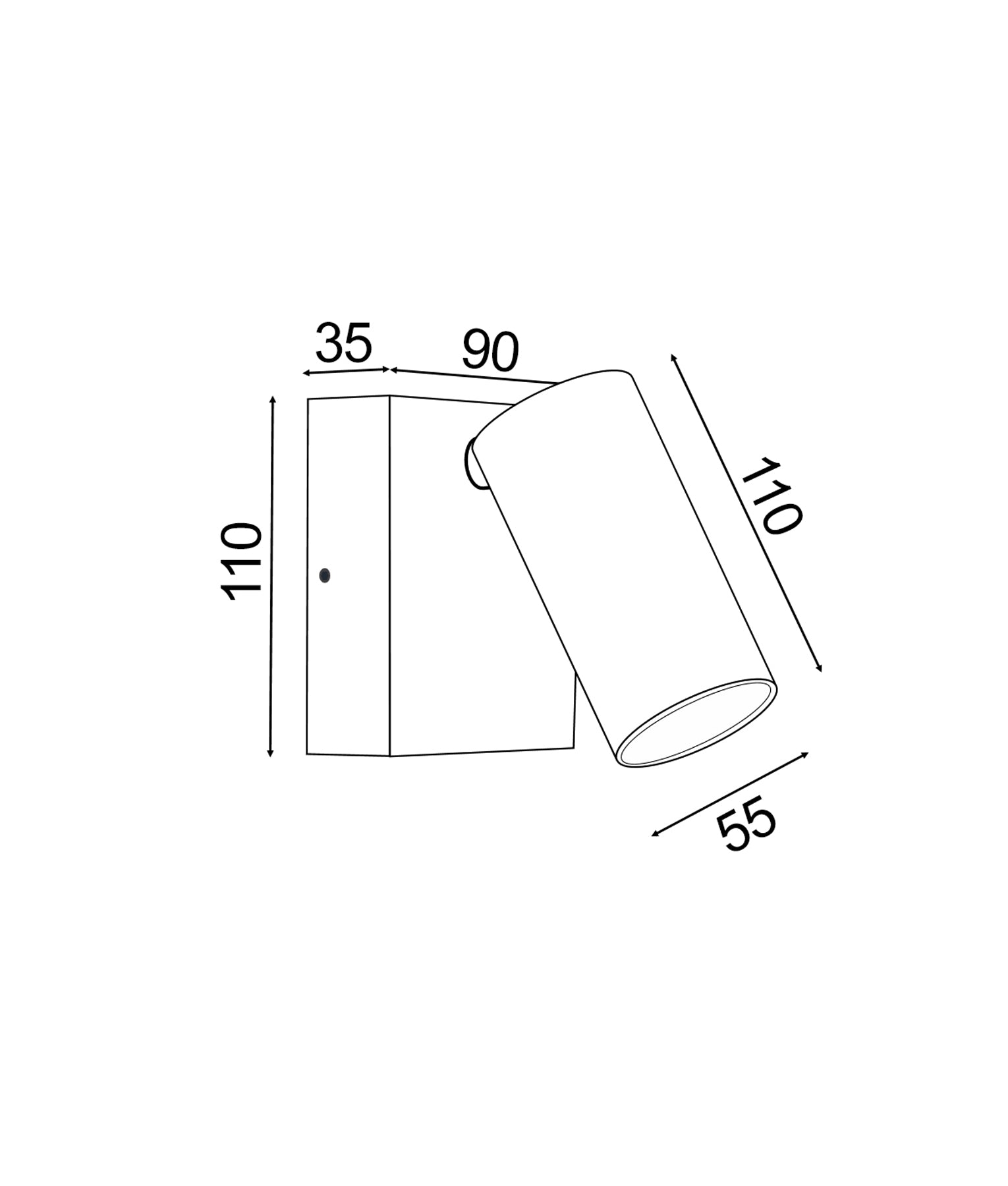

| SEC06 | S/ADJ Pillar LED Mat Blk P/Coated Aluminium without sensor | 3000/ 4000/ 5500 | 760/ 800/ 850 | 8 | >80 | No | 110 | 90 | 35 |
| SEC09 | D/ADJ LED MATTE BLK No Sensor | 3000/ 4000/ 5500 | 2x760/ 2x800/ 2x850 | 2x8 | >80 | No | |||

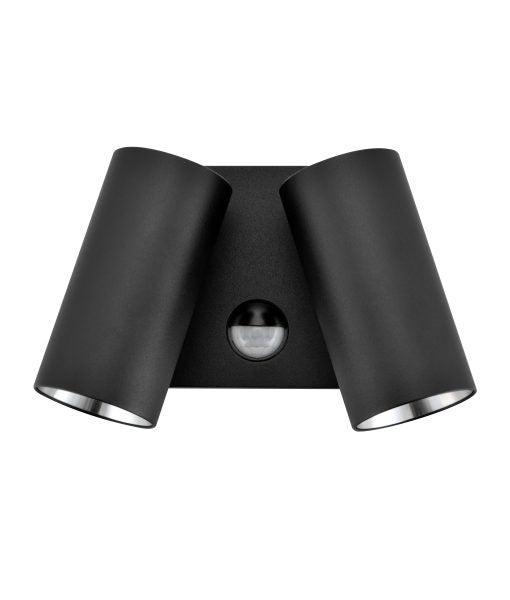

| SEC09S | D/ADJ LED MATTE BLK + Sensor | 3000/ 4000/ 5500 | 2x760/ 2x800/ 2x850 | 2x8 | >80 | No |
