Description
Application
Versatile residential and commercial sensor applications
Design Specifications
-
3 wire design for interior or exterior use in a choice of GREY or BLACK
-
Selectable dusk to dawn (PE) or motion sensor control functions
-
Manual override function, sensitivity, time, light level or PE cell adjustments can be set manually or via the optional remote control
-
Maximum loads (LED) 500W, (CFL) 1000W, (Halogen) 2000W
-
Detection angle 110° up to 18 metres at a height of 1.8 - 2.5hm (Black model detection range 15 metres).
-

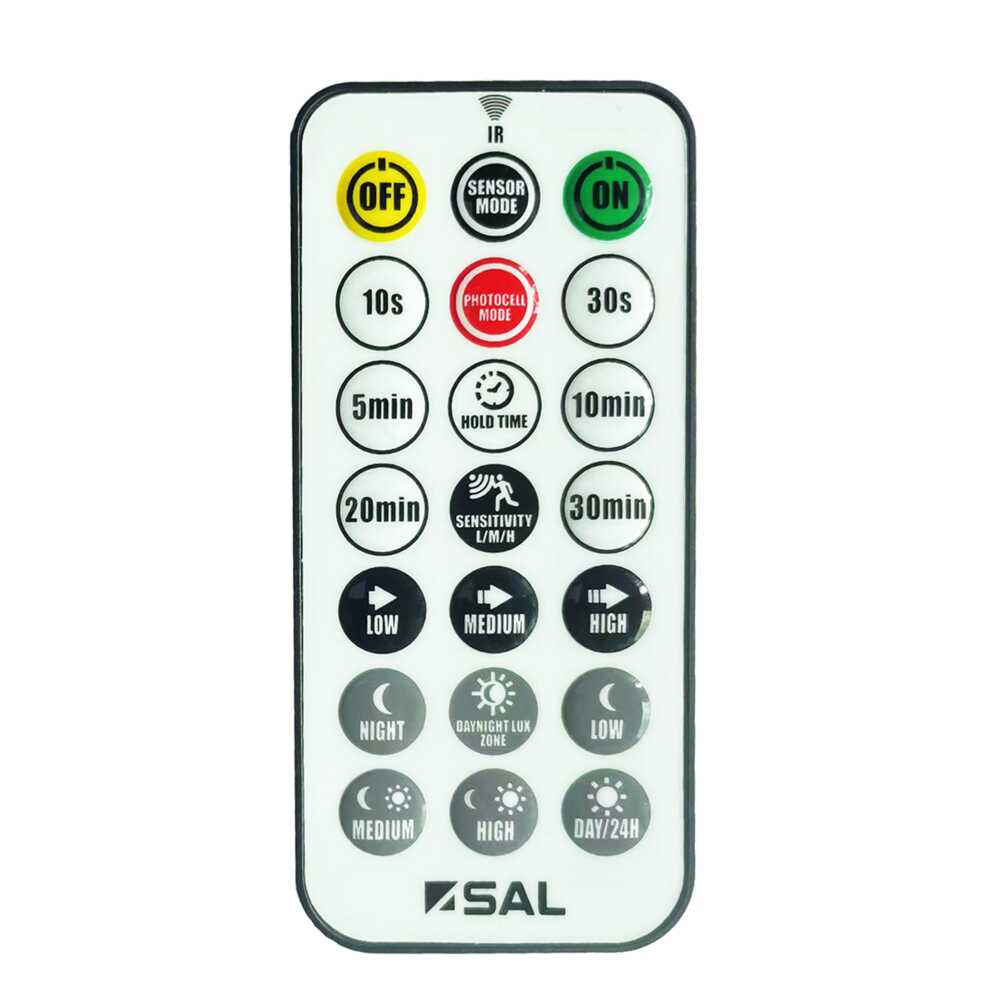

The controller (SMS806WF/RC) contains batteries and is designed for trade use only.
Performance
- In Built Sensor - YES
- Sensor Type - PIR
| Model No. | Input Voltage | Body Colour |
|---|---|---|
| SMS806WF | 240 | GREY |
| SMS806WF/BK | 240 | BLACK |
| SMS806WF/RC | WHITE |
