Description
Application

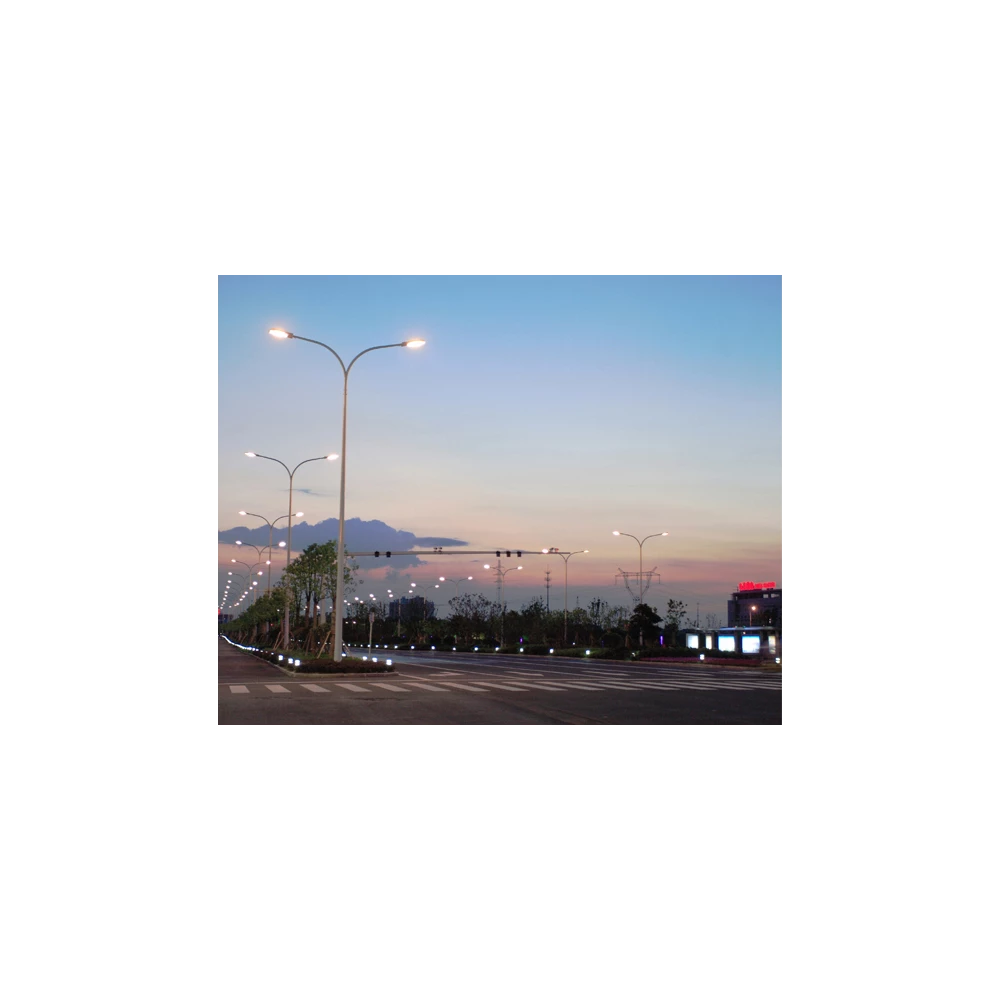

A decorative, streamline exterior commercial solution
Design Specifications
-
Stylish die-cast aluminium body, durable powder coated finish
-
Integral constant current non-dimmable LED driver as standard, CCT 5000K, optional 4000K
-
Asymmetrical light distribution (TYPE II) fitted, 0% upward light ratio, clear tempered glass diffuser
-
Standard 3G.ANSI C.136.31-2010 Ø 60 pole mounting bracket, 800 mm 3 core rubber flex
-
Optional constant current dimmable LED driver with 3 IN 1 dimming LED driver (1-10V DC, PWM signal & resistance)
-
Lens option - SHP306A45/P (standard), SHP306A75/P (option), optional PE cell configurations available
Performance
- Dimmable - OPTIONAL
- Dimmer Type - 1-10V DC
- In Built Sensor - OPTIONAL
| Model No. | Description | Input Voltage | Power | Lumens | CCT | CRI | Mass | Dim | Body Colour |
|---|---|---|---|---|---|---|---|---|---|
| SHP306/30NDL/BK | LED STREET LGT MINI 30W 5K BK | 240 | 30 | 3600 | 5000 | 70 | 6.8 | 680(L) x 282(W) x 159(H) | BLACK |
| SHP306/50NDL/BK | LED STREET LGT MINI 50W 5K BK | 240 | 50 | 6000 | 5000 | 70 | 6.8 | 680(L) x 282(W) x 159(H) | BLACK |
| SHP306/70NDL/BK | LED STREET LGT MINI 70W 5K BK | 240 | 70 | 8400 | 5000 | 70 | 6.8 | 680(L) x 282(W) x 159(H) | BLACK |
| SHP306/90NDL/BK | LED STREET LGT MINI 90W 5K BK | 240 | 90 | 10800 | 5000 | 70 | 6.8 | 680(L) x 282(W) x 159(H) | BLACK |
