Havit HV9761-IP54-840-RGBCW RGB / Colour Changing LED Strip product view
Havit HV9761-IP54-840-RGBCW RGB / Colour Changing strip profile and dimensional drawing, 12mm Wide × 3mm High
Havit COB RGBCW LED Strip and Channels 20W 24V IP54 - HV9761-IP54-840-RGBCW Sold per metre and 10 metre Roll - Havit Lighting
Havit COB RGBCW LED Strip and Channels 20W 24V IP54 - HV9761-IP54-840-RGBCW Sold per metre and 10 metre Roll - Havit Lighting
Havit COB RGBCW LED Strip and Channels 20W 24V IP54 - HV9761-IP54-840-RGBCW Sold per metre and 10 metre Roll - Havit Lighting
Roll over image to zoom in Click on image to zoom
Havit HV9761-IP54-840-RGBCW RGB / Colour Changing LED Strip product viewHavit HV9761-IP54-840-RGBCW RGB / Colour Changing strip profile and dimensional drawing, 12mm Wide × 3mm HighHavit COB RGBCW LED Strip and Channels 20W 24V IP54 - HV9761-IP54-840-RGBCW Sold per metre and 10 metre Roll - Havit LightingHavit COB RGBCW LED Strip and Channels 20W 24V IP54 - HV9761-IP54-840-RGBCW Sold per metre and 10 metre Roll - Havit LightingHavit COB RGBCW LED Strip and Channels 20W 24V IP54 - HV9761-IP54-840-RGBCW Sold per metre and 10 metre Roll - Havit Lighting
20W per metre
IP54
24V
RGBCW
12mm Wide / 3mm High
3-Year Warranty

Havit COB RGBCW LED Strip and Channels 20W 24V IP54 - HV9761-IP54-840-RGBCW Sold per metre and 10 metre Roll

Save $8.56
Havit LightingSKU: HV9761-IP54-840-RGBCW
Length: Per metre
Price:
$77.04 $85.60

Tax included Shipping calculated at checkout

Enter Your Cut Lengths

Enter your length in centimetres. We'll adjust it to the nearest available 5cm cutting increment. Each cut is charged at the next whole metre.

Requested length100cm
Total for cut lengths$77.04

Each cut length is supplied with a minimum of 50cm cable tail on one end.

Components Required – Sold Separately

Choose a suitable driver and the Wi-Fi receiver. Control your RGBCW strip using your phone, or add a compatible five-channel remote or wall panel.

LED Drivers — Required 24V constant-voltage power supply

Choose a suitable 24V DC constant-voltage driver based on your total strip length. Sold separately.

Havit Weatherproof Drivers Silver 100W 12/24V IP66 - HV9658-100W 24V DC · 100WHavit Weatherproof Drivers Silver 100W 12/24V IP66 - HV9658-100WSKU: HV9658-24V100WUp to 4m total$134.94 Details →
Havit Weatherproof Drivers Silver 150W 12/24V IP66 - HV9658-150W 24V DC · 150WHavit Weatherproof Drivers Silver 150W 12/24V IP66 - HV9658-150WSKU: HV9658-24V150WUp to 6m total$179.28 Details →
Wi-Fi Receiver Control from your phone, or add a compatible controller

Use the Havit HV9105-1009-5C Wi-Fi + RF receiver with the Tuya app to control your strip from a smartphone. A separate remote or wall panel is not needed for phone control, but can be added if preferred.

Havit WIFI + RF Receiver LED Strip 12V-24V - HV9105-1009-5C Wi-Fi + RF ReceiverHavit WIFI + RF Receiver LED Strip 12V-24V - HV9105-1009-5CSKU: HV9105-1009-5CHV9105-1009-5C · phone control via Tuya app$166.84 Details →
Standalone Controllers Receiver required — sold separately

Choose one remote or touch panel. The compatible HV9105-1009-5C receiver in the section above must also be purchased. It is not included with these controllers.

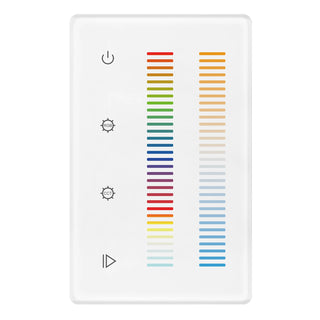

Havit RGBCW LED Strip Touch Panel Controller Accessories 240V IP20 - HV9101-2834-5C Wall Touch ControllerHavit RGBCW LED Strip Touch Panel Controller Accessories 240V IP20 - HV9101-2834-5CSKU: HV9101-2834-5CRequires separate HV9105-1009-5C receiver$158.86 Details →

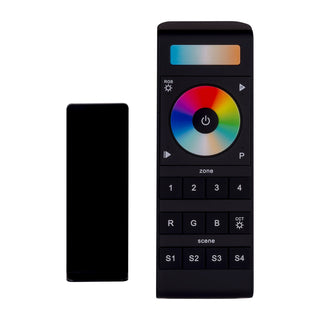

Havit 4 Zone Controller LED Strip Smart Lighting Controls RGBCW 4.5V IP20 - HV9102-2858Z4-5C Standalone RemoteHavit 4 Zone Controller LED Strip Smart Lighting Controls RGBCW 4.5V IP20 - HV9102-2858Z4-5CSKU: HV9102-2858Z4-5CRequires separate HV9105-1009-5C receiver$198.58 Details →
LED Channels & Installation Suitable aluminium mounting required

For Havit warranty compliance, mount this LED strip on a suitable aluminium heat-dissipating surface or compatible LED channel.

The controller and Wi-Fi receiver are IP20 and must be kept dry and protected from moisture.

Shop LED Channels
Usually dispatched in 1 - 3 business days
Estimated Dispatch Date: Calculating…
On backorder — please contact us for an estimated delivery date.
Need it sooner? Contact us now on (02) 9517 2701 to discuss our pickup or express delivery options.
Free standard delivery to all major Australian cities for orders over $200.00!
Not sure if this is the correct product?
Call our expert lighting team on (02) 9517 2701 before ordering.

Description

Havit HV9761-IP54-840-RGBCW is a 20W/m, 24V DC IP54 COB LED strip offering RGB + Cool White lighting and 500 lumens per metre. A compatible RGBCW 5-channel controller and a suitable 24V constant-voltage LED driver are required and sold separately.

Key Features

  • 20W per metre integrated COB LED strip
  • RGB + Cool White output
  • 500 lumens per metre
  • 24V DC constant-voltage operation
  • IP54 rated
  • 12mm (W) × 3mm (H)
  • 50mm cutting increments
  • Maximum powered run: 5m
  • 10m supply roll or custom cut per metre
  • Compatible RGBCW 5-channel LED strip controller required, sold separately
  • 3-year replacement warranty

Installation note: For Havit warranty compliance, install on a suitable aluminium heat-dissipating surface or compatible aluminium LED profile. Maximum powered strip length is 5m per run; the 10m roll is supplied for separate powered runs, not one continuous 10m connection. A RGBCW 5-channel controller is required for colour changing.

Shop LED ChannelsBrowse RGBCW 5-channel Controllers

Technical Specifications

Specification Detail
Brand Havit Lighting
Range Havit COB RGBCW LED Strip
Model HV9761-IP54-840-RGBCW
Light source Integrated COB LED
Wattage 20W per metre
Input voltage 24V DC
Light colour / output style RGBCW
Light output 500lm per metre
Dimensions 12mm (W) × 3mm (H)
Cutting increment 50mm
Maximum powered run 5m
IP rating IP54
Controller RGBCW 5-channel compatible controller required
Mounting Aluminium heat-dissipating surface or LED channel required
Supply Custom cut per metre or 10m roll
Warranty 3-year replacement warranty
