Havit HV9753-IP67-60-RGB RGB / Colour Changing LED Strip product view
Havit HV9753-IP67-60-RGB RGB / Colour Changing strip profile and dimensional drawing, 16mm Wide × 6mm High
Havit Long Run LED Strip RGB 11W 24V IP67- HV9753-IP67-60-RGB Sold per metre and 15 metre roll
Havit Long Run LED Strip RGB 11W 24V IP67- HV9753-IP67-60-RGB Sold per metre and 15 metre roll
Havit Long Run LED Strip RGB 11W 24V IP67- HV9753-IP67-60-RGB Sold per metre and 15 metre roll
Roll over image to zoom in Click on image to zoom
Havit HV9753-IP67-60-RGB RGB / Colour Changing LED Strip product viewHavit HV9753-IP67-60-RGB RGB / Colour Changing strip profile and dimensional drawing, 16mm Wide × 6mm HighHavit Long Run LED Strip RGB 11W 24V IP67- HV9753-IP67-60-RGB Sold per metre and 15 metre rollHavit Long Run LED Strip RGB 11W 24V IP67- HV9753-IP67-60-RGB Sold per metre and 15 metre rollHavit Long Run LED Strip RGB 11W 24V IP67- HV9753-IP67-60-RGB Sold per metre and 15 metre roll
11W per metre
IP67
24V
RGB
16mm Wide / 6mm High
3-Year Warranty

Havit Long Run LED Strip RGB 11W 24V IP67- HV9753-IP67-60-RGB Sold per metre and 15 metre roll

Save $8.39
Havit LightingSKU: HV9753-IP67-60-RGB
Size: Per metre
Price:
$75.44 $83.83

Tax included Shipping calculated at checkout

Enter Your Cut Lengths

Enter your length in centimetres. We'll adjust it to the nearest available 10cm cutting increment. Each cut is charged at the next whole metre.

Requested length100cm
Total for cut lengths$75.44

Each cut length is supplied with a minimum of 50cm cable tail on one end.

IP67 outdoor installation: Cut ends and cable connections must be waterproof-sealed using Havit-specified caps, materials and connection methods. Follow Havit's installation instructions; do not install where water can accumulate.

Components Required – Sold Separately

Open a section below to choose your products. You'll need a suitable driver and one control method.

LED Drivers — Required 24V constant-voltage power supply

Choose a suitable 24V DC constant-voltage driver based on your total strip length. Sold separately.

Havit Weatherproof Drivers Silver 60W 12/24V IP66 - HV9658-60W 24V DC · 60WHavit Weatherproof Drivers Silver 60W 12/24V IP66 - HV9658-60WSKU: HV9658-24V60WUp to 4m total$94.11 Details →
Havit Weatherproof Drivers Silver 100W 12/24V IP66 - HV9658-100W 24V DC · 100WHavit Weatherproof Drivers Silver 100W 12/24V IP66 - HV9658-100WSKU: HV9658-24V100WUp to 7m total$134.94 Details →
Controller + Receiver Kits Easiest setup — remote and receiver together
Recommended · Easiest Setup

Remote and matching receiver are included in this kit. No extra receiver is needed.

Havit Controller LED Strip Smart Lighting Controls RGB White 240/480W 12/24V - HV9102-M3+M4-5A Complete Remote + Receiver KitHavit Controller LED Strip Smart Lighting Controls RGB White 240/480W 12/24V - HV9102-M3+M4-5ASKU: HV9102-M3+M4-5ARemote and receiver included$171.62 Details →
Wi-Fi Receiver Control from your phone, or add a compatible controller

Use the Havit HV9105-1009-5C Wi-Fi + RF receiver with the Tuya app to control your strip from a smartphone. A separate remote or wall panel is not needed for phone control, but can be added if preferred.

Havit WIFI + RF Receiver LED Strip 12V-24V - HV9105-1009-5C Wi-Fi + RF ReceiverHavit WIFI + RF Receiver LED Strip 12V-24V - HV9105-1009-5CSKU: HV9105-1009-5CHV9105-1009-5C · phone control via Tuya app$166.84 Details →
Standalone Controllers Receiver required — sold separately

Choose one remote or touch panel. The compatible HV9105-1009-5C receiver in the section above must also be purchased. It is not included with these controllers.

Havit Touch Panel LED Strip Smart Lighting Controls RGBC/ RGBW White 240V IP20 - HV9101-2820 Wall Touch ControllerHavit Touch Panel LED Strip Smart Lighting Controls RGBC/ RGBW White 240V IP20 - HV9101-2820SKU: HV9101-2820Requires separate HV9105-1009-5C receiver$158.86 Details →

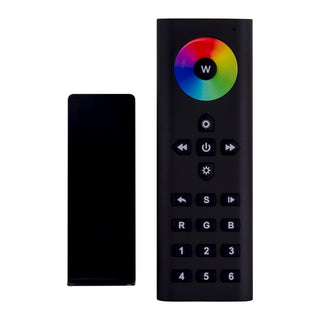

Havit 6 Zone Controller LED Strip Smart Lighting Controls RGBC/W 4.5V IP20 - HV9102-2819RGBW Standalone RemoteHavit 6 Zone Controller LED Strip Smart Lighting Controls RGBC/W 4.5V IP20 - HV9102-2819RGBWSKU: HV9102-2819RGBWRequires separate HV9105-1009-5C receiver$166.84 Details →
LED Channels & Installation Suitable aluminium mounting required

For Havit warranty compliance, mount this LED strip on a suitable aluminium heat-dissipating surface or compatible LED channel.

IP67 installation: Waterproof-seal all cut ends and connections as Havit specifies. The controller and Wi-Fi receiver are IP20 and must be mounted in a dry, suitably protected location.

Shop LED Channels
Usually dispatched in 1 - 3 business days
Estimated Dispatch Date: Calculating…
On backorder — please contact us for an estimated delivery date.
Need it sooner? Contact us now on (02) 9517 2701 to discuss our pickup or express delivery options.
Free standard delivery to all major Australian cities for orders over $200.00!
Not sure if this is the correct product?
Call our expert lighting team on (02) 9517 2701 before ordering.

Description

Havit HV9753-IP67-60-RGB is a 11W/m, 24V DC IP67 long-run LED strip offering RGB colour changing lighting and 300 lumens per metre. A compatible RGB controller and a suitable 24V constant-voltage LED driver are required and sold separately.

Key Features

  • 11W per metre integrated SMD LED strip
  • RGB colour changing output
  • 300 lumens per metre
  • 24V DC constant-voltage operation
  • IP67 rated
  • 16mm (W) × 6mm (H)
  • 100mm cutting increments
  • Maximum powered run: 15m
  • 15m supply roll or custom cut per metre
  • Compatible RGB LED strip controller required, sold separately
  • 3-year replacement warranty

Installation note: For Havit warranty compliance, install on a suitable aluminium heat-dissipating surface or compatible aluminium LED profile. Maximum powered strip length is 15m per run; the 15m roll is supplied for separate powered runs. A RGB controller is required for colour changing.

Shop LED ChannelsBrowse RGB Controllers

Technical Specifications

Specification Detail
Brand Havit Lighting
Range Havit Long Run RGB/RGBW LED Strip
Model HV9753-IP67-60-RGB
Light source Integrated SMD LED
Wattage 11W per metre
Input voltage 24V DC
Light colour / output style RGB
Light output 300lm per metre
Dimensions 16mm (W) × 6mm (H)
Cutting increment 100mm
Maximum powered run 15m
IP rating IP67
Controller RGB compatible controller required
Mounting Aluminium heat-dissipating surface or LED channel required
Supply Custom cut per metre or 15m roll
Warranty 3-year replacement warranty

Downloads

Data SheetInstallation Guide

Explore the Havit Long Run RGB/RGBW LED Strip Range

Compare other compatible colours and IP-rated models in the range.

View More in the Havit Long Run RGB/RGBW LED Strip RangeView Similar RGB & Colour Changing Strips
