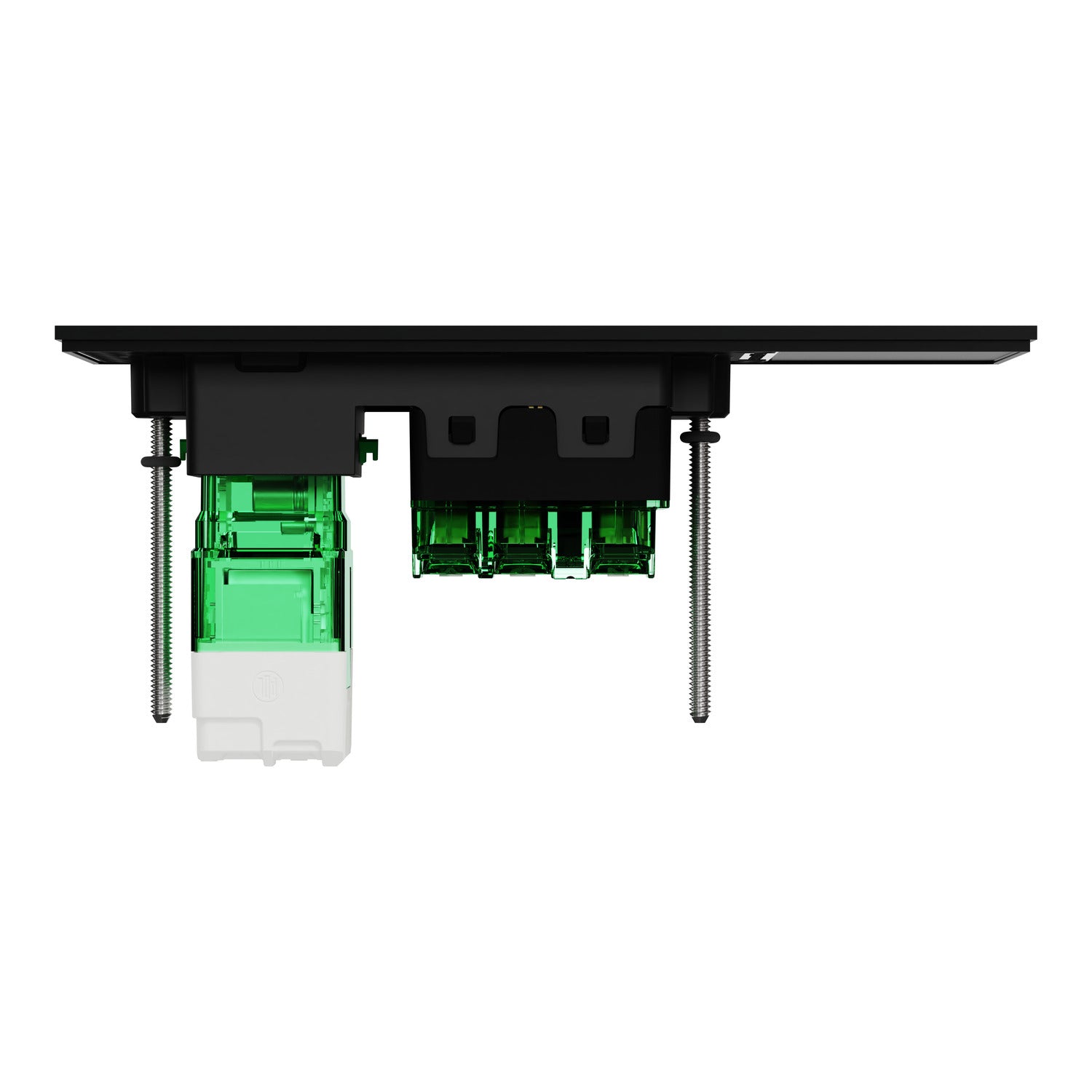

Clipsal Double Switch Power Point, Clipsal Solis T Series, Wiser Connected, Horizontal Mount Ebony Aluminium/ White Ceramic 230V-240V- 1010CSZ-EA, 1010CSZ-WC

Roll over image to zoom in Click on image to zoom

Wall Switches

Clipsal Double Switch Power Point, Clipsal Solis T Series, Wiser Connected, Horizontal Mount Ebony Aluminium/ White Ceramic 230V-240V- 1010CSZ-EA, 1010CSZ-WC

Save $36.90

ClipsalSKU: 1010CSZ-EA

Colour: Ebony Aluminium

Price:

$332.15 $369.05

Tax included Shipping calculated at checkout

Quantity:

Usually dispatched in 1 - 3 business days

Estimated Dispatch Date: Calculating…

Need it sooner? Contact us now on (02) 9517 2701 to discuss our pickup or express delivery options.

Free standard delivery to all major Australian cities for orders over $200.00!

Not sure if this is the correct product?
Call our expert lighting team on (02) 9517 2701 before ordering.

The Clipsal Solis T Series switched socket is designed to meet the demands of residential, commercial, and hotel applications. This socket outlet is designed to meet Australian/New Zealand standards and has a 2P + E pole configuration. Transform your living space with our smart device, which can be effortlessly managed through the Wiser Home app. The device operates within a 50-meter range using ZigBee, allowing for high scalability in large networks. The rated current is 10A and the rated operational voltage is 230/240VAC. The device comes with a screw terminal that offers a more secure connection for larger wires, reducing the risk of loose wires caused by external factors. This device allows for flush mounting. Screws are available for installation. The socket has a shutter that prevents the insertion of objects other than plugs for safety purposes. It is intended to be installed horizontally only. The dimensions are (W) 148mm x (H) 74mm x (D) 66.9mm, and the embedding depth is 63mm. Discover the perfect fit with a 84mm fixing center and 4.5mm thickness for seamless integration into your projects. The color of the product is living brass. Choose from modern high-end finishes such as ceramic white, living brass, and recycled aluminum in platinum or ebony for contemporary home spaces with the Clipsal Solis T Series range. Create aesthetically pleasing electrical designs that complement your style.

**Main**
Range	Clipsal Solis T Series
Product or component type	Socket with wiser connected switch
Product brand	Clipsal
Assembly Type	Complete product
Colour tint	Living brass
Software name	Wiser Home
Protection	Shuttered
Memory usage	Backup
Main colour tint	Living brass

**Complementary**
Control type	Rocker
Number Of Outlets	1
Socket-outlet type	Single socket-outlet
Mounting Type	Screw
Installation Type	Flush
Installation Orientation	Horizontal
Material	Brass
[Ue] rated operational voltage	230/240 V AC
Network frequency	50 Hz
[In] rated current	10 A

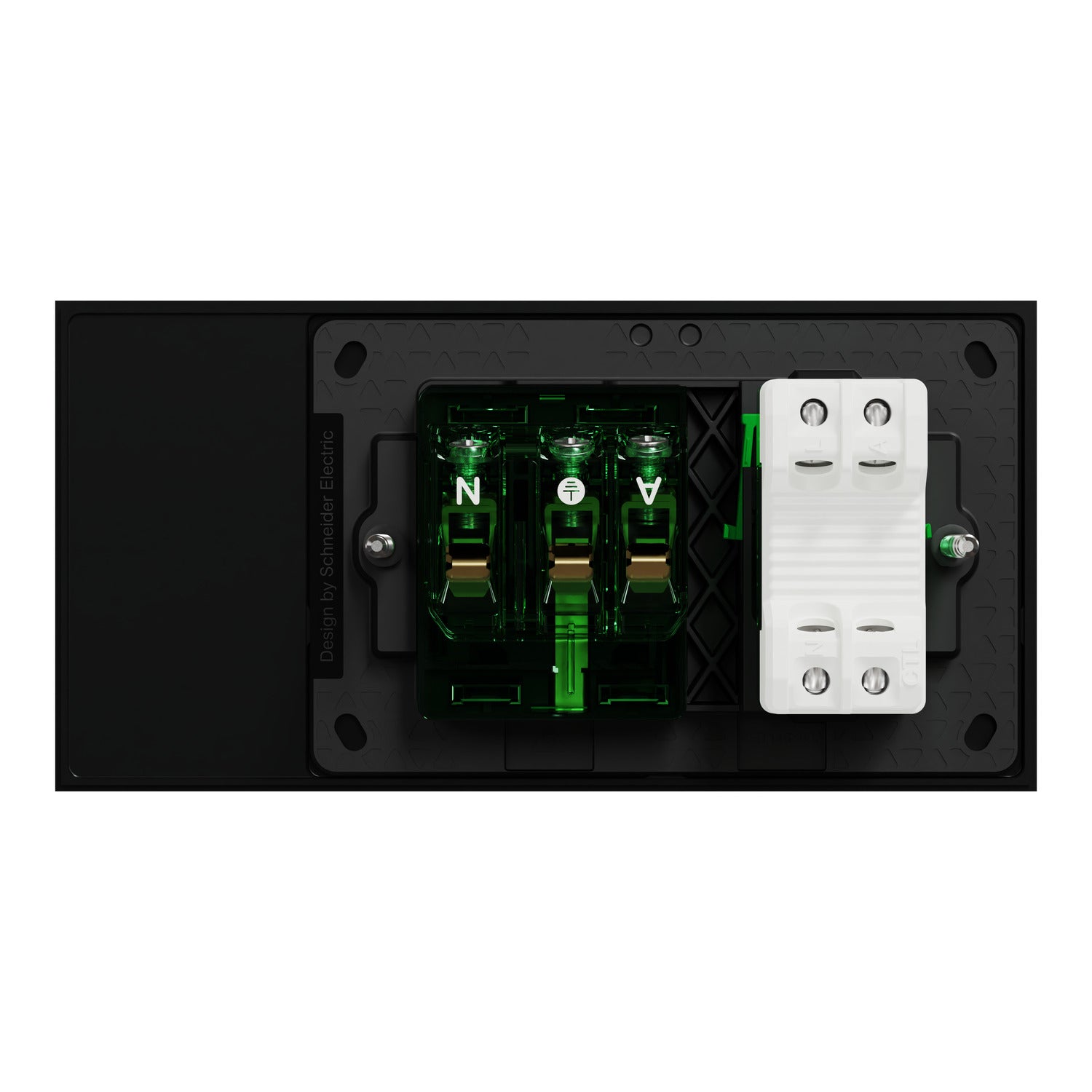

Connections - terminals	4 x 2.5 mm² screw terminals 3 x 4 mm² screw terminals
Embedding depth	63 mm
Depth	66.9 mm
Height	74 mm
Width	148 mm
Mounting Centers	84 mm
Communication network type	ZigBee 50 m
Cut-out dimensions	93 x 50 mm
surface treatment	Metallic
Screwdriver shape	Philips No 2 Square drive no 1 (SQ1)
Wire stripping length	16 mm
Number of power socket outlets	1 x 2P + E, Australian/New Zealand
Cover Thickness	3.9 mm
Number Of Switches	1

**Environment**
Product certifications	RCM
Standards	AS/NZS 3112
Relative humidity	10…95 %
Ambient air temperature for operation	0…45 °C

**Packing Units- 1010CSZ-LB**
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	15.5 cm
Package 1 Width	8 cm
Package 1 Length	8 cm
Package 1 Weight	290 g
Unit Type of Package 2	CAR
Number of Units in Package 2	30
Package 2 Height	32.5 cm
Package 2 Width	25 cm
Package 2 Length	41 cm
Package 2 Weight	9.08 kg

**Packing Units- 1010CSZ-EA**
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	15.5 cm
Package 1 Width	8 cm
Package 1 Length	8 cm
Package 1 Weight	214 g
Unit Type of Package 2	CAR
Number of Units in Package 2	30
Package 2 Height	32.5 cm
Package 2 Width	25 cm
Package 2 Length	41 cm
Package 2 Weight	6.8 kg

**Packing Units- 1010CSZ-WC**
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	15.5 cm
Package 1 Width	8 cm
Package 1 Length	8 cm
Package 1 Weight	249 g
Unit Type of Package 2	CAR
Number of Units in Package 2	30
Package 2 Height	32.5 cm
Package 2 Width	25 cm
Package 2 Length	41 cm
Package 2 Weight	7.85 kg

DOWNLOADS- 1010CSZ-EA

DATASHEET
INSTALLATION GUIDE

DOWNLOADS- 1010CSZ-WC

DATASHEET
INSTALLATION GUIDE

DOWNLOADS

BROCHURE
ENVIRONMENTAL DISCLOSURE
