Description

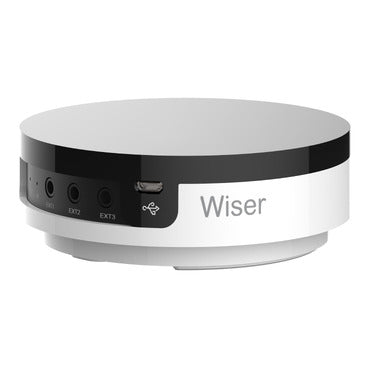

The Wiser IR Converter controls TVs, split air conditioners and HiFi systems via the Wiser by SE app using infrared (IR) technology. It can be mounted on the ceiling or placed on a table top.
Design
|
Device application |
Zigbee/infrared interface |
|
Colour tint |
white and black |
| Range | Wiser |
| Product or component type |
hub
|
Physical
|
Communication network type |
wireless Zigbee (2.4-2.4 GHz), 2.5 mW at < 50 m
|
|
Connector type |
connector(s)1 x micro USB port female for adaptor
|
|
[ue] rated operational voltage |
AC external adaptor: 100...240 V AC 50/60 Hz
|
|
Local signalling |
indicator: 2 LEDs (green/red/orange)
|
|
Detection angle |
|
|
Height |
32.5 mm |
| Ambient air temperature for operation |
-10...45 °C
|
|
Relative humidity |
10...90 % |
|
Environmental characteristic |
indoor use |
|
Ip degree of protection |
IP20
|
| Standards |
|
|
Product certifications |
CE
|
| Mercury free | Yes |
| Rohs exemption information |
Yes
|
| Environmental disclosure | ENVPEP1902005EN |
|
Eu rohs directive |
Compliant with Exemptions |
|
China rohs regulation |
X |
