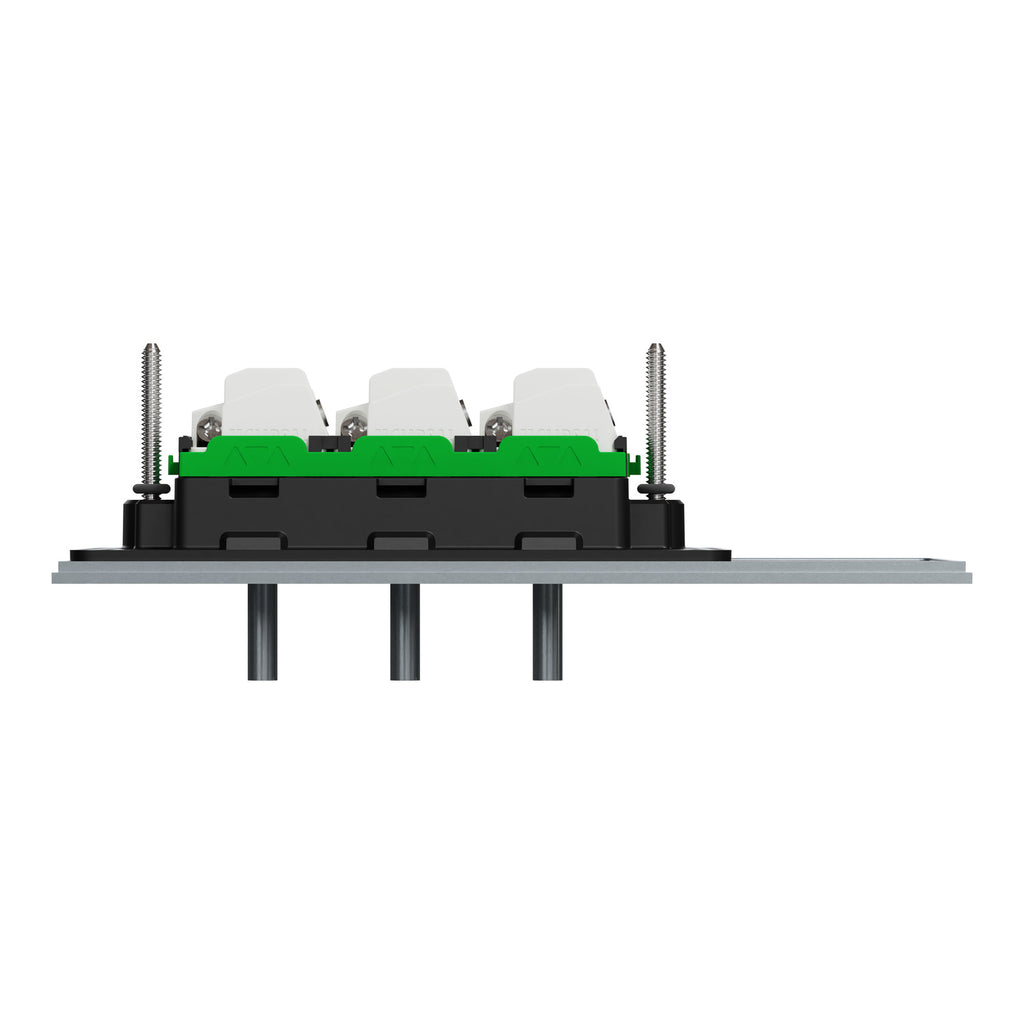

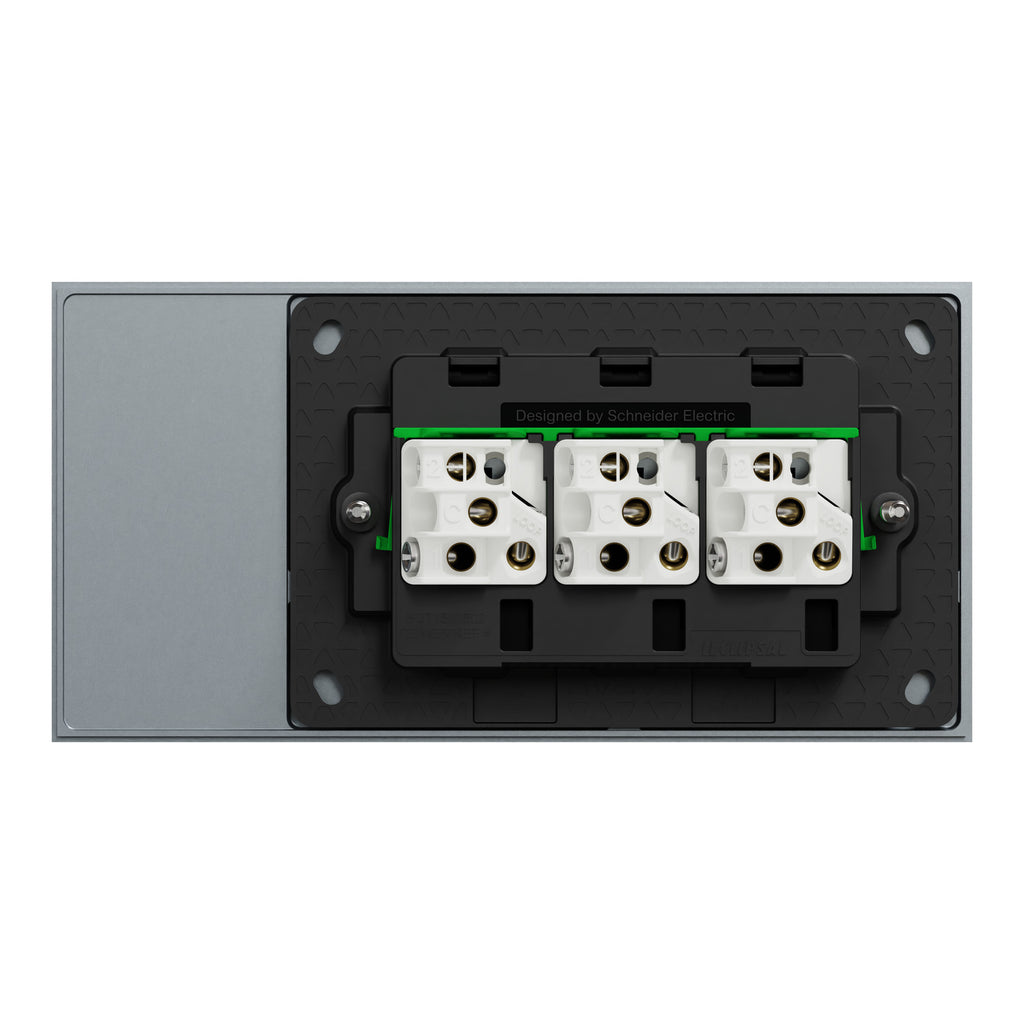

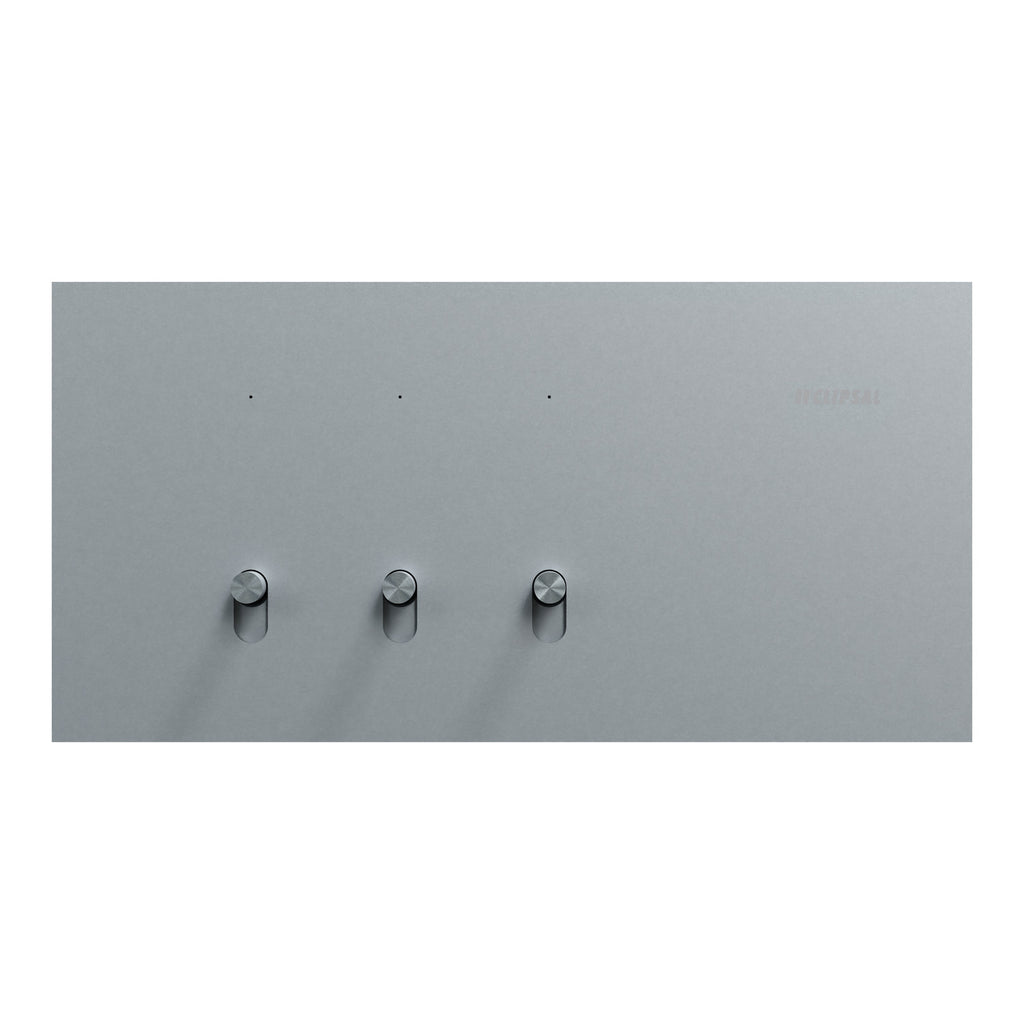

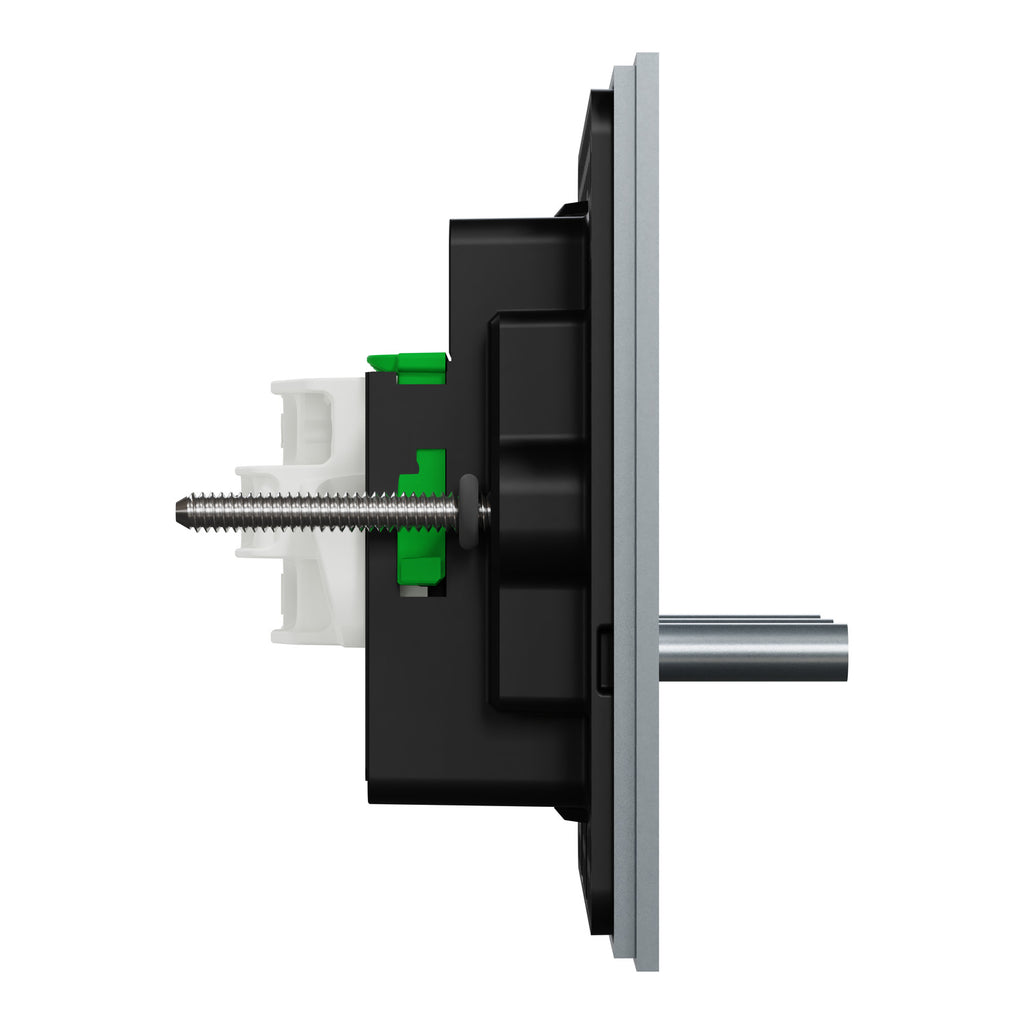

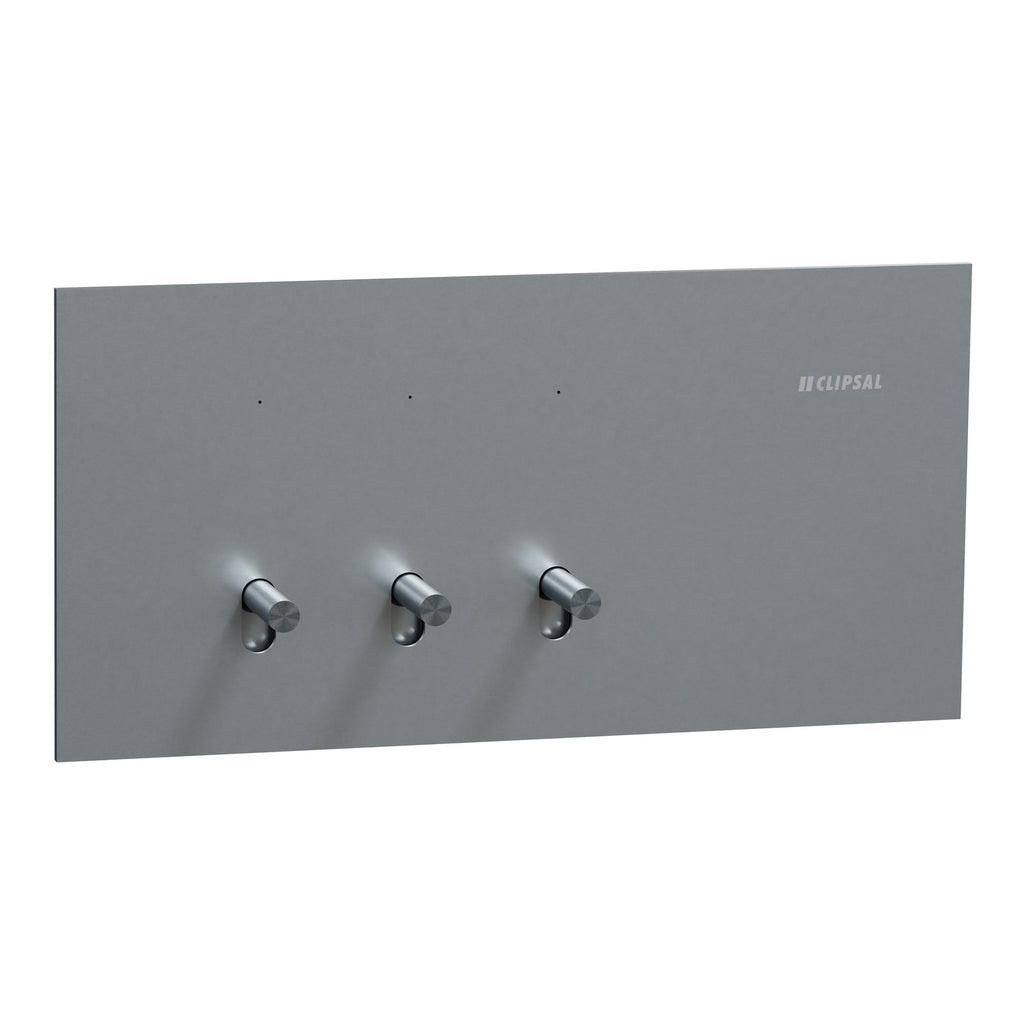

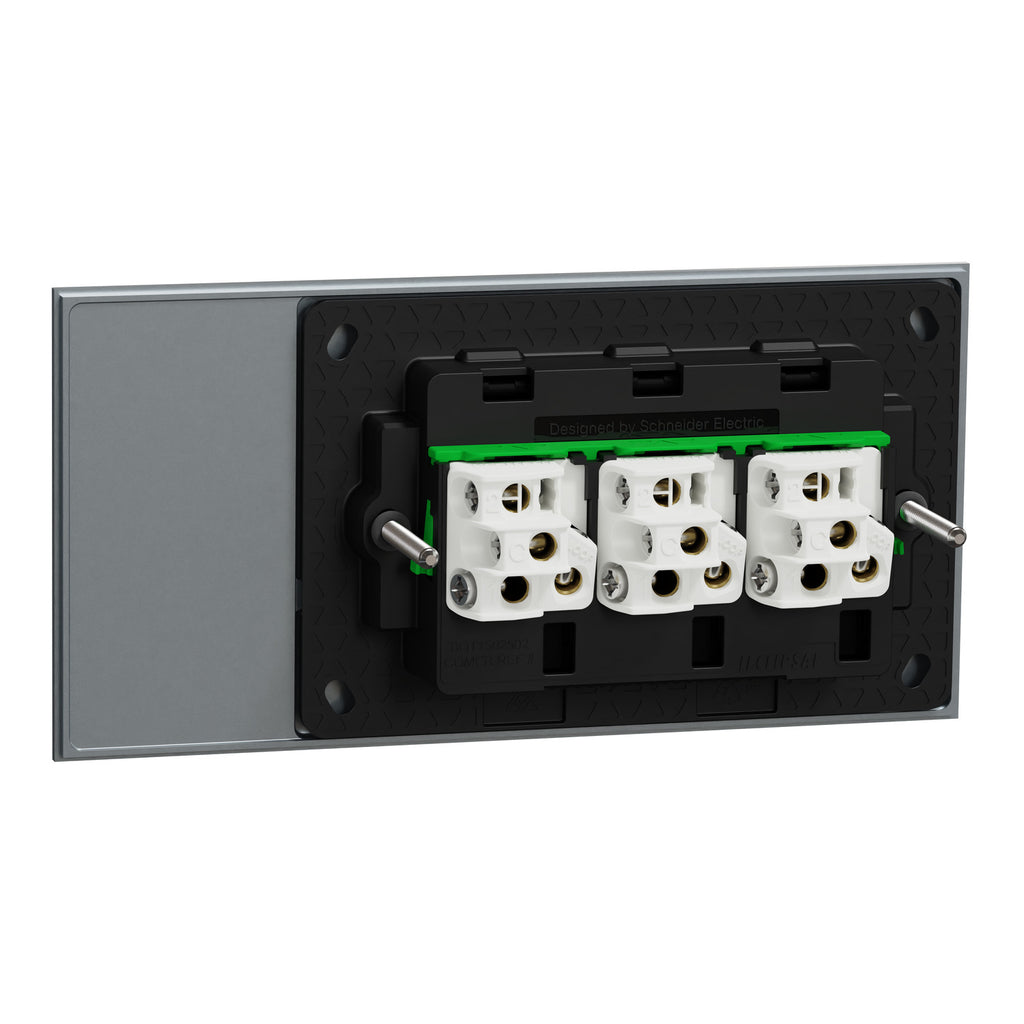

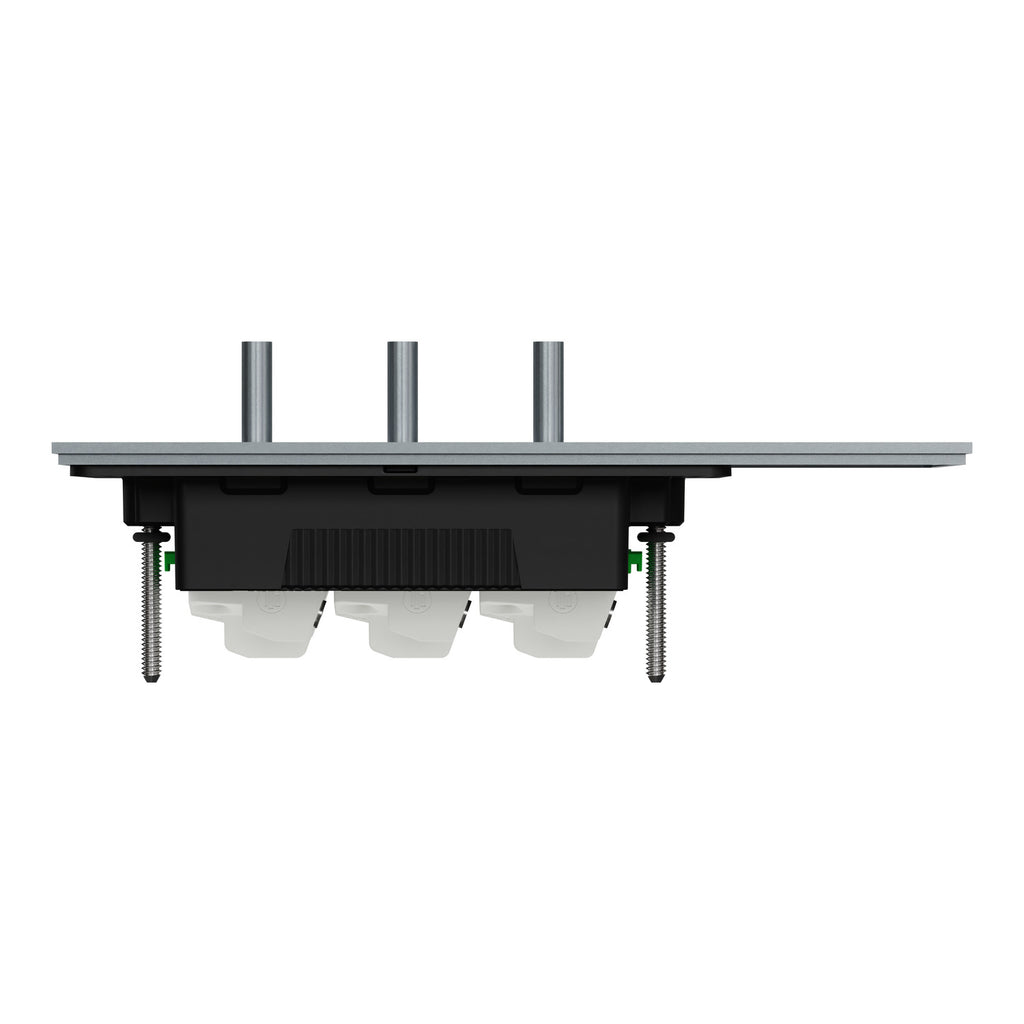

The Clipsal Solis T Series switch is designed to meet the needs of residential, commercial, and hotel applications. This 3-gang toggle switch offers convenient 1-pole 1/2-way control. The rated current is 20A/16AX and the rated operational voltage is 230/240VAC. The device comes with a screw terminal that offers a more secure connection for larger wires, reducing the risk of loose wires caused by external factors. This device allows for flush mounting. Screws are available for installation. It is intended to be installed horizontally only. The dimensions are (W) 148mm x (H) 74mm x (D) 56mm, and the embedding depth is 41mm. Discover the perfect fit with an 84mm fixing center and 3.6mm thickness for seamless integration into your projects. The color of the product is platinum. Its operating temperature is from 0°C to 45°C. The Clipsal Solis range now offers a choice of contemporary white and black finishes for modern home spaces. Create aesthetically pleasing electrical designs that complement your style.
Main
| Range |
Clipsal Solis T Series |
| Product brand |
Clipsal |
| Product or component type |
Switch |
| Assembly Type |
Complete product |
| Outlet standard deviation |
Australian/New Zealand |
| Colour tint |
Platinum |
Complementary
| Number of gangs |
3 gangs |
| [Ue] rated operational voltage |
230/240 V |
| Network type |
AC |
| Network frequency |
50 Hz |
| Rated current |
20 A/16 AX |
| Control type |
Toggle switch |
| Connections - terminals |
Screw terminals |
| Installation Type |
Flush |
| Number Of Switches |
3 |
| Material |
Aluminium |
| Installation direction |
Horizontal |
| surface treatment |
Metallic |
| Load type |
LEDi lamp 0...250 W 20 A/16 AX |
| Terminals Capacity |
4 x 1.5...3 x 2.5 mm² |
| Screwdriver shape |
Philips No 2
Square drive no 1 (SQ1) |
| Wire stripping length |
10 mm |
| Mounting Type |
Screw |
| Cover Thickness |
3.6 mm |
| Mounting Centers |
84 mm |
| Cut-out dimensions |
93 x 50 mm |
| Product certifications |
RCM |
| Surface finish |
Aluminium |
| Height |
74 mm |
| Width |
148 mm |
| Depth |
56 mm |
| Embedding depth |
41 mm |
| Motor M-rating AS3133 |
M80 |
| Switch function |
1-pole 1/2-way |
Environment
| Ambient air temperature for operation |
0…45 °C |
| Relative humidity |
10…95 % |
| Standards |
AS/NZS 60669 |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
15.5 cm |
| Package 1 Width |
8 cm |
| Package 1 Length |
8 cm |
| Package 1 Weight |
130 g |
| Unit Type of Package 2 |
CAR |
| Number of Units in Package 2 |
30 |
| Package 2 Height |
34 cm |
| Package 2 Width |
36 cm |
| Package 2 Length |
48 cm |
| Package 2 Weight |
3.984 kg |
