Description

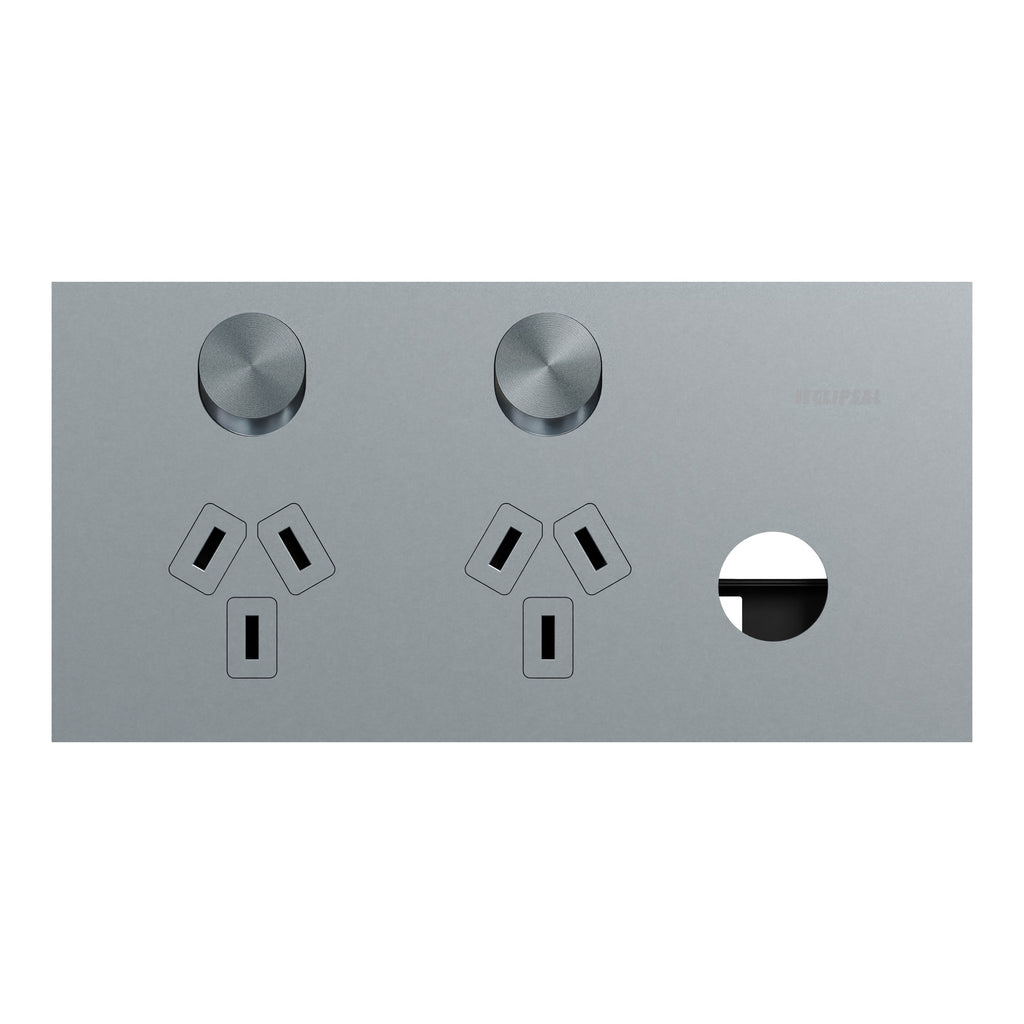

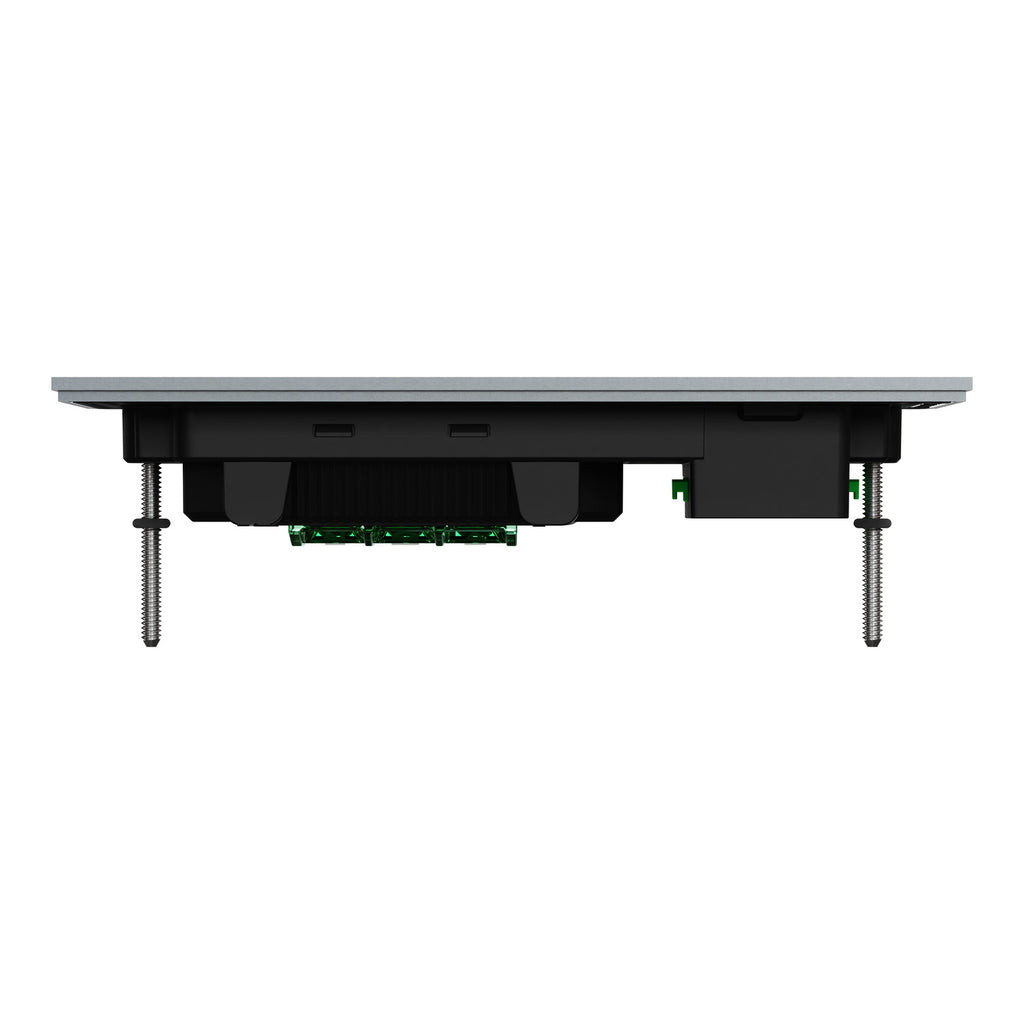

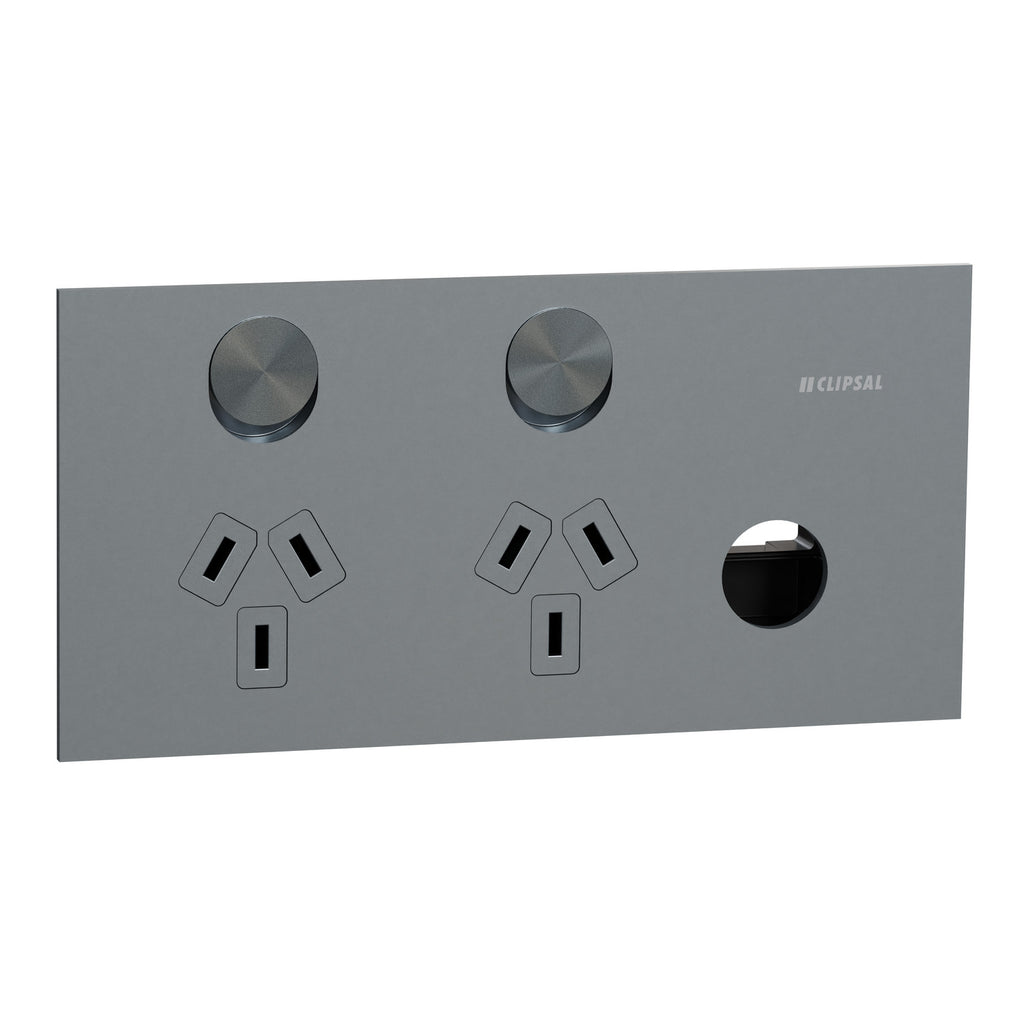

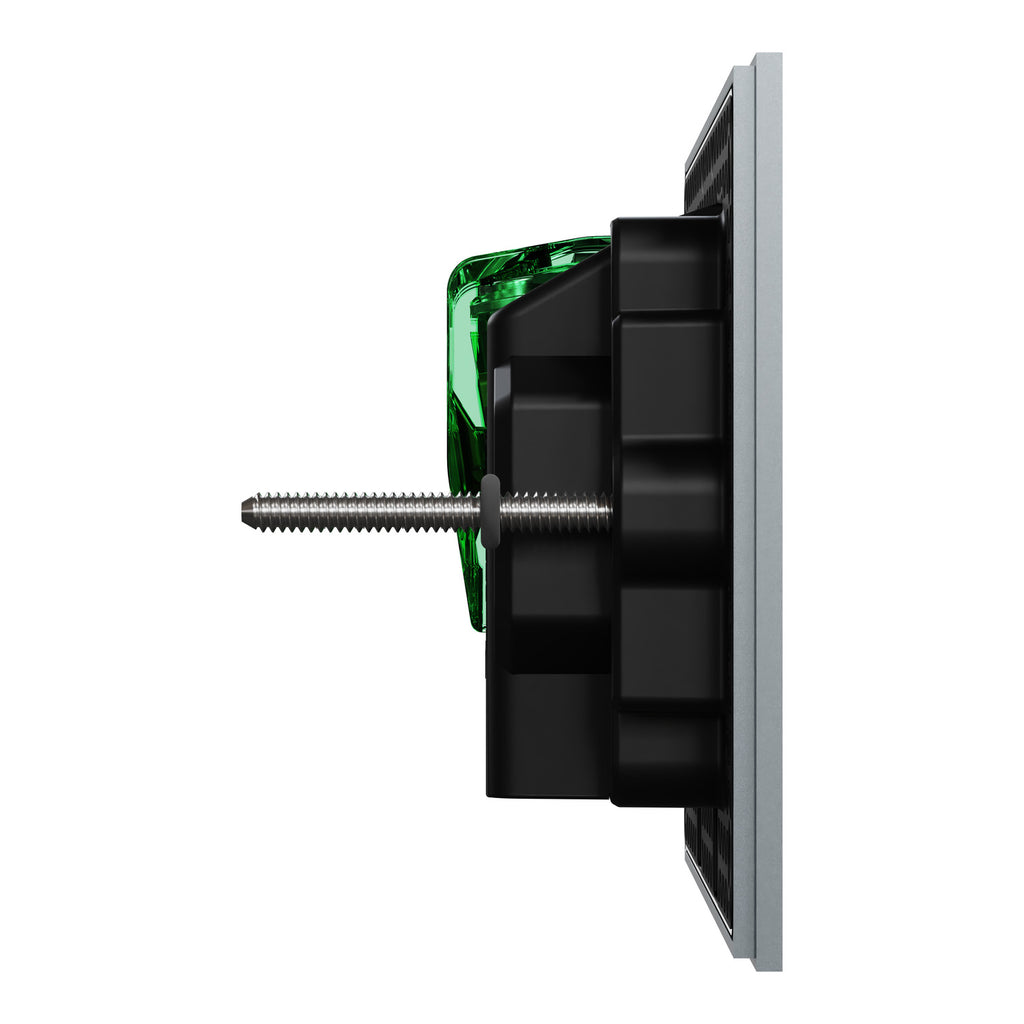

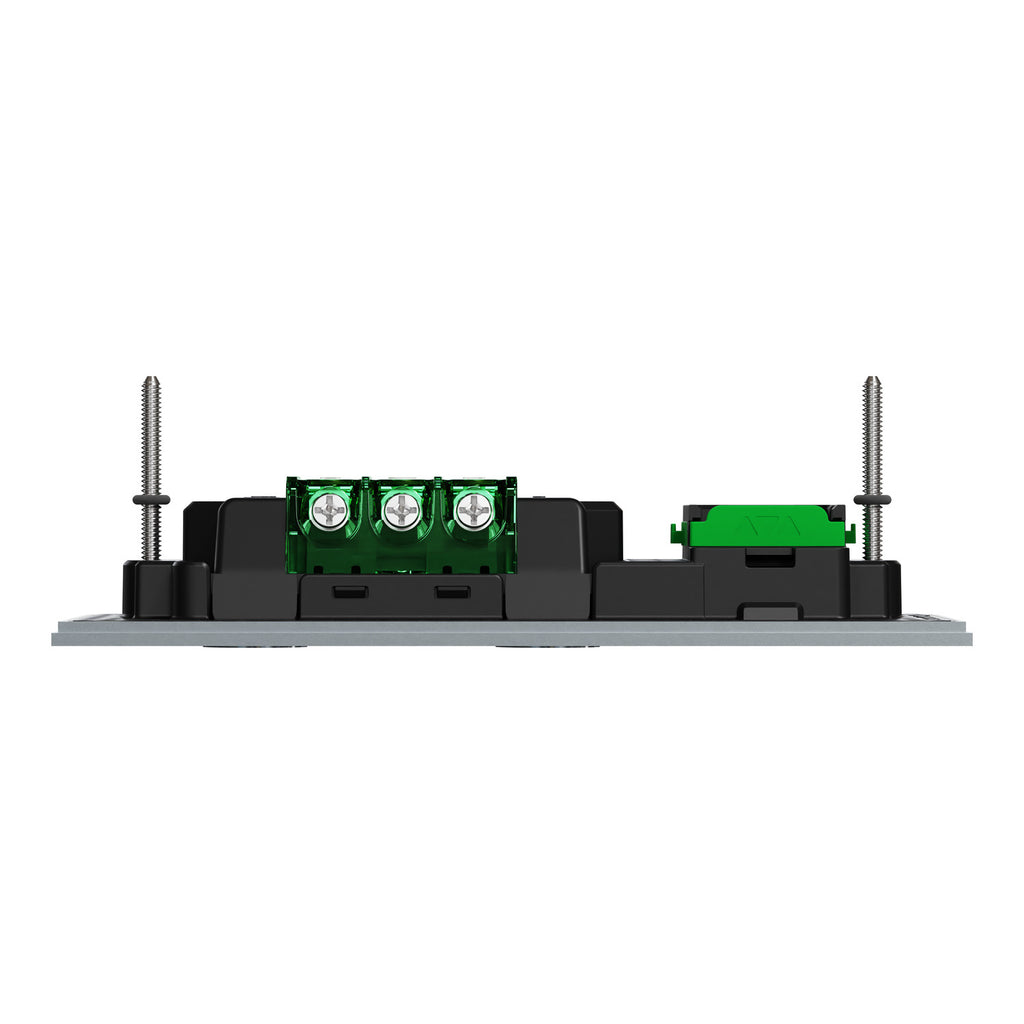

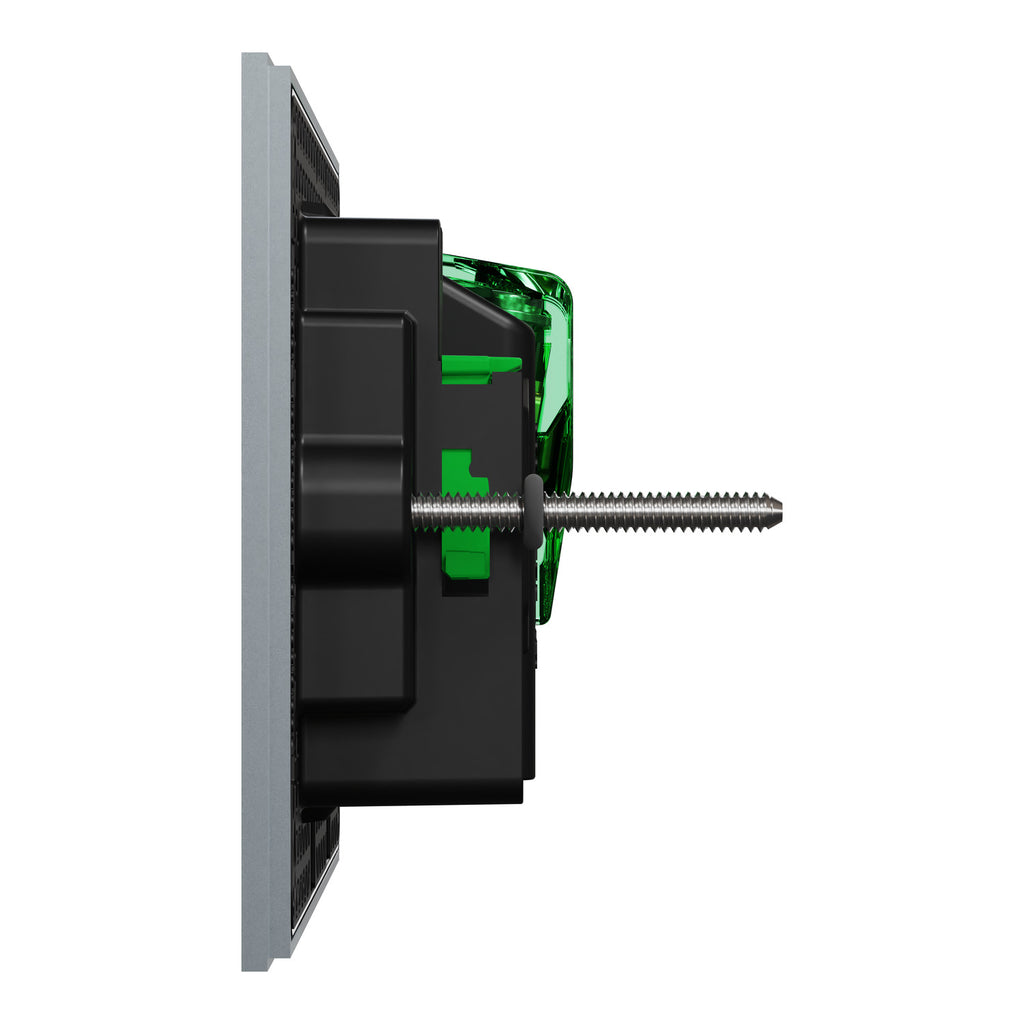

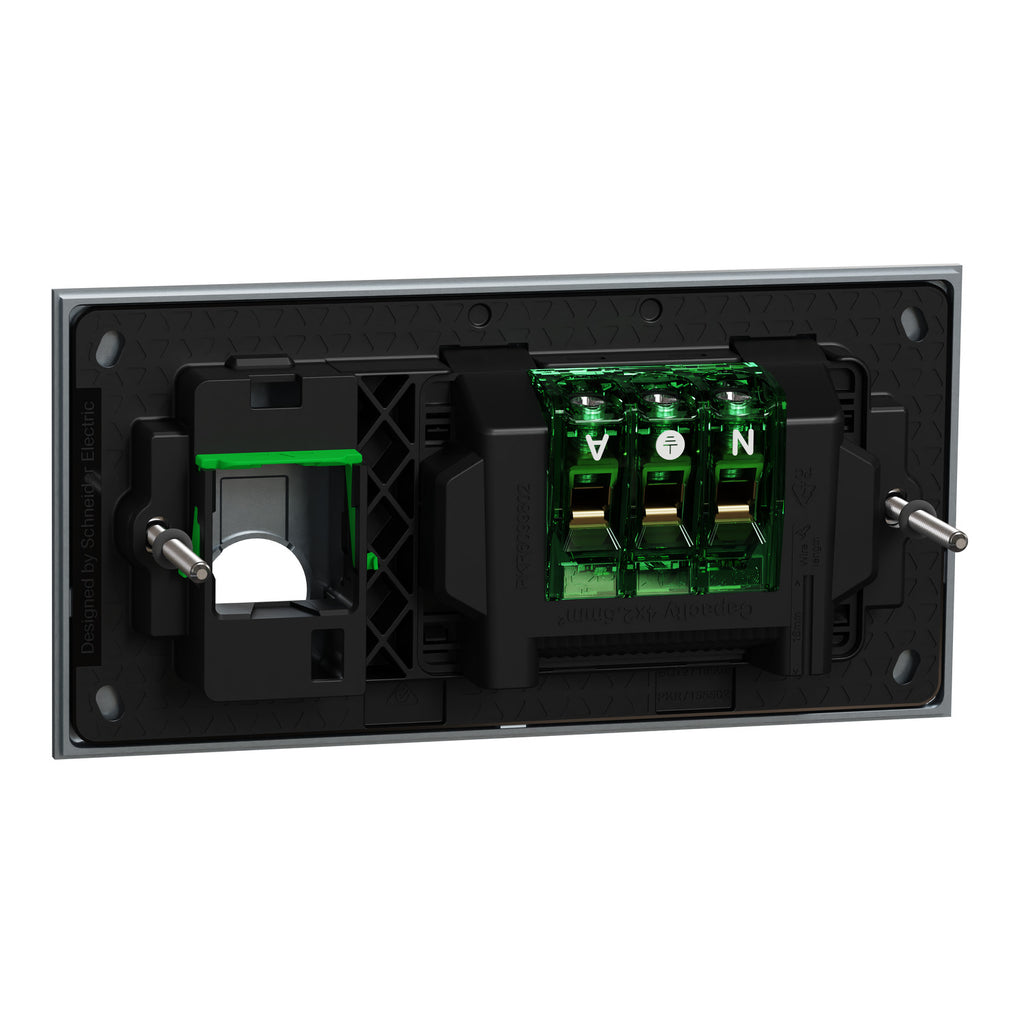

The Clipsal Solis T Series double-switched socket is designed for use in residential, commercial, and hotel applications. This socket outlet is designed to meet Australian/New Zealand standards and has a 2P + E pole configuration. The rated current is 10A and the rated operational voltage is 230/240VAC. The device comes with a screw terminal that offers a more secure connection for larger wires, reducing the risk of loose wires caused by external factors. This device allows for flush mounting. Screws are available for installation. The socket has a shutter that prevents the insertion of objects other than plugs for safety purposes. It is intended to be installed horizontally only. The dimensions are (W) 148mm x (H) 74mm x (D) 27.4mm, and the embedding depth is 23.5mm. Discover the perfect fit with a 120mm fixing center and 5mm thickness for seamless integration into your projects. The color of the product is platinum. Its operating temperature is from 0°C to 45°C. Choose from modern high-end finishes such as ceramic white, living brass, and recycled aluminum in platinum or ebony for contemporary home spaces with the Clipsal Solis T Series range. Create aesthetically pleasing electrical designs that complement your style.
DOWNLOADS
| DATASHEET |  |
|
INSTALLATION GUIDE |
 |
