Description

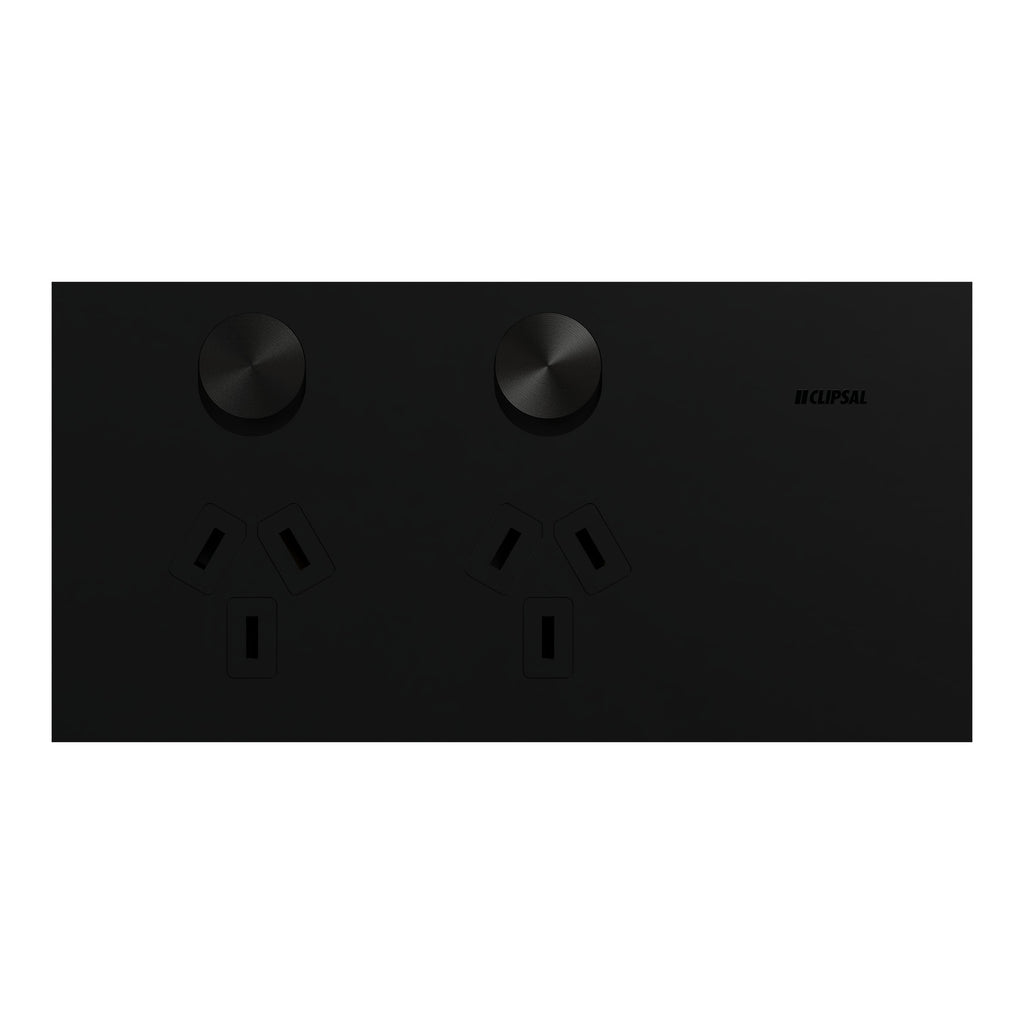

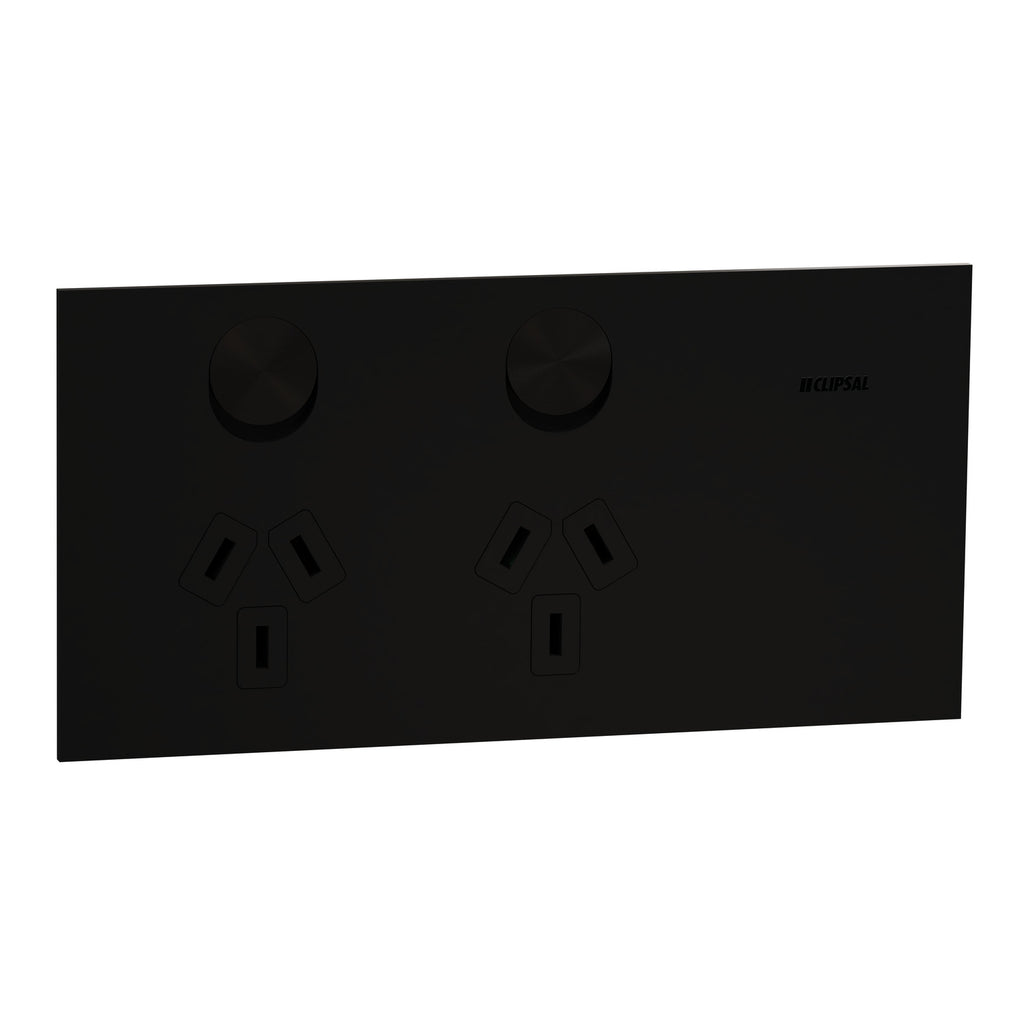

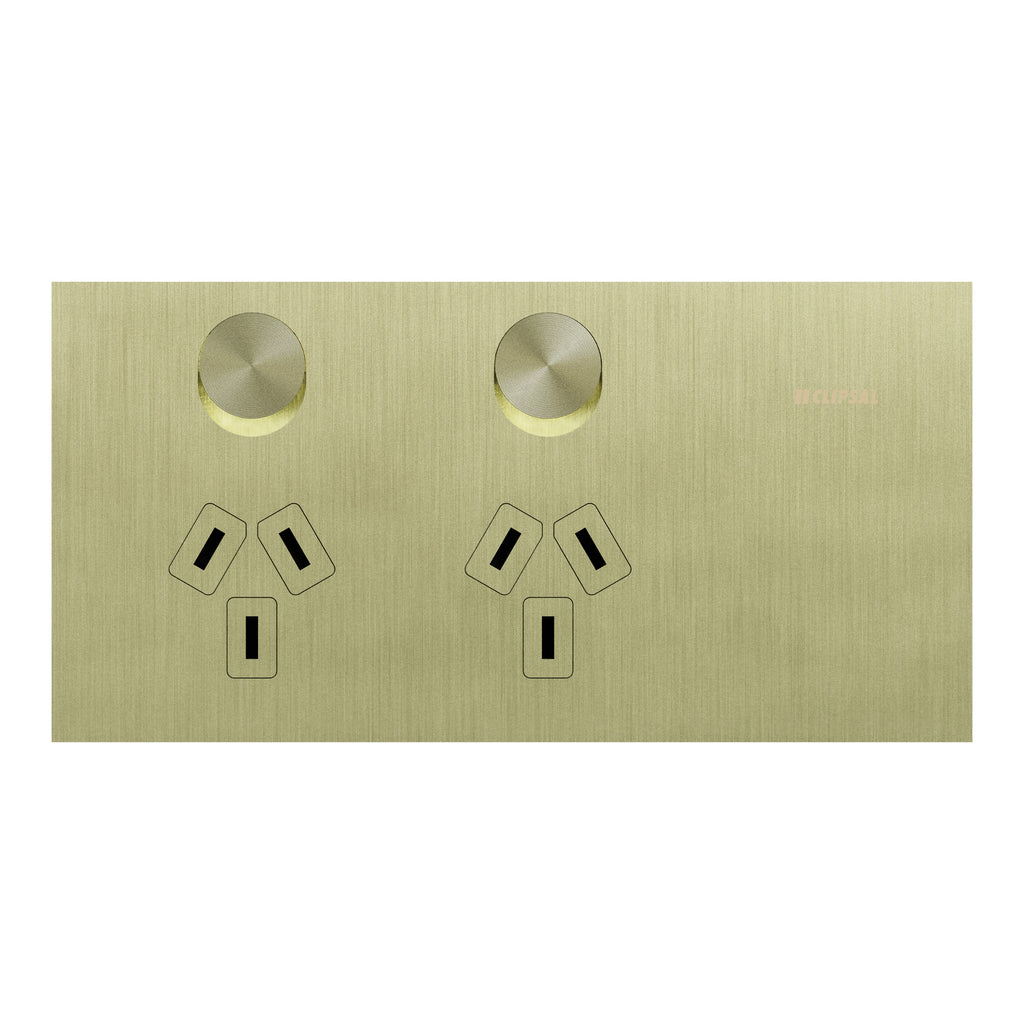

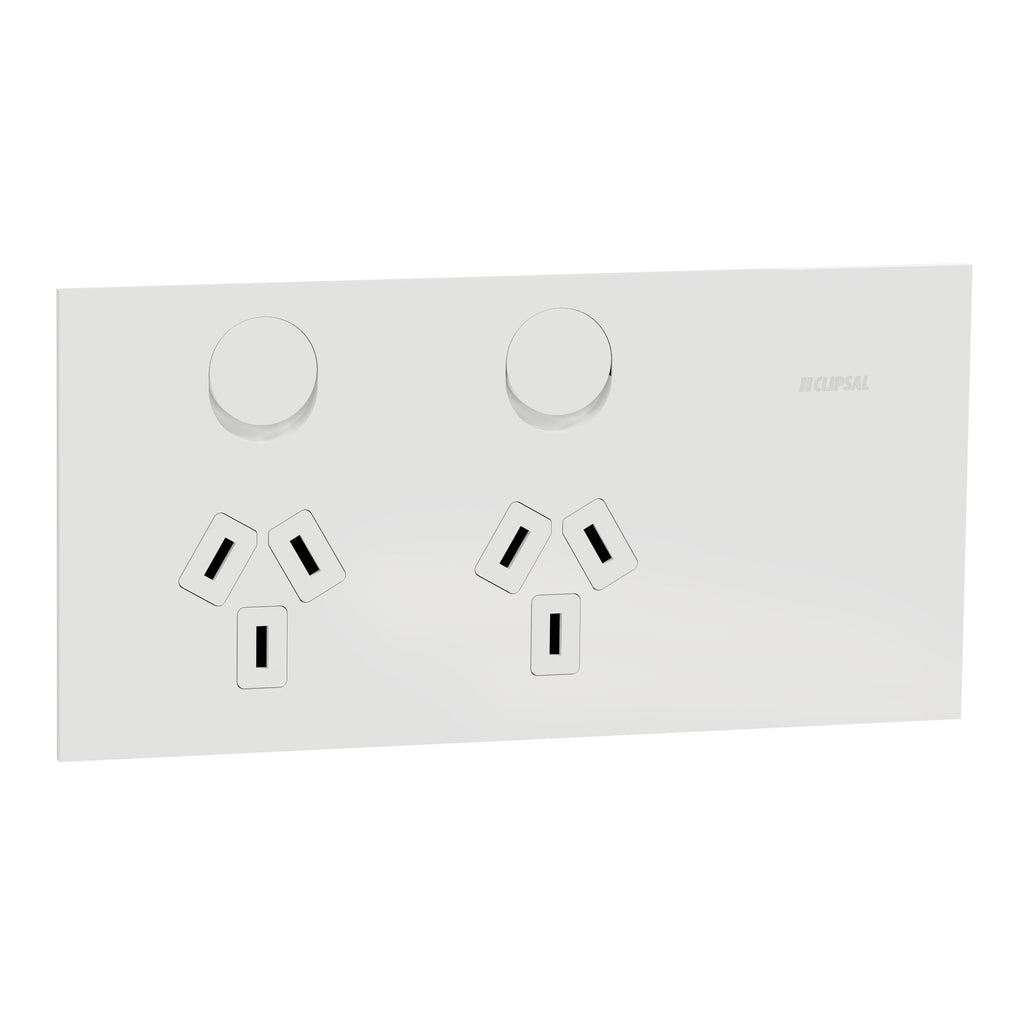

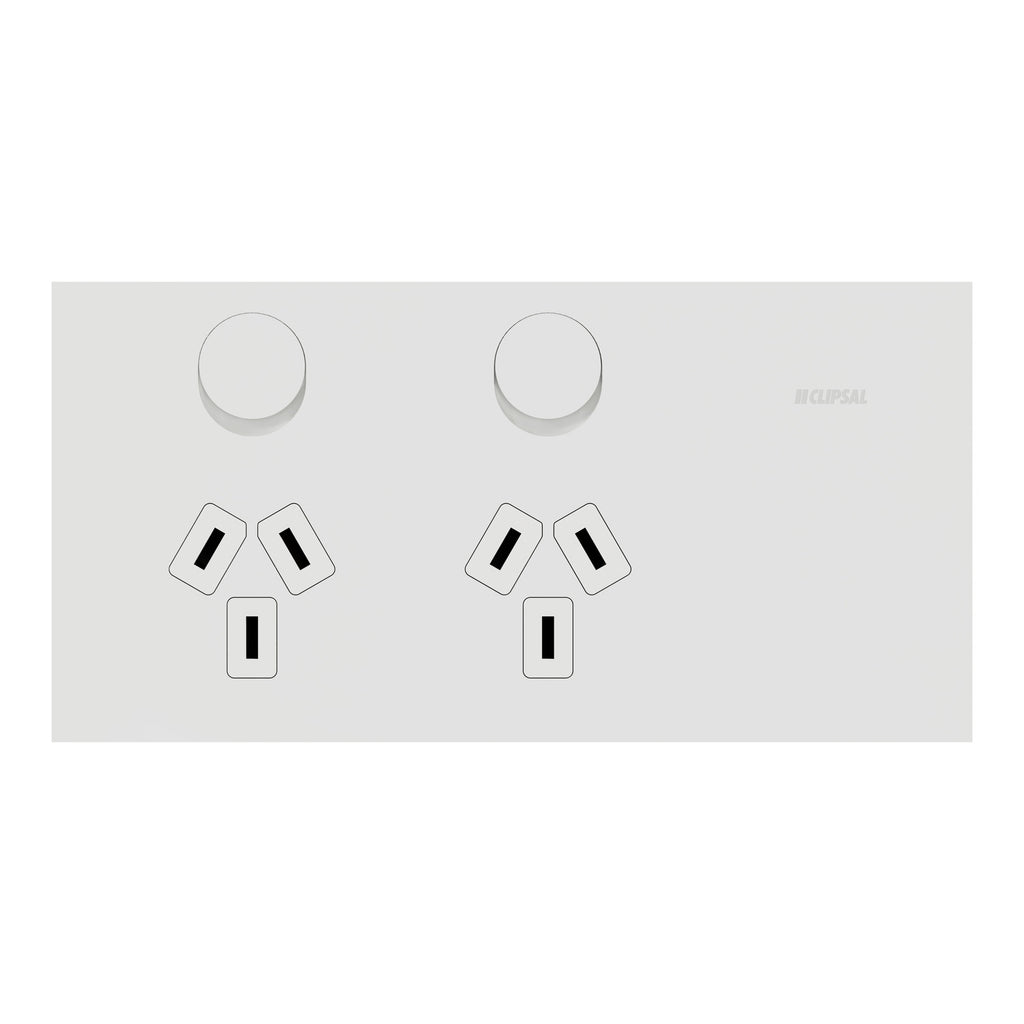

The Clipsal Solis T Series double-switched socket is designed for use in residential, commercial, and hotel applications. This socket outlet is designed to meet Australian/New Zealand standards and has a 2P + E pole configuration. The rated current is 10A and the rated operational voltage is 230/240VAC. The device comes with a screw terminal that offers a more secure connection for larger wires, reducing the risk of loose wires caused by external factors. This device allows for flush mounting. Screws are available for installation. The socket has a shutter that prevents the insertion of objects other than plugs for safety purposes. It is intended to be installed horizontally only. The dimensions are (W) 148mm x (H) 74mm x (D) 27.4mm, and the embedding depth is 23.5mm. Discover the perfect fit with a 84mm fixing center and 5mm thickness for seamless integration into your projects. The color of the product is ebony aluminium. Its operating temperature is from 0°C to 45°C. Choose from modern high-end finishes such as ceramic white, living brass, and recycled aluminum in platinum or ebony for contemporary home spaces with the Clipsal Solis T Series range. Create aesthetically pleasing electrical designs that complement your style.
| Range | Clipsal Solis T Series |
|---|---|
| Product or component type | Switched socket |
| Product brand | Clipsal |
| Assembly Type | Complete product |
| Colour tint | Ebony aluminium/ White Ceramic |
| Protection | Shuttered |
| Main colour tint | Ebony aluminium/ White Ceramic |
| Control type | Rocker |
|---|---|
| Number Of Outlets | 2 |
| Socket-outlet type | Double socket-outlet |

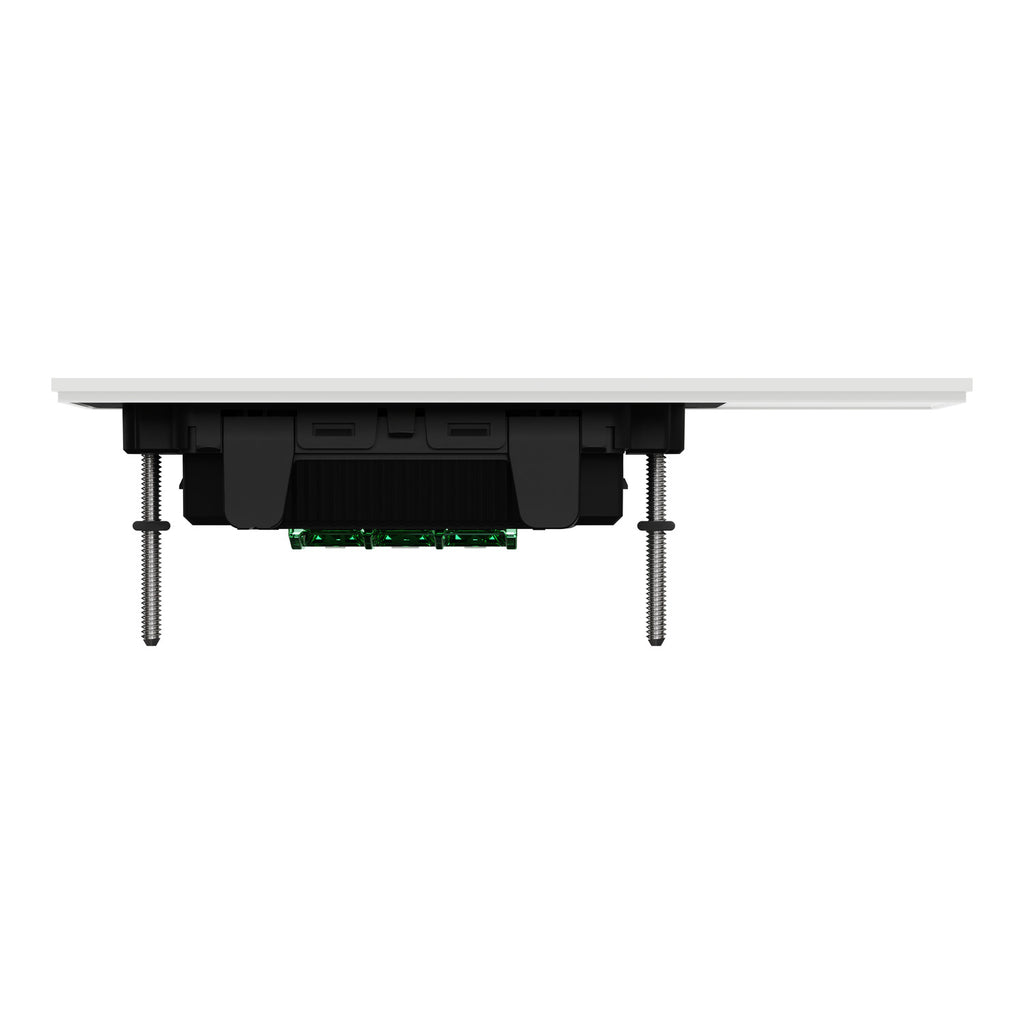

| Mounting Type | Screw |
| Installation Type | Flush |
| Installation Orientation | Horizontal |
| Material | Aluminium/ Ceramic |
| Surface finish | Metallic/ Polished |
| [Ue] rated operational voltage | 230/240 V AC |
| Network frequency | 50 Hz |
| [In] rated current | 10 A |

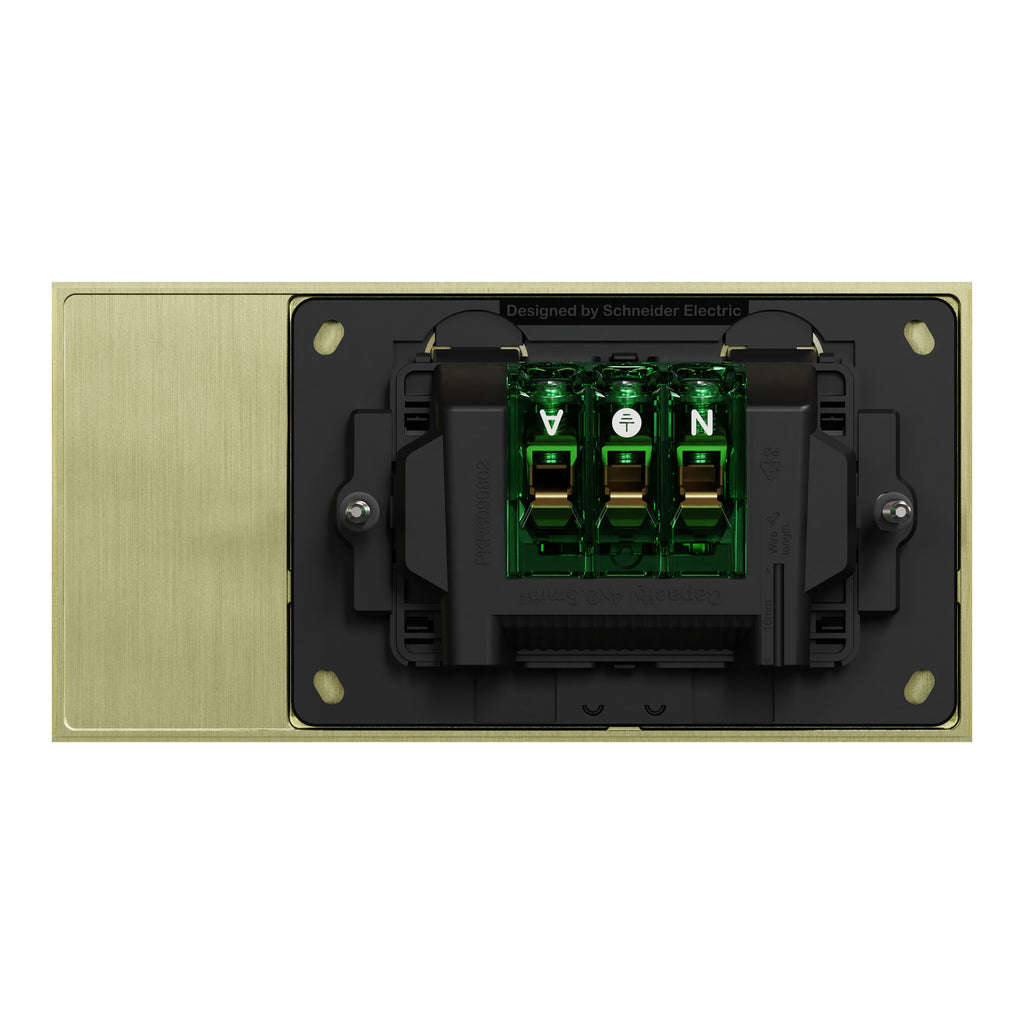

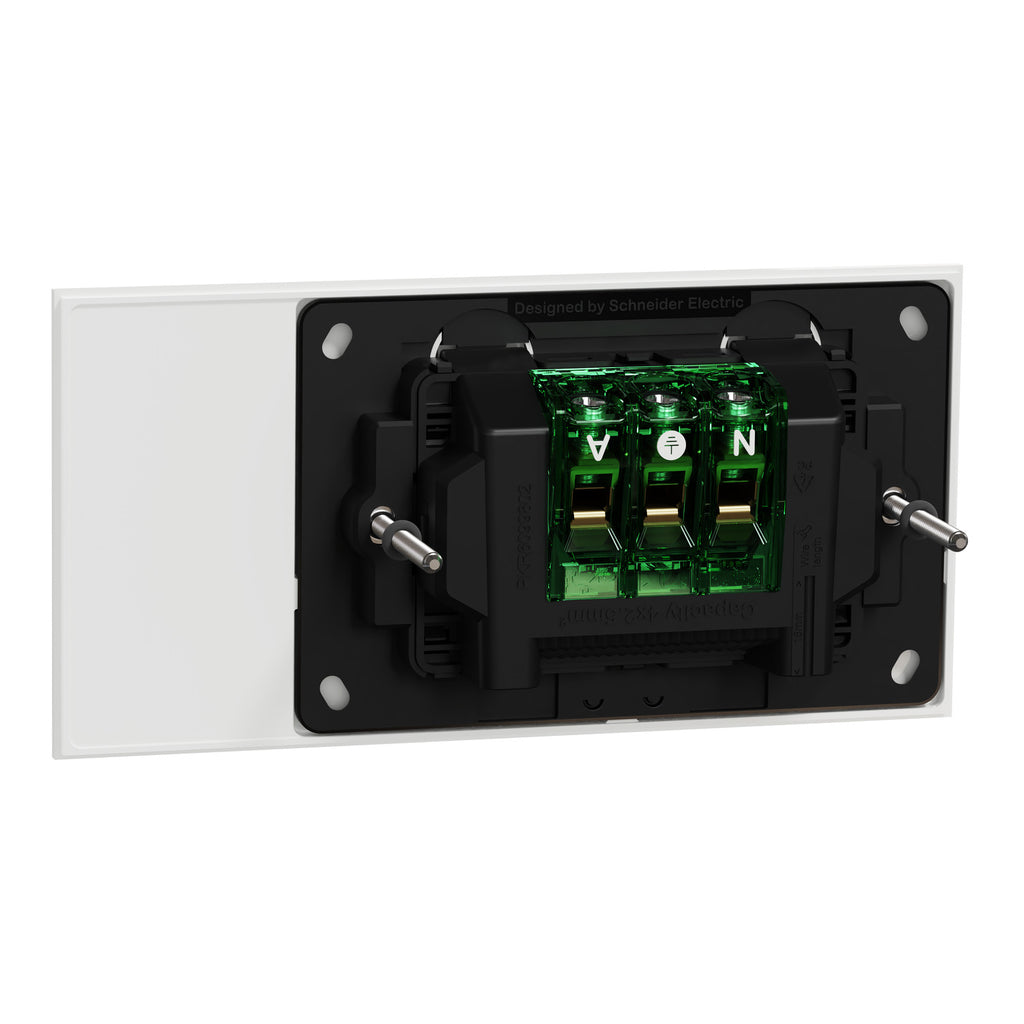

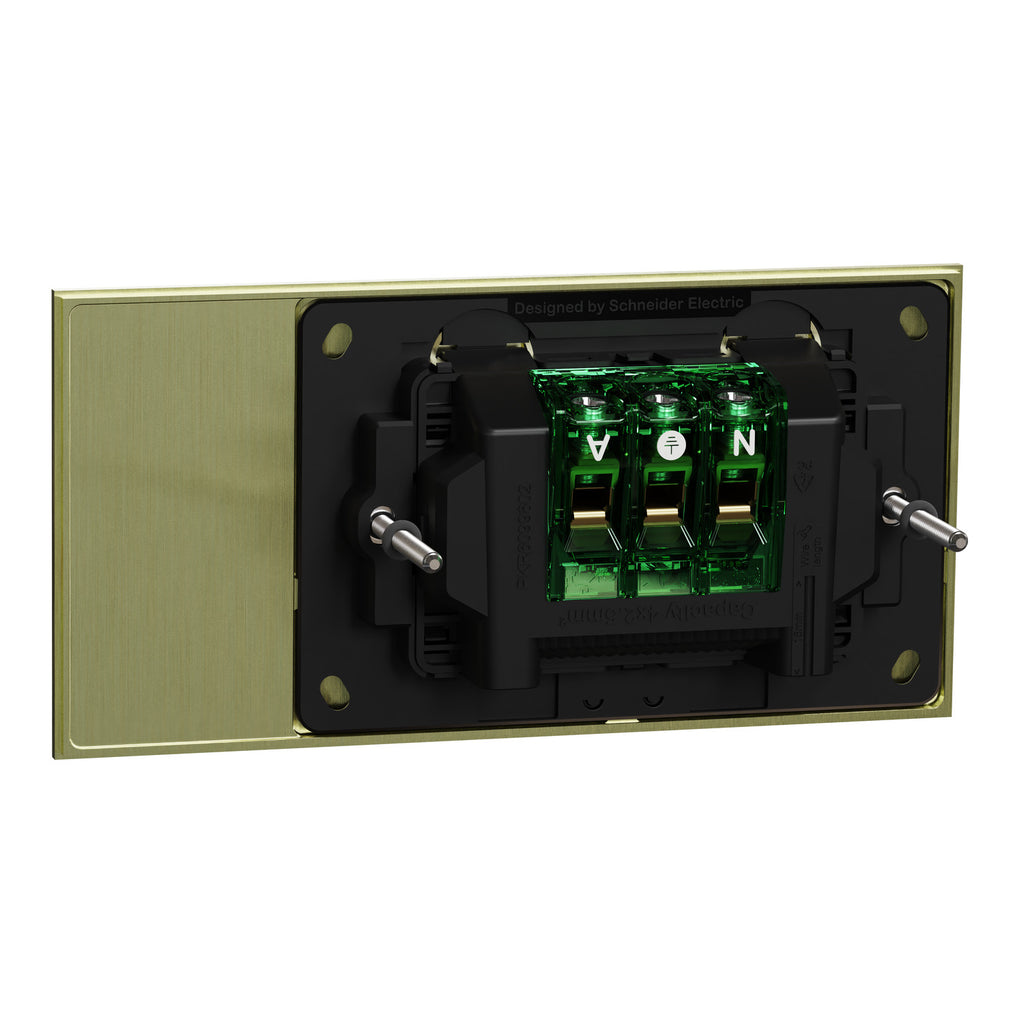

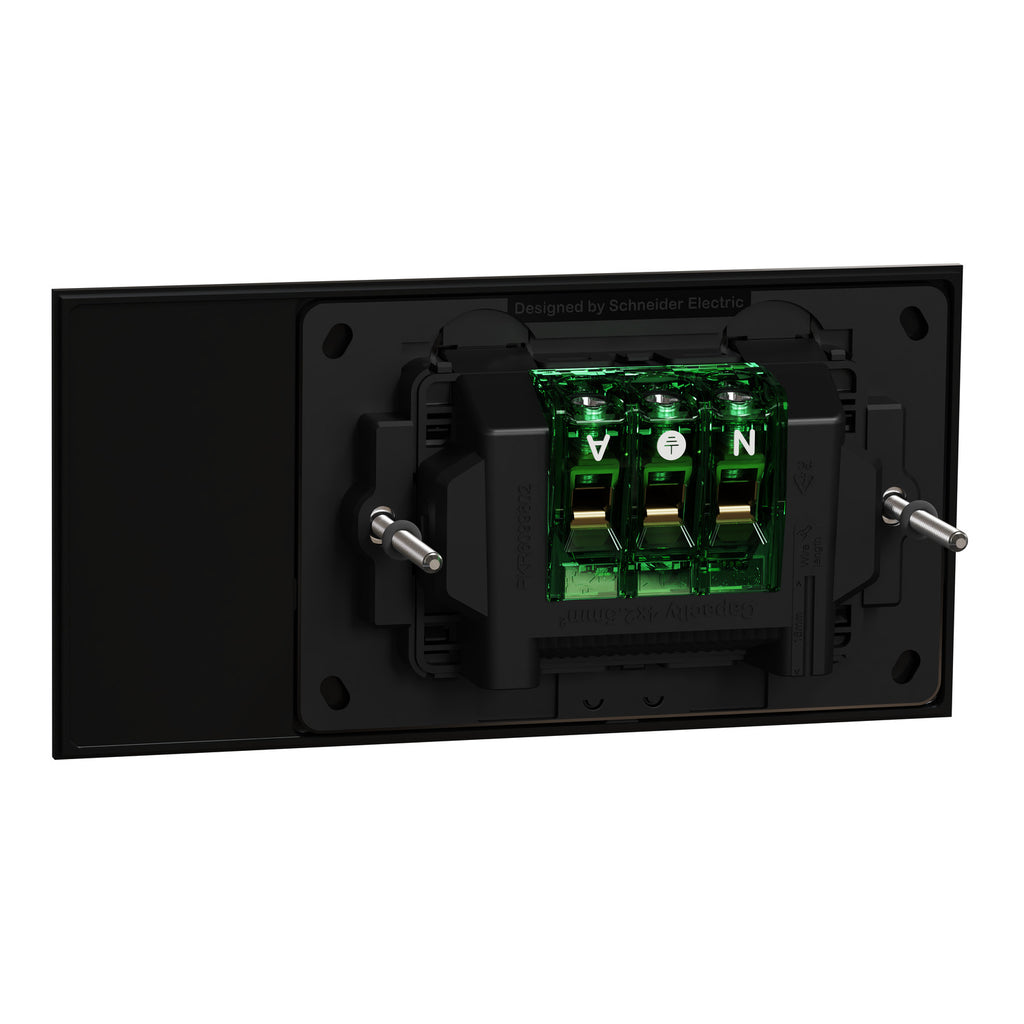

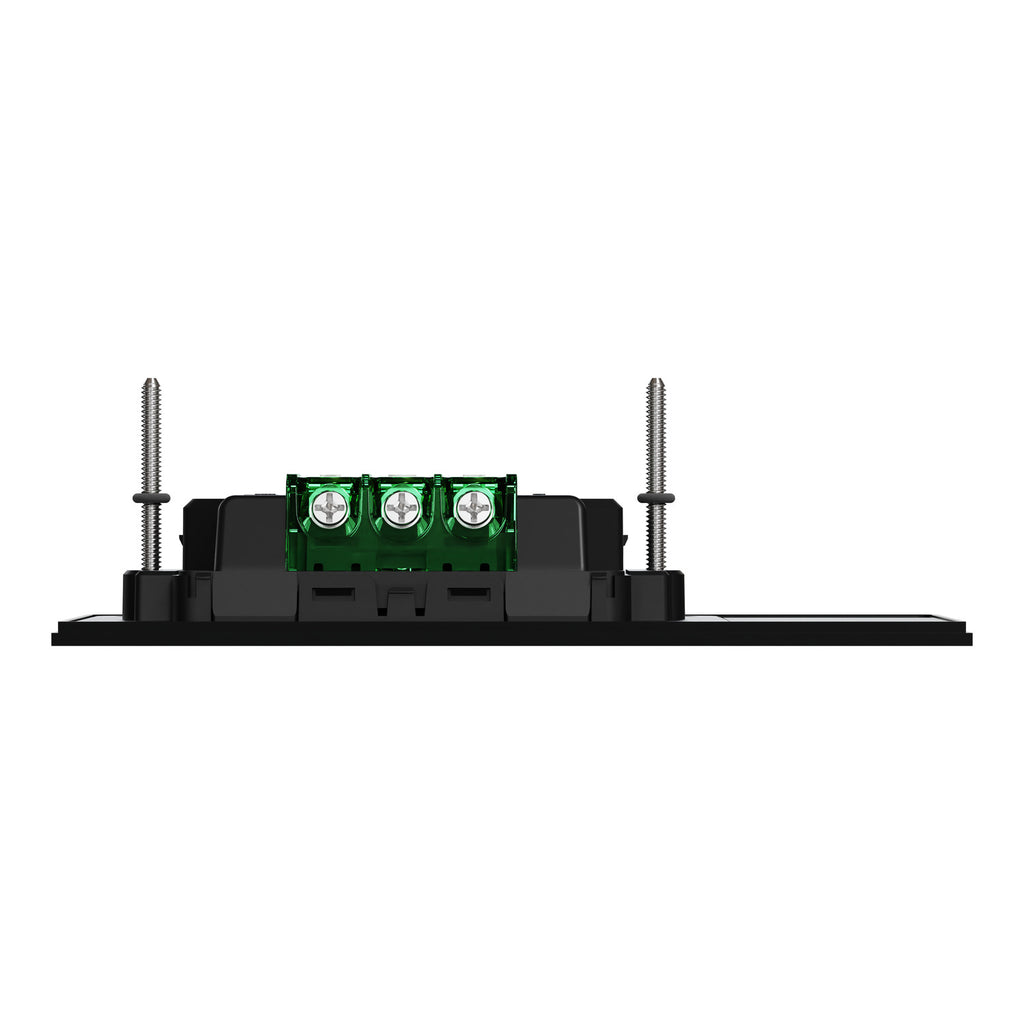

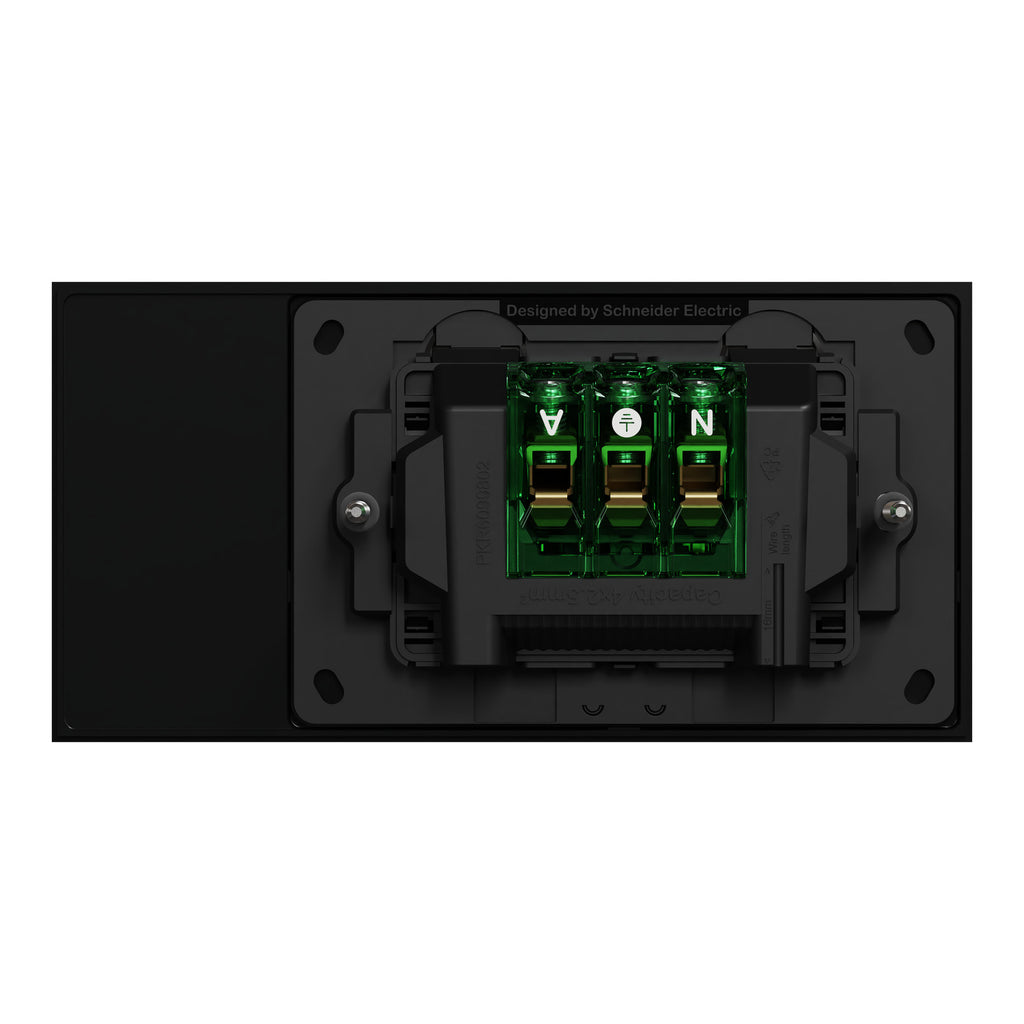

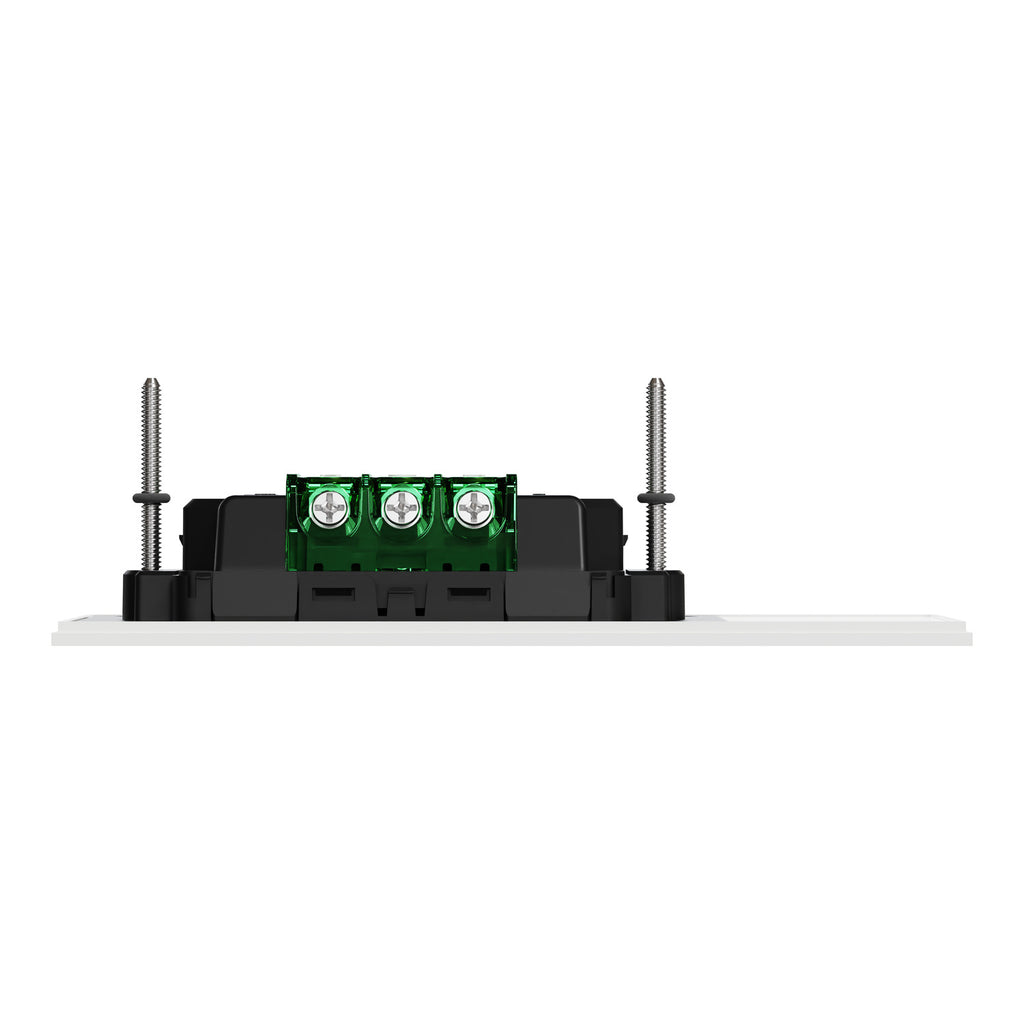

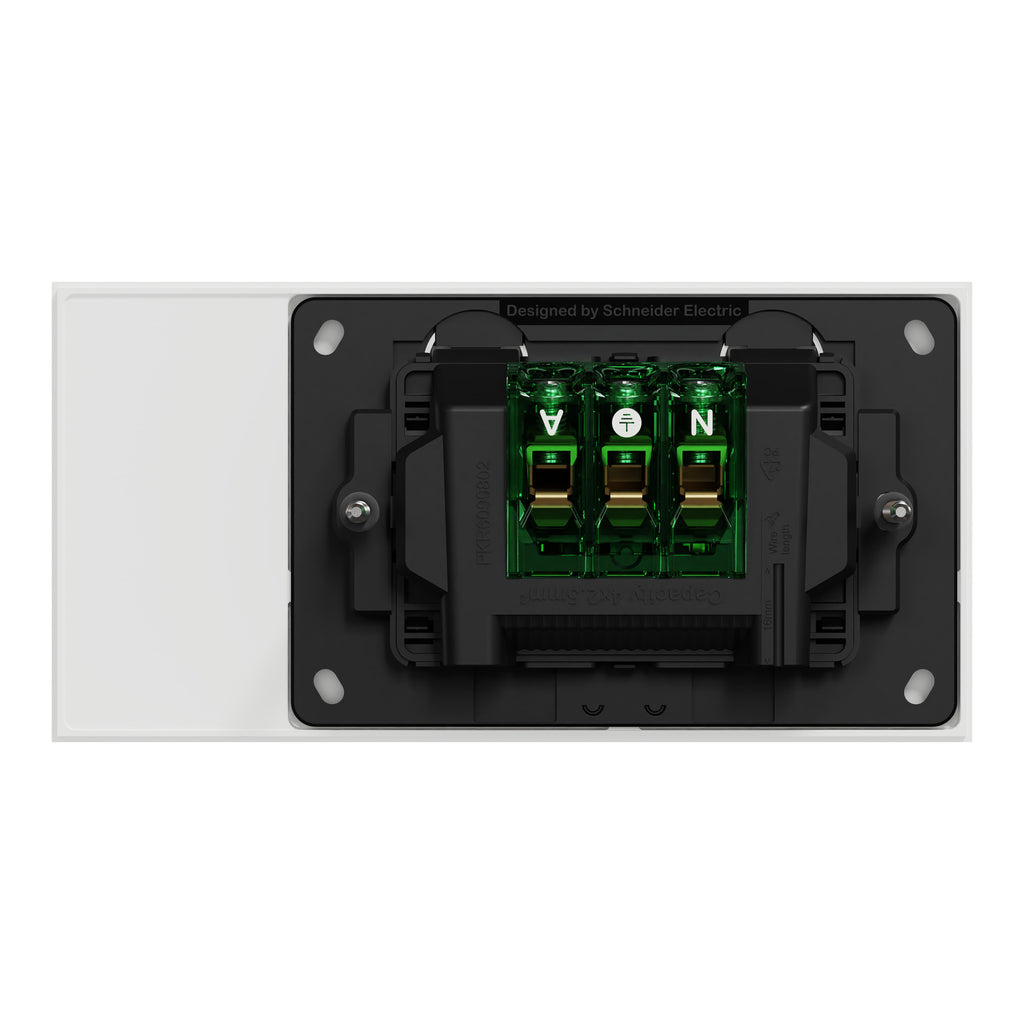

| Connections - terminals | 4 x 2.5 mm² screw terminals 3 x 4 mm² screw terminals |

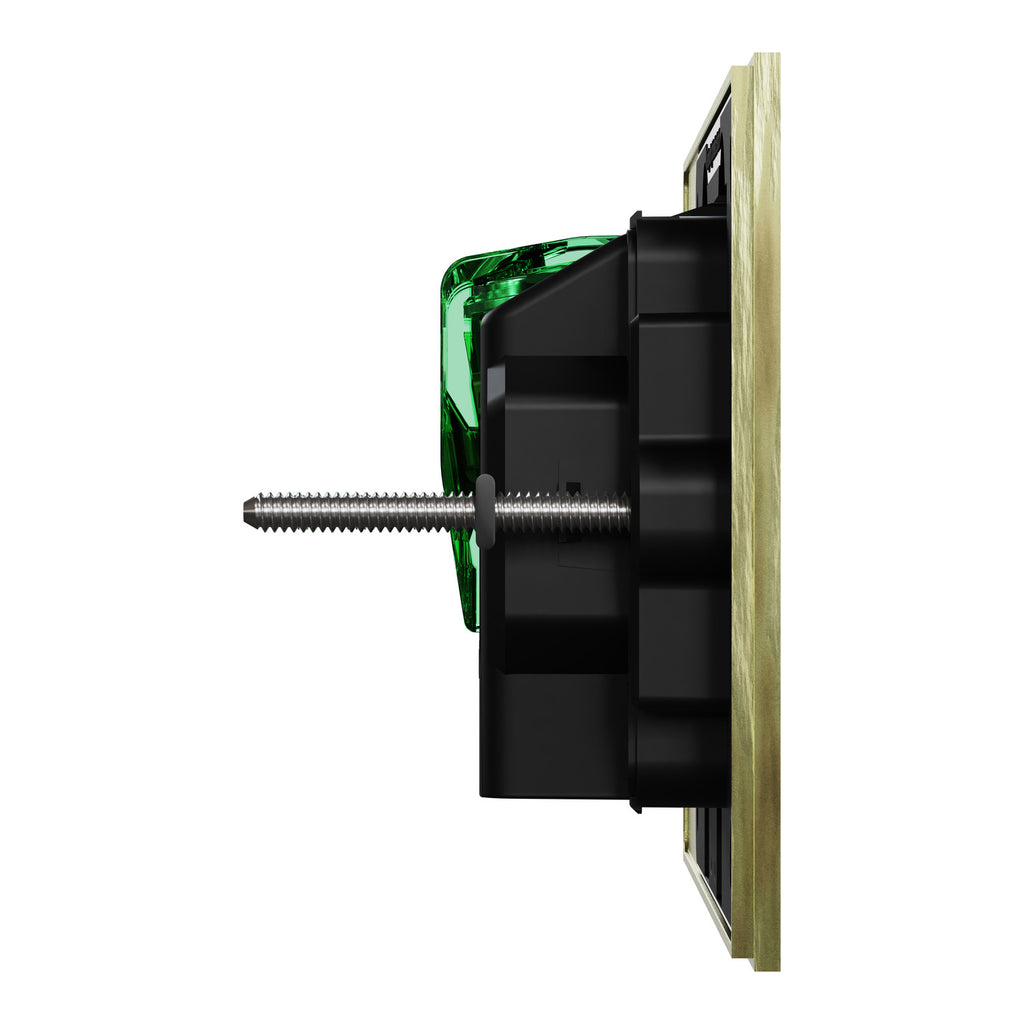

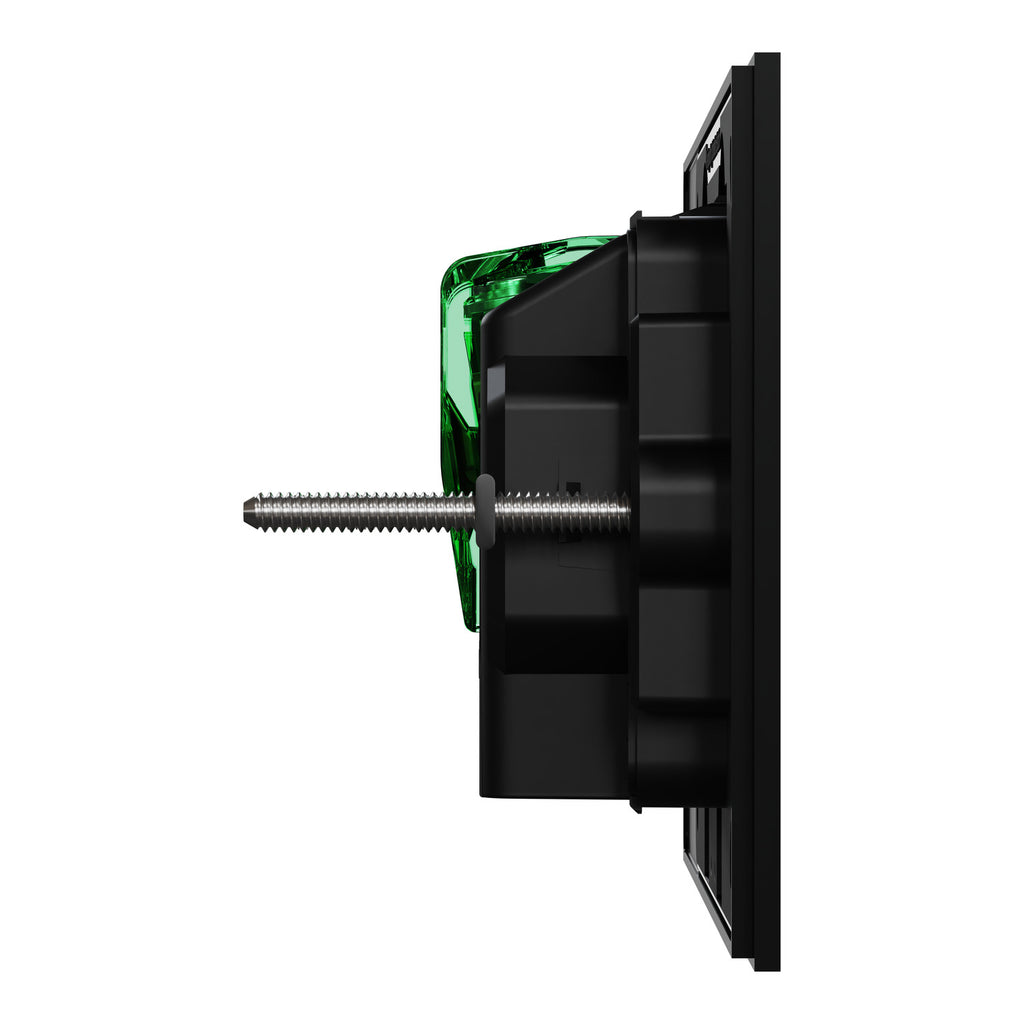

| Embedding depth | 23.5 mm |
| Depth | 27.4 mm |
| Height | 74 mm |
| Width | 148 mm |
| Mounting Centers | 84 mm |
| Cut-out dimensions | 93 x 50 mm |
| surface treatment | Painted |
| Screwdriver shape | Philips No 2 Square drive no 1 (SQ1) |
| Wire stripping length | 16 mm |
| Number of power socket outlets | 2 x 2P + E, Australian/New Zealand |
| Cover Thickness | 3.9 mm |
| Number Of Switches | 2 |
| Product certifications | RCM |
|---|---|
| Standards | AS/NZS 3112 |
| Relative humidity | 10…95 % |
| Ambient air temperature for operation | 0…45 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 15.5 cm |
| Package 1 Width | 6 cm |
| Package 1 Length | 8 cm |
| Package 1 Weight | 176 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 40 |
| Package 2 Height | 32.5 cm |
| Package 2 Width | 25 cm |
| Package 2 Length | 41 cm |
| Package 2 Weight | 7.42 kg |
