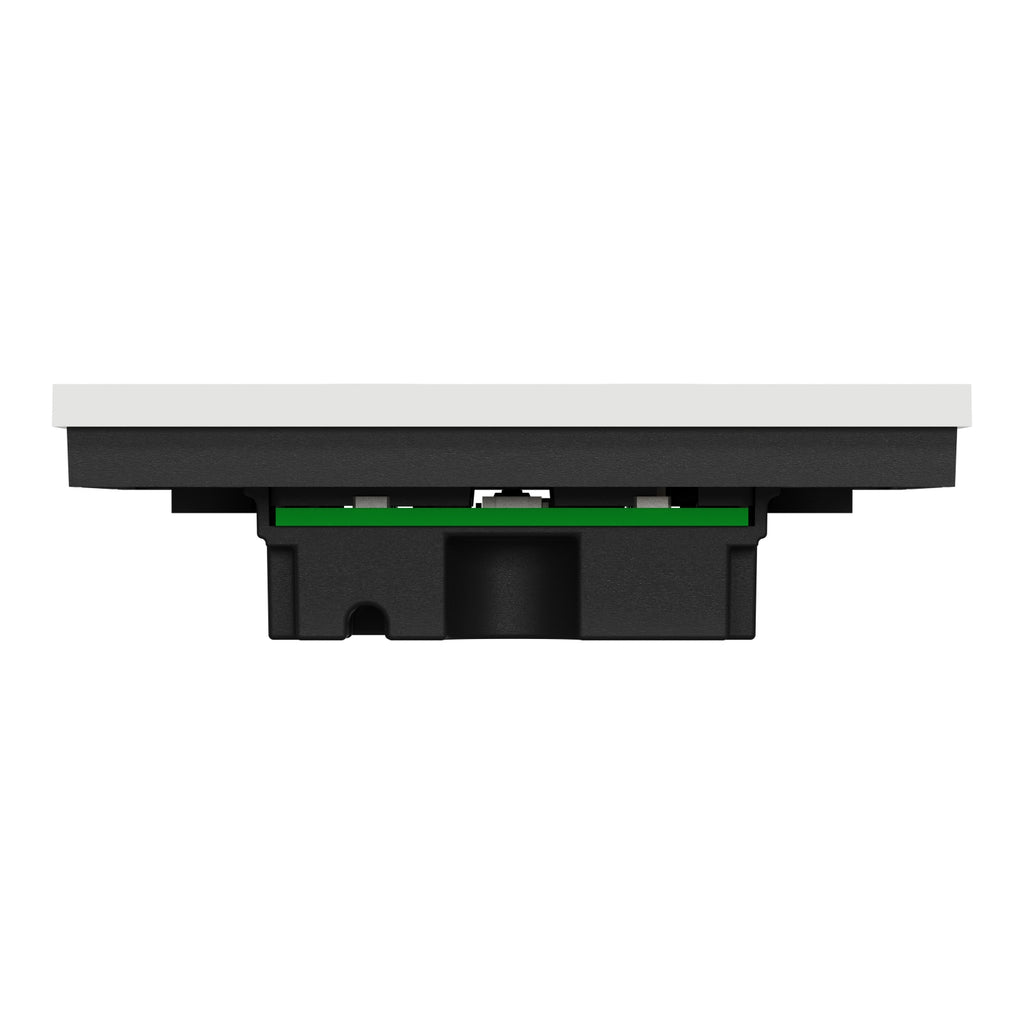

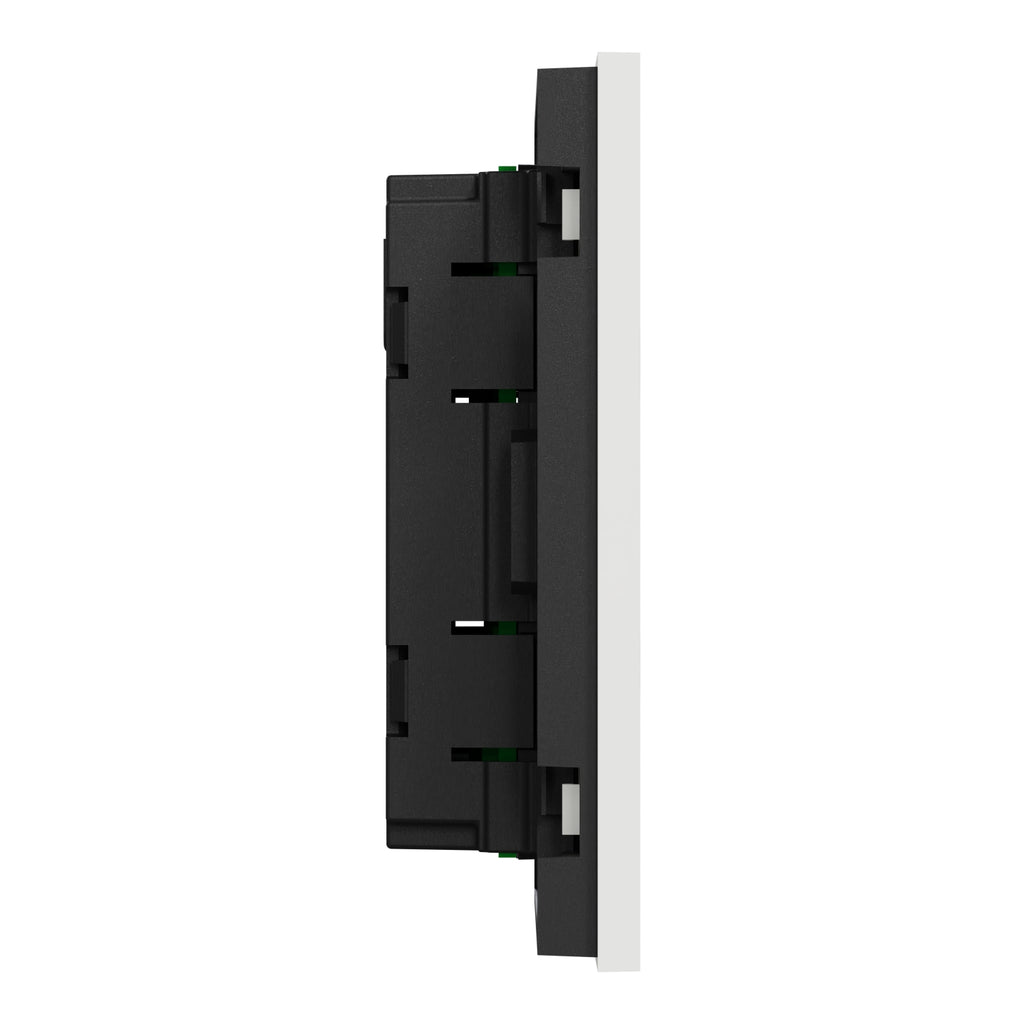

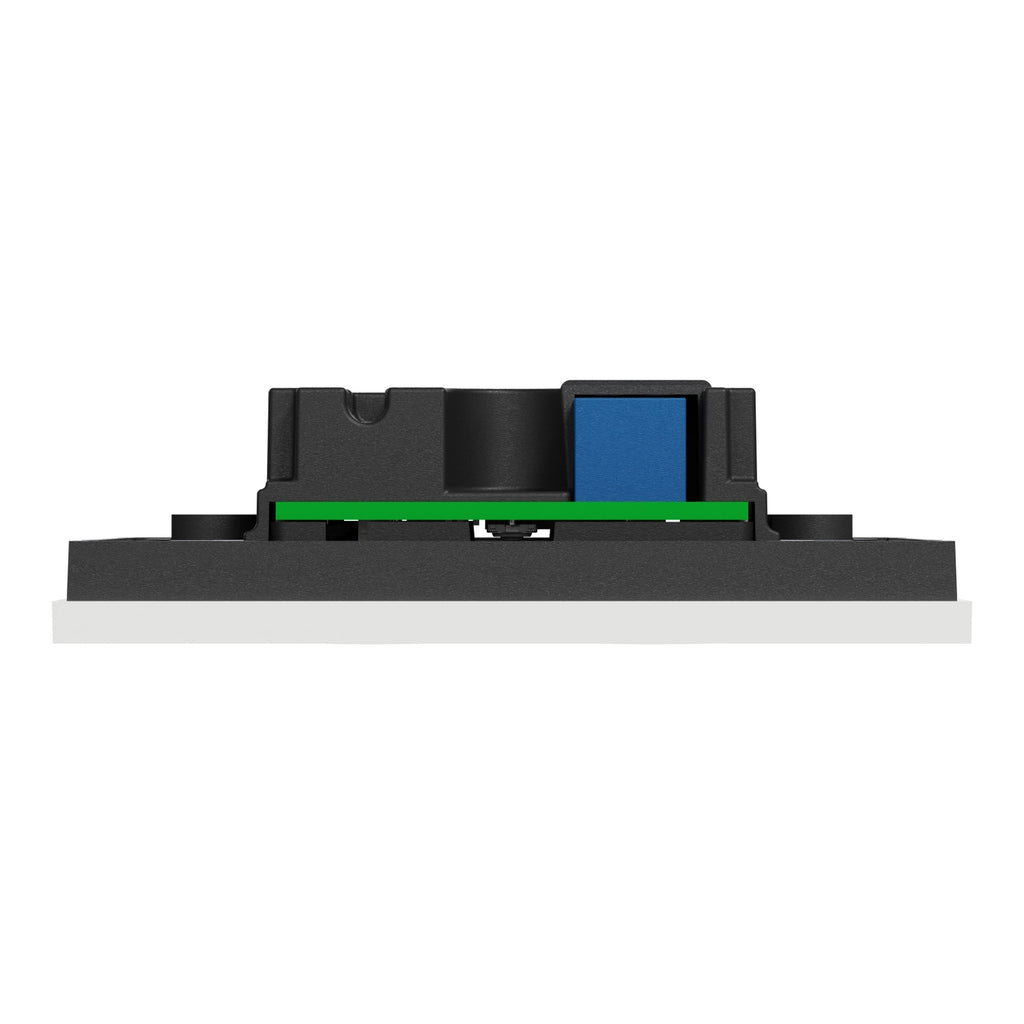

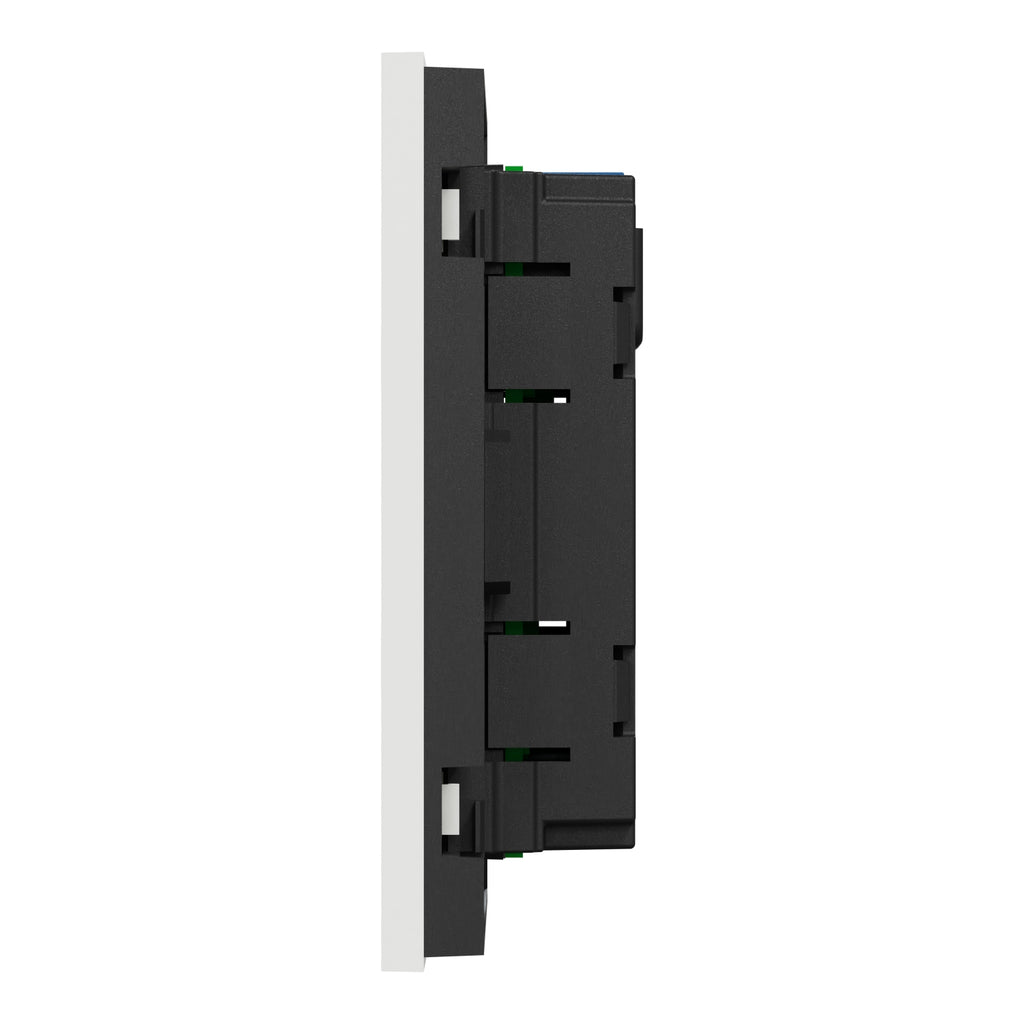

This Schneider Electric SpaceLogic C-Bus Saturn Zen A Series Key input unit control and automate lighting and many other electrical products. The key input unit is with 2 keys. This Wall plate function as the load switch, dimmer, scene control, roller shutter, bell push switch, curtain, and time switch. The connection of the device is made with a terminal block. The device is of 2 gangs. The rated current is 22mA. The Ue-rated operating voltage is from 15VDC to 36VDC. The LED signaling is with a blue or orange color indication. The mounting of the device is done with a Wall box support. The dimension of the product is (W) 75mm x (H) 118mm x (D) 25mm. The color of this device is Zen white. It is made of plastic material. The operating temperature is from 0°C up to +45°C. The Relative Humidity is from 10% to 95%. It is a completed product provided with a fascia plate, switch, and cap. SpaceLogic C-Bus is a powerful, fully integrated system that can control and automate lighting and many other electrical systems and products. The system is robust, flexible, scalable, and has proven solutions for buildings of the future.
Main
| Product brand |
Schneider Electric |
| Range |
SpaceLogic C-Bus |
| Product name |
C-Bus Saturn Zen E Series |
| Product or component type |
Switch |
| Device application |
Control |
| Colour tint |
Zen white |
Complementary
| Device presentation |
Complete product |

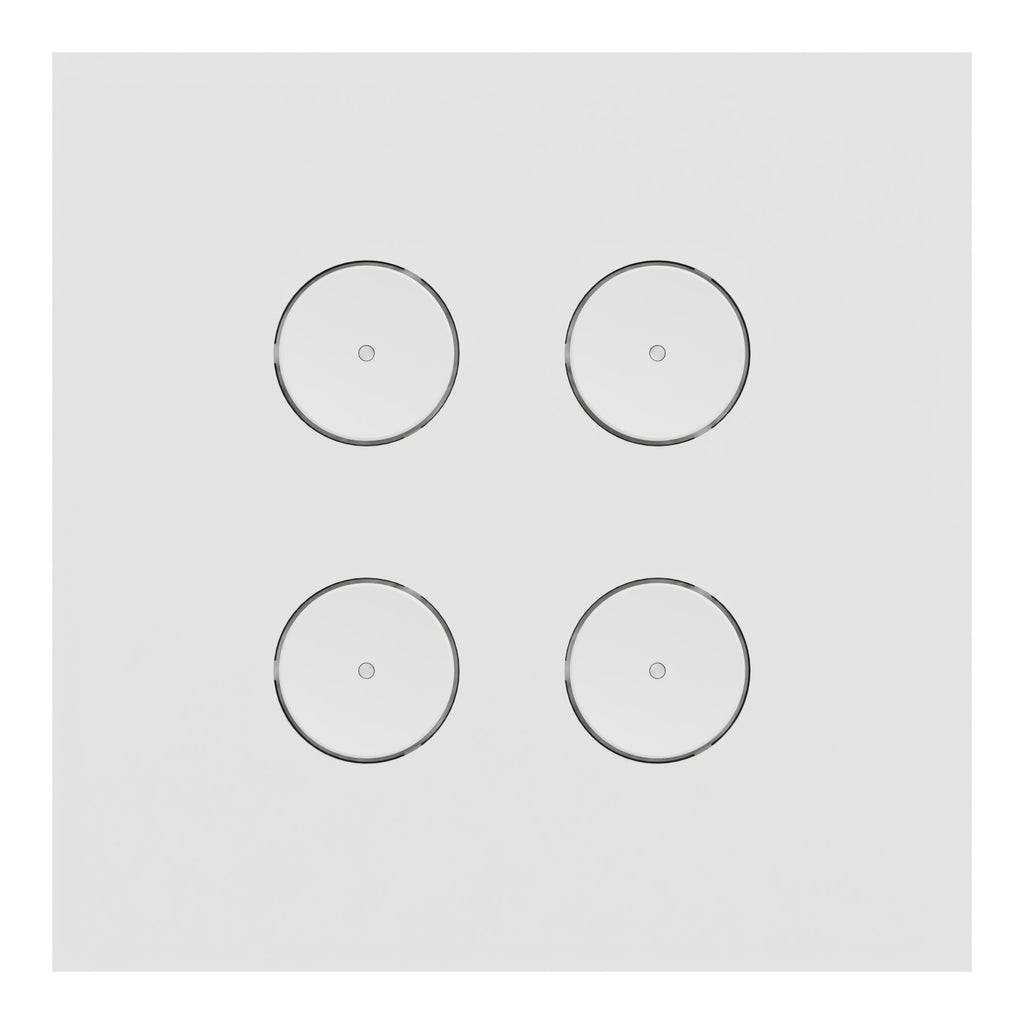

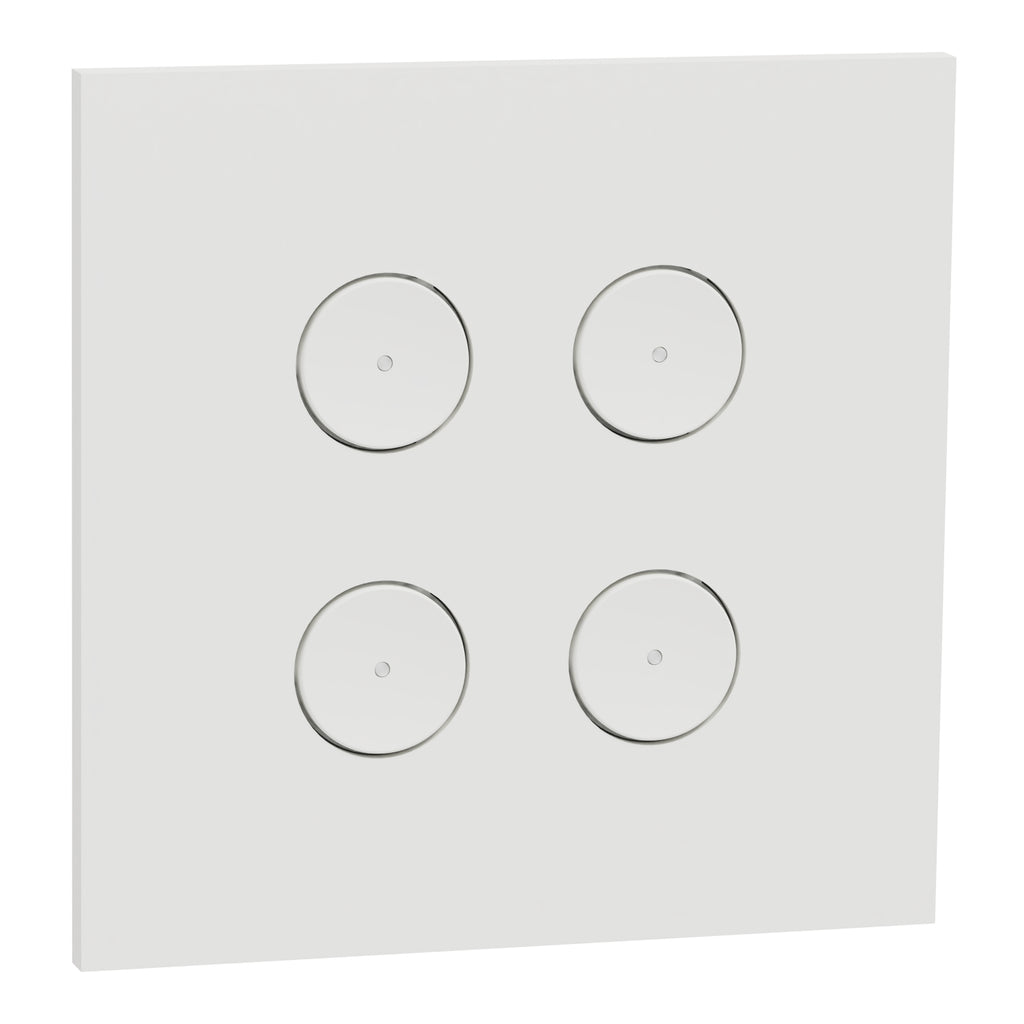

| Number of gangs |
4 gangs |
| Control type |
Push-button |
| Provided equipment |
fascia plate
body switch
push-button cap |
| Material |
Plastic |
| [Ue] rated operational voltage |
15...36 V DC |
| [In] rated current |
22 mA |
| Communication network type |
C-Bus |
| Input impedance |
50 kOhm at 1 kHz |
| Isolation voltage |
3.75 kV from C-Bus to mains |
| Switch function |
Load switching
Dimmer
Time switch function
Scene control
Roller shutter
Bell push switch
Curtain
Roller blind
Toggle |
| Local signalling |
LED (red, green and blue) for status |

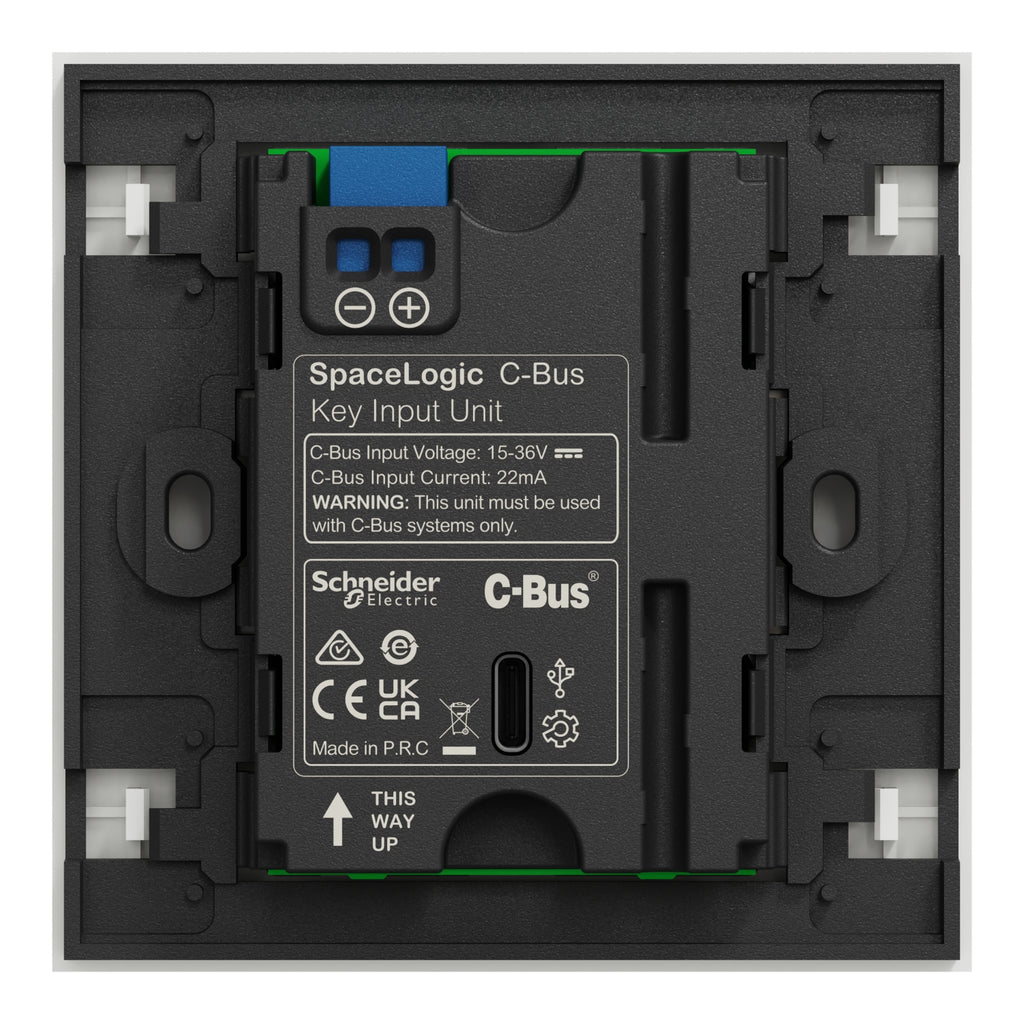

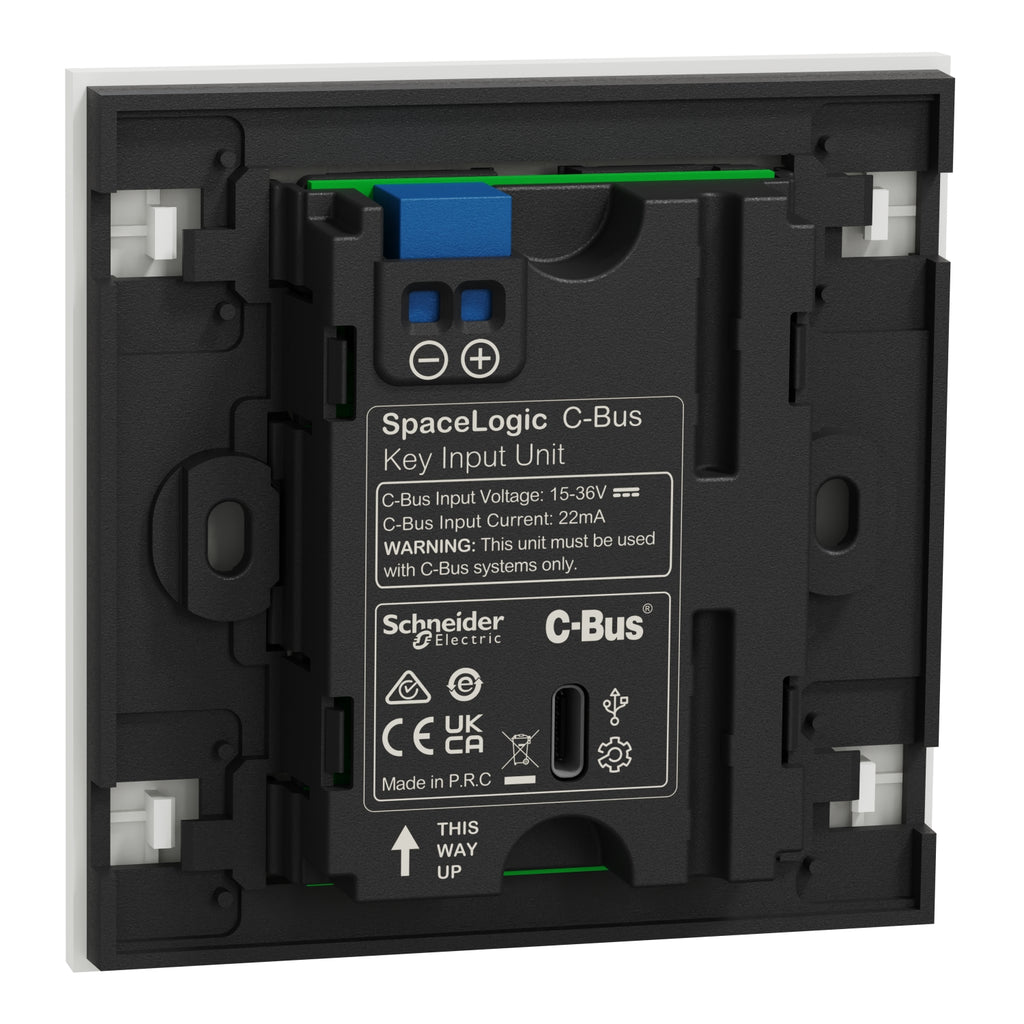

| Connections - terminals |
Terminal block - 0.2…1.3 mm² (AWG 24...AWG 16) |
| Mounting support |
Wall-mount |
| fixing center |
60.3 mm |
| Width |
87 mm |
| Height |
87 mm |
| Depth |
25 mm |
| Net weight |
39 g |
| Main colour tint |
Zen white |
Environment
| Ambient air temperature for operation |
0…45 °C |
| Relative humidity |
10…95 % non-condensing |
| Product certifications |
RCM
CE
UKCA |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
12 cm |
| Package 1 Width |
75 cm |
| Package 1 Length |
16 cm |
| Package 1 Weight |
192 g |
| Unit Type of Package 2 |
CAR |
| Number of Units in Package 2 |
10 |
| Package 2 Height |
16 cm |
| Package 2 Width |
225 cm |
| Package 2 Length |
345 cm |
| Package 2 Weight |
2.28 kg |
