Clipsal Double Switch Power Point, Clipsal Solis T Series, with USB C Charger, Horizontal Mount Platinum 230V-240V- 1025USBC-PT

Roll over image to zoom in Click on image to zoom

Wall Switches

Clipsal Double Switch Power Point, Clipsal Solis T Series, with USB C Charger, Horizontal Mount Platinum 230V-240V- 1025USBC-PT

Name: Clipsal Double Switch Power Point, Clipsal Solis T Series, with USB C Charger, Horizontal Mount Platinum 230V-240V- 1025USBC-PT
Brand: Clipsal
SKU: 1025USBC-PT
Price: 227.24 AUD
Availability: InStock

Save $25.25

ClipsalSKU: 1025USBC-PT

Price:

$227.24 $252.49

Tax included Shipping calculated at checkout

Quantity:

Usually dispatched in 1 - 3 business days

Estimated Dispatch Date: Calculating…

Need it sooner? Contact us now on (02) 9517 2701 to discuss our pickup or express delivery options.

Free standard delivery to all major Australian cities for orders over $200.00!

Not sure if this is the correct product?
Call our expert lighting team on (02) 9517 2701 before ordering.

The Clipsal Solis double switched socket + USB charger is designed to meet the demands of residential, commercial, and hotel applications. This socket outlet is designed to meet Australian/New Zealand standards and has a 2P + E pole configuration. The USB C charger can be plugged directly into the wall, eliminating the need for an external charger. The rated current is 10A and the rated operational voltage is 230/240VAC. The device comes with a screw terminal that offers a more secure connection for larger wires, reducing the risk of loose wires caused by external factors. This device allows for flush mounting. Screws are available for installation. The socket has a shutter that prevents the insertion of objects other than plugs for safety purposes. It is intended to be installed horizontally only. The dimensions are (W) 148mm x (H) 74mm x (D) 68.9mm, and the embedding depth is 65mm. Discover the perfect fit with a 120mm fixing center and 3.9mm thickness for seamless integration into your projects. The color of the product is platinum. Its operating temperature is from 0°C to 45°C. Choose from modern high-end finishes such as ceramic white, living brass, and recycled aluminum in platinum or ebony for contemporary home spaces with the Clipsal Solis T Series range. Create aesthetically pleasing electrical designs that complement your style.

**Main**
Product or component type	Switched socket with USB charger
Assembly Type	Complete product
Standards	AS/NZS 3112
Product certifications	RCM
Main colour tint	Platinum

**Complementary**
Range	Clipsal Solis T Series
Number Of Outlets	2
Device mounting	Wall mounted 65 mm
Cover type	With shutter
Number of power socket outlets	2 x 2P + E, Australian/New Zealand
Rated current	10 A 230/240 V, AC, 50 Hz

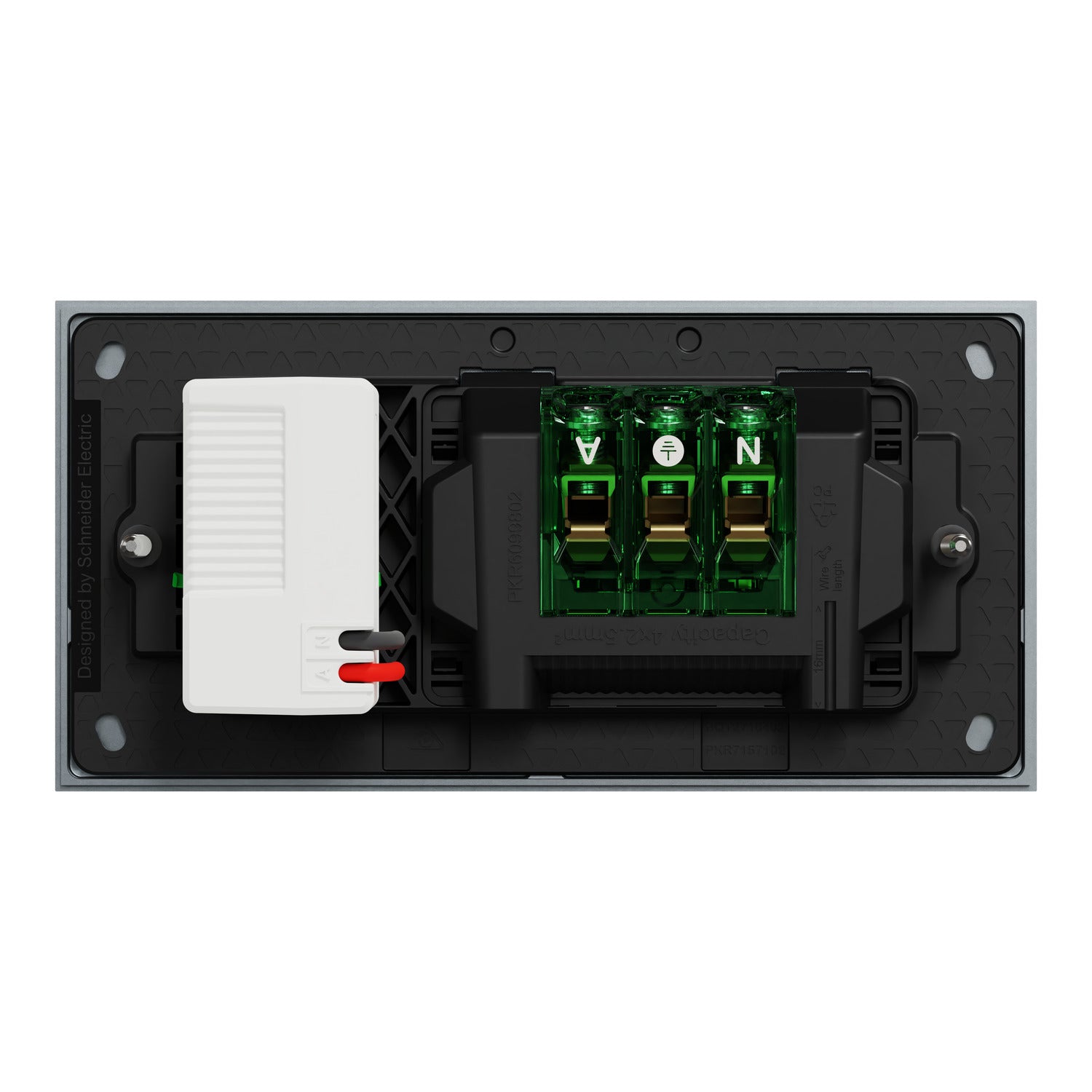

Connections - terminals	4 x 2.5 mm² screw terminals 3 x 4 mm² screw terminals
Colour tint	Platinum
Surface finish	Aluminium
surface treatment	Metallic
Additional Function	USB type C
Material	Aluminium
Screwdriver shape	Philips No 2 Square drive no 1 (SQ1)
Wire stripping length	16 mm
Fixing mode	By screw
fixing center	120 mm
Height	74 mm
Width	148 mm
Depth	68.9 mm
Sale per indivisible quantity	1
Installation Type	Flush
Installation Orientation	Horizontal
Control type	Rocker
Cover Thickness	3.9 mm
Cut-out dimensions	130 x 50 mm
Number Of Switches	2

**Environment**
Ambient air temperature for operation	0…45 °C
Relative humidity	10…95 %

**Packing Units**
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	15.5 cm
Package 1 Width	8 cm
Package 1 Length	8 cm
Package 1 Weight	252 g
Unit Type of Package 2	CAR
Number of Units in Package 2	30
Package 2 Height	32.5 cm
Package 2 Width	25 cm
Package 2 Length	41 cm
Package 2 Weight	7.94 kg
