Description

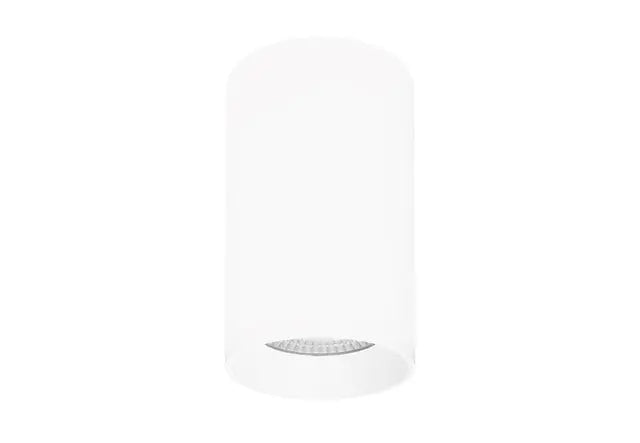

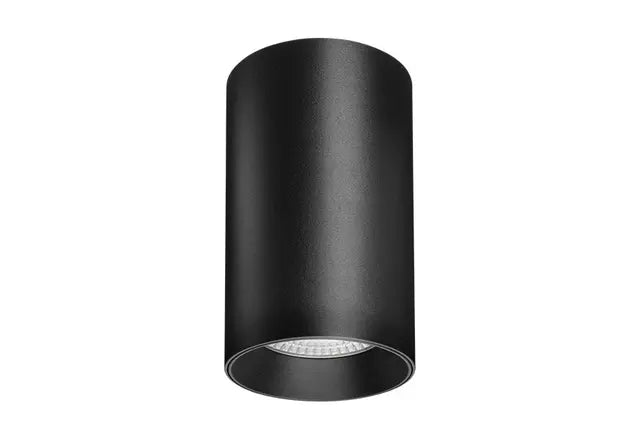

- Surface mounted COB fixed LED downlight designed with a sleek profile and wide collimating lens
- Manufactured with an aluminum body and finished with corrosion resistant powder coating
- An ideal lighting solution for residential and commercial applications
- Colour temperature can be selected via a switch at the rear of the luminaire, enabling users to switch between 3000K (warm white), 4000K (cool white) and 5700K (daylight) CCT
- Supplied with an integral flicker free Leading & Trailing Edge driver
Physical Characteristics
| Trim Colour |
Black | White
|
| Insert Colour |
Black | White
|
| Dimensions | ⌀95 X 150 (H) mm |
| Weight | 683 g |
Technical Characteristics*
| LED Power | 12W |
| LED Type | COB |
| LED Lumen Output* | 1150 lm |
| Efficacy* | Up to 94 lm/W |
| CCT Technology | Switchable |
| Colour Temperature | 3000K, 4000K, 5700K |
| Colour Technology | CRI 90+ Standard |
| Colour Deviation | SDCM ≤ 3 |
| Lifetime | 50,000 hours (L70) |
| Beam Angle | Wide |
| System Power | 12.5W Typical |
| Driver Model | Trend 150008-300 (L&T) |
| Input | 200-240V AC 50 Hz |
| Output | 30-42V DC 300mA |
| Power Factor | >0.90 |
| Protection |
OVP,OTP,OCP,SCP,OPP
|
| Driver | Leading & Trailing Edge |
General Characteristics
| Family |
Trend For Trade,
Candela
|
| Surface | Ceiling |
| Mounting | Surface Mounted |
| Ingress Protection | IP54 |
| Warranty | 3 Years |
