Description
Application

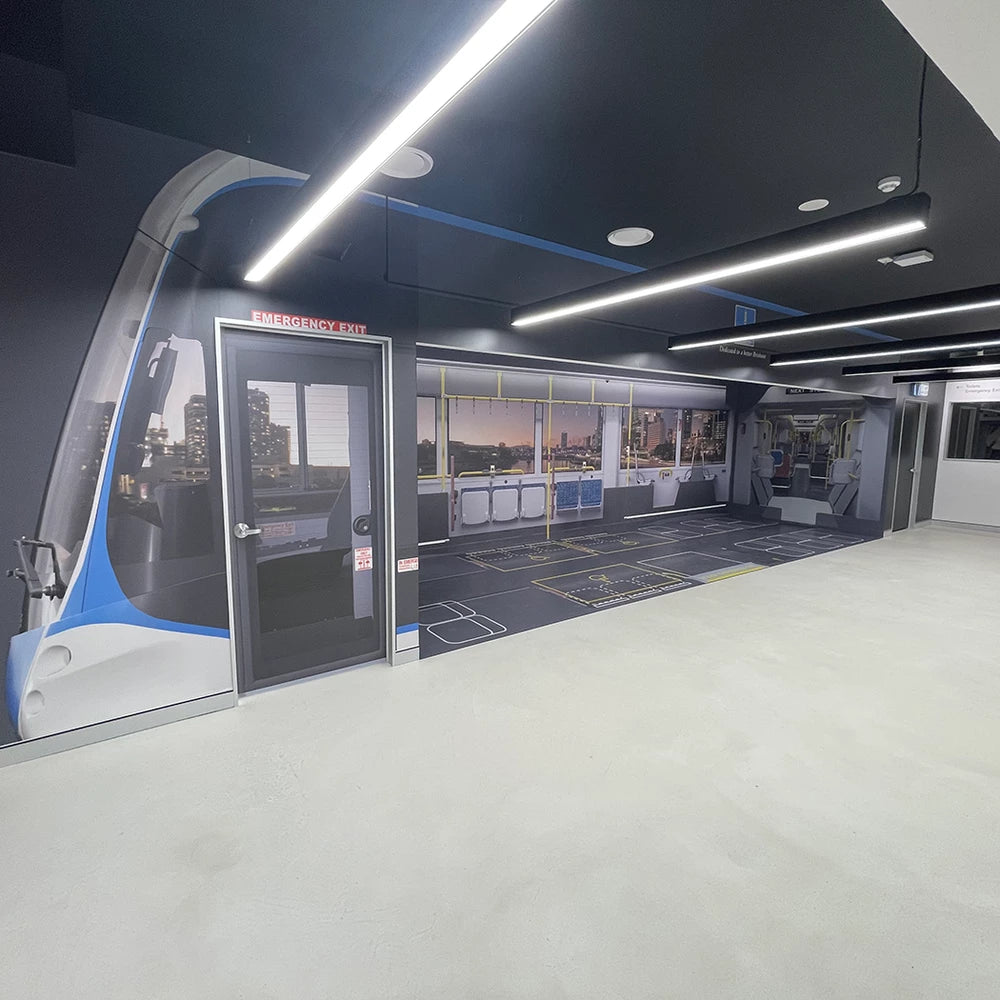

Decorative commercial or residential applications, meeting rooms, kitchens or amenity areas
Design Specifications
-
Extruded aluminium profile colour white or black, with opal polycarbonate diffuser
-
High efficiency SMD LED chips, CRI > 80, beam distribution 90 degree, CCT selectable 3000/4000/5700K.
-
Integral constant current non-dimmable LED driver 40 or 80 watt
-

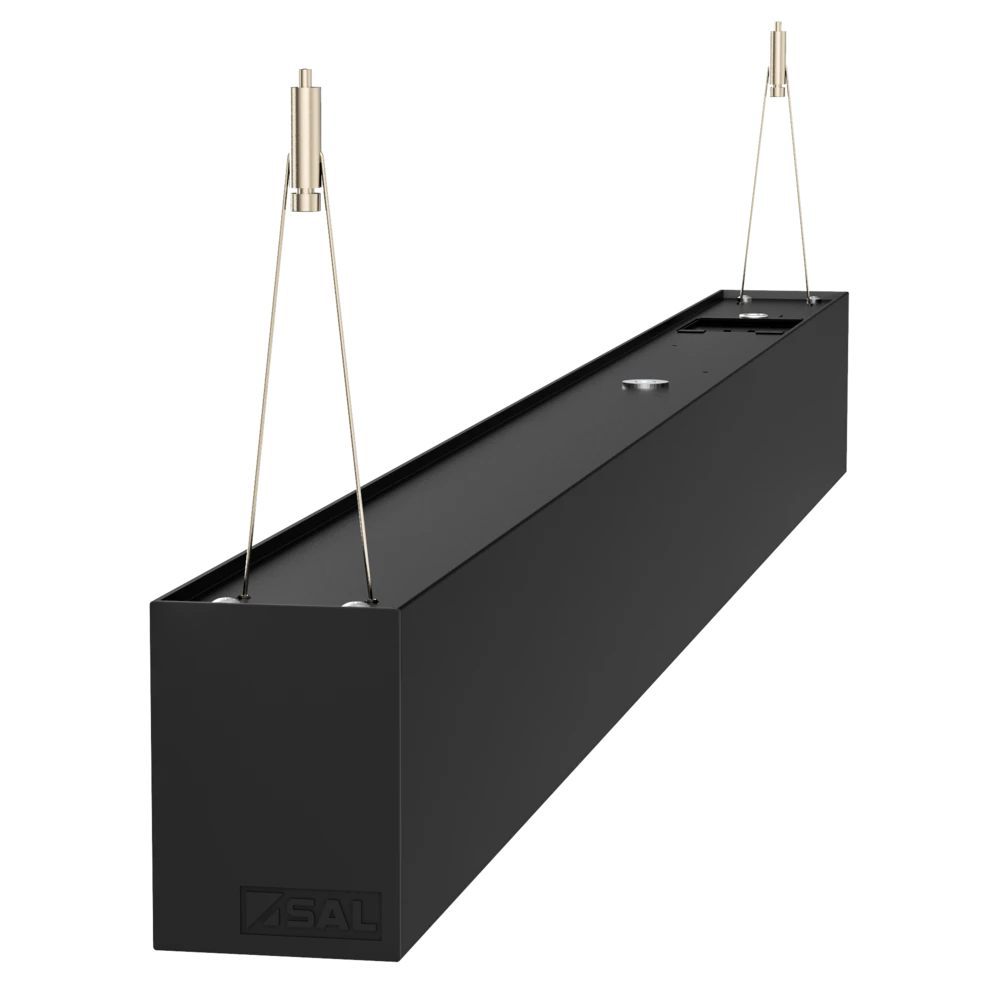

Adjustable suspension kit supplied (2 x SSY1512), Accessory option - straight link (S9776IP)
-
Surface mounted (allow min. 200 mm clearance at both ends) Loop in loop out wiring available via the PA12 termination block
Performance
Dimmable - OPTIONAL
Dimmer Type - Trailing edge, DALI / DSI
| Model No. | Input Voltage | Power | Lumens | CCT | CRI | Beam Angle | Dimmable | Dim | Body Colour |
|---|---|---|---|---|---|---|---|---|---|
| S9776/40TC | 240 | 40 | 3900/4050/3950 | 3000/4000/5700 | 80 | 90 | OPTIONAL | 1138(L) x 71(W) x 99(H) | WHITE |
| S9776/40TC/BK | 240 | 40 | 3900/4050/3950 | 3000/4000/5700 | 80 | 90 | OPTIONAL | 1138(L) x 71(W) x 99(H) | BLACK |
| S9776/80TC | 240 | 80 | 7800/8100/7900 | 3000/4000/5700 | 80 | 90 | OPTIONAL | 2256(L) x 71(W) x 99(H) | WHITE |
| S9776/80TC/BK | 240 | 80 | 7800/8100/7900 | 3000/4000/5700 | 80 | 90 | OPTIONAL | 2256(L) x 71(W) x 99(H) | BLACK |
