Description
Design Specifications
-

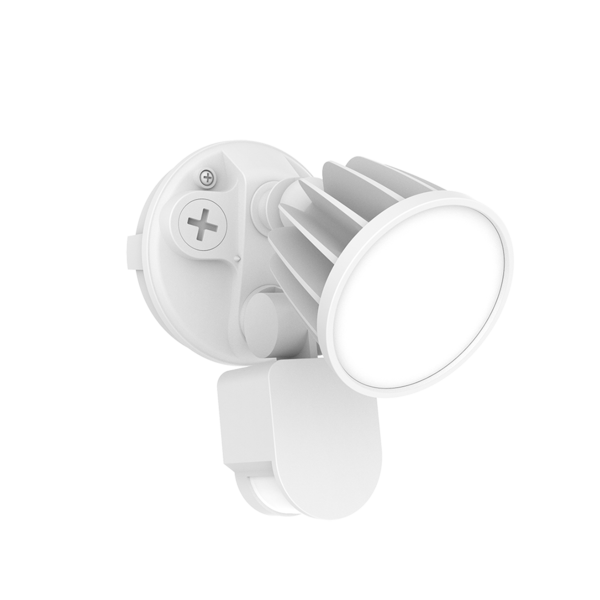

Robust adjustable black or white aluminium optical head assembly
-
Durable polycarbonate mounting base
-
Opal polycarbonate diffuser, beam distribution 100° per head
-
Selectable CCT 3000K/4000K/5700K
-
High efficiency LED optics, integral non-dimmable LED driver
-
Integral PIR motion sensor, detection distance 12m at 2.5hm, detection angle 120°, manual over-ride function, time and light level adjustments see installation instructions
Performance
- In Built Sensor - YES
- Sensor Type - PIR
| Model No. | Description | Input Voltage | Power | Lumens | CCT | CRI | Beam Angle | Body Colour | Mass |
|---|---|---|---|---|---|---|---|---|---|
| SES7080/1TC/BK | LED F/LIGHT 15W IP54 TC SENSOR BK | 240 | 15 | 1200/1300/1250 | 3000/4000/5700 | 80 | 100 | BLACK | 0.4 |
| SES7080/1TC/WH | LED F/LIGHT 15W IP54 TC SENSOR WH | 240 | 15 | 1200/1300/1250 | 3000/4000/5700 | 80 | 100 | WHITE | 0.4 |
