Description

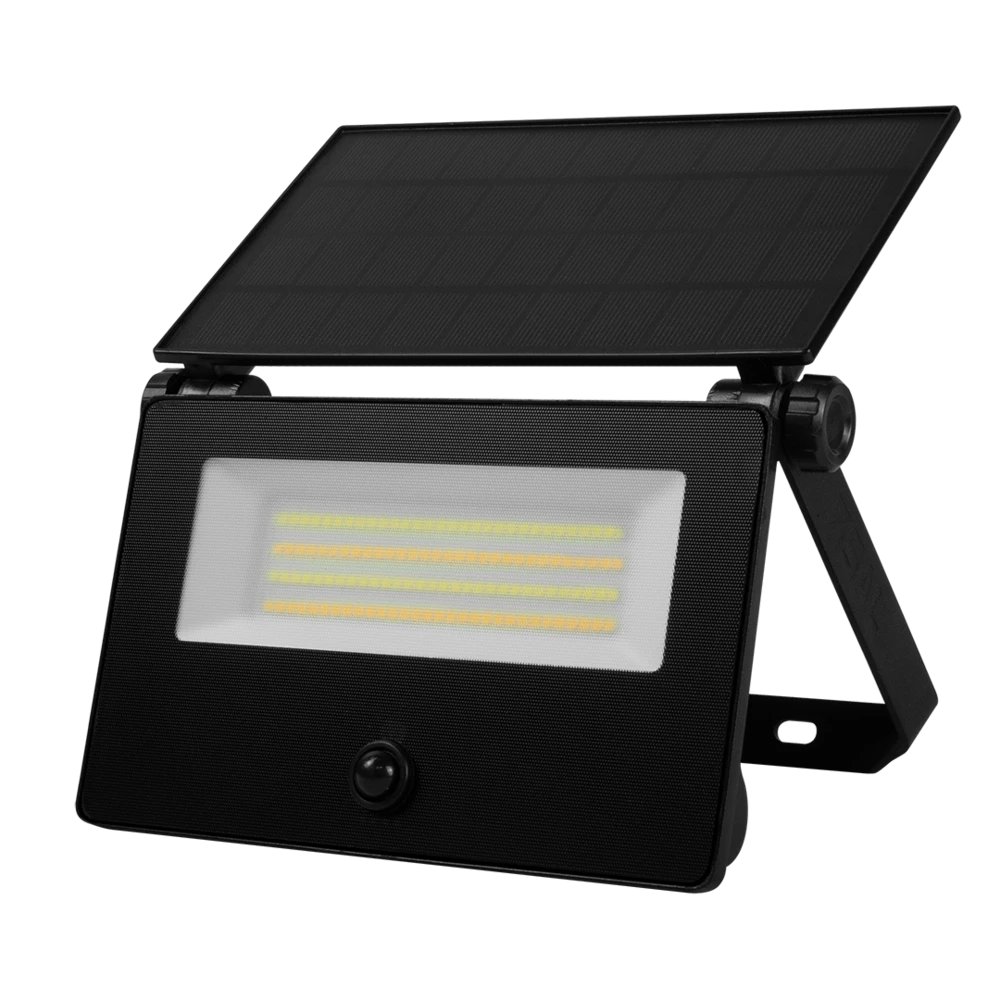

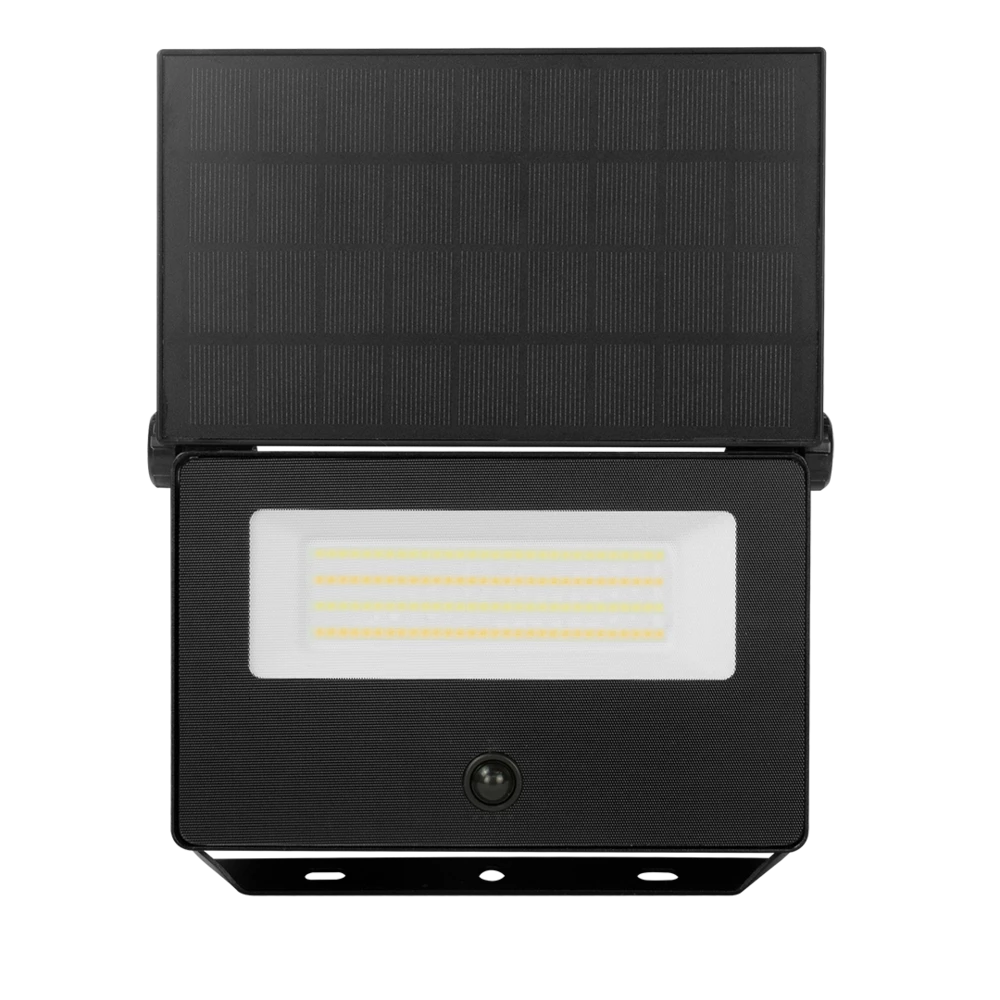

IP65 LED SOLAR floodlight - 3000 lumens with selectable CCT
Application
A sustainable floodlight solution for residential exterior spaces
Design Specifications
-

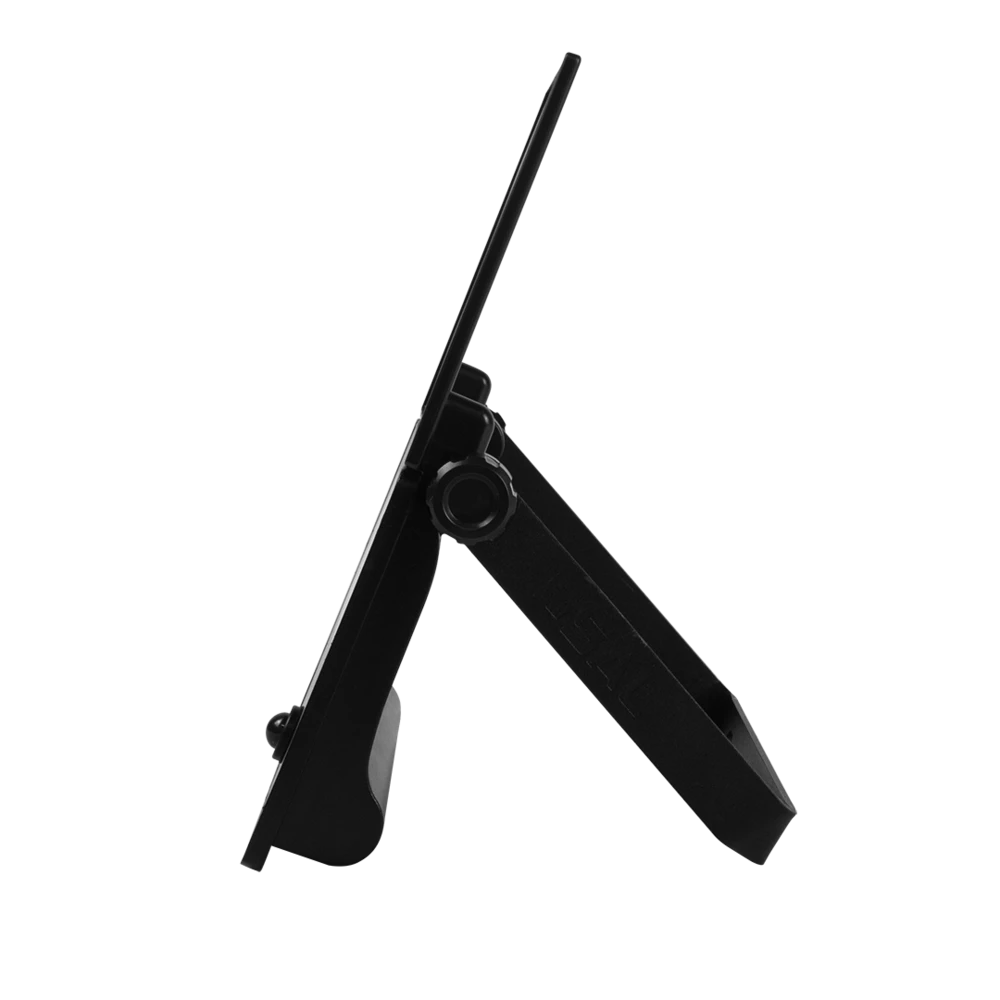

Robust black die-cast aluminium body, tempered glass diffuse and a versatile angled bracket for easy installation
-
High efficiency LED optics, 3000 lumens, CRI 80, on-board selectable CCT, beam distribution 120°
-
Lithium battery technology, with overcharge, over-discharge, load short circuit protection, non-dimmable integral driver
-
PIR and dusk to dawn control
-
Detection range 110°, max 4-6m, installation height max 2.5hm, hold time 25 sec, daylight threshold 20-30 lux, charge time 9 hours
-

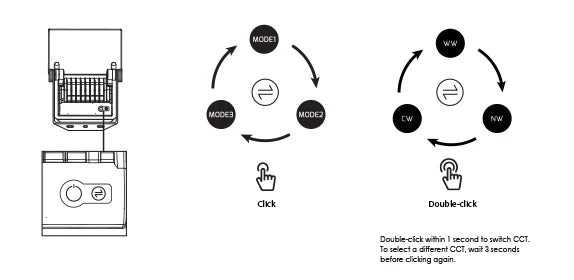

Mode settings: The default factory sensor MODE 1 setting is dusk to dawn with 100% PIR sensor control. If other MODE settings are required, in addition to the on-board button selections located on the rear of the luminaire, an optional remote controller is sold separately, refer installation instructions for settings.
Performance
- Dimmable - NO
- In Built Sensor - YES
- Sensor Type - PIR DUSK TO DAWN
| Model No. | Power | Lumens | CCT | CRI | Beam Angle | Body Colour | Dim | Mass |
|---|---|---|---|---|---|---|---|---|

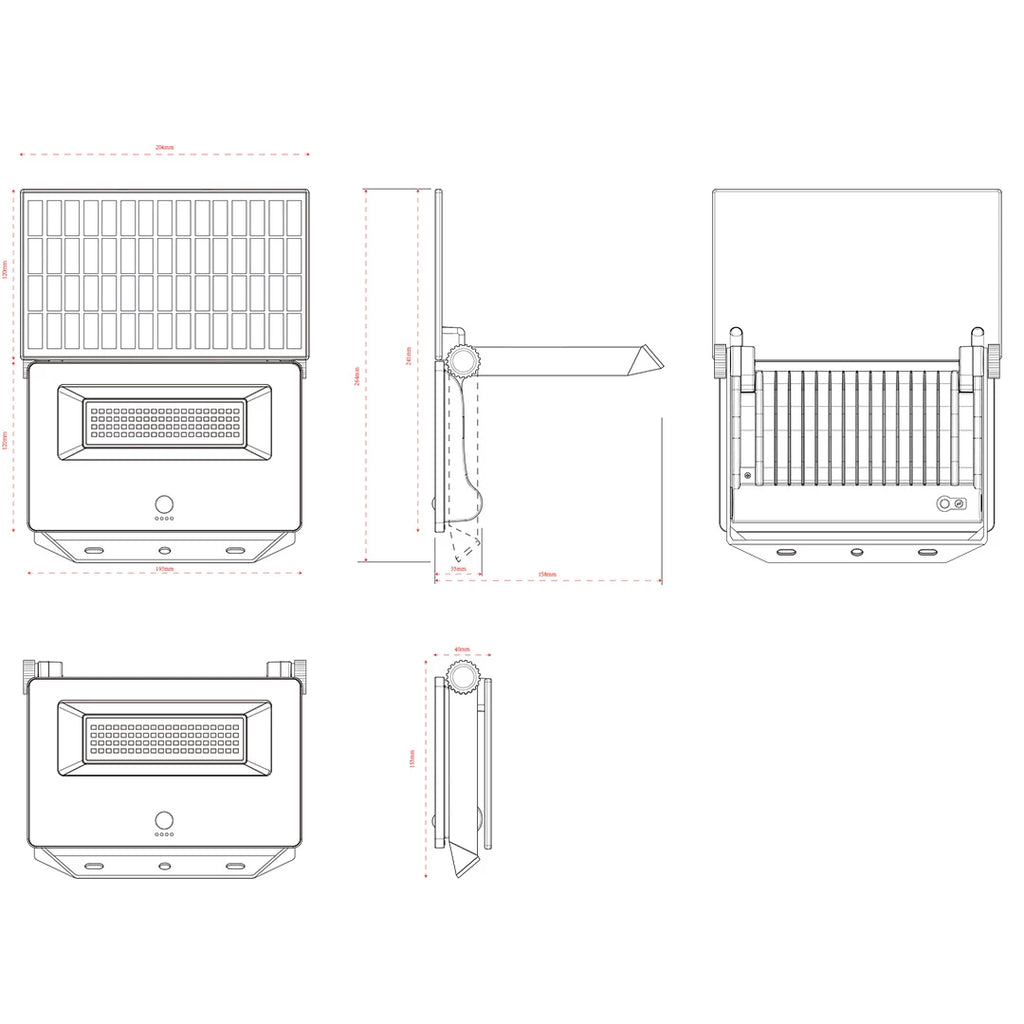

| SSIF3000TC | 17.5 | 3000 | 3000/4000/6500 | 80 | 120 | BLACK | 250(L) x 32(W) x 203(H) | 0.7 |
| SSIF/TC/RC | WHITE | 85(L) x 40(W) x 5(D) | 0.01 |
