Description
Application

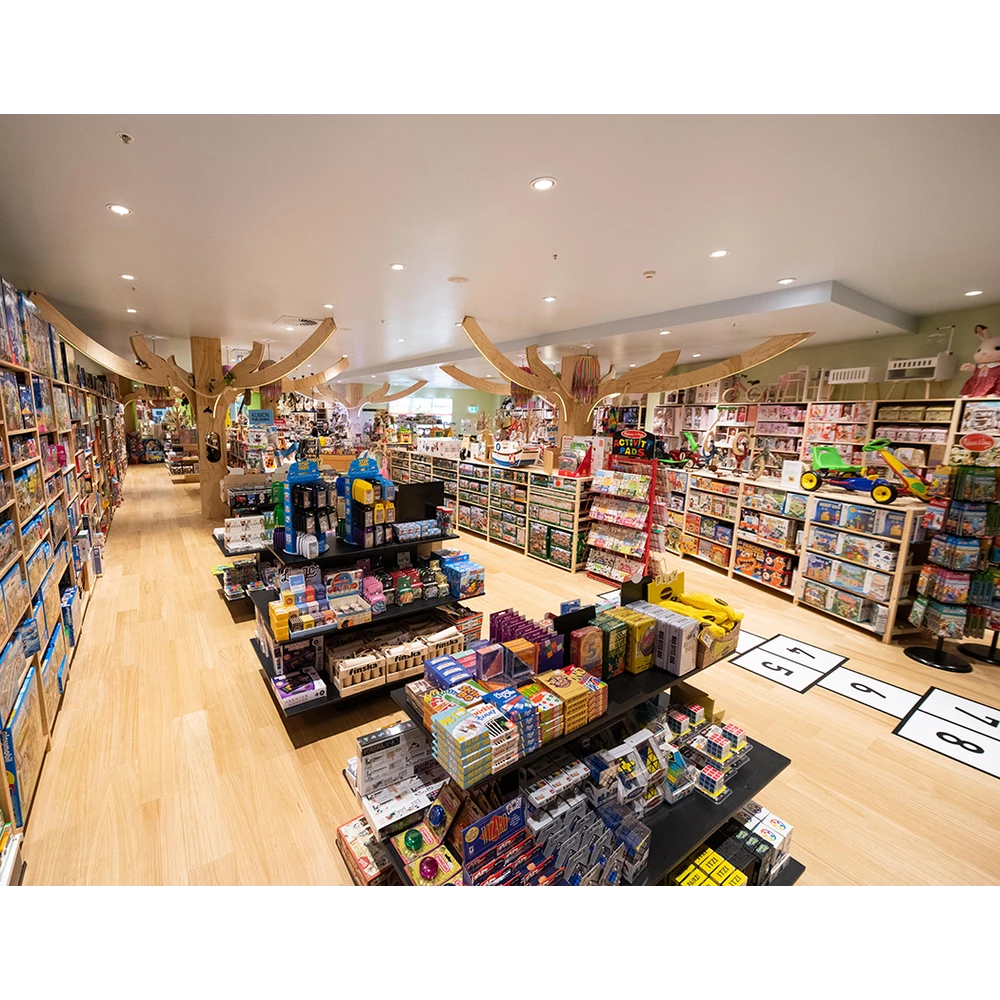

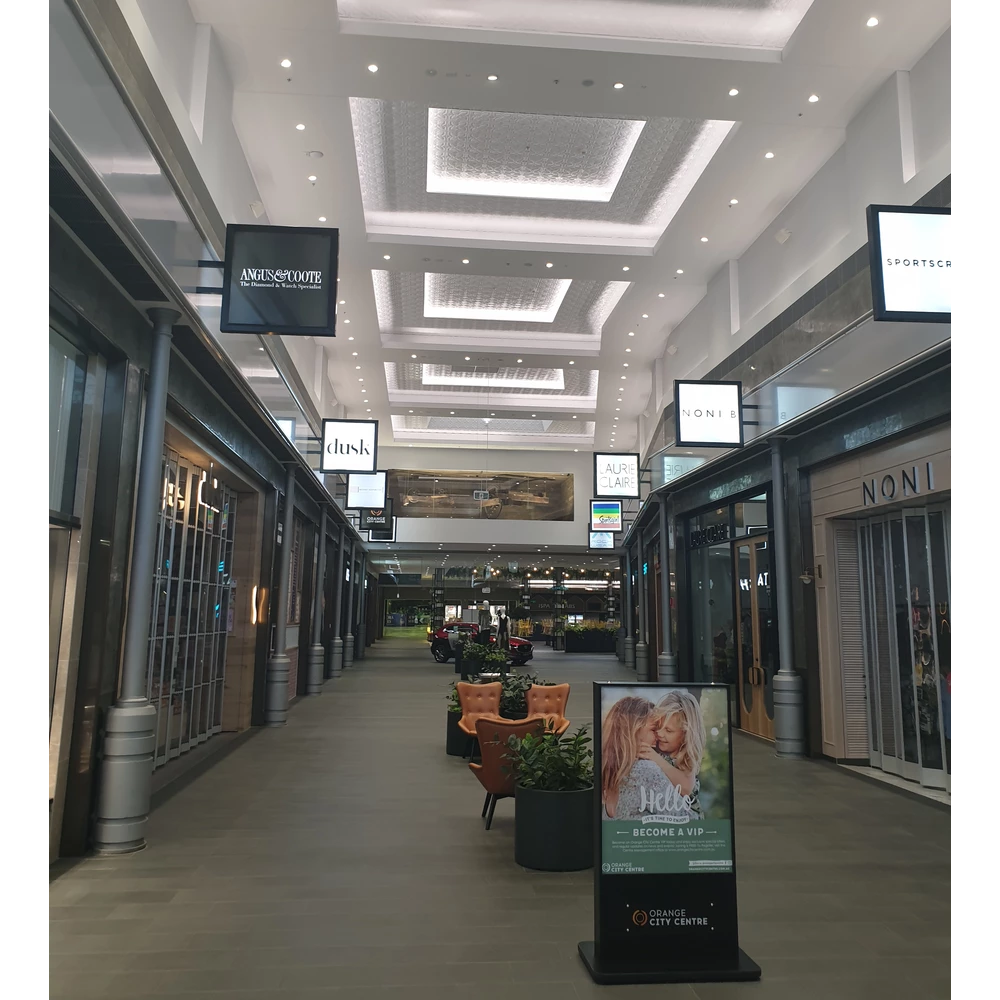

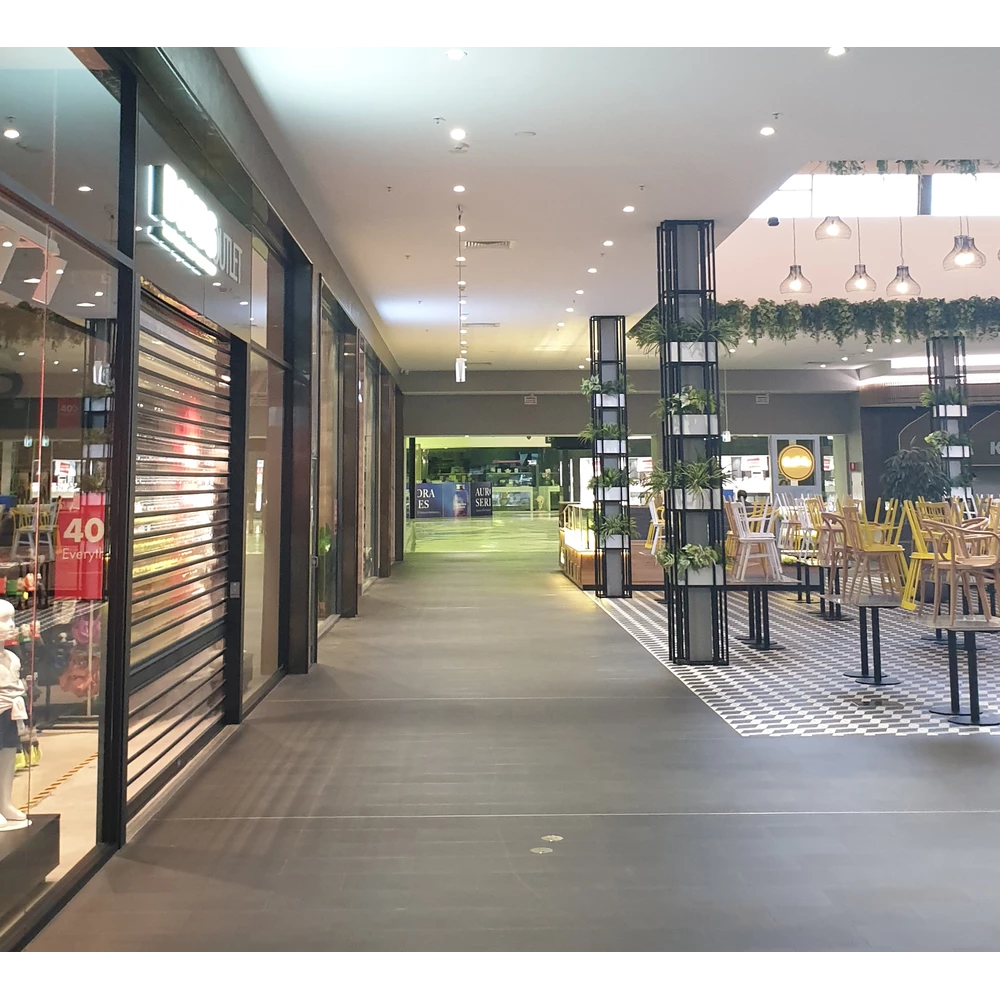

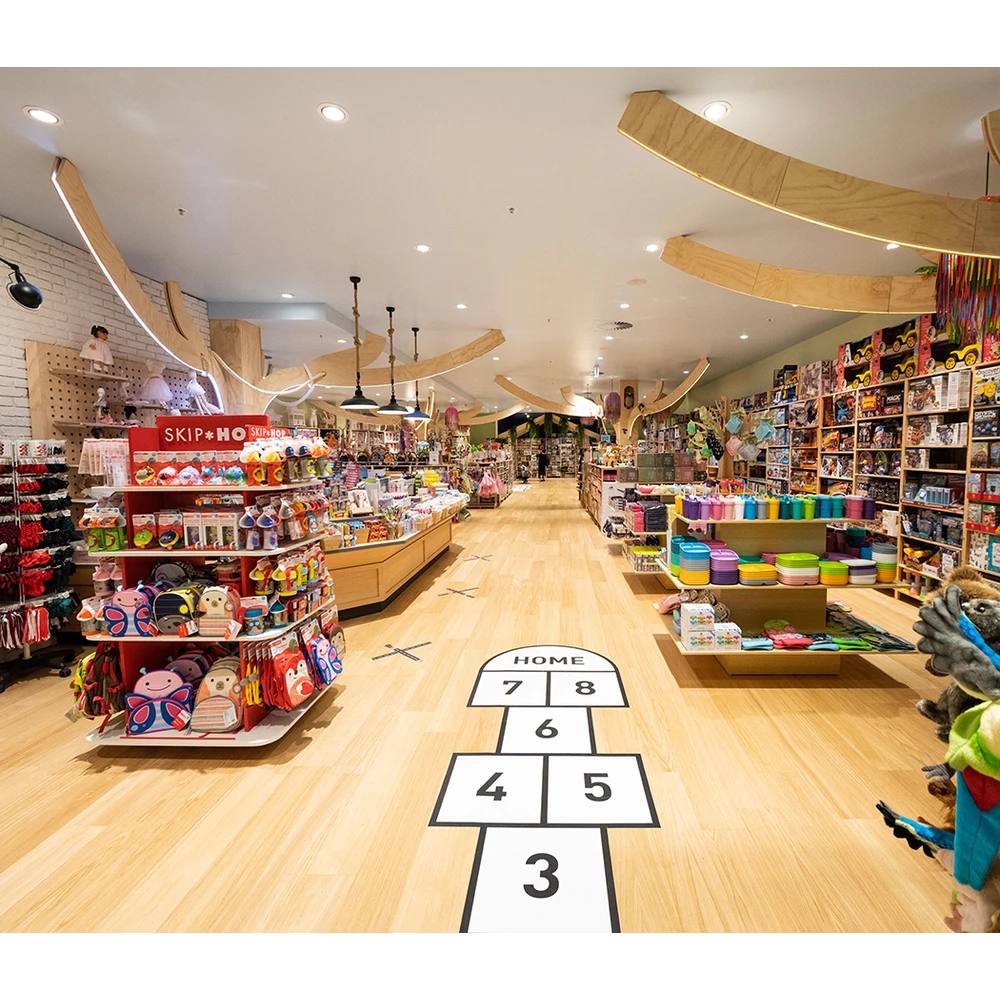

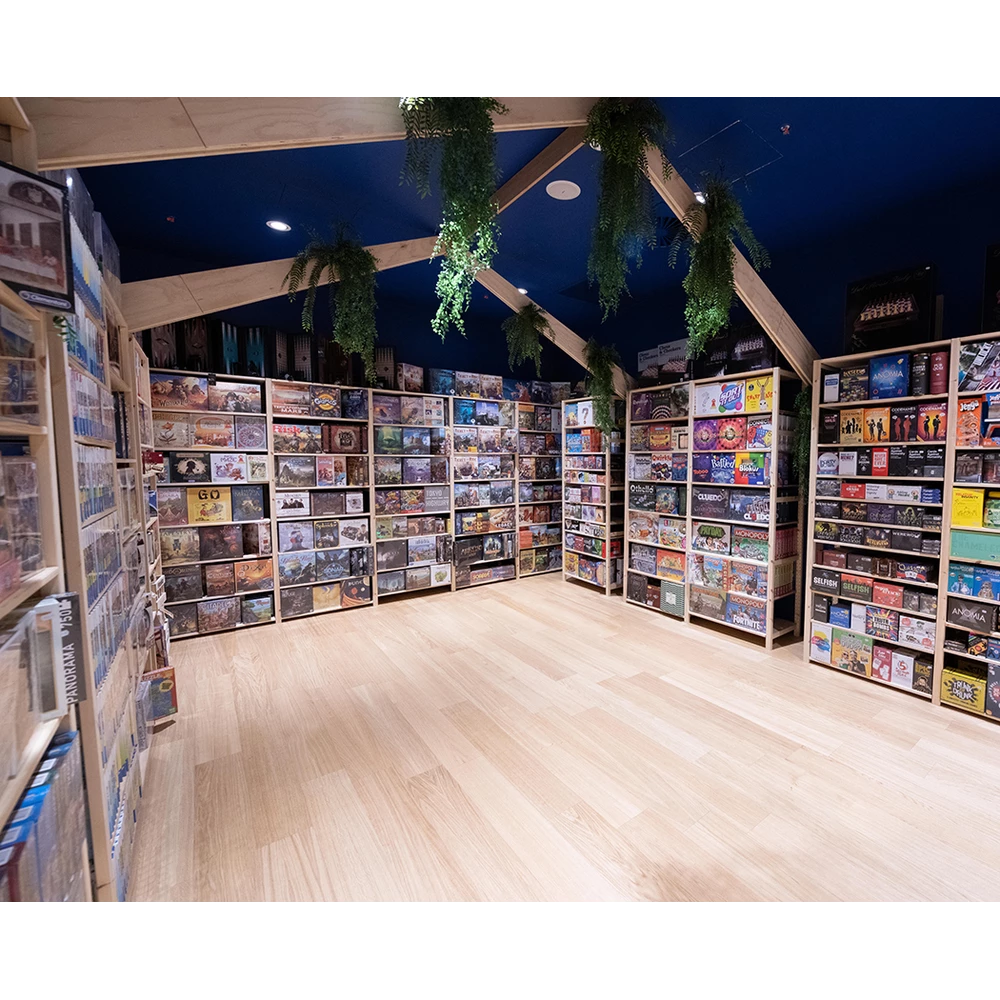

Ideal for any retail or commercial interior space
Design Specifications
- Durable die-cast aluminium body profile
-
Stylish white powder coat finish
-

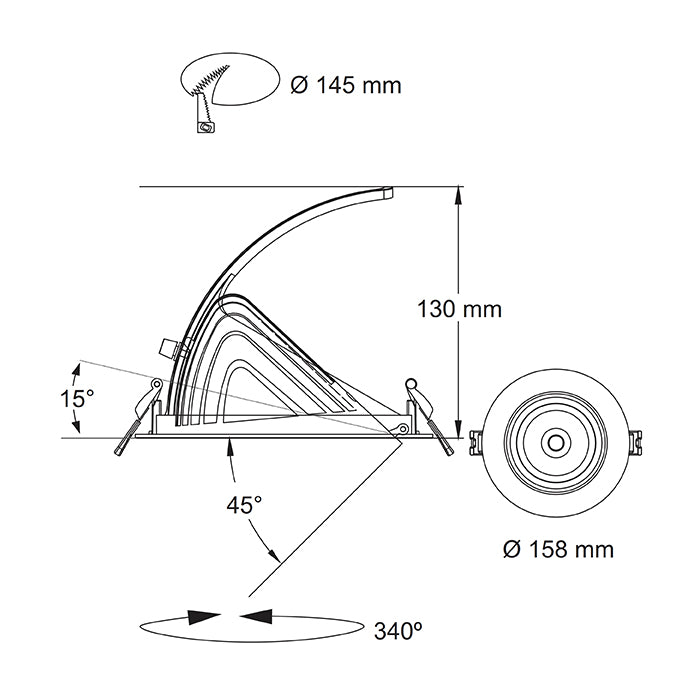

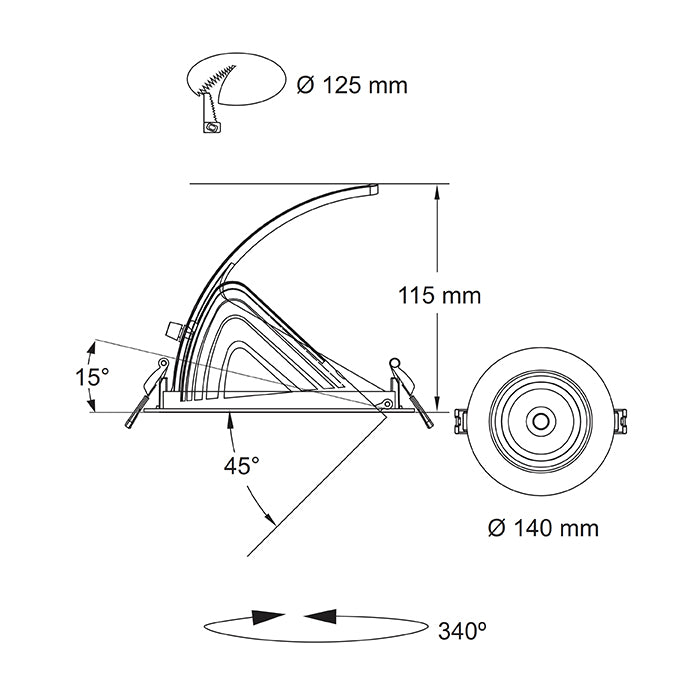

Optimum tilting function 60° (-15° ~ +45°) and rotating 340°
-

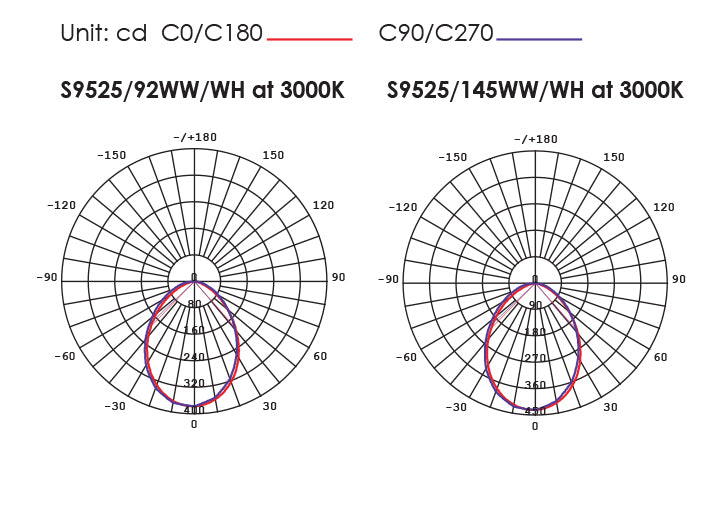

High output LED optics, 40° standard beam, 24° available, refer model number.
-
High performance optical lens with a changeable multi-faceted reflector system
-
Remote, non-dimmable LED driver, with flex and plug, double insulated
Performance
- Dimmable - OPTIONAL
- Dimmer Type - Trailing edge, 1-10V, DALI / DSI
| Model No. | Description | Input Voltage | Power | Lumens | CCT | Beam Angle | Dimmable | CRI | Body Colour |
| S9525/92WW/WH | DIMMABLE LED SHOP LIGHT 15W 3K WH | 240 | 15 | 1300 | 3000 | 40 | YES | 80 | WHITE |
| S9525/92CW/WH | DIMMABLE LED SHOP LIGHT 15W 4K WH | 240 | 15 | 1400 | 4000 | 40 | YES | 80 | WHITE |
| S9525/92DL/WH | DIMMABLE LED SHOP LIGHT 15W 6K WH | 240 | 15 | 1500 | 5700 | 40 | YES | 80 | WHITE |
| S9525/125WW/WH | LED SHOP LIGHT 25W 3K WH | 240 | 25 | 1900 | 3000 | 40 | OPTIONAL | 80 | WHITE |
| S9525/125CW/WH | LED SHOP LIGHT 25W 4K WH | 240 | 25 | 2000 | 4000 | 40 | OPTIONAL | 80 | WHITE |
| S9525/125DL/WH | LED SHOP LIGHT 25W 6K WH | 240 | 25 | 2100 | 5700 | 40 | OPTIONAL | 80 | WHITE |
| S9525/145WW/WH | LED SHOP LIGHT 35W 3K WH | 240 | 35 | 2600 | 3000 | 40 | OPTIONAL | 80 | WHITE |
| S9525/145CW/WH | LED SHOP LIGHT 35W 4K WH | 240 | 35 | 2700 | 4000 | 40 | OPTIONAL | 80 | WHITE |
| S9525/145DL/WH | LED SHOP LIGHT 35W 6K WH | 240 | 35 | 2800 | 5700 | 40 | OPTIONAL | 80 | WHITE |
