Description

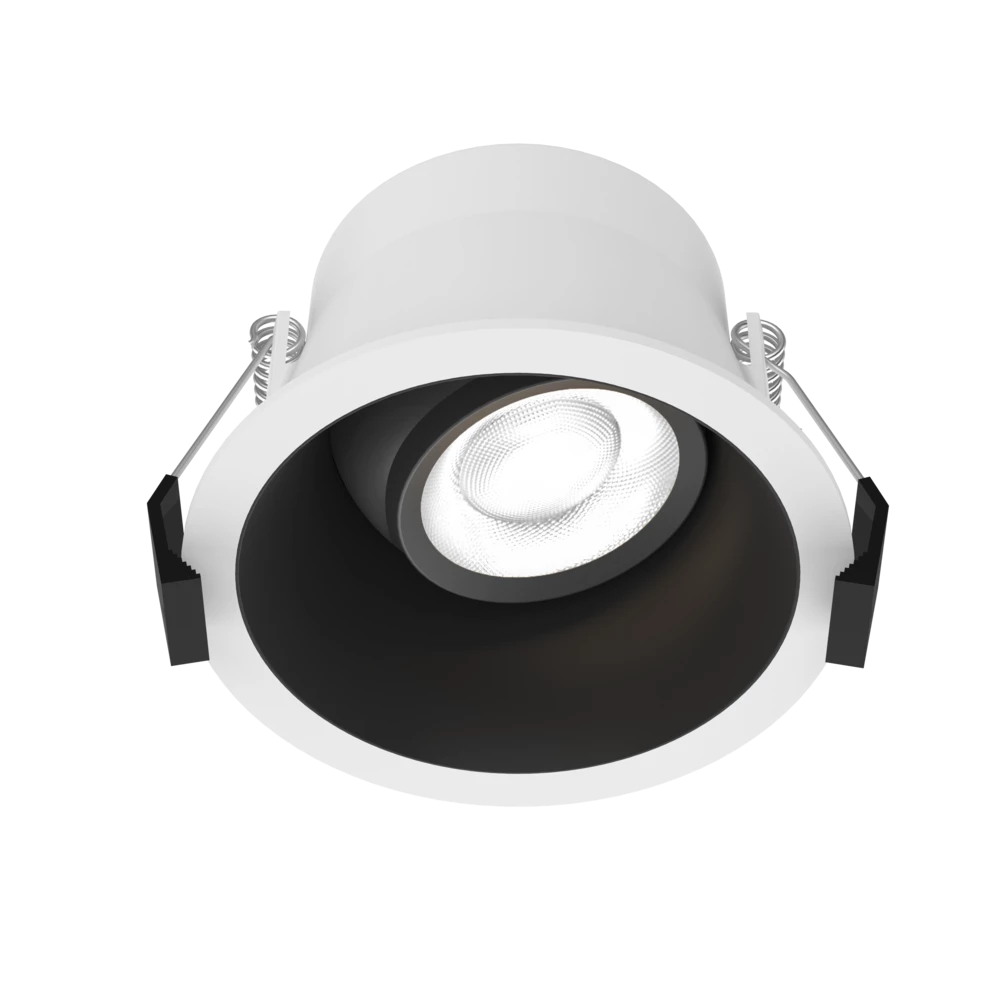

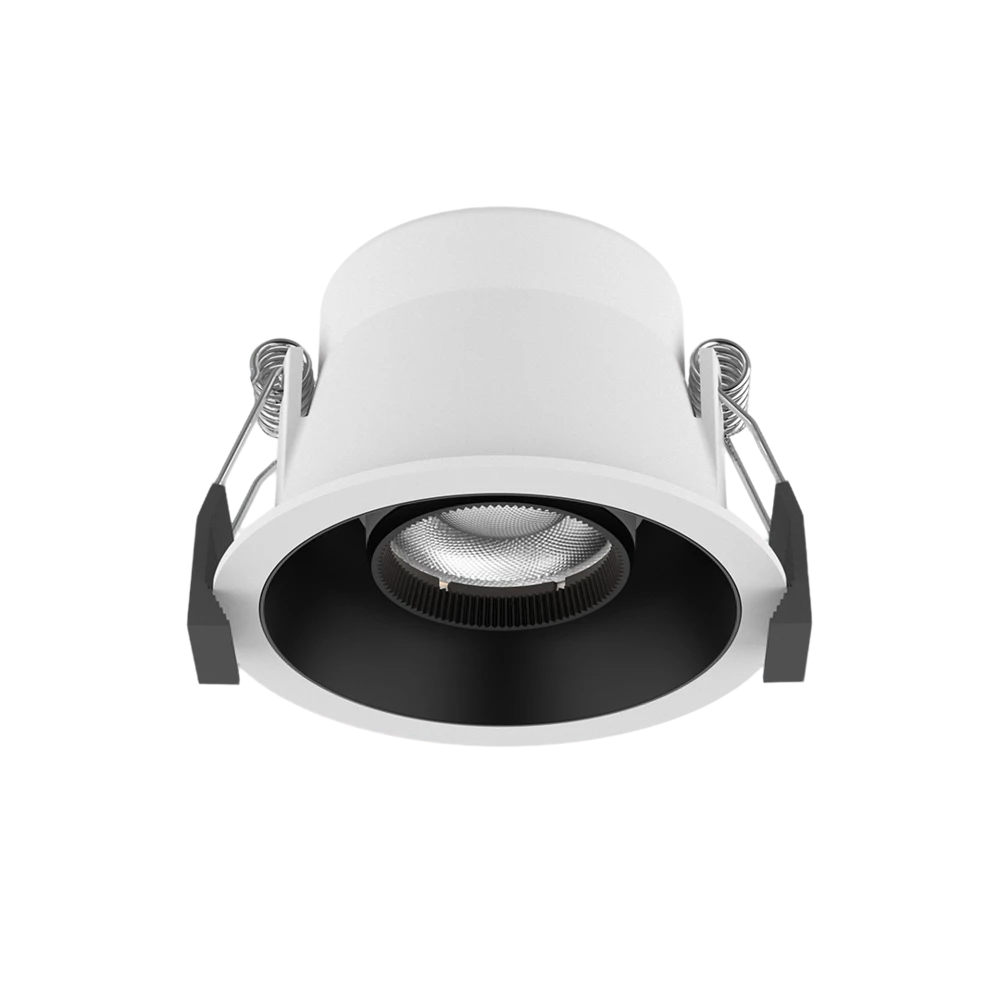

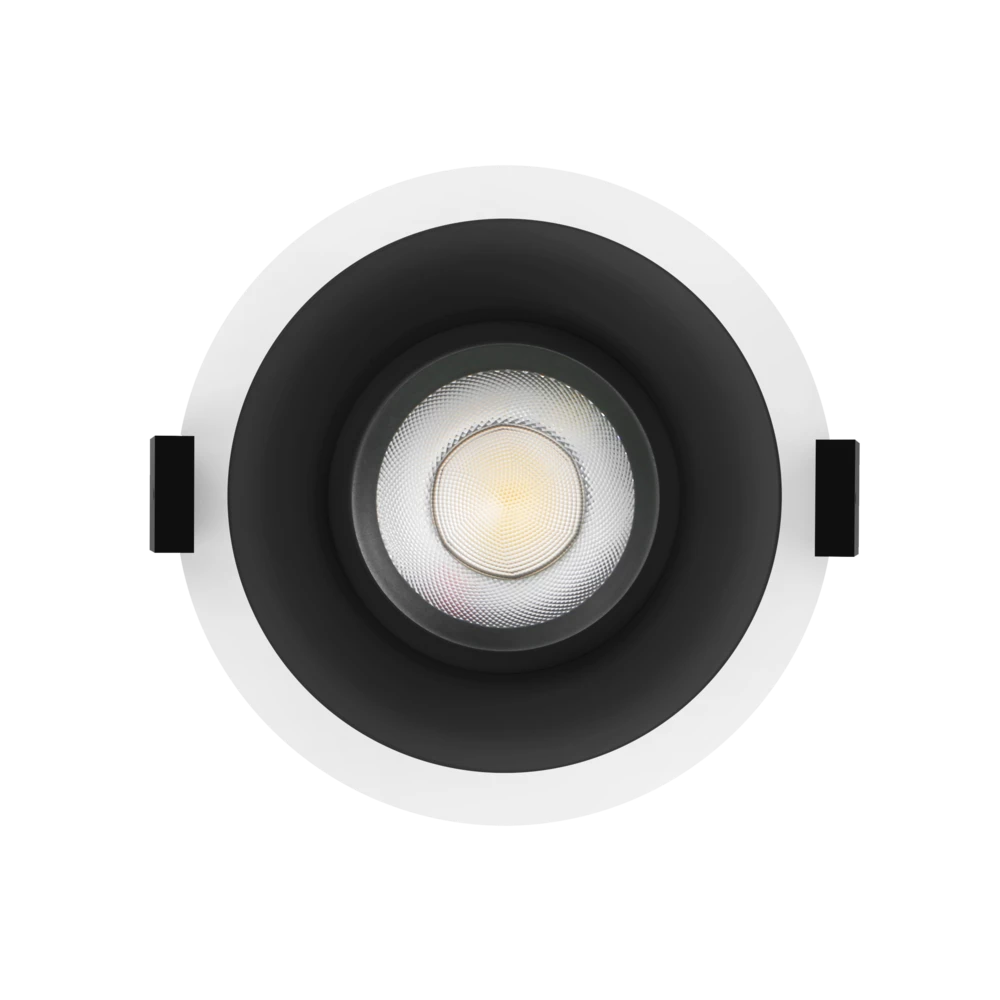

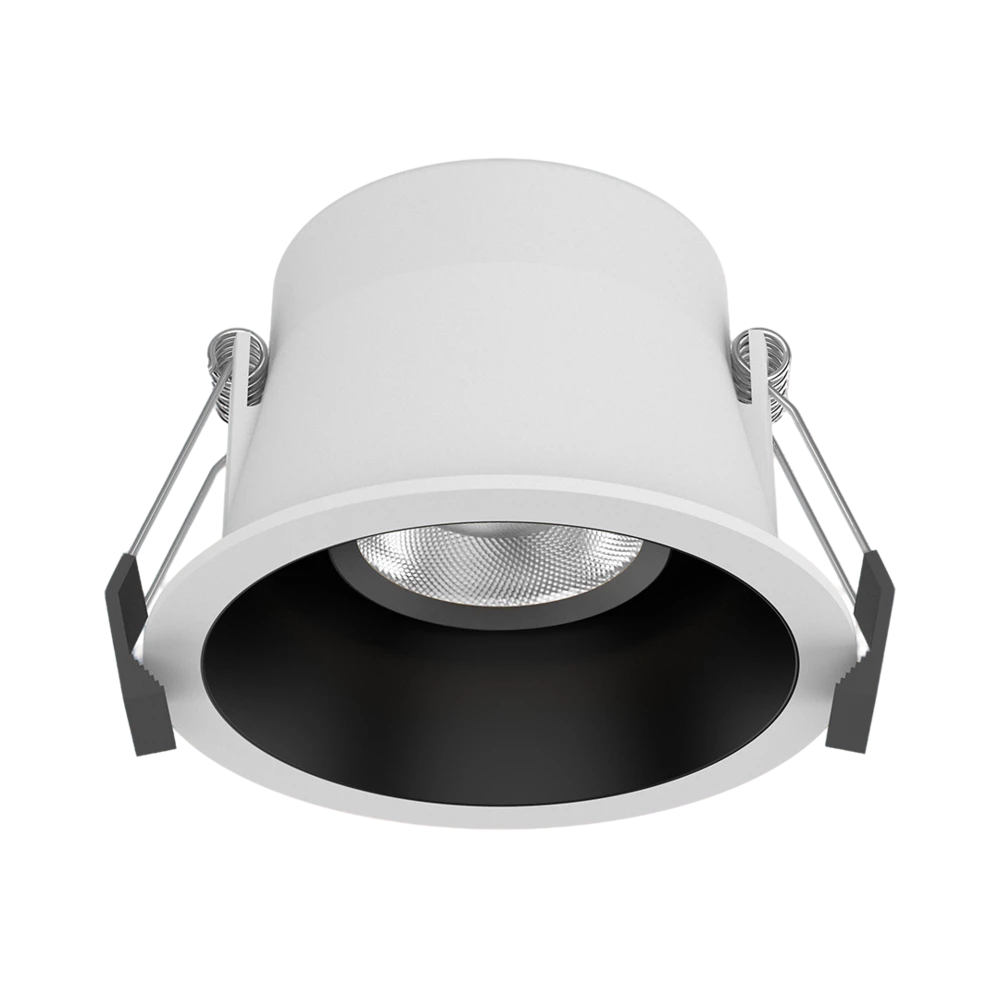

8 or 11 watt dimmable LED downlight with tilt function, UGR<19, selectable CCT and CRI>90
Application
Ideal for any retail, residential or commercial interior space
Design Specifications
-
Stylish white trim and recessed black profile
-
Choice of 8 watt (72mm cut-out) or 11 watt (92mm cut-out)
-
Remote, dimmable flickerCONTROLLED control gear
-
Selectable CCT 3000 / 4000 /5000K
-
High performance optics UGR<19, CRI>90, optical tilt 20°, beam distribution 36°.
-
IC-4 rated, electrical class II
Performance
- Dimmable - YES
- Dimmer Type - trailing edge
| Model No. | Input Voltage | Power | Lumens | CCT | Beam Angle | Dimmable | CRI | Body Colour | Cut Out | Diameter | Dim |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S9142TC/WH | 240 | 8 | 560/670/660 | 3000/4000/5700 | 36 | YES | 90 | WHITE | 72 | 84 | 56(H) |
| S9143TC/WH | 240 | 11 | 750/870/830 | 3000/4000/5700 | 36 | YES | 90 | WHITE | 92 | 104 | 71(H) |
