Description
Application
Residential stairs, walkways and interior commercial features
Design Specifications
-

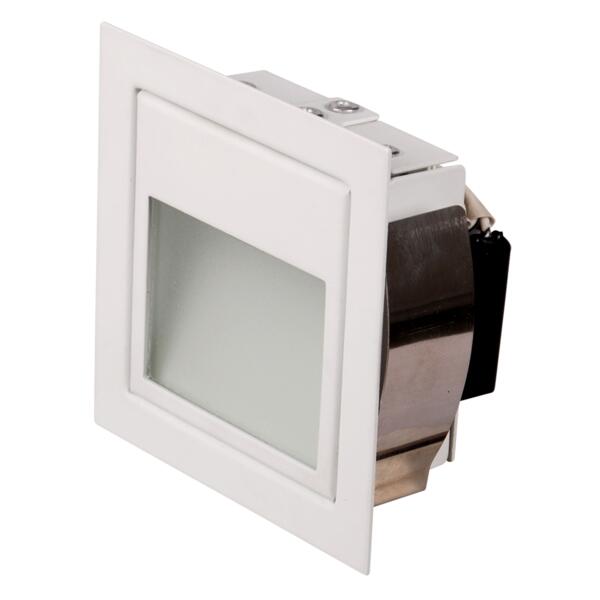

Durable aluminium body profile, cut-out 68 x 68mm
-
Matt white powder coat finish or anodized silver
-
High efficiency SMD optics, CCT 3000K, beam distribution 86°
- Frosted glass diffuser
-
12V AC or DC driver required, suitable drivers - PLUTO EGL12V/6W PLUTO 15DV, 40DV, 60DV
-
Optional pre-install wall box available
Performance
- Dimmable - NO
| Model No. | Input Voltage | Input Voltage | Power | Lumens | CCT | CRI | Beam Angle | Dimmable | Dim | Body Colour |
|---|---|---|---|---|---|---|---|---|---|---|
| S9318 AS | 12 | 12 | 1.5 | 70 | 3000 | 80 | 86 | NO | 80(L) x 80(W) x 30(H) | Anodised Silver |
| S9318 MW | 12 | 12 | 1.5 | 70 | 3000 | 80 | 86 | NO | 80(L) x 80(W) x 30(H) | White |
