Description
Application

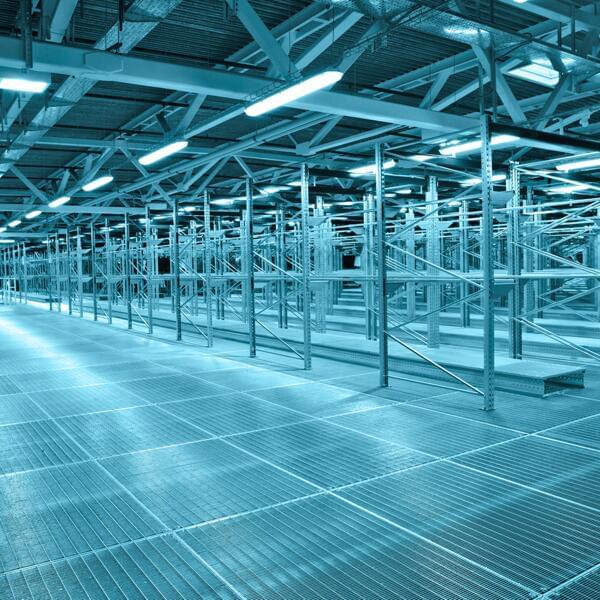

Multi-purpose, ceiling or suspension mount commercial or industrial applications
Design Specifications
-

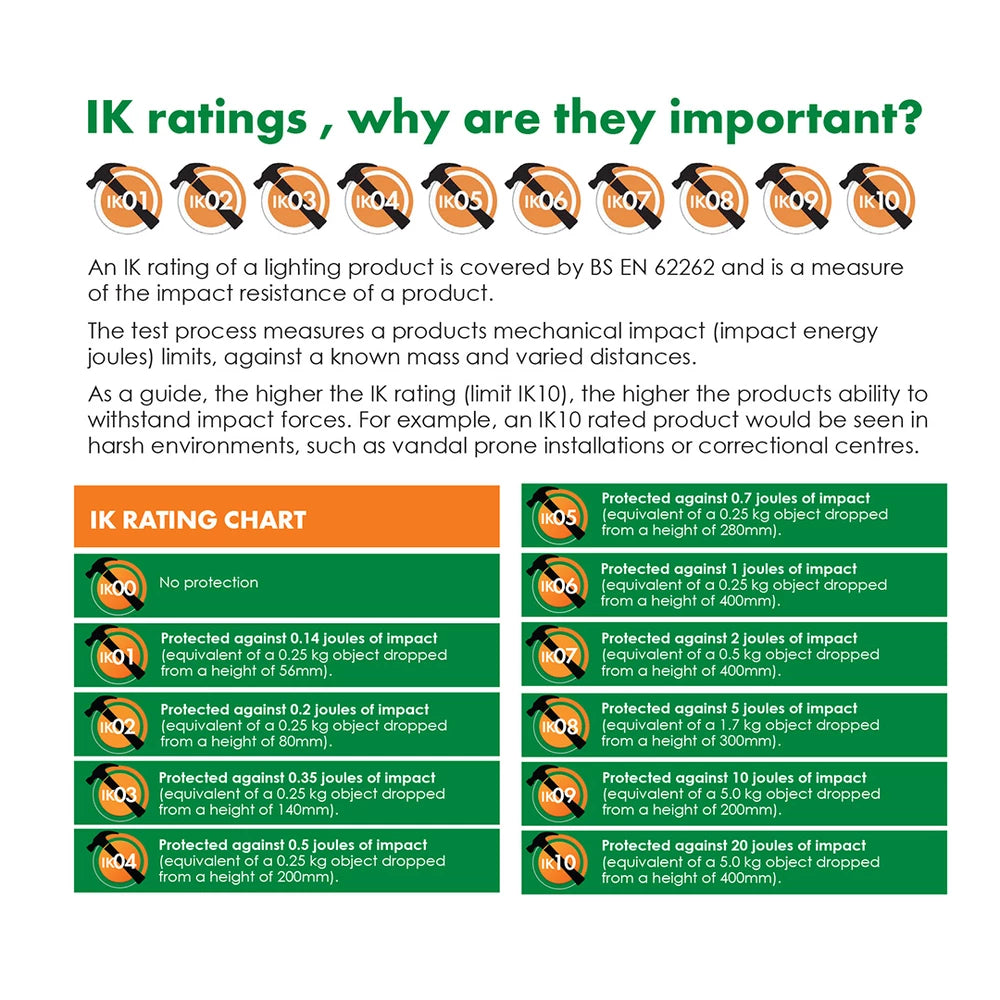

Vandal resistant design, robust polycarbonate body and UV stabilized polycarbonate diffuser and body, stainless steel clips, brackets and screws, IP65 / IK08
-
Integral non-dimmable LED driver, 5000K as standard, optional 3000K to order
-
Optional (non-dim) corridorSTANDBY function available for 35 watt EM
-
Compliant to AS/NZS2293 Emergency Lighting & Exit Signs, guaranteed minimum 90 minutes emergency mode function with LiFePO4 battery technology
-
Emergency spacing class -
(SL9721/20EM) D50@C0, D32@C90,
(SL9721/35EM) D63@C0, D32@C90. -
Accessories included - PVC cable glands and suspension brackets. Installation types - Surface mount (standard) or if Suspended (a suspension kit is required).
Performance
- Dimmable - NO
| Model No. | Input Voltage | Power | CCT | Body Colour | Dim |
|---|---|---|---|---|---|
| SL9721/20EM | 240 | 20 | 5000 | GREY | 618(L) x 116(W) x 74(H) |
| SL9721/35EM | 240 | 35 | 5000 | GREY | 1218(L) x 116(W) x 74(H) |
