Description
Design Specifications
-
Durable 316 stainless steel face and aluminium body
-

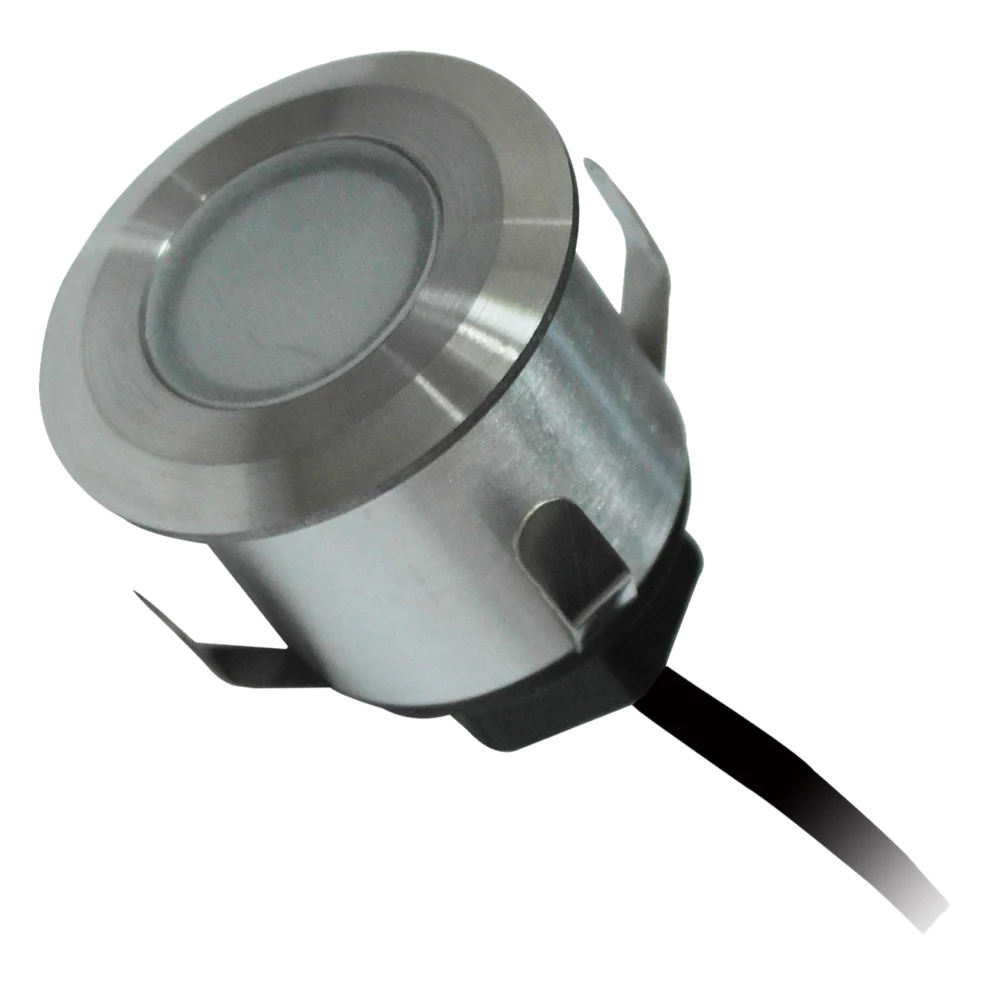

Frosted polycarbonate diffuser Ø35 mm x H26 mm round deck lights
-
6 x 0.6W deck light head with 3.5 m PVC flex & 2 pin quick connect plug
-
Pre-wired 6m of rubber flex with 6 x 2 pin quick connect sockets
-
1 x IP65 10VA driver, non-dimmable
-

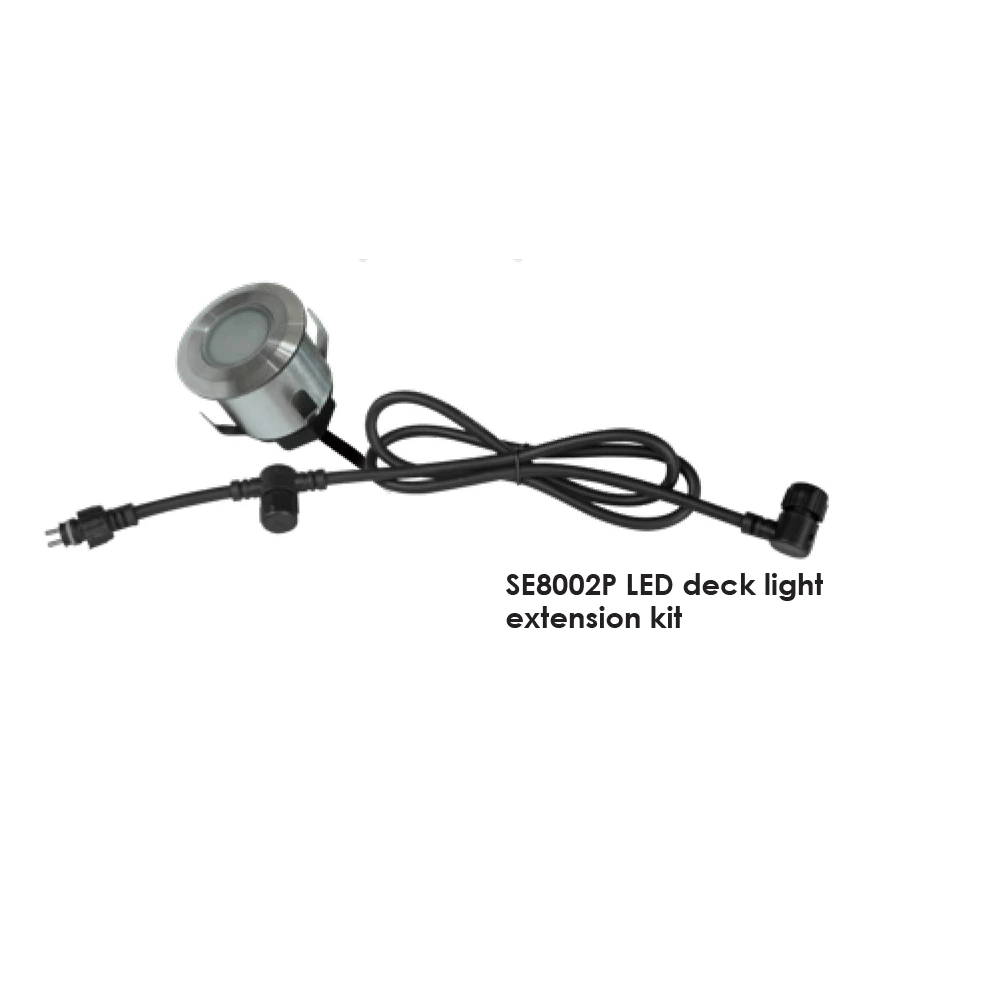

SE8002P extension kit contents include: 1 x Ø35 x H26 mm, 316 stainless steel face round deck light, 1 x 3.5 m PVC flex with 2 pin quick connect plug, 1 x 1.1 m extension cable, maximum of 10 connected heads per (kit) driver, IP65, IK08 performance
Performance
- Dimmable - NO
| Model No. | Description | Input Voltage | Power | CCT | CRI | Dim | Body Colour |
|---|---|---|---|---|---|---|---|
| SE8002WW | LED DECKLIGHT 6 x 0.6W 3K IP65 | 240 | 3.6 | 3000 | 80 | 35(W) x 26(H) | STAINLESS STEEL |
| SE8002P/WW | LED DECKLIGHT 1 x 0.6W 3K IP65 EXTENSION | 240 | 0.6 | 3000 | 80 | 35(W) x 26(H) | STAINLESS STEEL |
| SE8002NDL | LED DECKLIGHT 6 x 0.6W 5K IP65 | 240 | 3.6 | 5000 | 80 | 35(W) x 26(H) | STAINLESS STEEL |
| SE8002P/NDL | LED DECKLIGHT 1 x 0.6W 5K IP65 EXTENSION | 240 | 0.6 | 5000 | 80 | 35(W) x 26(H) | STAINLESS STEEL |
