Description

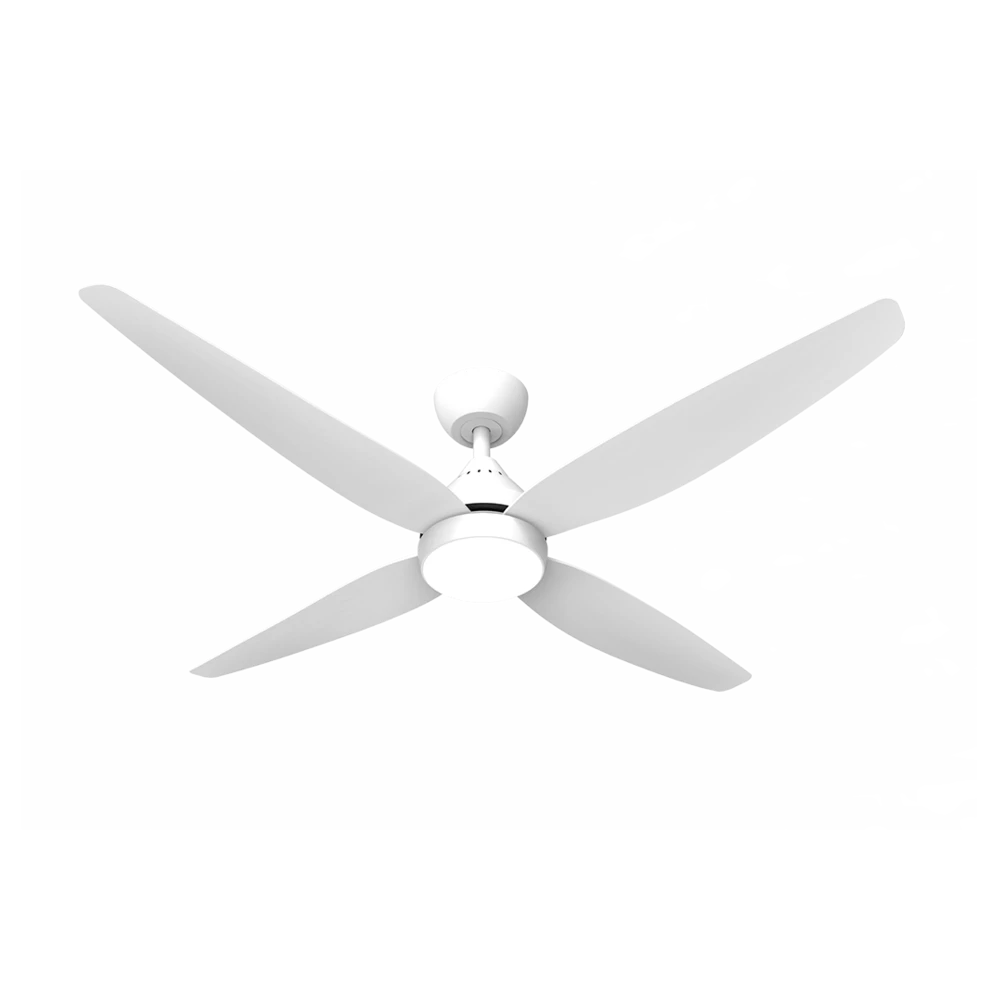

52" (1362mm) 30W DC Ceiling fan, four blades, with six speed wall and remote control with selectable CCT and dimmable 22W LED via the wall plate or remote control.
Application
Residential interior or weather protected exterior spaces
Design Specifications
-

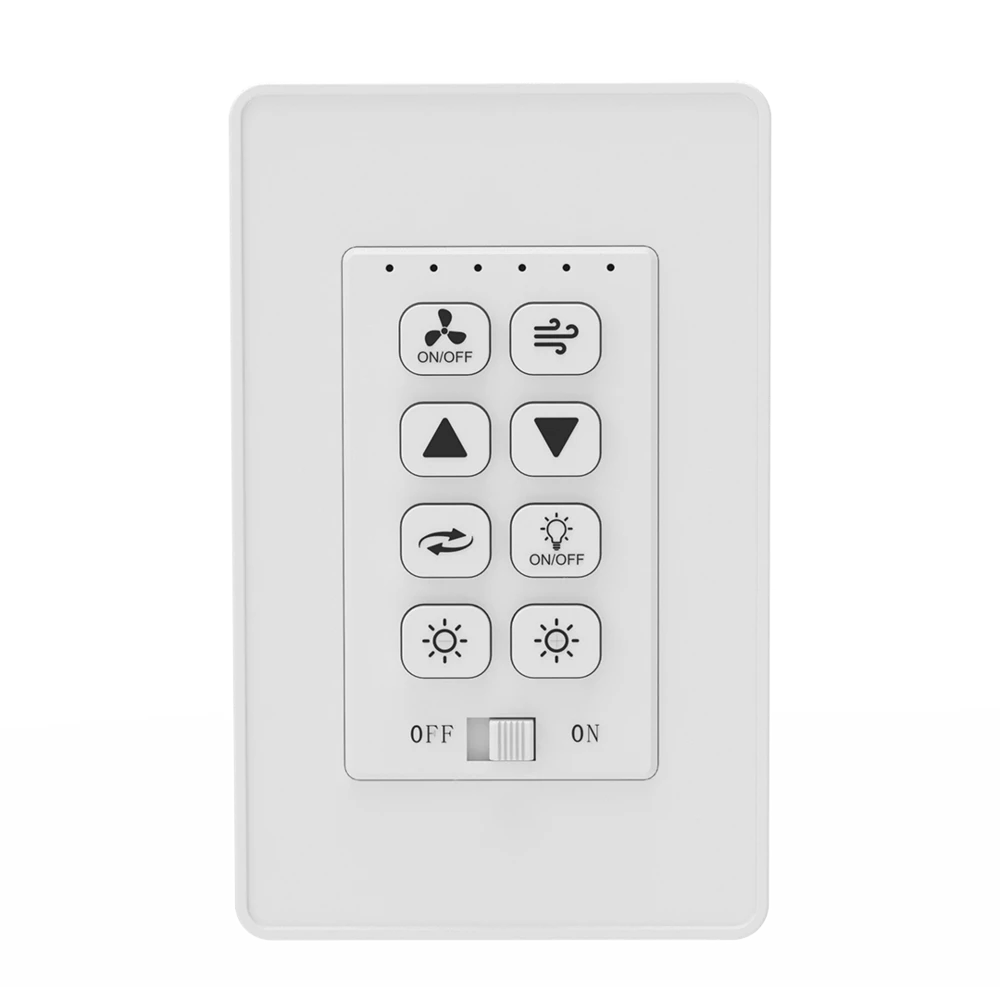

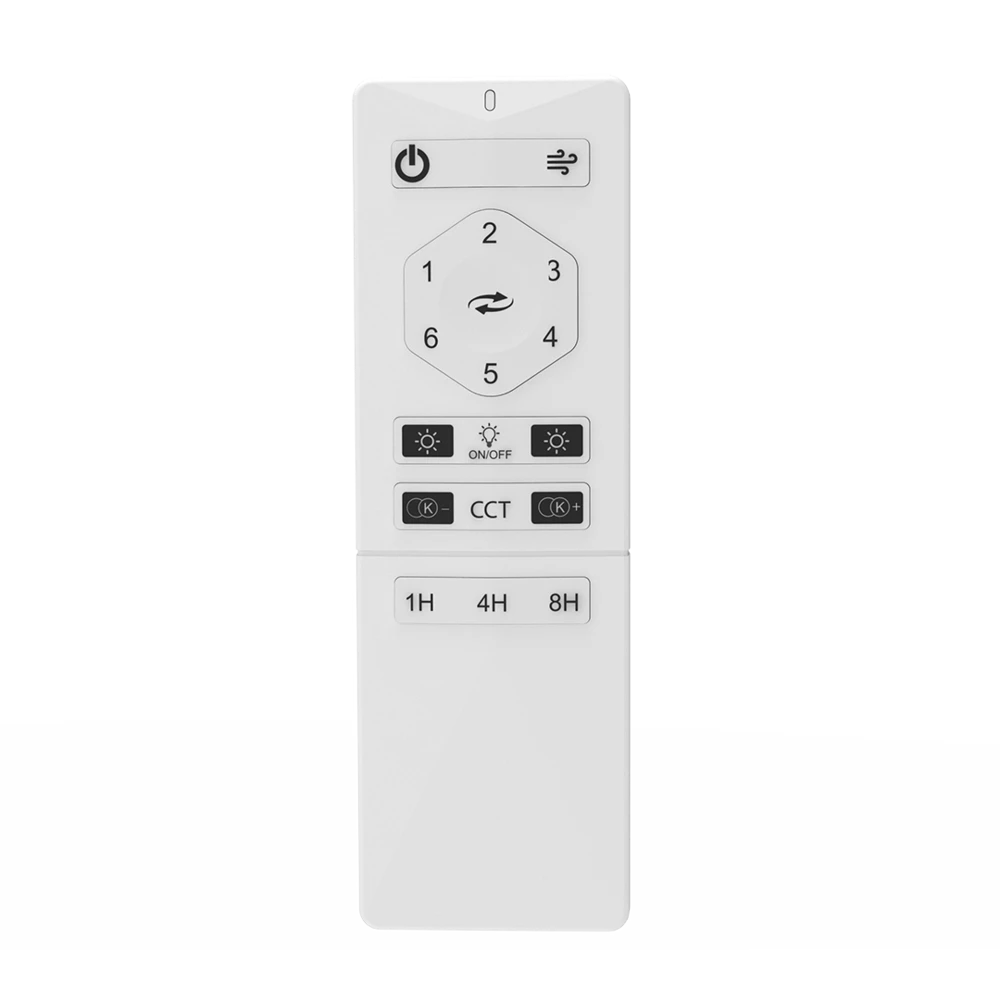

Six speed wall control and remote control included
-
Super quiet 30W DC motor with fan timer and breeze mode control and dimmable 22W LED with selectable CCT
-
Powerful airflow 12,290 m3/h, with summer and winter fan control.
-
Durable ABS blade design, ideal for indoor or covered and protected outdoor environments, standard 250mm extension rod included.
-

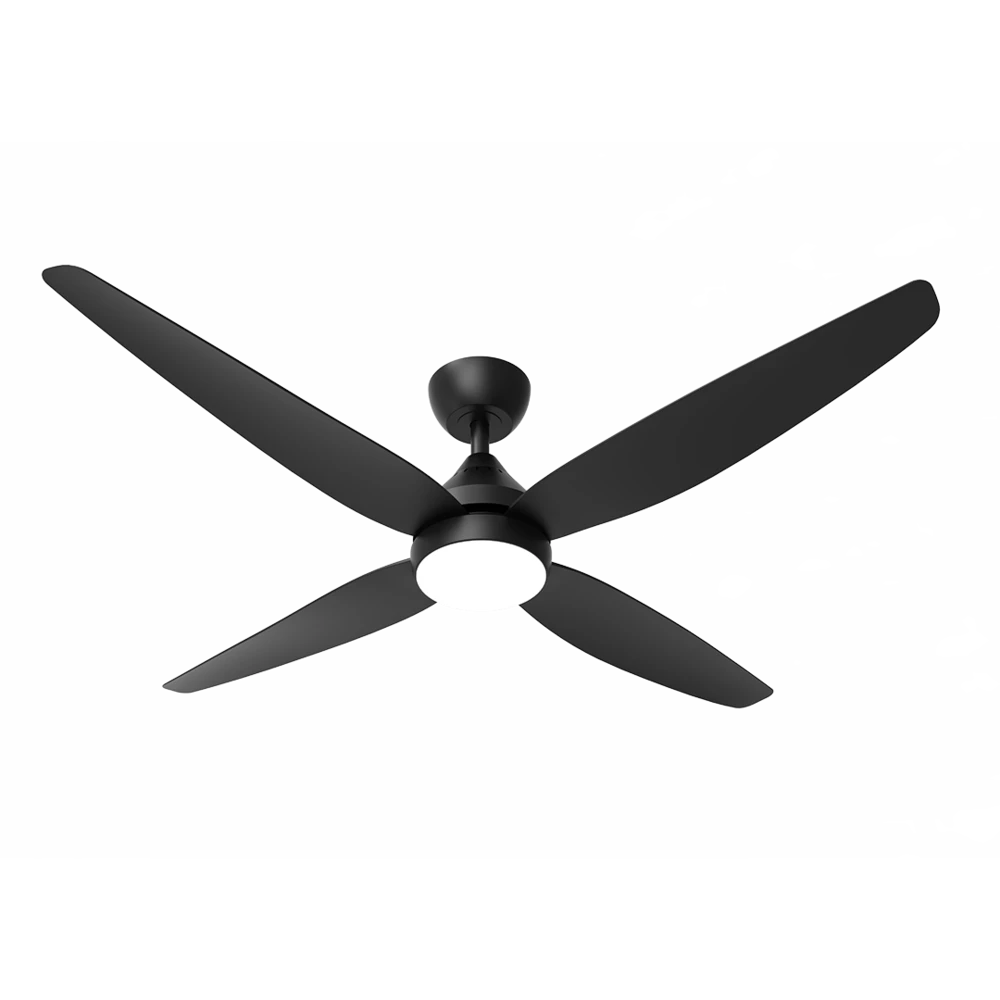

Choice of BLACK or WHITE models.
-
Minimum blade clearance from the floor in accordance with AS 4226 – 2008, Clause 12.5.3 is 2100mm.
Performance
- Dimmable - YES
- Dimmer Type - WALL OR REMOTE CONTROL

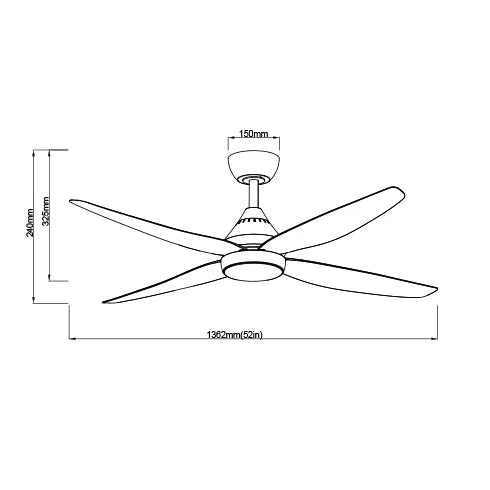

| Model No. | Body Colour | Input Voltage | Power | Motor Type | Blades | Hang-sure angle | Airflow | Summer & Winter Control | Dimmable | Lumens | Height | Ceiling drop | Diameter | Mass |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SDCF11/52/4WH/L | WHITE | 240 | 30 | DC | 4 | 15 | 12290 | YES | YES | 2860 | 325 | 240 | 1362 | 5.27 |
| SDCF11/52/4BK/L | BLACK | 240 | 30 | DC | 4 | 15 | 12290 | YES | YES | 2860 | 325 | 240 | 1362 | 5.27 |
