Description
LED SUPER-WIDE 160mm body diffused batten with selectable CCT and Dual Power
Application
Conventional style (SUPER-WIDE) linear LED batten products for commercial service spaces
Design Specifications
-

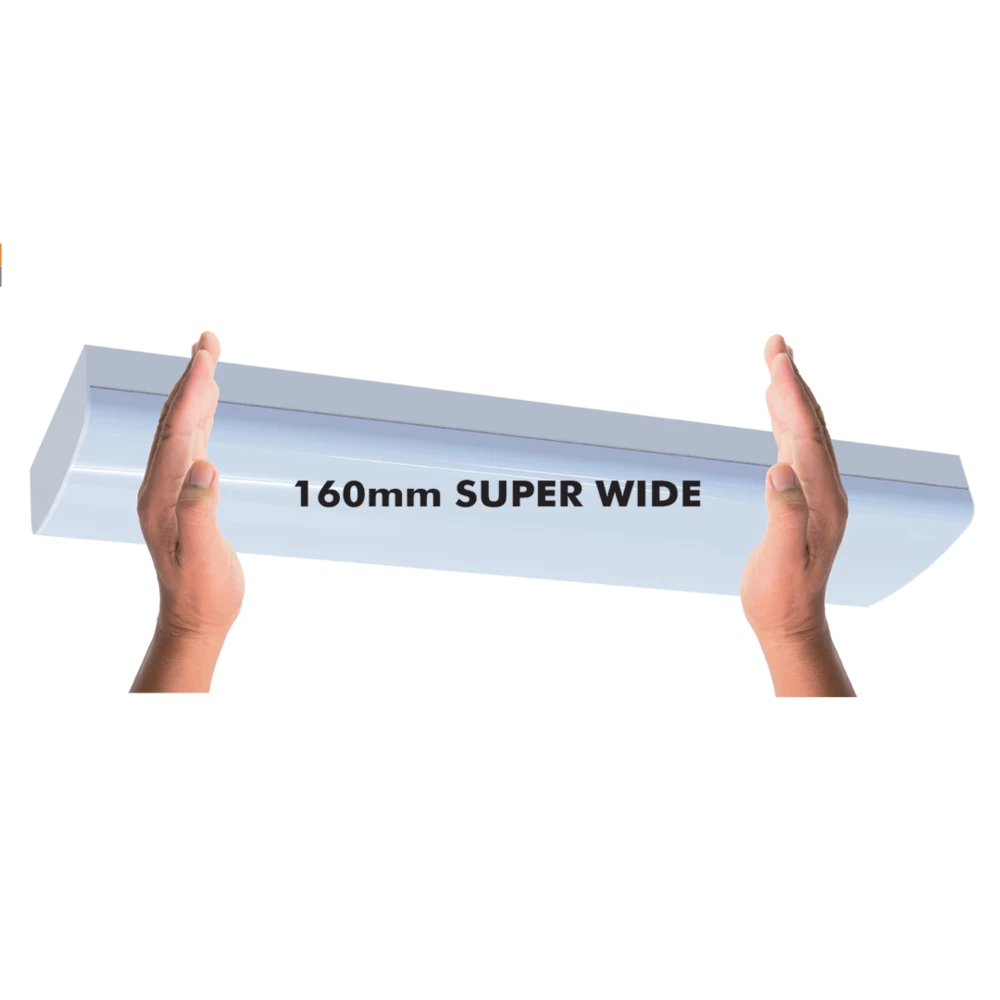

160mm SUPER-WIDE steel body
-
White powder coat finish with PC diffuser
- Large terminal block, easy installation
-
Selectable CCT 3000K/4000K/5700K
-
High efficiency LED, CRI >80, 120° beam distribution
-
Integral flickerCONTROLLED non-dimmable LED driver with selectable power, emergency options available, non-dimmable corridorSTANDBY options
Performance
- In Built Sensor - OPTIONAL
- Sensor Type - MICROWAVE
| Model No. | Input Voltage | Multiple Wattage | Lumens | CCT | Dimmable | CRI | Beam Angle | Body Colour | Dim | Mass |
|---|---|---|---|---|---|---|---|---|---|---|
| SL9739/20TC/DP | 240 | 10/20 | 2300/2450/2200 | 3000/4000/5700 | NO | 80 | 120 | WHITE | 610(L) x 160(W) x 82(H) | 1.31 |
| SL9739/40TC/DP | 240 | 20/40 | 4550/4850/4350 | 3000/4000/5700 | NO | 80 | 120 | WHITE | 1225(L) x 160(W) x 82(H) | 2.11 |
| SL9739/50TC/DP | 240 | 25/50 | 5550/5950/5350 | 3000/4000/5700 | NO | 80 | 120 | WHITE | 1519(L) x 160(W) x 82(H) | 2.94 |
| SL9739/20TC/DP/EM | 240 | 10/20 | 2300/2450/2200 | 3000/4000/5700 | NO | 80 | 120 | WHITE | 610(L) x 160(W) x 82(H) | 1.5 |
| SL9739/40TC/DP/EM | 240 | 20/40 | 4550/4850/4350 | 3000/4000/5700 | NO | 80 | 120 | WHITE | 1225(L) x 160(W) x 82(H) | 2.61 |
| SL9739/50TC/DP/EM | 240 | 25/50 | 5550/5950/5350 | 3000/4000/5700 | NO | 80 | 120 | WHITE | 1519(L) x 160(W) x 82(H) | 3.14 |
| SL9739/20TC/DP/S | 240 | 10/20 | 2300/2450/2200 | 3000/4000/5700 | NO | 80 | 120 | WHITE | 610(L) x 160(W) x 82(H) | 1.45 |
| SL9739/40TC/DP/S | 240 | 20/40 | 4550/4850/4350 | 3000/4000/5700 | NO | 80 | 120 | WHITE | 1225(L) x 160(W) x 82(H) | 2.5 |
| SL9739/50TC/DP/S | 240 | 25/50 | 5550/5950/5350 | 3000/4000/5700 | NO | 80 | 120 | WHITE | 1519(L) x 160(W) x 82(H) | 3 |
