Description

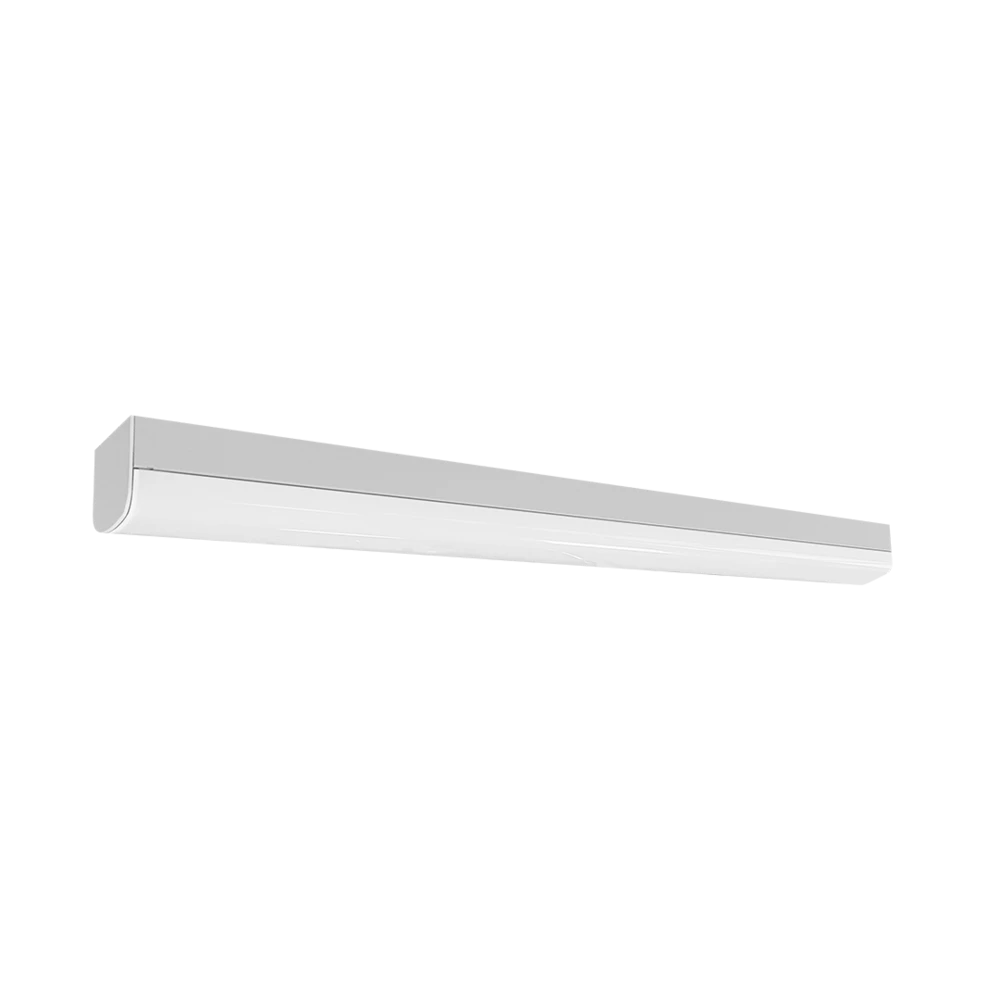

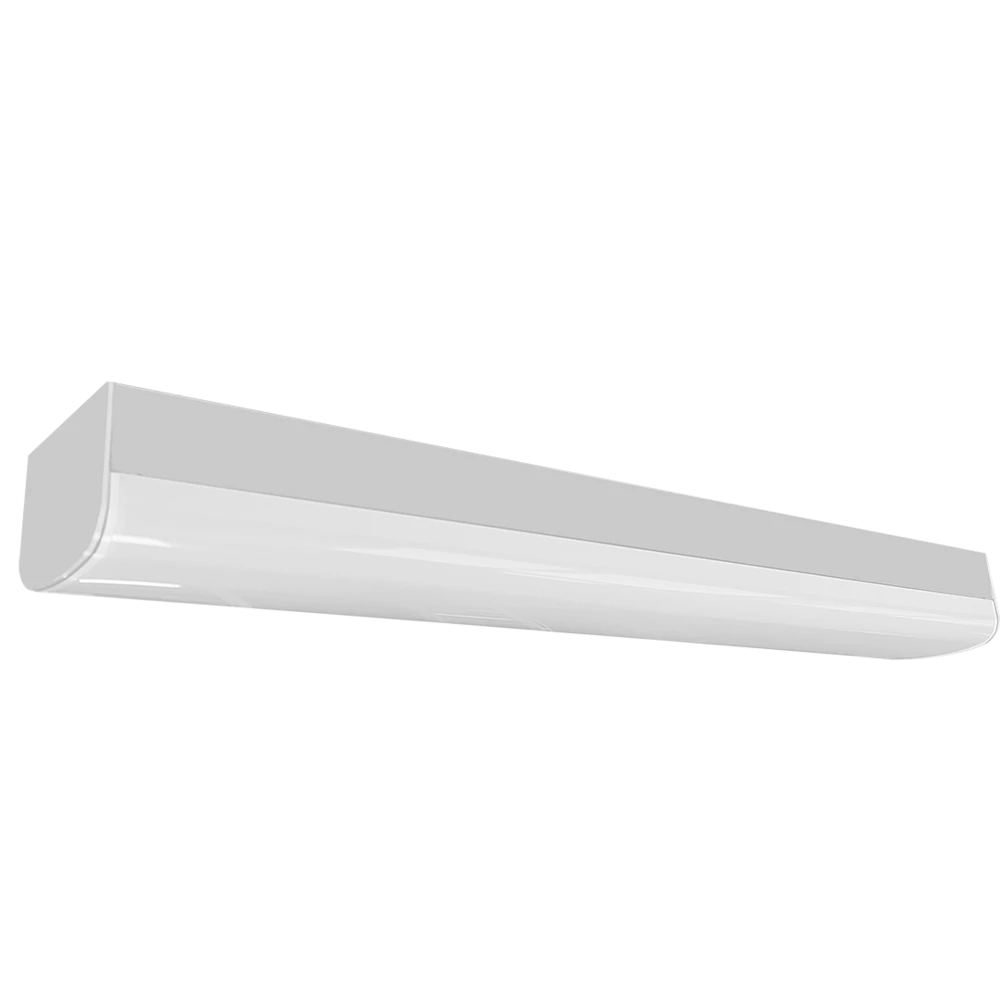

LED WIDE (90mm) diffused batten with selectable colour temperature, dual power with emergency and sensor options
Application
Extra wide 90mm conventional style linear LED batten design for commercial services
Design Specifications
-
Quality white powder coat finish with a robust opal polycarbonate diffuser
-
Selectable power with flickerCONTROL technology
-
Large terminal block for easier installation
-
Selectable colour temperature 3000K/4000K/5700K
-
High efficiency SMD LED, CRI >80, 120° beam distribution
-

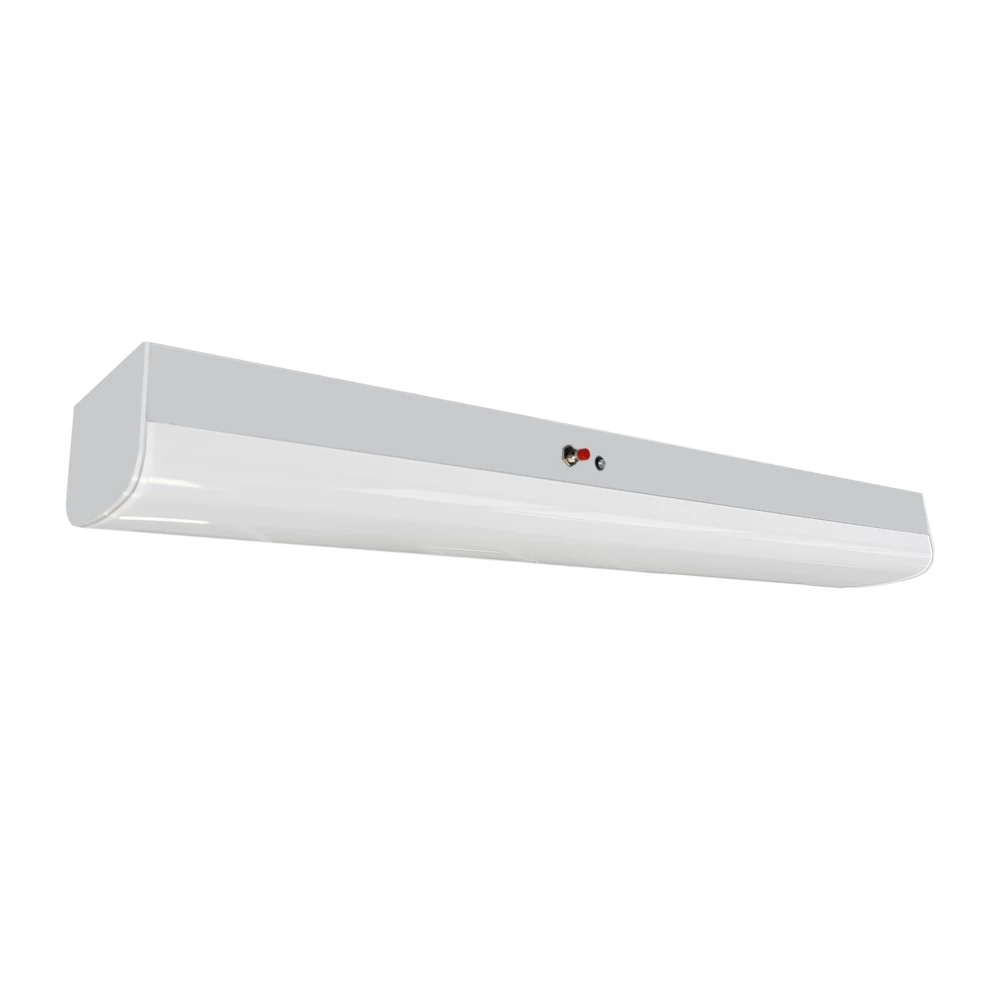

Optional sensor, dimming and emergency configurations
Performance
- In Built Sensor - OPTIONAL
- Sensor Type - MICROWAVE
| Model No. | Input Voltage | Multiple Wattage | Lumens | CCT | Dimmable | CRI | Beam Angle | Body Colour | Dim | Mass |
|---|---|---|---|---|---|---|---|---|---|---|
| SL9737/20TC/DP | 240 | 10/20 | 2400/2600/2400 | 3000/4000/5700 | NO | 80 | 100 | WHITE | 610(L) x 90(W) x 66(H) | 1.12 |
| SL9737/40TC/DP | 240 | 20/40 | 4550/5200/4950 | 3000/4000/5700 | NO | 80 | 100 | WHITE | 1225(L) x 90(W) x 66(H) | 1.83 |
| SL9737/50TC/DP | 240 | 25/50 | 5600/6450/5950 | 3000/4000/5700 | NO | 80 | 100 | WHITE | 1519(L) x 90(W) x 66(H) | 2.12 |
| SL9737/20TC/DP/EM | 240 | 10/20 | 2400/2600/2400 | 3000/4000/5700 | NO | 80 | 100 | WHITE | 610(L) x 90(W) x 66(H) | 1.3 |
| SL9737/40TC/DP/EM | 240 | 20/40 | 4550/5200/4950 | 3000/4000/5700 | NO | 80 | 100 | WHITE | 1225(L) x 90(W) x 66(H) | 2.1 |
| SL9737/50TC/DP/EM | 240 | 25/50 | 5600/6450/5950 | 3000/4000/5700 | NO | 80 | 100 | WHITE | 1519(L) x 90(W) x 66(H) | 2.3 |
| SL9737/20TC/DP/S | 240 | 10/20 | 2400/2600/2400 | 3000/4000/5700 | NO | 80 | 100 | WHITE | 610(L) x 90(W) x 66(H) | |
| SL9737/40TC/DP/S | 240 | 20/40 | 4550/5200/4950 | 3000/4000/5700 | NO | 80 | 100 | WHITE | 1225(L) x 90(W) x 66(H) | |
| SL9737/50TC/DP/S | 240 | 25/50 | 5600/6450/5950 | 3000/4000/5700 | NO | 80 | 100 | WHITE | 1519(L) x 90(W) x 66(H) |
