Description
Application
Ideal for any residential or commercial interior space, experiencing nuisance ripple induced flicker
Design Specifications
- Combined with the SAL SDD400RS/BTAM dimmer, the rippleSHIELD Coolum eliminates ALL nuisance non-visible and visible flicker caused by ripple injection
- Remote rippleSHIELD dimmable LED driver, with smooth dimming performance down to 1.0% of light output, designed with flex and plug
- Selectable CCT 3000K/4200K/5700K
- Stylish white powder coat finish colour trim options: (S9041 BK RING), (S9041 SN RING), (S9041 SL RING).
-

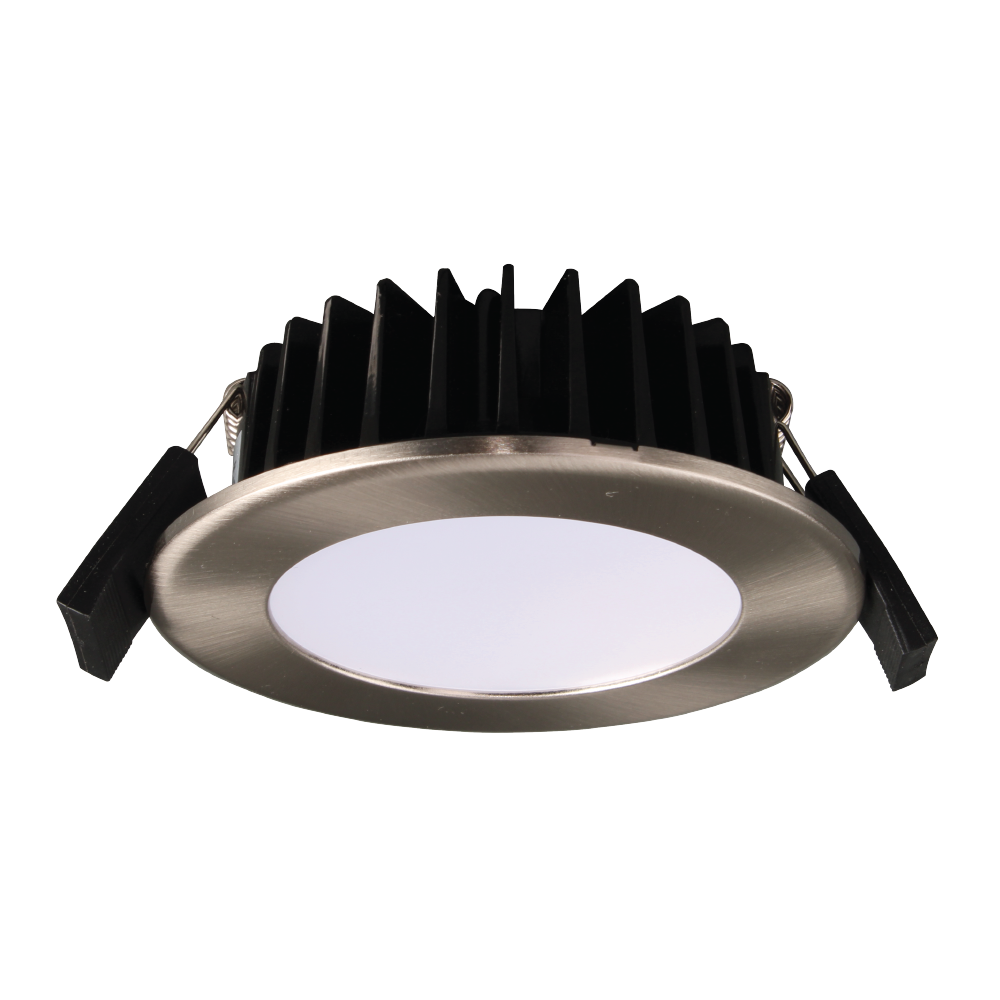

Colour 1 Black (S9041 BK RING) Colour 2 Satin Nickel (S9041 SN RING) Colour 3 Silver (S9041 SL RING) - IC - 4 rated, double insulated
Performance
- Dimmable - YES
- Dimmer Type - Dim only with SDD400RS/BTAM

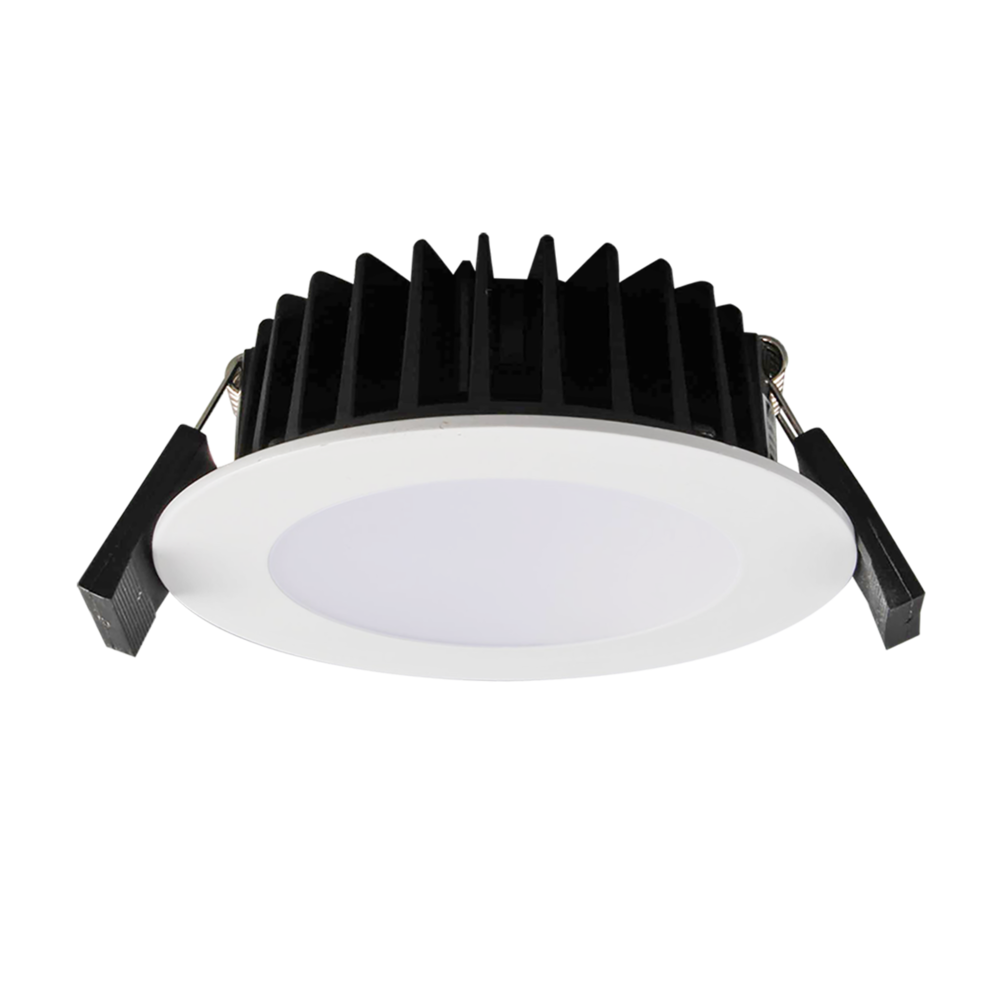

| Model No. | Input Voltage | Power | Lumens | CCT | Beam Angle | Dimmable | CRI | Body Colour | Cut Out | Diameter | Dim |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S9041TC/WH/SFI | 240 | 10 | 850/1000/900 | 3000/4200/5700 | 90 | YES | 80 | WHITE | 92 | 103 | 40(H) |
