Description
Application

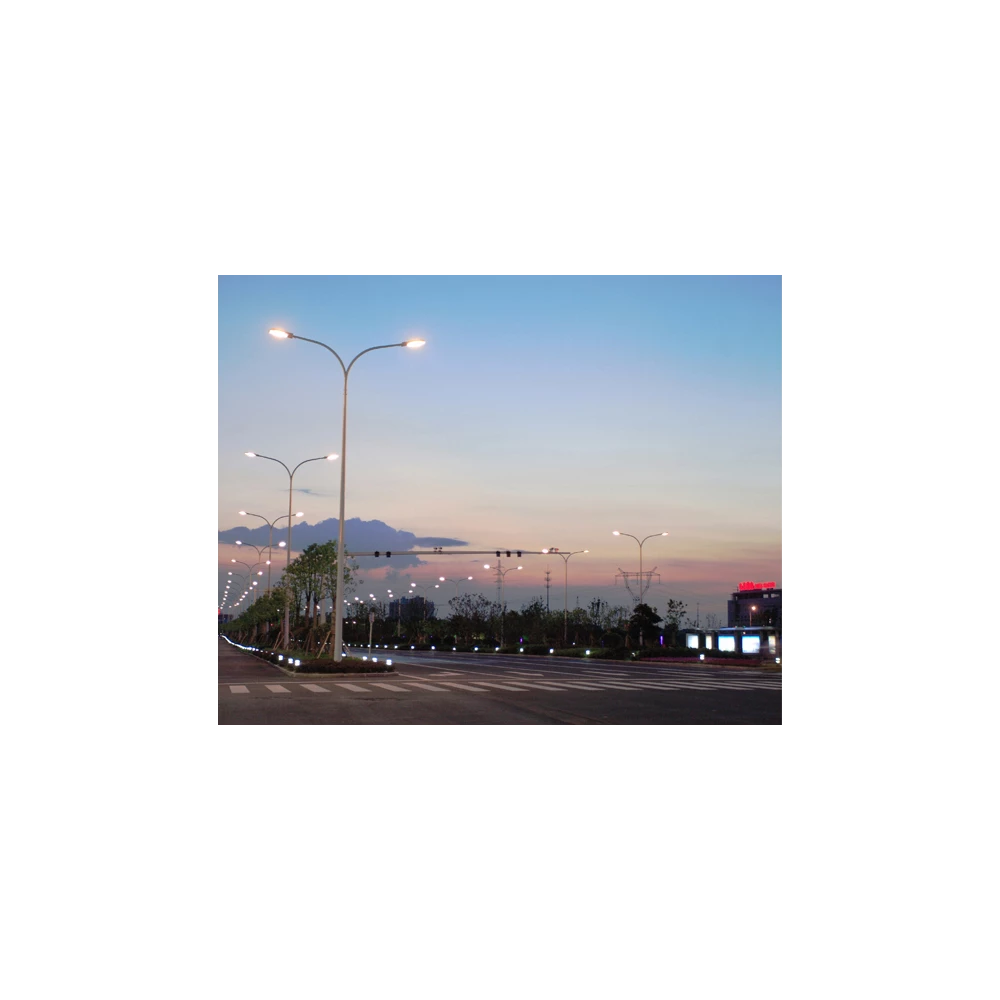

A decorative, streamline exterior commercial solution
Design Specifications
-

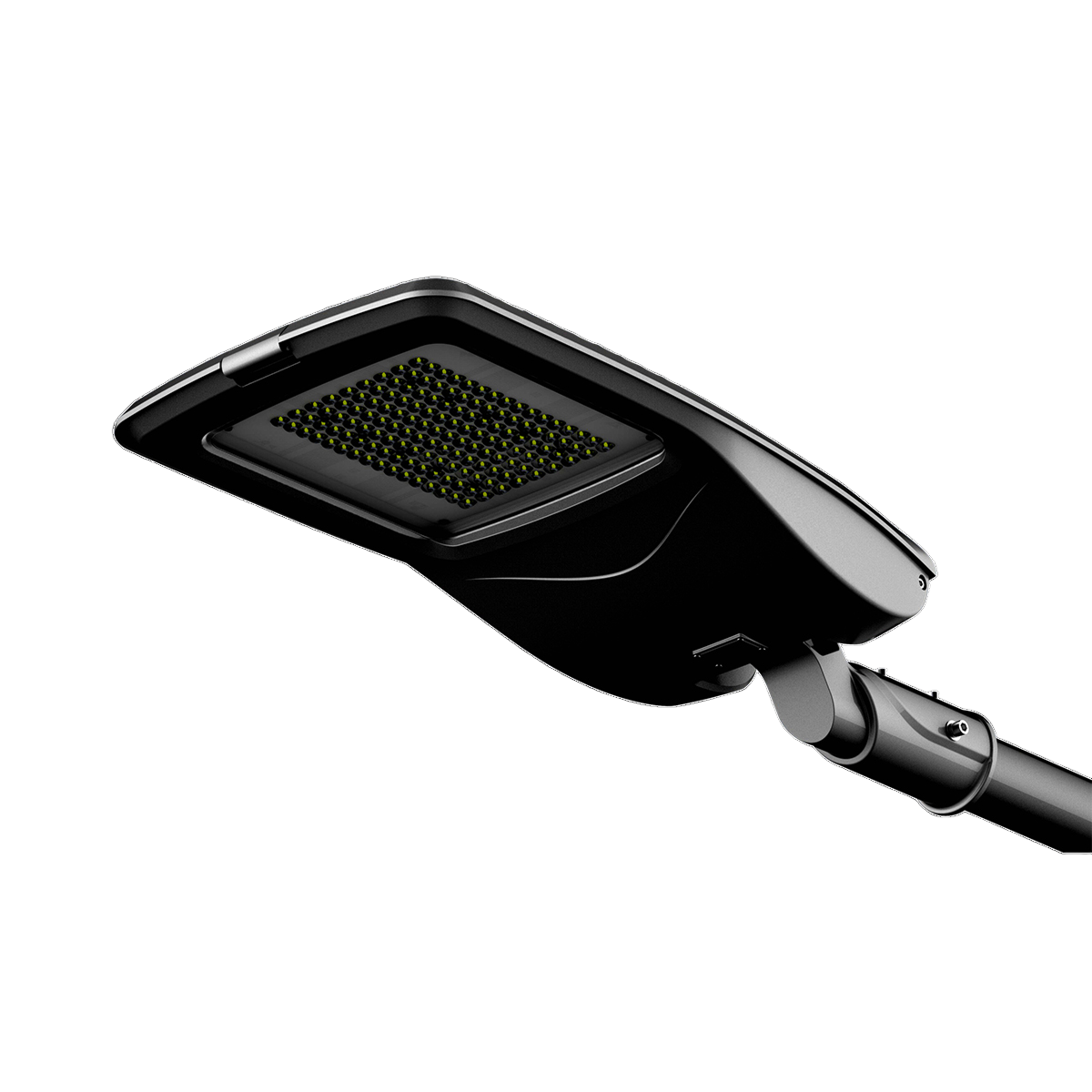

Stylish die-cast aluminium body, durable powder coated finish
-
Integral constant current non-dimmable LED driver as standard, CCT 5000K, optional 4000K
-
Asymmetrical light distribution (TYPE II) fitted, 0% upward light ratio, clear tempered glass diffuser
-
Standard 3G.ANSI C.136.31-2010 Ø 60 pole mounting bracket, 800 mm 3 core rubber flex
-
Optional constant current dimmable LED driver with 3 IN 1 dimming LED driver (1-10V DC, PWM signal & resistance)
-
Lens option (refer to Photometric data below) SHP305A75/P (standard), SHP305A45/P (option), optional PE cell configurations available
Performance
- Dimmable - OPTIONAL
- Dimmer Type - 1-10V DC
- In Built Sensor - OPTIONAL
| Model No. | Description | Input Voltage | Power | Lumens | CCT | CRI | Mass | Dim | Body Colour |
|---|---|---|---|---|---|---|---|---|---|
| SHP305/70NDL/BK | LED STREET LGT 70W 5K IP66 BK | 240 | 70 | 8400 | 5000 | 70 | 9.2 | 763(L) x 352(W) x 167(H) | BLACK |
| SHP305/90NDL/BK | LED STREET LGT 90W 5K IP66 BK | 240 | 90 | 10800 | 5000 | 70 | 9.2 | 763(L) x 352(W) x 167(H) | BLACK |
| SHP305/120NDL/BK | LED STREET LGT 120W 5K IP66 BK | 240 | 120 | 14400 | 5000 | 70 | 9.2 | 763(L) x 352(W) x 167(H) | BLACK |
| SHP305/150NDL/BK | LED STREET LGT 150W 5K IP66 BK | 240 | 150 | 18000 | 5000 | 70 | 9.2 | 763(L) x 352(W) x 167(H) | BLACK |
| SHP305/180NDL/BK | LED STREET LGT 180W 5K IP66 BK | 240 | 180 | 21600 | 5000 | 70 | 9.2 | 763(L) x 352(W) x 167(H) | BLACK |
