Description
15 - 40 watt IP65 surface mount downlight with dimmable options
Application
Ideal for any retail, residential or commercial interior space
Design Specifications
-
Choice of 15, 30 or 40 watt integral control gear, with flickerCONTROLLED performance
-
Selectable CCT 3000 / 4000 / 5700K
-

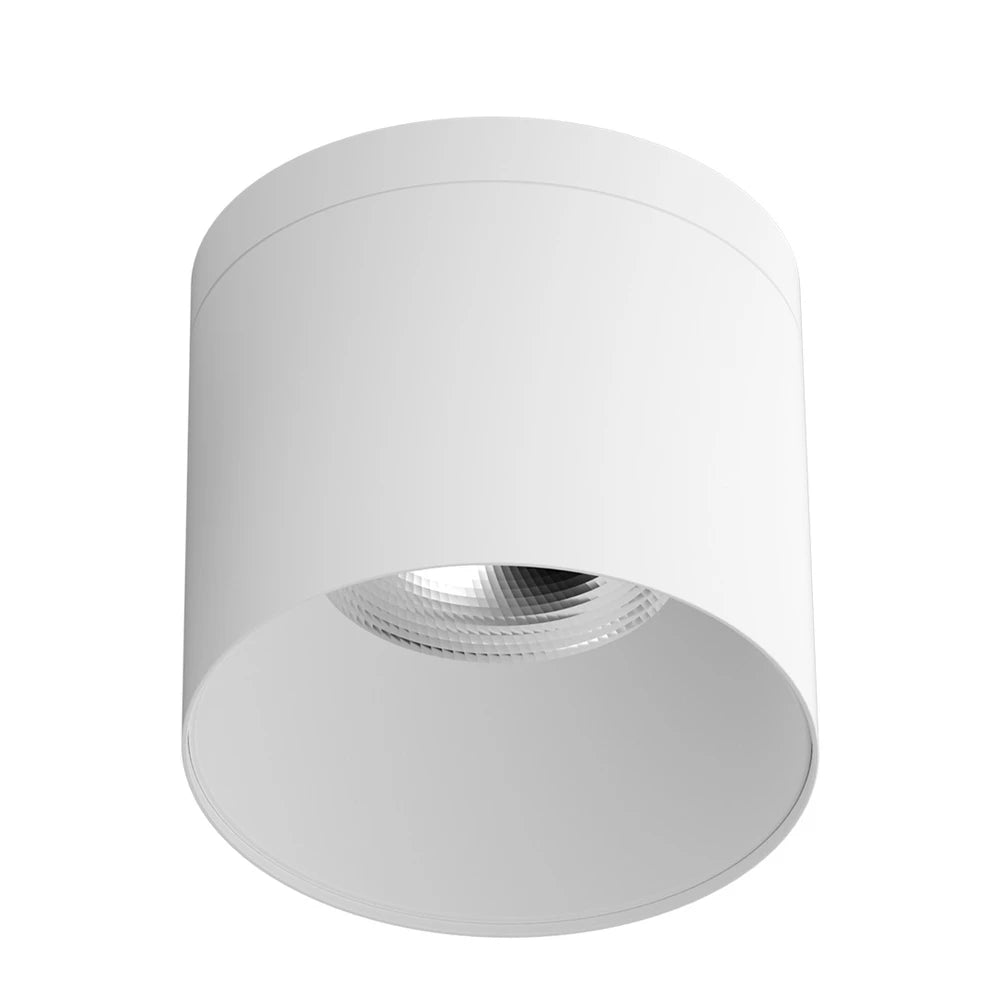

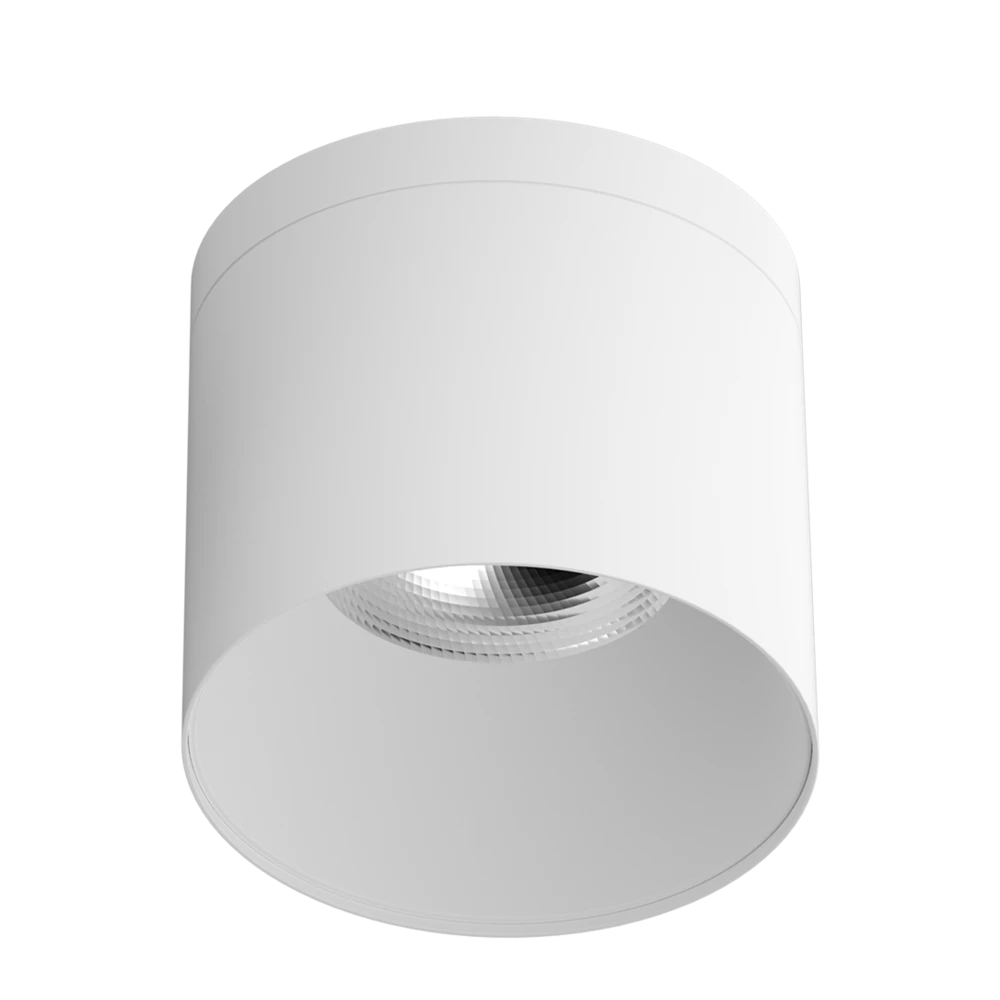

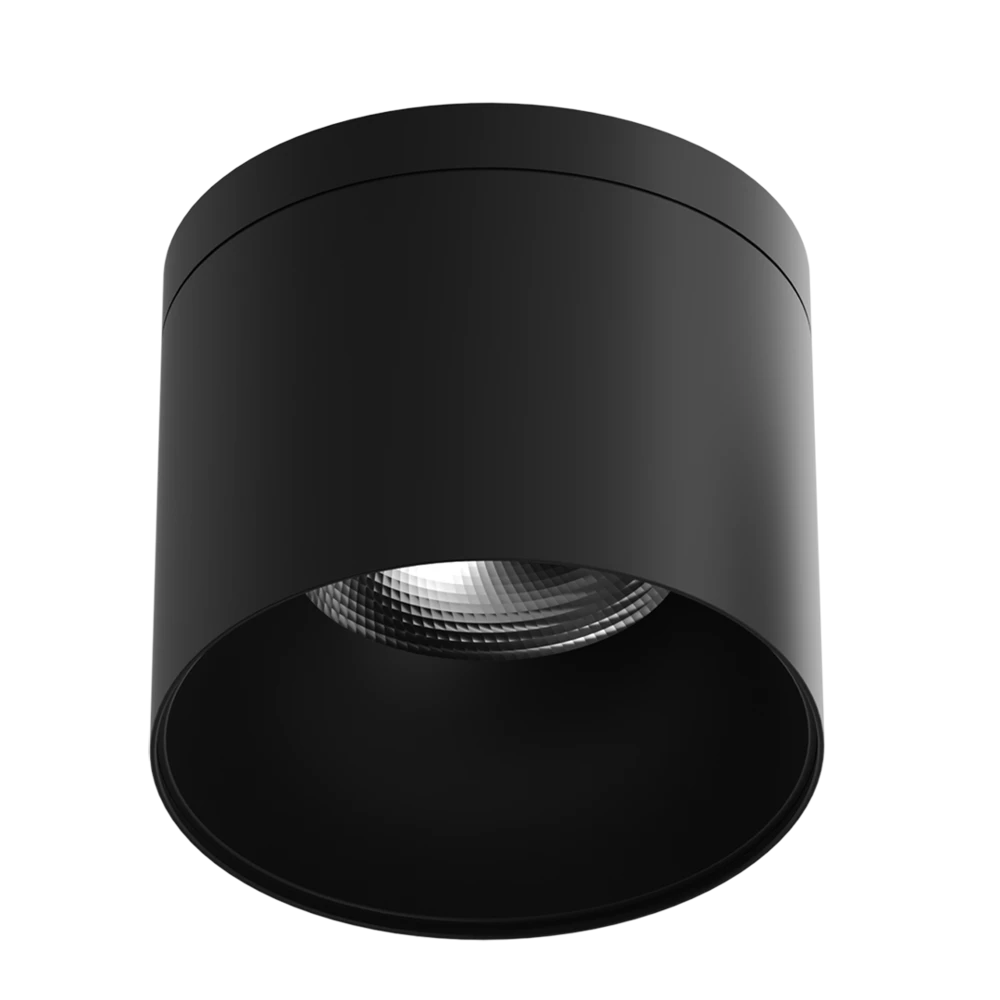

Choice of black or white powdercoat finish
-
Robust IP65 die-cast aluminium body profile
-

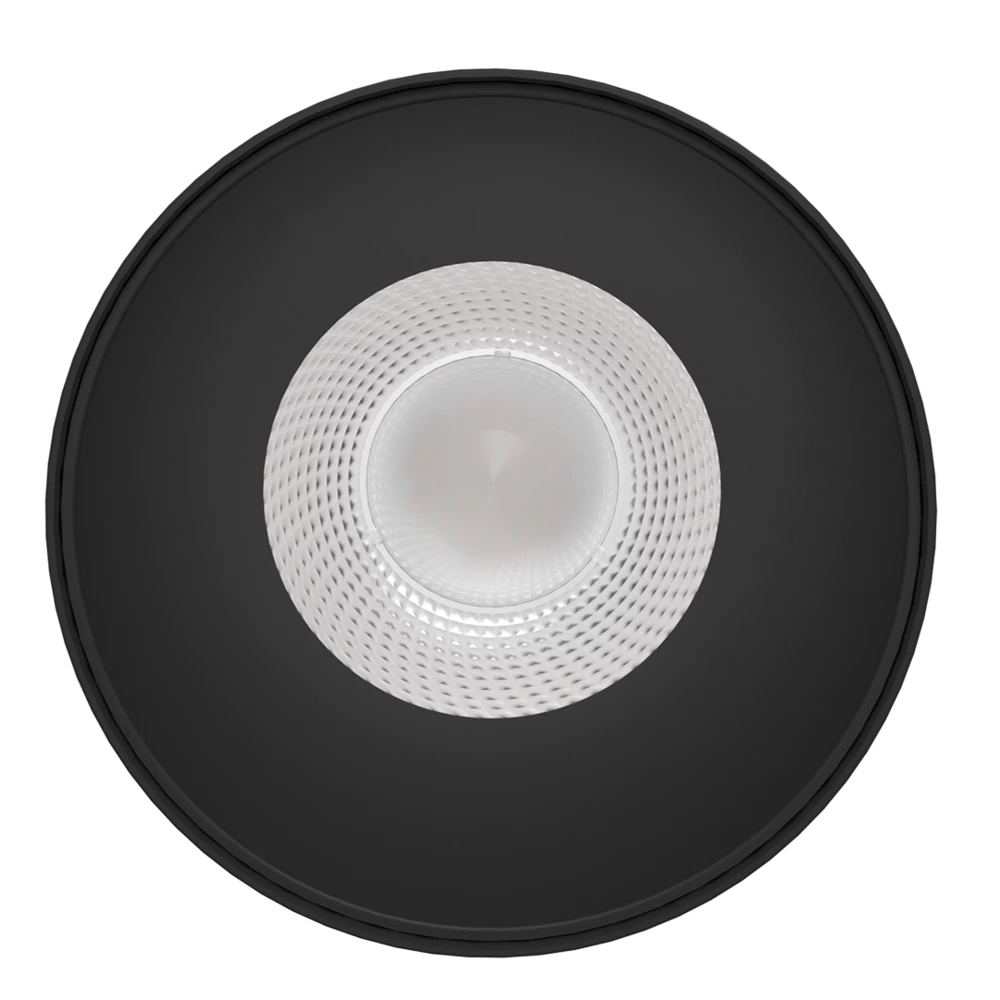

High performance multi-faceted reflector profile, beam 60°, CRI>90
-
IK06 rated
Performance
- Dimmable - YES
- Dimmer Type - REFER MODEL NUMBER

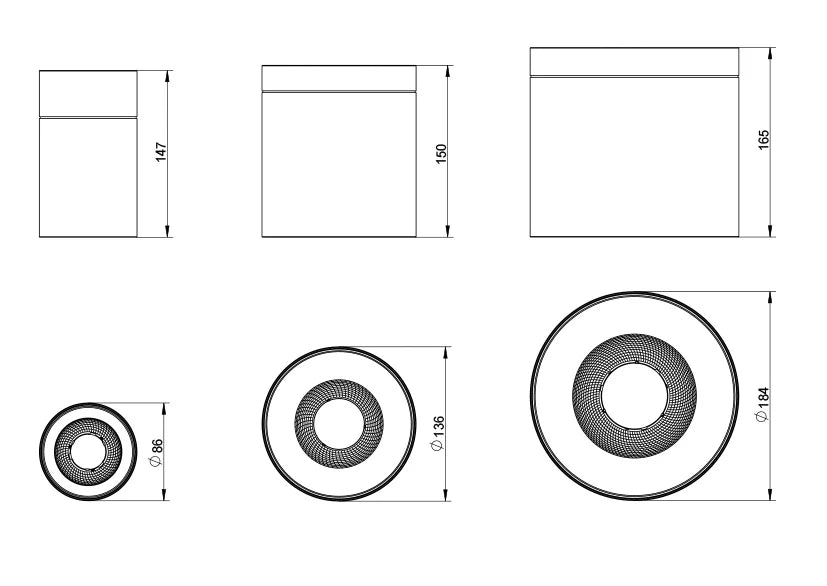

| Model No. | Input Voltage | Power | Lumens | CCT | Beam Angle | Dimmable | CRI | Body Colour | Diameter | Dim |
|---|---|---|---|---|---|---|---|---|---|---|

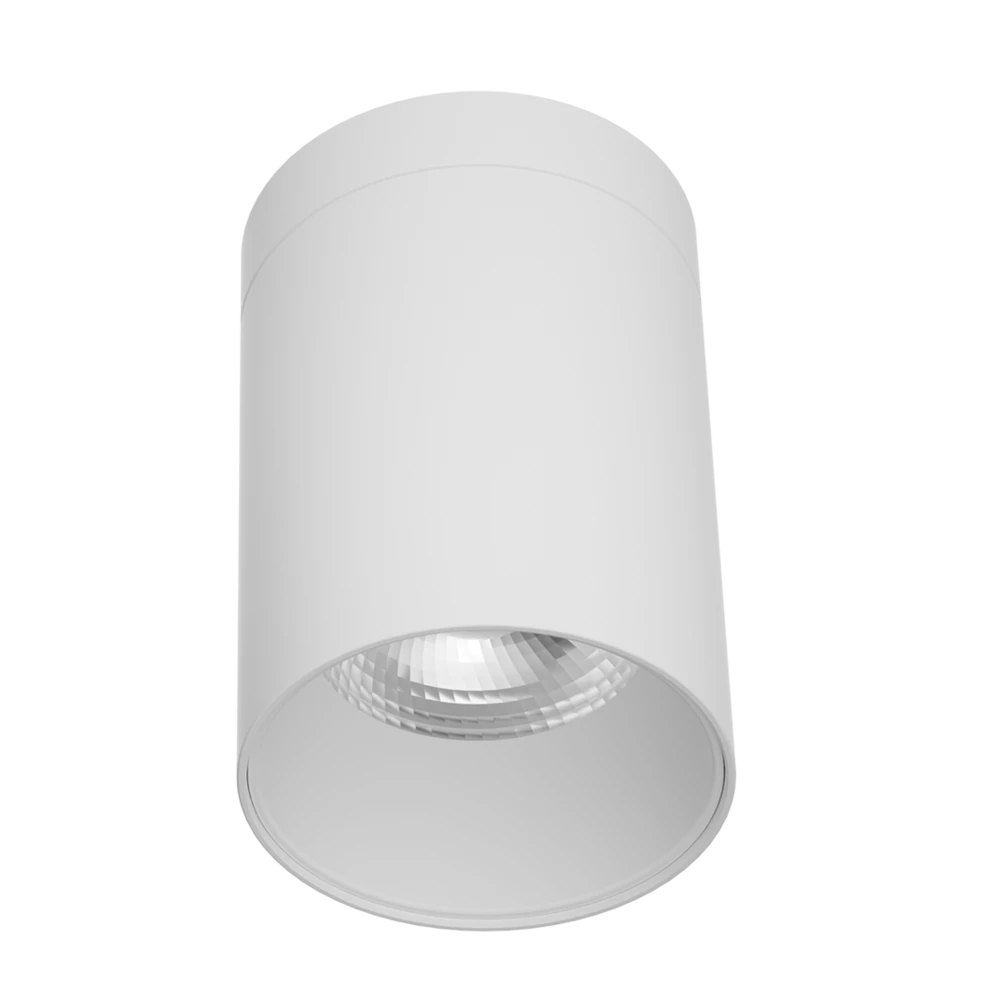

| S9605/85/15TC/WH | 240 | 15 | 1350/1500/1425 | 3000/4000/5700 | 60 | YES | 90 | WHITE | 86 | 147(H) |
| S9605/85/15TC/BK | 240 | 15 | 1125/1275/1200 | 3000/4000/5700 | 60 | YES | 90 | BLACK | 86 | 147(H) |

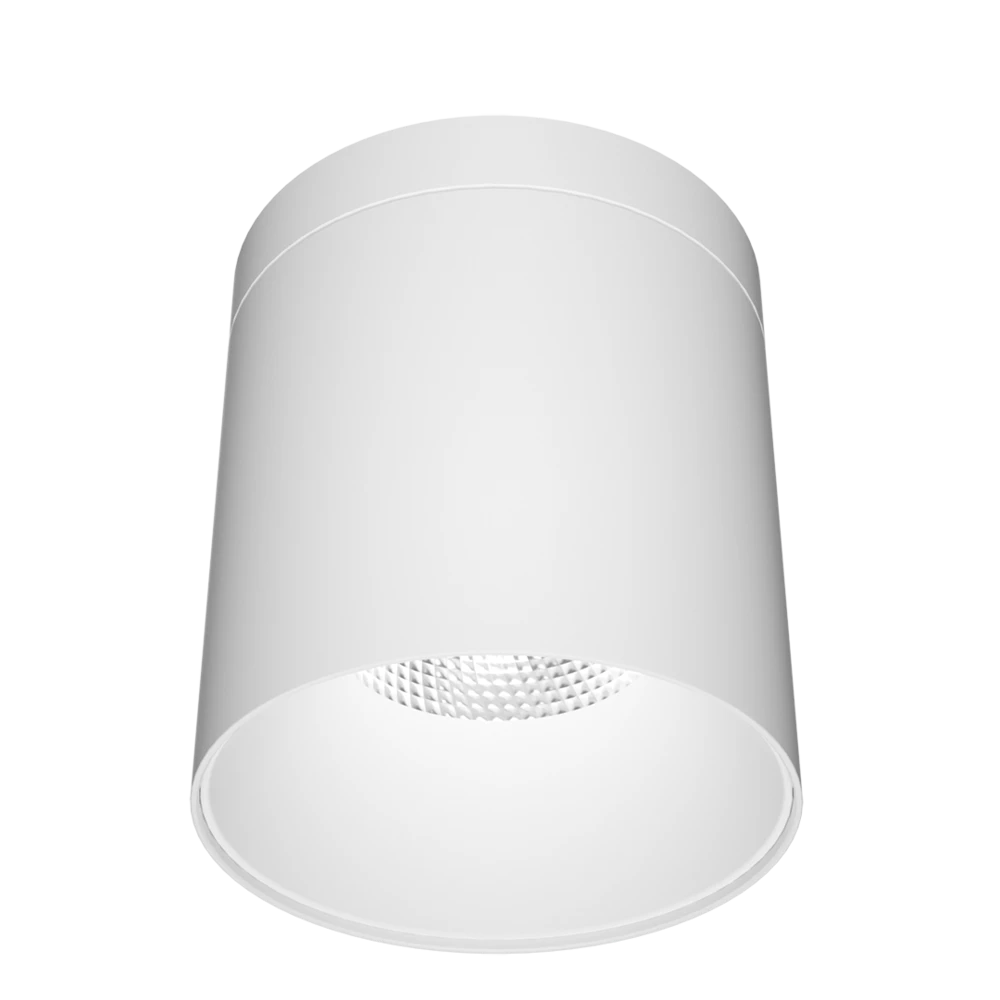

| S9605/135/30TC/WH | 240 | 30 | 3000/3300/3150 | 3000/4000/5700 | 60 | NO | 90 | WHITE | 136 | 150(H) |
| S9605/135/30TC/BK | 240 | 30 | 2400/2700/2550 | 3000/4000/5700 | 60 | NO | 90 | BLACK | 136 | 150(H) |
| S9605/185/40TC/WH | 240 | 40 | 4000/4400/4200 | 3000/4000/5700 | 60 | NO | 90 | WHITE | 165 | 184(H) |
| S9605/185/40TC/WH | 240 | 40 | 3200/3600/3400 | 3000/4000/5700 | 60 | NO | 90 | BLACK | 165 | 184(H) |
