Description
strip, IP65, COB, CRI90
Application
Perfect for the home or commercial fit-outs.
Design Specifications
-
Streamline COB LED technology, providing a smooth lighting profile, with 396 x LEDS p/metre
-
Single colour white strip, choice of WW, DL or CW
-
Beam distribution 140°, CRI90, 10W/m
-
Cuttable every 45mm
-

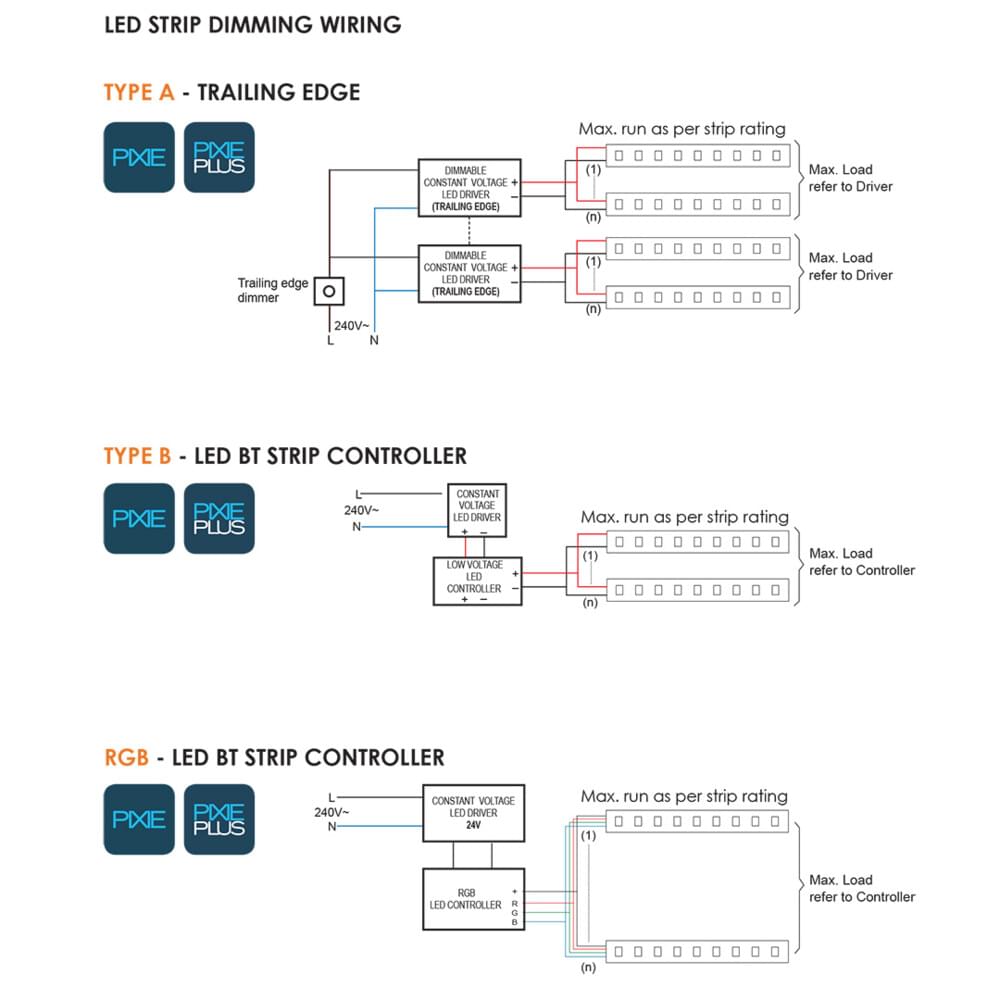

Dimming options: (quick link)
Type A - Trailing edge dimming,
Type B - LED strip controller LT8915DIM/BT
with LT8914DIM/RP if required,
Type C - Analogue 1-10V
Type D - DALI 2 control -
LED channel options (quick link) Heat sink required for system performance
Performance
- Dimmable - OPTIONAL
- Dimmer Type - Refer dimming options
| Model No. | Input Voltage | Watts per metre | Beam Angle | CRI | Luminous Flux Per Meter | LEDs Per Metre | Cutting Interval | Colour Temp. | Dim |
|---|---|---|---|---|---|---|---|---|---|
| FLLB2410/WW/SS | 24 | 10 | 140 | 90 | 735 | 396 | 45 | 3000 | 10(W) x 2(H) |
| FLLB2410/CW/SS | 24 | 10 | 140 | 90 | 800 | 396 | 45 | 4000 | 10(W) x 2(H) |
| FLLB2410/DL/SS | 24 | 10 | 140 | 90 | 840 | 396 | 45 | 6500 | 10(W) x 2(H) |
DOWNLOADS
