Description
Application
A creative solution for residential and commercial interior spaces
Design Specifications
-
High output greater than 1500lm/m
-
High efficiency SMD LED chips with 3M adhesive tape
-
Maximum run length 5m, cuttable every 62.5 mm
at scissors symbol ✂ -
Heat sink and 24V constant voltage LED driver required
-

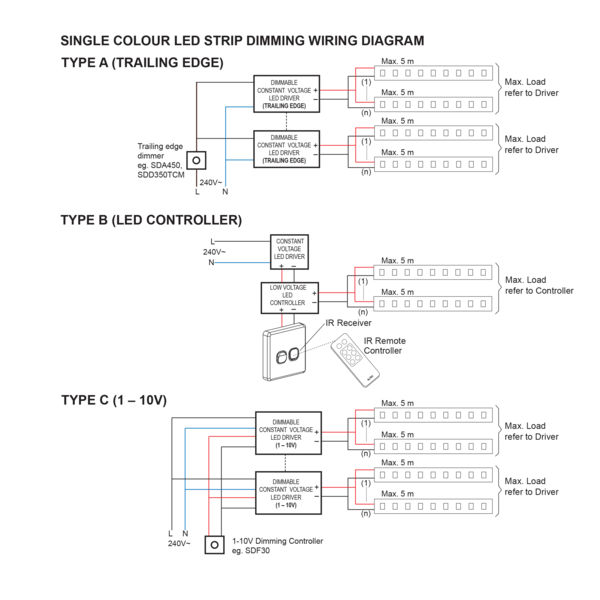

Dimming options: (quick link)
Type A - Trailing edge dimming,
Type B - LED strip controller LT8915DIM/BT
with LT8914DIM/RP if required,
Type C - Analogue 1-10V
Type D - DALI 2 control
Performance
- Dimmable - OPTIONAL
- Dimmer Type - refer dimming options
| Model No. | Input Voltage | Watts per metre | Beam Angle | Lumens | Body Colour | CRI | LEDs Per Metre | Dim | Colour Temp. |
|---|---|---|---|---|---|---|---|---|---|
| FLH2420 WW | 24 | 20 | 115 | 1700 | CLEAR | 80 | 96 | 10(W) x 2(H) | 3000 |
| FLH2420 CW | 24 | 20 | 115 | 1800 | CLEAR | 80 | 96 | 10(W) x 2(H) | 4000 |
| FLH2420 DL | 24 | 20 | 115 | 2000 | CLEAR | 80 | 96 | 10(W) x 2(H) | 6000 |
